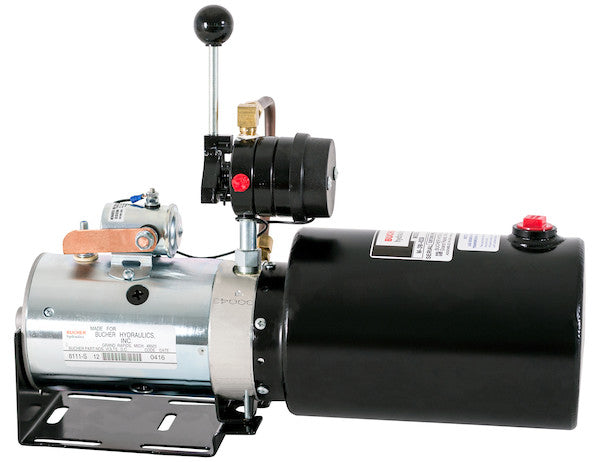

The 4-Way DC Power Unit - Manual Controls from Buyers Products is an all-in-one, compact power pack for operating your snow plow, lift gate, dump trailer, and much more. You get quick-response, power up/power down functionality from one small package that contains a built-in pump, 12V motor, steel reservoir, suction filter, manual handle controls, and more. It's built to withstand weather and tough work demands. Choose from two reservoir sizes to meet your needs.
Specifications
| Control Cable Length | 72 |
|---|---|
| Controller Included? | Y |
| Height | 6.00 |
| Length | 9.00 |
| Manual or Push Button | Manual |
| Motor Horsepower | 2 |
| Motor Power (kW) | 1.5 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 1 |
| Outlet Port Size | 1/4 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Carbon Steel |
| Reservoir Usable Volume | 1.00 |
| Reservoir Volume (Gal) | 1.00 |
| Spool Action | Power Up/Power Down |
| Valve Function | 4w |
| Width | 6.00 |
Advanced Technical Overview: 4-Way DC Power Unit with Manual Controls
The 4-Way DC Power Unit, featuring robust manual controls and a 1.00-gallon horizontal reservoir, represents a sophisticated, integrated hydraulic power solution meticulously engineered for demanding mobile applications. This unit is specifically designed to deliver reliable and precise hydraulic actuation for critical functions such as snow plow operation, lift gate control, and dump trailer mechanisms, among others. Its compact form factor, combined with industrial-grade components, ensures exceptional performance and durability in challenging environmental conditions and rigorous operational cycles.
Integrated Design and Core Components
At the heart of this power unit is a meticulously integrated design, where each component is optimized for synergistic operation, contributing to the system’s overall efficiency and reliability. The unit consolidates a high-performance hydraulic pump, a powerful 12V DC electric motor, a resilient carbon steel reservoir, a vital suction filter, and intuitive manual handle controls into a single, compact assembly. This comprehensive integration minimizes external plumbing and wiring, simplifying installation and reducing potential points of failure, thereby enhancing operational uptime.
High-Efficiency Hydraulic Pump
The hydraulic pump integrated within this unit is precisely matched to the motor and system pressure requirements, providing efficient conversion of mechanical energy into hydraulic power. While specific pump type (e.g., gear pump, vane pump) is not detailed, it is engineered to deliver consistent flow rates essential for responsive actuation. Operating at a pressure rating of 2500 PSI, this pump generates substantial force, enabling the unit to effectively manage heavy loads and demanding tasks typical of commercial and industrial applications. The pump's design prioritizes volumetric efficiency and durability, ensuring longevity even under intermittent heavy loads. Its robust construction resists wear from hydraulic fluid contaminants, especially when coupled with effective filtration.
Powerful 12V DC Electric Motor
The power unit is driven by a potent 12V DC electric motor, boasting 2 horsepower (equivalent to 1.5 kW). This motor is specifically selected for its high torque output and robust performance in DC environments, drawing power directly from a vehicle's 12V electrical system. The substantial horsepower ensures rapid pressurization of the hydraulic system, facilitating quick-response functionality for both "power up" and "power down" operations. Design considerations for this motor include optimal winding configurations for peak efficiency, thermal management capabilities to prevent overheating during cyclical use, and sealed construction to protect against moisture and debris ingress. The motor's 12V operating voltage makes it universally compatible with most vehicle-based power systems, ensuring broad applicability without the need for complex power conversion.
Robust Carbon Steel Hydraulic Reservoir
Central to the hydraulic circuit is the 1.00-gallon carbon steel reservoir, designed for horizontal mounting. Carbon steel is chosen for its superior strength, impact resistance, and cost-effectiveness. The reservoir's material provides excellent structural integrity, protecting the hydraulic fluid and internal components from external damage. Its 1.00-gallon volume (1.00 usable gallon) is carefully dimensioned to provide sufficient hydraulic fluid capacity for typical operational cycles, accommodating fluid expansion due to temperature changes and ensuring adequate volume for the pump's suction requirements without cavitation. The horizontal orientation is often preferred for certain vehicle chassis configurations, allowing for flexible mounting options while maintaining optimal fluid levels for the pump's intake. Proper reservoir sizing is critical for dissipating heat generated during operation and allowing air bubbles to separate from the fluid, preventing system degradation and ensuring consistent performance.
Critical Suction Filter
A vital component for system longevity is the integrated suction filter. Positioned strategically within the reservoir, typically at the pump's inlet, this filter captures particulate contaminants from the hydraulic fluid before it enters the pump. Effective filtration is paramount in hydraulic systems to prevent abrasive wear on precision components such as the pump, valves, and cylinders. The suction filter typically features a specific micron rating designed to protect the pump from larger particles while ensuring adequate flow without excessive pressure drop. Regular inspection and replacement of this filter are crucial maintenance procedures that directly impact the operational life and efficiency of the entire hydraulic power unit.
Advanced Hydraulic Control: 4-Way Manual Valve with Power Up/Power Down
The control mechanism of this power unit is a highly capable 4-way manual valve, providing comprehensive control over double-acting hydraulic cylinders. The "4-way" designation indicates that the valve has four ports: a pressure port (P), a tank/return port (T), and two work ports (A and B). This configuration allows the precise direction of hydraulic fluid to extend or retract a double-acting cylinder, effectively providing both pushing and pulling forces.
Manual Controls for Direct Engagement
The inclusion of manual handle controls offers a direct, tactile interface for the operator. Unlike solenoid-actuated valves that rely on electrical signals, manual controls provide a robust and often preferred method for applications where simplicity, reliability, and operator feedback are critical. The 72-inch control cable length provides flexibility in mounting the power unit at a convenient location while still allowing the operator to control it from a safe and accessible position. Manual controls are inherently less susceptible to electrical interference or power fluctuations, offering steadfast operation in challenging conditions. The direct mechanical linkage ensures immediate response to operator input, enhancing precision and safety in critical operations.
Power Up/Power Down Spool Action
The "Power Up/Power Down" spool action is a key functional characteristic of this unit. This implies that hydraulic pressure is actively used to both extend and retract the hydraulic cylinder. In contrast to "power up/gravity down" systems where descent relies solely on the weight of the load, the "power up/power down" configuration provides positive control over the cylinder in both directions. This is particularly advantageous for applications requiring precise positioning, controlled lowering of heavy loads, or operations where the load might not be sufficient to induce gravity-driven descent. This functionality is achieved through the sophisticated internal design of the 4-way valve, often incorporating metering edges on the spool or integrated restrictors to regulate fluid flow during descent, preventing uncontrolled free-fall and ensuring smooth, predictable motion. The precise metering capabilities offered by this valve design contribute significantly to the safety and operational efficiency of the attached equipment.
Valve Specifications and Performance
The unit features one cartridge valve with a 4-way function, underscoring its streamlined design. The outlet port size of 1/4 NPT (National Pipe Taper) is a standard connection type, ensuring compatibility with a wide range of hydraulic hoses and fittings. This standardized port size facilitates straightforward integration into existing hydraulic circuits. The impressive 2500 PSI pressure rating of the valve system directly corresponds to the force generation capability of the power unit, making it suitable for heavy-duty lifting and actuation tasks without compromising structural integrity or sealing performance.
Operational Performance and Electrical Considerations
Understanding the operational parameters and electrical requirements is crucial for maximizing the performance and lifespan of this DC power unit.
Hydraulic Force and Speed
With a 2500 PSI pressure rating, this unit is capable of generating significant hydraulic force. The actual lifting capacity depends on the bore size of the hydraulic cylinder it is connected to (Force = Pressure x Piston Area). For example, a 3-inch bore cylinder at 2500 PSI could generate over 17,000 lbs of force. The speed of actuation is primarily determined by the pump's flow rate and the volume of the cylinder. While specific flow rates are not provided, a 2 HP 12V motor typically drives a pump capable of delivering flow rates suitable for rapid yet controlled movement in the specified applications.
Electrical Power Management
The 12V DC motor, rated at 2 HP (1.5 kW), will draw substantial current under load. For optimal performance and to prevent electrical system strain, it is imperative to ensure an adequate power supply from the vehicle's battery. This includes using appropriately sized heavy-gauge wiring (as specified by NEC or local codes for the current draw and cable length) to minimize voltage drop, and employing a robust fuse or circuit breaker to protect the motor and electrical system from overcurrent conditions. The vehicle's battery system must have sufficient amp-hour (Ah) capacity and cold cranking amps (CCA) to sustain the motor's power demands during peak operation without excessive discharge, which could impact vehicle starting performance.
Duty Cycle Considerations
DC hydraulic power units, especially those used in mobile applications, are typically designed for intermittent duty cycles. This means the motor is intended for short bursts of operation followed by periods of rest to allow for cooling. Adhering to the manufacturer's specified duty cycle is critical to prevent motor overheating, which can lead to premature wear of motor brushes, insulation degradation, and eventual motor failure. Proper integration into equipment ensures that operational sequences respect these duty cycle limitations, guaranteeing long-term reliability.
Applications and Versatility
The 4-Way DC Power Unit with manual controls and a 1.00-gallon horizontal reservoir is an exceptionally versatile solution, finding utility across a spectrum of demanding mobile and stationary applications:
- Snow Plows: Provides the necessary power for precisely lifting, lowering, and angling snow plow blades, enabling efficient snow removal operations. The power up/power down feature allows controlled manipulation of the blade even when encountering varied snow densities.
- Lift Gates: Ideal for operating vehicle-mounted lift gates, facilitating the loading and unloading of cargo. The controlled ascent and descent capabilities enhance safety and prevent damage to goods.
- Dump Trailers: Powers the hydraulic cylinder responsible for raising and lowering dump trailer beds, making material handling and disposal efficient and reliable.
- Utility Vehicle Attachments: Suitable for various hydraulic attachments on utility vehicles, such as small cranes, post-hole diggers, or specialized implements requiring bi-directional hydraulic force.
- Small Agricultural Equipment: Can be integrated into compact tractors or specialized farming equipment for operating hydraulic cylinders on cultivators, spray booms, or small loaders.
- Material Handling: Employed in light-duty industrial material handling solutions, including small hydraulic presses, work positioners, or custom lifting fixtures.
The compact footprint (6.00" H x 9.00" L x 6.00" W) and horizontal mounting position further enhance its adaptability, allowing for integration into space-constrained applications without significant design modifications.
Installation and Maintenance Best Practices
Proper installation and diligent maintenance are paramount to realizing the full potential and extended service life of the 4-Way DC Power Unit.
Installation Guidelines:
- Mounting: The horizontal mounting position should be utilized as specified, ensuring the reservoir remains level and the pump inlet is always submerged in hydraulic fluid, preventing cavitation. Secure mounting to a rigid, vibration-resistant surface is essential.
- Electrical Connections: All electrical connections must be clean, tight, and protected from environmental exposure. Use appropriate wire gauges as per the manufacturer's recommendations and fuse the circuit correctly at the power source to prevent damage from overcurrents.
- Hydraulic Connections: Utilize high-quality hydraulic hoses and fittings rated for the system's 2500 PSI operating pressure. Ensure all connections are properly torqued to prevent leaks and introduce air into the system. The 1/4 NPT outlet port requires compatible male NPT fittings.
- Fluid Filling: Fill the reservoir with the recommended type and grade of hydraulic fluid (e.g., AW-32 or AW-46 hydraulic oil, depending on operating temperatures) to the specified level. Ensure the fluid is clean and free of contaminants to protect internal components.
Maintenance Requirements:
- Hydraulic Fluid: Regularly inspect the hydraulic fluid level and condition. Replace the fluid according to manufacturer guidelines or if it appears discolored, cloudy, or contaminated.
- Suction Filter: Periodically inspect and replace the suction filter to ensure optimal filtration and prevent pump damage. A clogged filter can restrict fluid flow and lead to cavitation.
- Electrical System: Check battery connections, wiring, and fuses regularly for signs of wear, corrosion, or damage.
- External Cleaning: Keep the exterior of the power unit clean, especially the motor housing, to facilitate proper heat dissipation and prevent corrosion.
- Leak Detection: Routinely check for hydraulic fluid leaks at connections, seals, and hose junctions. Address any leaks promptly to prevent fluid loss and environmental contamination.
Environmental Durability and Reliability
Designed to "withstand weather and tough work demands," this power unit incorporates features that contribute to its robust environmental durability. The carbon steel reservoir offers inherent resistance to physical impact and, when properly coated or treated, provides significant corrosion protection. Critical electrical components, including the 12V motor, are typically sealed to resist moisture, dust, and debris ingress, ensuring reliable operation in harsh outdoor conditions, ranging from extreme cold during snow plowing operations to hot, dusty environments for construction equipment. The overall construction adheres to industrial standards, reflecting a commitment to longevity and minimal downtime in demanding operational settings.
Conclusion
The 4-Way DC Power Unit with manual controls and a 1.00-gallon horizontal reservoir stands as a testament to advanced hydraulic engineering within a compact, robust package. Its integrated design, featuring a powerful 12V DC motor, a high-pressure pump, a durable carbon steel reservoir, and precise 4-way manual controls with power up/power down functionality, positions it as an indispensable component for a wide array of mobile and industrial applications. Delivering a potent combination of 2 HP, 2500 PSI pressure, and a 1.00-gallon fluid capacity, this unit provides the responsive, reliable, and durable hydraulic power necessary for critical functions like snow plowing, lift gate operation, and dump trailer mechanisms. Its technical specifications and design choices reflect a focus on performance, ease of integration, and long-term operational resilience, making it a superior choice for professionals seeking uncompromising hydraulic control in challenging environments. The meticulous attention to component integration, coupled with user-friendly manual operation, ensures that this power unit offers exceptional value, efficiency, and steadfast performance throughout its operational life.
