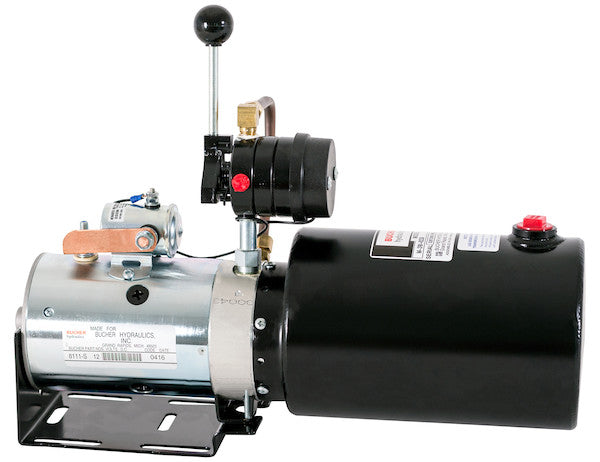

The 4-Way DC Power Unit - Manual Controls from Buyers Products is an all-in-one, compact power pack for operating your snow plow, lift gate, dump trailer, and much more. You get quick-response, power up/power down functionality from one small package that contains a built-in pump, 12V motor, steel reservoir, suction filter, manual handle controls, and more. It's built to withstand weather and tough work demands. Choose from two reservoir sizes to meet your needs.
Specifications
| Control Cable Length | 72 |
|---|---|
| Controller Included? | Y |
| Height | 6.25 |
| Length | 15.00 |
| Manual or Push Button | Manual |
| Motor Horsepower | 2 |
| Motor Power (kW) | 1.5 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 1 |
| Outlet Port Size | 1/4 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Carbon Steel |
| Reservoir Usable Volume | 2.20 |
| Reservoir Volume (Gal) | 2.20 |
| Spool Action | Power Up/Power Down |
| Valve Function | 4W |
| Width | 6.00 |
Comprehensive Technical Overview: The 4-Way DC Power Unit with Manual Controls and Horizontal 2.20 Gallon Reservoir
The 4-Way DC Power Unit with Manual Controls and a Horizontal 2.20 Gallon Reservoir represents a robust and highly efficient hydraulic power solution engineered for demanding mobile applications. This self-contained hydraulic power unit (HPU) is meticulously designed to provide reliable, responsive, and precise control for a diverse range of hydraulic systems commonly found in vehicle-mounted equipment such as snow plows, lift gates, and dump trailers. Its compact footprint, combined with integrated components and a resilient construction, positions it as an ideal choice for original equipment manufacturers (OEMs) and aftermarket installations requiring dependable hydraulic force in challenging operational environments.
Architectural Design and Core Components
This HPU integrates several critical hydraulic and electrical components into a single, cohesive unit, optimizing space utilization and simplifying installation. The fundamental architecture comprises a high-performance 12V DC electric motor, a positive displacement hydraulic pump, a durable carbon steel fluid reservoir, a sophisticated 4-way directional control valve with manual actuation, and essential fluid management accessories including a suction filter.
The 12V DC Electric Motor: Powering Performance
At the heart of this power unit is a robust 12V DC electric motor, meticulously engineered to deliver a continuous output of 2 horsepower (HP), equivalent to 1.5 kilowatts (kW). This specification is crucial for mobile applications, leveraging standard vehicle electrical systems (12V) for power. The selection of a 12V DC motor is pivotal for several reasons: it ensures compatibility with most vehicle battery systems, minimizes voltage drop over typical cable lengths, and provides ample starting torque necessary to initiate hydraulic flow rapidly and efficiently, even under load. The motor’s design emphasizes high efficiency, converting electrical energy into mechanical power with minimal losses, which is critical for conserving battery life and reducing heat generation. Its sturdy construction is built to withstand the rigorous duty cycles inherent in hydraulic operations, offering longevity and consistent performance across a broad spectrum of ambient temperatures and operational demands. The motor's capability to deliver 2 HP ensures sufficient power to achieve the rated system pressure of 2500 PSI, facilitating effective operation of various hydraulic actuators.
The Hydraulic Pump: Precision Flow Generation
Integrated seamlessly with the DC motor is a high-efficiency hydraulic pump, typically a gear pump in units of this configuration. This positive displacement pump is responsible for converting the mechanical rotational energy from the motor into hydraulic energy by generating flow. The pump's design is optimized to provide a consistent flow rate, directly contributing to the "quick-response" functionality highlighted in the product's overview. The volumetric efficiency of the pump is critical, ensuring that maximum fluid is moved per revolution, which translates to faster actuation speeds for connected cylinders. The precise matching of the pump's displacement to the motor's power output at 12V is a key engineering consideration, ensuring that the unit operates within optimal performance parameters without excessive current draw or thermal stress, while consistently maintaining the 2500 PSI pressure rating required for heavy-duty applications.
The 2.20 Gallon Horizontal Carbon Steel Reservoir: Fluid Management and Durability
The hydraulic fluid reservoir is a foundational component, crucial for storing hydraulic fluid, dissipating heat, and allowing for air and contaminant separation. This specific unit features a 2.20-gallon capacity reservoir, precisely sized to meet the volumetric requirements of the system's hydraulic cylinders, ensuring that sufficient fluid is available for full extension and retraction cycles without drawing air into the pump. The reservoir's material composition of carbon steel provides exceptional durability and resistance to impact, abrasion, and corrosion, essential for equipment exposed to harsh weather conditions and rugged operational environments. The "horizontal" mounting position, as specified in the product title and details, dictates the physical orientation of the unit, which can be advantageous for specific installation envelopes on vehicles, allowing for more versatile mounting options in constrained spaces. The reservoir's internal design facilitates optimal fluid conditioning, working in conjunction with the integrated suction filter to protect the pump and valve from particulate contamination, thereby extending the overall lifespan of the hydraulic system.
The 4-Way Manual Directional Control Valve: Precise Power Up/Power Down Operation
A defining feature of this HPU is its 4-way (4W) directional control valve, characterized by a "Power Up/Power Down" spool action and integrated manual controls. A 4-way valve typically refers to a valve with four working ports (Pressure, Tank, A, and B), allowing for the independent control of a double-acting hydraulic cylinder. The "Power Up/Power Down" functionality signifies that hydraulic pressure is actively applied during both the extension ("up") and retraction ("down") phases of a hydraulic cylinder's movement. This is a superior control method compared to gravity-down systems, offering precise speed control, the ability to lower loads under power, and the capacity to hold loads in any intermediate position, which is critical for applications like snow plows (for controlled angling and lifting) and lift gates (for smooth, controlled lowering of heavy cargo). The single cartridge valve design streamlines the hydraulic circuit, reducing potential leak points and simplifying maintenance. The inclusion of manual handle controls, featuring a 72-inch control cable, provides the operator with direct, tactile feedback and reliable mechanical actuation. This manual control system offers a robust and dependable interface, particularly valued in environments where electronic controls might be susceptible to moisture, dust, or impact, ensuring consistent functionality without reliance on complex wiring or delicate electronic components. The precise operation offered by the manual controls allows operators to finely modulate the movement of the hydraulic actuator, enhancing safety and operational efficiency.
Integrated Suction Filter: System Protection
To ensure the longevity and reliability of the hydraulic system, a suction filter is integrated within the reservoir. This filter is strategically placed to remove particulate contaminants from the hydraulic fluid before it enters the pump, preventing abrasive wear on critical pump and valve components. Maintaining fluid cleanliness is paramount in hydraulic systems, and the suction filter plays a crucial role in preventing system failures and reducing maintenance frequency, thereby maximizing operational uptime.
Performance Characteristics and Operational Benefits
The performance profile of this 4-Way DC Power Unit is optimized for demanding mobile hydraulic applications, delivering power and precision where it's most needed.
High Pressure Rating for Diverse Applications
With a maximum pressure rating of 2500 PSI (pounds per square inch), this power unit is capable of generating significant hydraulic force. This pressure capacity ensures that the unit can effectively operate heavy-duty actuators, making it suitable for lifting substantial loads with lift gates, manipulating large snow plow blades, or tilting heavily loaded dump trailers. The robust pressure capability is a testament to the engineering and component selection, providing a reliable power source for rigorous tasks.
Compact Design and Horizontal Mounting Versatility
The unit's compact dimensions (6.25 inches Height, 15.00 inches Length, 6.00 inches Width) are a significant advantage for installations where space is at a premium. The specified horizontal mounting position provides flexibility in vehicle integration, allowing the unit to be installed in various chassis locations, under truck beds, or within equipment compartments. This compact, all-in-one design minimizes the need for extensive plumbing and wiring, simplifying installation and reducing potential failure points. The 1/4 NPT outlet port size is a standard dimension, ensuring broad compatibility with common hydraulic fittings and hose assemblies, facilitating straightforward system integration.
Responsive and Controlled Actuation
The combination of a powerful 12V DC motor, an efficient pump, and the "Power Up/Power Down" valve action ensures quick-response and precise control over hydraulic actuators. This means operators experience immediate engagement and disengagement of hydraulic functions, which is essential for tasks requiring swift adjustments, such as snow plowing. The ability to actively control both the extension and retraction of a cylinder provides superior handling of loads, preventing free-fall and allowing for smooth, gradual movements, enhancing both safety and operational finesse.
Applications and Industry Relevance
The versatility and robust performance of the 4-Way DC Power Unit make it indispensable across a spectrum of mobile equipment applications:
- Snow Plows: Provides precise power for lifting, lowering, and angling snow plow blades, crucial for efficient and effective snow removal operations. The "Power Up/Power Down" function is particularly beneficial for controlling blade pressure and angle.
- Lift Gates: Powers the hydraulic cylinders responsible for raising and lowering lift gate platforms, ensuring smooth and safe cargo handling. The controlled lowering capability is vital for preventing damage to cargo and ensuring operator safety.
- Dump Trailers: Supplies the hydraulic force necessary for tilting the trailer bed to unload materials and retracting it safely. The ability to hold the bed at various angles is a significant operational advantage.
- Agricultural Equipment: Suitable for small implements requiring hydraulic actuation, such as utility vehicle attachments or compact tractor implements.
- Utility Vehicles and Service Trucks: Can power various attachments like small cranes, tool lifts, or specialized equipment requiring intermittent hydraulic power.
- Marine Applications: Potentially adaptable for small marine davits or trim tab systems where a compact, weather-resistant DC power source is needed.
Durability and Environmental Resilience
The construction of this hydraulic power unit is designed to endure the rigorous conditions encountered in outdoor and industrial environments. The carbon steel reservoir provides robust protection for the hydraulic fluid, resisting physical damage and corrosion. All components, including the 12V motor and manual control mechanism, are engineered to withstand exposure to weather elements such, as moisture, temperature fluctuations, and airborne particulates. The absence of complex electronic circuits in the manual control system contributes to its overall reliability in harsh conditions, reducing susceptibility to electromagnetic interference or water ingress issues commonly associated with more sensitive electronic controls. This emphasis on robust materials and design ensures extended operational life and consistent performance, even in the most demanding applications.
Installation, Maintenance, and Safety Considerations
Installation of the 4-Way DC Power Unit is simplified by its integrated design and compact dimensions. Proper electrical wiring for the 12V DC motor, adherence to hydraulic plumbing best practices using the 1/4 NPT ports, and secure horizontal mounting are critical for optimal performance and safety. A 72-inch control cable provides ample length for remote operation, allowing the operator to control the unit from a safe and convenient location within the vehicle's cab or alongside the equipment. Regular maintenance, including periodic inspection of hydraulic fluid levels and quality, replacement of the suction filter, and checks of electrical connections and hydraulic hoses, is essential to ensure long-term reliability and peak performance. The unit's design implicitly incorporates safety features such as an internal pressure relief valve to protect the system from over-pressurization, a standard feature in high-quality HPUs, although specific details are not provided in the table. Adherence to manufacturer guidelines for fluid type and operating parameters is crucial for safeguarding the unit and maximizing its operational lifespan.
Conclusion
The 4-Way DC Power Unit with Manual Controls and a Horizontal 2.20 Gallon Reservoir stands as a prime example of advanced hydraulic engineering tailored for mobile applications. Its integrated design, encompassing a powerful 12V 2HP DC motor, efficient pump, durable carbon steel reservoir, and a precise 4-way manual control valve with "Power Up/Power Down" functionality, delivers unparalleled performance and reliability. With a robust 2500 PSI pressure rating and a compact, horizontally mountable footprint, this HPU provides the necessary hydraulic force and precise control for critical operations such as snow plowing, lift gate actuation, and dump trailer operation. Engineered for durability and ease of integration, it represents a superior investment for professionals seeking a dependable and high-performing hydraulic solution capable of withstanding the most rigorous work demands and environmental challenges. This unit epitomizes efficiency, control, and resilience in a compact, all-in-one package, making it an essential component for enhancing the functionality and productivity of a wide array of mobile equipment.
