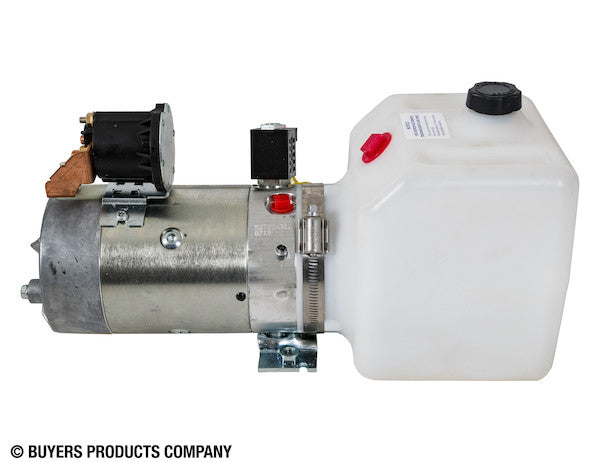

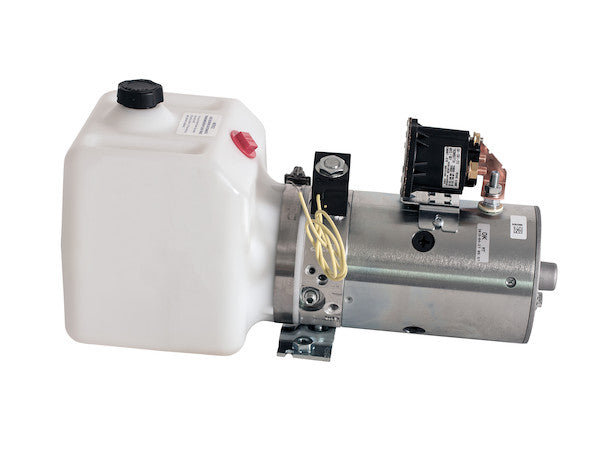

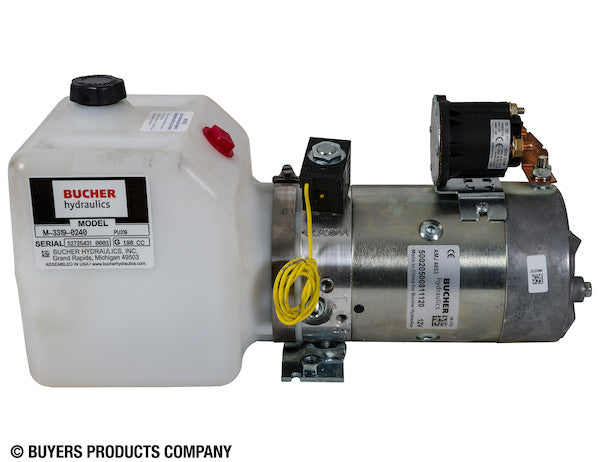

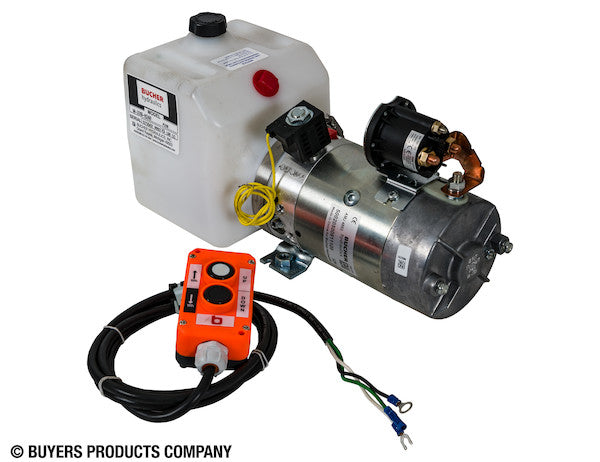

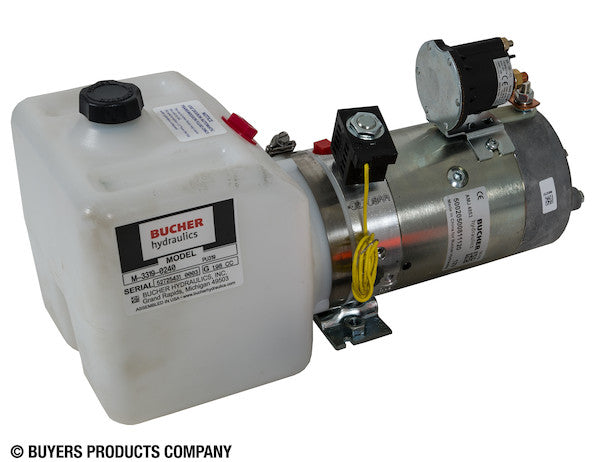

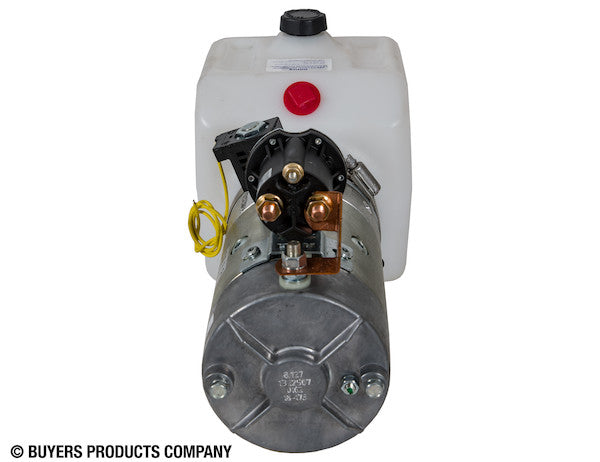

The 3-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. It's ideal for any power up/gravity down hydraulic application such as a plow or dump body. You get quick-response functionality at your fingertips from one small package. The unit contains a built-in pump, 12V motor, polymer or steel reservoir, 3 function valve, double filtration, factory-wired control station, and more. It also features a solenoid-actuated, externally mounted release valve. It's built to withstand weather and tough work demands.
Specifications
| Control Cable Length | 72 |
|---|---|
| Controller Included? | Y |
| Height | 8.09 |
| Length | 14.89 |
| Manual or Push Button | Push Button |
| Motor Horsepower | 2 |
| Motor Power (kW) | 1.5 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 1 |
| Outlet Port Size | 3/8 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Glass Filled Nylon |
| Reservoir Usable Volume | 0.75 |
| Reservoir Volume (Gal) | 0.75 |
| Spool Action | Power Up/Gravity Down |
| Valve Function | 3W |
| Width | 6.69 |
Advanced Technical Overview: The 3-Way DC Hydraulic Power Unit with Electric Controls
The 3-Way DC Power Unit with Electric Controls, manufactured by Buyers Products, represents a sophisticated, integrated hydraulic power solution meticulously engineered for demanding mobile and industrial applications. This compact power pack is specifically designed to deliver reliable "power up/gravity down" functionality, making it an indispensable component for a wide array of hydraulic systems requiring precise, unidirectional lifting and controlled descent. Its all-in-one architecture consolidates critical hydraulic and electrical components into a robust, space-saving enclosure, significantly simplifying installation and enhancing overall system reliability.
Integrated System Architecture and Core Components
At the heart of this power unit lies a meticulously designed system of interconnected components, each selected for optimal performance and longevity. The unit features a high-efficiency hydraulic pump driven by a powerful 12V DC electric motor, a resilient polymer (glass-filled nylon) reservoir, a multi-function valve system, an advanced double filtration mechanism, and a pre-wired electrical control station. This comprehensive integration ensures users benefit from quick-response hydraulic action and consistent performance under varying operational conditions.
High-Performance 12V DC Electric Motor
Powering the hydraulic system is a robust 12V DC electric motor, rated at 2 horsepower (1.5 kW). This motor is specifically chosen for its ability to deliver significant torque and power output from a common DC power source, such as a vehicle battery. DC operation is crucial for mobile applications where AC is not readily available or practical. The motor’s high efficiency ensures optimal conversion of electrical energy into hydraulic power, minimizing energy consumption and heat generation. Its durable construction is designed to withstand the intermittent yet intense duty cycles typical of hydraulic lifting and lowering operations, providing consistent performance and a prolonged service life. The motor is engineered for reliable starts and stops, contributing to the quick-response functionality.
Precision Hydraulic Pump
The integral hydraulic pump, likely a gear pump given the unit's compact nature and pressure rating, is meticulously matched to the 12V DC motor to optimize flow and pressure generation. This pump is engineered to efficiently draw hydraulic fluid from the reservoir and pressurize it to a maximum of 2500 PSI, providing the necessary force for lifting substantial loads. The pump's design focuses on volumetric efficiency, ensuring maximum fluid delivery per revolution, translating to faster cylinder actuation and improved operational speeds for powered-up applications. Its robust construction ensures resistance to wear, maintaining consistent performance even with continuous use in demanding environments. Precise machining and tight tolerances within the pump contribute to its overall efficiency and quiet operation.
Durable 0.75 Gallon Glass-Filled Nylon Reservoir
The hydraulic fluid reservoir is constructed from high-grade glass-filled nylon, providing exceptional durability and resistance to environmental factors. This polymer material offers several distinct advantages over traditional steel reservoirs in specific applications. Its inherent corrosion resistance eliminates concerns related to rust and chemical degradation, critical in outdoor or marine environments. Glass-filled nylon provides significant weight reduction compared to steel, contributing to the power unit's lightweight nature and making it ideal for mobile equipment where weight optimization is important. The material also exhibits excellent impact strength and resistance to mechanical stress, ensuring the reservoir withstands tough work demands. With a usable volume of 0.75 gallons, the reservoir is optimally sized to accommodate fluid displacement for typical "power up/gravity down" cycles in applications like snow plows and small dump bodies, without excessive bulk.
Advanced 3-Way Valve System with Solenoid Control
Central to the unit's "power up/gravity down" functionality is the sophisticated 3-way valve system, explicitly designed for this operational mode. This valve, configured with a single cartridge valve for streamlined operation and enhanced reliability, precisely controls hydraulic fluid flow. For the "power up" phase, the valve directs pressurized fluid from the pump to the hydraulic cylinder, initiating upward motion. When desired height is achieved, the pump disengages, and the system holds pressure. For the "gravity down" phase, the unit incorporates a solenoid-actuated, externally mounted release valve. This solenoid valve, when energized via electric controls, opens a path for hydraulic fluid to return from the cylinder to the reservoir, allowing the load to descend under its own weight in a controlled manner. The external mounting facilitates easier maintenance and accessibility. This integrated valve system ensures precise, responsive control over the hydraulic actuator, providing safe and efficient operation.
Comprehensive Double Filtration System
To safeguard the longevity and efficiency of the hydraulic components, the power unit incorporates a double filtration system. Hydraulic fluid cleanliness is paramount; contaminants such as particulate matter, metal shavings, and debris can cause accelerated wear, damage seals, and lead to premature failure of pumps, valves, and cylinders. The double filtration mechanism provides a two-stage defense. This typically involves a suction filter to protect the pump from larger particles entering from the reservoir and a return line filter or pressure filter to ensure clean fluid circulates throughout the system. By effectively removing impurities, the filtration system significantly extends the operational life of hydraulic components, reduces maintenance requirements, and ensures consistent system performance, even in environments prone to dust and grit.

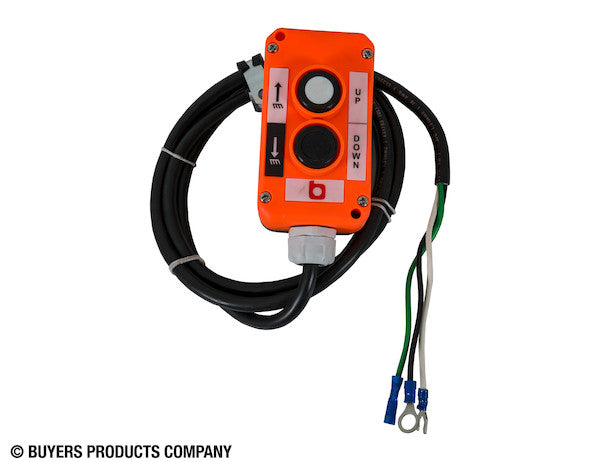

Factory-Wired Electric Controls: Push Button Simplicity
The power unit includes a factory-wired control station, designed for intuitive and user-friendly operation. This push-button controller, complete with a generous 72-inch (6-foot) control cable, allows the operator to actuate the "power up" and "gravity down" functions remotely and safely. The pre-wired nature of the control station drastically simplifies installation, eliminating the need for complex wiring by the end-user and reducing potential for electrical errors. The extended cable length provides flexibility in mounting the control interface within the operator's cab or at a convenient location, ensuring ergonomic access and enhancing safety by keeping the operator away from moving parts. The push-button interface offers immediate response, enabling precise control over hydraulic movements.
Operational Dynamics: Power Up / Gravity Down Logic
The "Power Up/Gravity Down" operational mode is fundamental to many mobile hydraulic applications. When the "power up" button is actuated, the 12V DC motor energizes, driving the hydraulic pump. The pump then generates high-pressure fluid, directed through the 3-way valve to the hydraulic cylinder, extending the rod and lifting the load. Once desired elevation is reached, releasing the "power up" button de-energizes the motor and pump, and the valve seals pressurized fluid within the cylinder, holding the load securely. For descent, actuating the "gravity down" button energizes the solenoid on the release valve. This opens a path for fluid within the cylinder to flow back into the reservoir, allowing the load to lower smoothly under gravity. Descent speed can often be modulated by the orifice design in the return path, ensuring controlled and safe lowering operation.
Key Performance Specifications and Mechanical Integration
The unit's compact dimensions – approximately 8.09 inches in height, 14.89 inches in length, and 6.69 inches in width – make it an ideal choice for installations where space is at a premium. Its horizontal mounting position provides greater stability and allows for versatile placement options within a vehicle chassis or equipment frame. The robust 2500 PSI pressure rating ensures the unit can generate sufficient force for a wide range of lifting applications, providing ample hydraulic power for heavy-duty tasks without overstressing components. The 3/8 NPT outlet port size offers a standard connection point for hydraulic lines, facilitating easy integration with existing or new hydraulic circuits. This comprehensive set of specifications underscores the unit's capability to deliver consistent, high-performance hydraulic power in a compact and reliable package.
Durability, Reliability, and Environmental Resilience
Engineered for unwavering performance in challenging conditions, the 3-Way DC Power Unit is built to withstand extreme weather and rigorous work demands. The selection of materials, such as the glass-filled nylon reservoir, contributes significantly to its resistance against corrosion, abrasion, and temperature fluctuations. All critical electrical and hydraulic components are housed within a robust assembly designed to protect against ingress of dust, moisture, and debris, enhancing the unit's operational reliability in outdoor and harsh industrial settings. The unit's construction adheres to stringent manufacturing standards, ensuring each component can endure the stresses of continuous operation. Buyers Products’ commitment to quality manifests in a hydraulic power unit that offers exceptional longevity and minimizes downtime, thereby maximizing productivity for the end-user.
Versatile Applications Across Industries
While ideally suited for snow plows and dump bodies, the versatility of this 3-Way DC Power Unit extends to numerous other "power up/gravity down" applications across various industries. Its capabilities make it an excellent choice for:
- Agricultural Equipment: Actuating small implements, lift functions on utility tractors, or tilt mechanisms on trailers.
- Material Handling: Operating small lift gates on delivery vehicles, mini scissor lifts, or tilting platforms.
- Utility and Municipal Vehicles: Controlling auxiliary functions on service trucks, small crane outriggers, or sanitation equipment.
- Construction Equipment: Powering tilt functions on mini excavators, small loaders, or controlling articulate mechanisms on specialized tools.
- Specialty Vehicles: Deploying ramps, leveling systems, or other powered attachments on recreational vehicles, trailers, or mobile workshops.
Installation and Maintenance Considerations
Installation of the 3-Way DC Power Unit is streamlined by its integrated design and factory-wired controls. The horizontal mounting configuration provides flexibility, but proper securement to a stable, vibration-resistant surface is crucial for optimal performance and longevity. Electrical connection requires a reliable 12V DC power source, typically a heavy-duty battery, with appropriately gauged wiring to handle the motor's current draw during peak operation. Hydraulic line connections via the 3/8 NPT outlet port should be made with high-pressure rated hoses and fittings, ensuring leak-free operation. Regular maintenance primarily involves periodic checks of the hydraulic fluid level and quality, ensuring it remains within specified parameters and free from contaminants. Filter elements should be replaced according to manufacturer guidelines to maintain optimal fluid cleanliness. Inspection of electrical connections and hydraulic lines for wear or damage will further ensure uninterrupted operation and safety.
Conclusion: A Benchmark in Compact Hydraulic Power
The 3-Way DC Power Unit with Electric Controls from Buyers Products stands as a testament to advanced hydraulic engineering within a compact footprint. By integrating a powerful 2 HP 12V DC motor, a robust hydraulic pump, a durable glass-filled nylon reservoir, a precision 3-way valve with solenoid release, and an effective double filtration system, this unit delivers unparalleled performance for power up/gravity down applications. Its emphasis on durability, ease of installation, and precise control makes it an exceptional choice for professionals seeking a reliable, high-performance hydraulic solution capable of withstanding the most demanding operational environments. This unit not only meets but often exceeds the rigorous requirements of mobile and industrial hydraulic systems, setting a new benchmark for compact power unit design and functionality.
