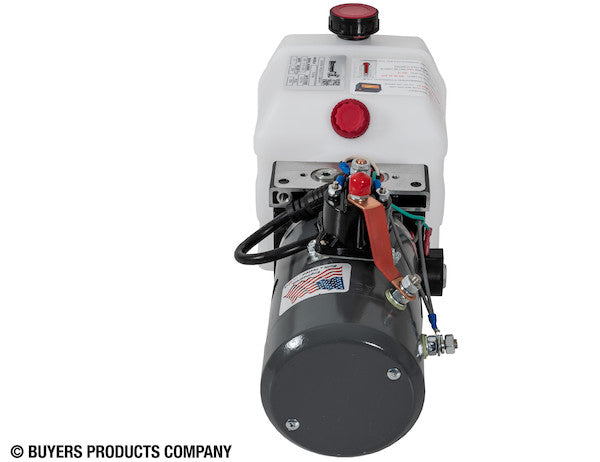

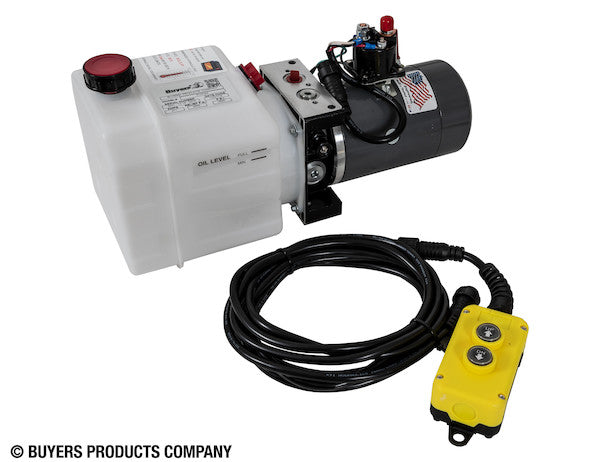

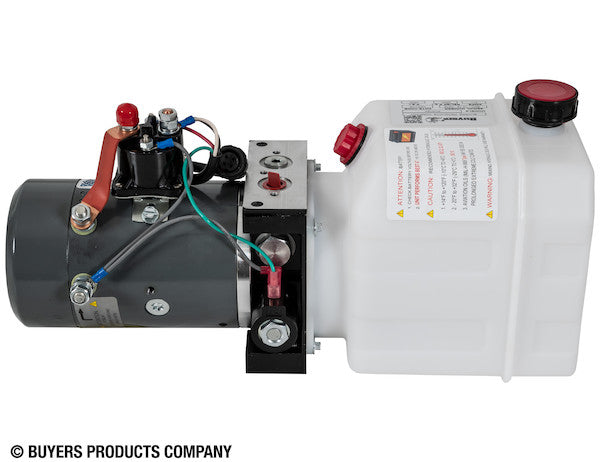

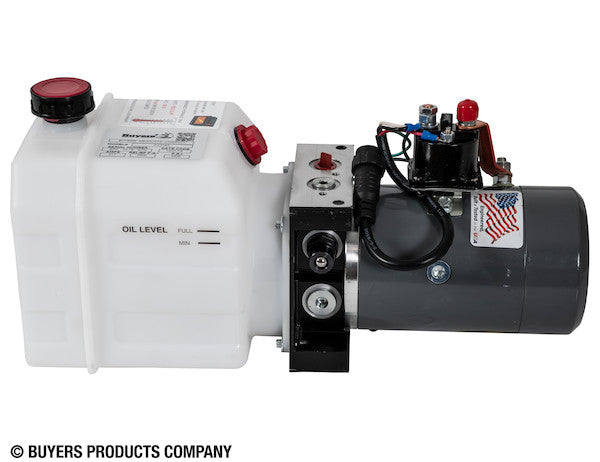

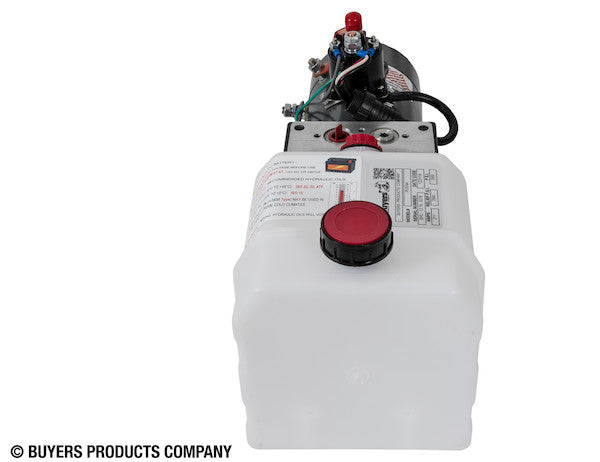

PU319A - Buyers 3-Way DC Power Unit-Electric Controls Horizontal 0.75 Gallon Poly Reservoir

The 3-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. It's ideal for any power up/gravity down hydraulic application such as a plow or dump body. You get quick-response functionality at your fingertips from one small package. The unit contains a built-in pump, 12V motor, polymer or steel reservoir, 3 function valve, double filtration, factory-wired control station, and more. It also features a solenoid-actuated, externally mounted release valve. It's built to withstand weather and tough work demands.

Specifications

Advanced Technical Overview: Buyers 3-Way DC Power Unit with Electric Controls and Horizontal 0.75 Gallon Poly Reservoir

The Buyers 3-Way DC Power Unit, featuring electric controls and a robust horizontal 0.75-gallon poly reservoir, represents a pinnacle of compact hydraulic power solutions engineered for demanding mobile applications. This all-in-one power pack is meticulously designed to deliver reliable and responsive hydraulic performance, particularly suited for systems requiring a 'Power Up/Gravity Down' operational cycle, such as snow plows, dump bodies, and various other auxiliary equipment on commercial vehicles.

Integrated System Architecture and Core Components

At its core, this power unit integrates several critical hydraulic and electrical components into a single, cohesive, and remarkably compact assembly. This intelligent design minimizes installation complexity, reduces potential points of failure, and optimizes space utilization – a crucial factor in vehicle-mounted applications. The primary components include:

• An efficient hydraulic pump
• A powerful 12V DC electric motor
• A durable 0.75-gallon polymer reservoir
• An advanced 3-function valve system
• Comprehensive double filtration
• A factory-wired control station with push-button functionality
• A solenoid-actuated, externally mounted release valve

Hydraulic Pump and Power Generation

The integrated hydraulic pump is precisely matched to the system's operational requirements, ensuring optimal flow rates and pressure generation. While specific pump type details are often proprietary, for compact DC power units of this nature, a positive displacement gear pump is typically employed. Gear pumps are renowned for their robust construction, high efficiency, and ability to operate reliably across a wide range of fluid viscosities and temperatures. The pump is designed to efficiently convert the mechanical energy from the electric motor into hydraulic power, pressurizing the fluid to a robust 2500 PSI (pounds per square inch). This high-pressure capability ensures sufficient force generation for lifting heavy loads associated with applications like dump body actuation or snow plow elevation, providing ample power while maintaining a compact footprint.

High-Performance 12V DC Electric Motor

Driving the hydraulic pump is a high-performance 12V DC motor, specified with a formidable 2 horsepower (HP) or 2.0 kW output. This motor is engineered for the rigors of mobile electrical systems, drawing power directly from the vehicle's 12-volt battery supply. The selection of a 2 HP motor is critical for achieving rapid response times and consistent power delivery, enabling swift operation of connected hydraulic cylinders. DC motors are inherently well-suited for intermittent, high-torque applications common in mobile hydraulics, offering excellent starting torque and reliable performance even under varying load conditions. Its design incorporates features that enhance durability and longevity, such as robust bearings and efficient winding designs to minimize heat generation during operation, thereby extending its service life in harsh environments.

Robust 0.75 Gallon Glass-Filled Nylon Reservoir

A distinctive feature of this power unit is its 0.75-gallon reservoir, constructed from Glass Filled Nylon. This choice of material offers significant advantages over traditional steel or standard polymer reservoirs. Glass-filled nylon is a high-performance composite known for:

• Superior Strength and Durability: The glass fibers significantly enhance the tensile strength, stiffness, and impact resistance of the nylon, making the reservoir exceptionally tough and resistant to mechanical damage from impacts or vibrations common in vehicle operation.
• Excellent Corrosion Resistance: Unlike steel, glass-filled nylon is completely impervious to rust and corrosion, even when exposed to road salts, chemicals, and varying environmental conditions. This ensures the integrity of the hydraulic fluid and extends the life of the entire system.
• Lightweight: Despite its strength, glass-filled nylon is considerably lighter than steel, contributing to the overall weight reduction of the power unit, which can be beneficial for vehicle payload capacity and fuel efficiency.
• Thermal Stability: The material maintains its structural properties across a broad temperature range, ensuring stable performance in extreme hot or cold weather without becoming brittle or deforming.
• Chemical Resistance: It exhibits strong resistance to various hydraulic fluids and automotive chemicals, preventing degradation of the reservoir material over time.

The reservoir's usable volume of 0.75 gallons is meticulously matched to the system's displacement requirements, ensuring an adequate supply of hydraulic fluid for the specified 'Power Up/Gravity Down' applications without excessive fluid churning or aeration. The horizontal mounting position of the reservoir is a critical design consideration, optimizing its footprint within compact vehicle chassis and enabling flexible installation options.

Advanced 3-Function Valve System and Solenoid Release

The designation "3-Way" in the context of this power unit refers to its hydraulic control capabilities, specifically tailored for single-acting cylinders. This unit facilitates three distinct hydraulic states: Power Up, Hold, and Gravity Down. This functionality is achieved through an integrated valve block, which includes a single cartridge valve as specified, working in conjunction with a solenoid-actuated, externally mounted release valve.

• Power Up (Extend): When actuated, the pump draws fluid from the reservoir and directs it under pressure through the control valve to the cylinder's extend port, causing the piston to extend.
• Hold (Neutral): In this state, the control valve blocks the flow, maintaining the cylinder's position against the load. This is achieved by sealing the pressure line and preventing fluid return to the reservoir, effectively locking the cylinder in place.
• Gravity Down (Retract): The solenoid-actuated release valve is crucial for this function. When energized, it opens a path, allowing hydraulic fluid to bypass the pump and return directly to the reservoir. The weight of the load then forces the cylinder to retract, and the hydraulic fluid displaced by the retracting piston flows back to the reservoir. This gravity-assisted retraction is energy-efficient, as it does not require motor power for the return stroke.

The solenoid-actuated nature of the release valve ensures precise and immediate control over the lowering function, which is critical for safety and operational efficiency in applications like dump beds or snow plows.

Comprehensive Double Filtration System

The inclusion of a double filtration system is a testament to the unit's robust engineering and commitment to longevity. Hydraulic systems are highly susceptible to contamination, which can lead to premature wear of pumps, valves, and cylinders. Double filtration provides superior protection by:

• Initial Coarse Filtration: Typically an intake or suction filter, designed to remove larger particulates before they enter the pump, protecting the pump from abrasive damage.
• Secondary Fine Filtration: Often a return line filter, designed to capture smaller contaminants from the hydraulic fluid as it returns to the reservoir. This ensures that the fluid is clean before recirculation, protecting all downstream components and maintaining the overall cleanliness of the hydraulic system.

This dual-stage approach significantly extends the life of the hydraulic fluid and the entire power unit, minimizing maintenance requirements and reducing operational downtime.

Ergonomic Electric Controls and Factory-Wired Station

Operator convenience and safety are paramount, addressed by the unit's electric controls and factory-wired control station. The system includes a 'Push Button' controller, providing intuitive and precise command over the hydraulic functions. The factory-wired design simplifies installation for the end-user, ensuring all electrical connections are secure, tested, and optimized for immediate operation. A generous control cable length of 180 inches (15 feet) provides significant flexibility in mounting the control station within the vehicle's cab, allowing the operator to maintain optimal visibility and access while performing hydraulic operations. This thoughtful integration of controls enhances operator efficiency and reduces the potential for wiring errors during installation.

Design Specifications and Physical Attributes

The physical dimensions and design choices of the Buyers 3-Way DC Power Unit underscore its suitability for tight spaces and demanding applications:

• Compact Dimensions: With a length of 16.59 inches, a width of 6.88 inches, and a height of 7.87 inches, the unit boasts an exceptionally compact footprint. These dimensions allow for versatile mounting options, including underneath vehicle beds, within toolboxes, or in other space-constrained areas.
• Horizontal Mounting Position: The design explicitly accommodates a horizontal mounting position, which is often preferred for stability, weight distribution, and accessibility in many vehicle installations. This orientation also typically optimizes fluid flow dynamics within the reservoir and pump intake.
• Outlet Port Size: The 3/8 NPT outlet port size is a standard dimension for hydraulic connections in this class of power units, ensuring compatibility with a wide range of hydraulic hoses, fittings, and single-acting cylinders.

Applications and Operational Advantages

The Buyers 3-Way DC Power Unit is engineered for a diverse range of mobile hydraulic applications where reliability, precision, and a 'Power Up/Gravity Down' operational scheme are critical. Its robust construction ensures it is "built to withstand weather and tough work demands," making it ideal for:

• Snow Plows: Essential for efficiently lifting and angling snowplow blades, providing quick response for effective snow removal. The gravity-down feature is particularly efficient for lowering the blade.
• Dump Bodies: Powers the lifting mechanism for small to medium-sized dump bodies, enabling rapid elevation of the truck bed for material discharge. Gravity assists in the controlled lowering of the bed, conserving battery power.
• Tailgate Lifts: Provides the necessary hydraulic force for operating various types of tailgate lifts on utility vehicles and trucks.
• Small Lifts and Cranes: Suitable for auxiliary lifting mechanisms on service vehicles, utility trucks, or workshop equipment.
• Agricultural Equipment: Can be used for specific functions on small agricultural implements requiring single-acting hydraulic cylinders.

The operational advantages of this unit are manifold:

• Energy Efficiency: The 'Power Up/Gravity Down' design conserves electrical energy by utilizing gravity for the return stroke, reducing the load on the vehicle's electrical system and battery.
• Quick Response: The powerful 2 HP motor and optimized hydraulic circuit ensure rapid actuation and precise control, crucial for dynamic applications like snow plowing.
• Durability in Harsh Conditions: Components like the glass-filled nylon reservoir and sealed motor are selected for their resistance to environmental factors, ensuring long-term reliability in adverse weather and challenging work environments.
• Simplified Installation and Integration: The compact, all-in-one design, factory-wired controls, and standardized port sizes facilitate straightforward integration into existing or new vehicle setups.
• Minimal Maintenance: The double filtration system and robust component selection contribute to extended maintenance intervals and reduced overall cost of ownership.

Conclusion

The Buyers 3-Way DC Power Unit with Electric Controls and a Horizontal 0.75 Gallon Poly Reservoir represents an advanced, high-performance hydraulic solution for the professional market. Its intelligent integration of a powerful 12V DC motor, efficient pump, durable glass-filled nylon reservoir, and precise 3-function valve system ensures exceptional reliability and responsiveness. Designed for the rigorous demands of 'Power Up/Gravity Down' applications, this unit provides unparalleled operational efficiency, ease of control through its push-button station, and long-term durability in the most challenging conditions. For contractors, municipal fleets, and commercial vehicle operators seeking a compact, robust, and technologically advanced hydraulic power pack, the Buyers 3-Way DC Power Unit stands as a superior choice, delivering consistent performance and value across a broad spectrum of critical tasks.
