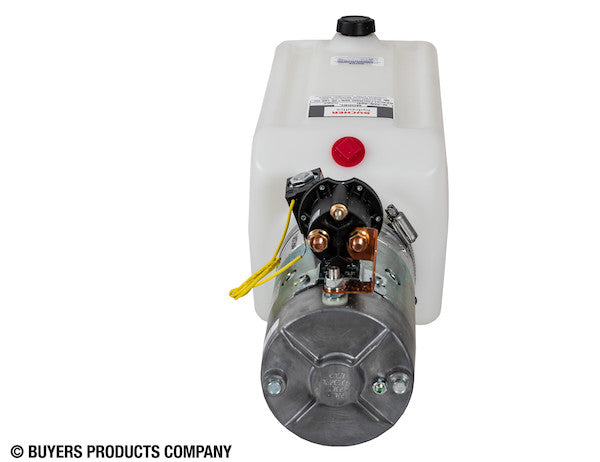

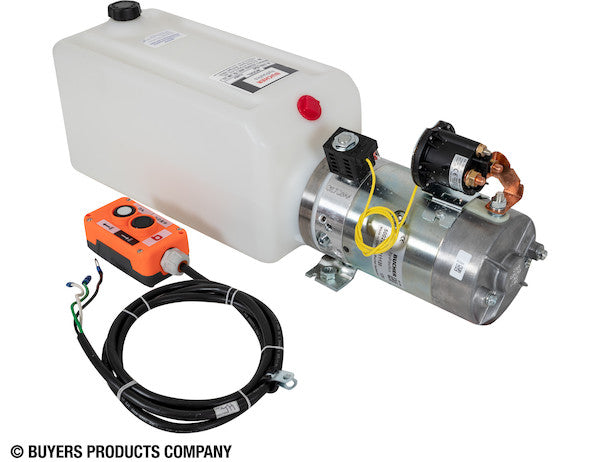

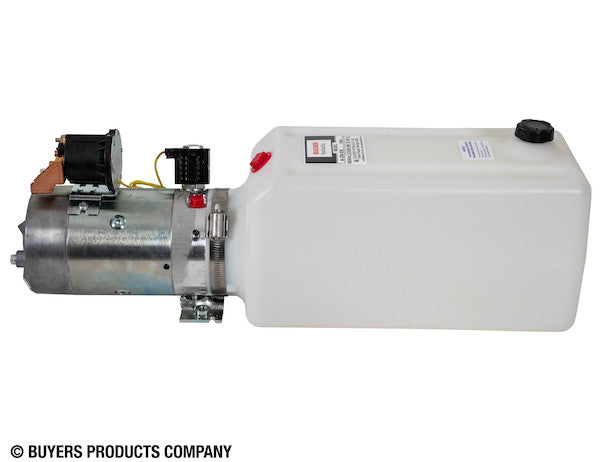

The 3-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. It's ideal for any power up/gravity down hydraulic application such as a plow or dump body. You get quick-response functionality at your fingertips from one small package. The unit contains a built-in pump, 12V motor, polymer or steel reservoir, 3 function valve, double filtration, factory-wired control station, and more. It also features a solenoid-actuated, externally mounted release valve. It's built to withstand weather and tough work demands.
Specifications
| Control Cable Length | 72 |
|---|---|
| Controller Included? | Y |
| Height | 8.09 |
| Length | 22.38 |
| Manual or Push Button | Push Button |
| Motor Horsepower | 2 |
| Motor Power (kW) | 1.5 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 1 |
| Outlet Port Size | 3/8 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Glass Filled Nylon |
| Reservoir Usable Volume | 1.50 |
| Reservoir Volume (Gal) | 1.50 |
| Spool Action | Power Up/Gravity Down |
| Valve Function | 3W |
| Width | 6.69 |
The 3-Way DC Power Unit with Electric Controls and a Horizontal 1.5 Gallon Poly Reservoir represents a highly engineered, integrated hydraulic power solution designed for demanding mobile and industrial applications. This self-contained unit by Buyers Products is meticulously constructed to deliver reliable "power up/gravity down" functionality, making it an indispensable component for equipment such as snow plows, dump beds, lift gates, and various other single-acting hydraulic cylinder systems. Its compact footprint, combined with robust construction and intelligent design, ensures optimal performance and durability in challenging operational environments.
At its core, this power unit is engineered for seamless integration and efficient operation. It consolidates all essential hydraulic components into a single, pre-assembled, and factory-tested package, significantly simplifying installation and reducing potential points of failure often associated with disparate component systems. The focus on an "all-in-one" design strategy not only enhances system reliability but also minimizes the space required for installation, a critical consideration in many vehicle and machinery applications where mounting real estate is at a premium.
Integrated Power Train: Motor and Pump Dynamics
The hydraulic power generation begins with a high-performance 12V DC electric motor, rated at 2 horsepower (equivalent to 1.5 kilowatts). This motor is specifically selected for its ability to deliver high starting torque and consistent power output under various load conditions typical of intermittent duty hydraulic applications. The 12V DC input ensures compatibility with standard vehicle electrical systems, facilitating straightforward integration without requiring complex power conversions. The motor's design incorporates robust windings and bearings, engineered for extended operational life and resistance to vibration and shock encountered in mobile applications.
Coupled directly to the electric motor is a precision hydraulic pump. While the specific pump type (e.g., gear pump, piston pump) is not detailed, the design inherently prioritizes efficiency and a steady flow rate to achieve the specified 2500 PSI pressure rating. The pump's role is to convert the mechanical energy from the motor into hydraulic energy, moving fluid through the system to actuate the connected cylinder. The synergy between the 2 HP motor and the pump is optimized to provide quick-response functionality, ensuring that hydraulic loads are lifted or extended promptly and efficiently. This responsiveness is crucial for applications requiring rapid deployment or retraction, such as plowing operations or quick dumping cycles.
Thermal management is an inherent consideration in the design of the motor and pump assembly. For DC power units operating under intermittent duty cycles, the ability to dissipate heat effectively is vital for maintaining peak performance and preventing premature wear. The unit's compact yet purposeful construction aids in heat exchange with the surrounding environment, contributing to the longevity of both the electrical and hydraulic components.
Hydraulic Fluid Management: The Poly Reservoir

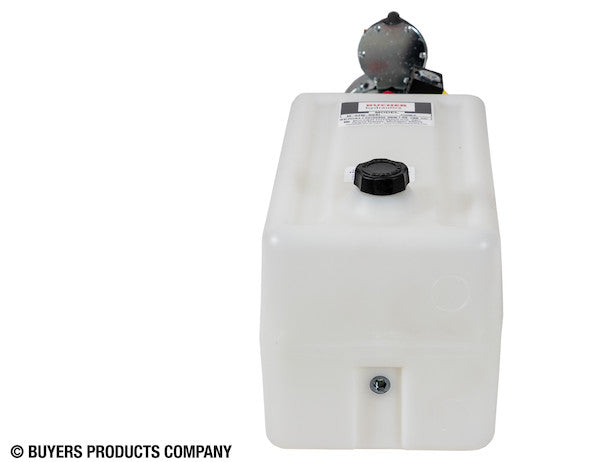

A distinctive feature of this particular model is its 1.5-gallon usable volume poly reservoir, constructed from glass-filled nylon. The choice of glass-filled nylon for the reservoir material offers several significant technical advantages over traditional steel reservoirs. Firstly, it provides excellent resistance to corrosion, a common issue in outdoor and mobile applications where exposure to moisture, road salt, and various chemicals is unavoidable. This inherent corrosion resistance contributes substantially to the unit's extended operational lifespan and reduces maintenance requirements. Secondly, glass-filled nylon offers superior impact strength and durability, making the reservoir less susceptible to dents, punctures, or fatigue failures compared to metal reservoirs, particularly in environments prone to mechanical stress. Furthermore, the material contributes to the overall weight reduction of the unit, which can be beneficial for vehicle applications where weight savings are desirable.
The 1.5-gallon usable volume is carefully sized to ensure sufficient hydraulic fluid capacity for the unit's intended applications. A proper reservoir volume is critical for several reasons: it provides a buffer for fluid expansion and contraction due to temperature changes, allows for adequate de-aeration of the fluid (permitting entrained air to escape), and facilitates heat dissipation by providing a larger surface area for cooling. The horizontal mounting position of the reservoir is a deliberate design choice that optimizes space utilization. This orientation often allows for installation in areas with limited vertical clearance, providing greater flexibility in equipment integration while maintaining stable fluid levels during operation.
Within the reservoir system, meticulous attention is paid to maintaining fluid cleanliness through a double filtration system. Hydraulic fluid contamination is a leading cause of premature component wear and system failure. The implementation of double filtration ensures that particulate matter, which can enter the system during refilling or be generated internally through wear, is effectively removed. This multi-stage filtration process significantly extends the life of the pump, valve, and hydraulic cylinder, ensuring consistent performance and reducing the frequency of maintenance interventions.
Precision Control: The 3-Way Valve System
Central to the functionality of this power unit is the integrated 3-function valve, specifically designed for "power up/gravity down" operation (designated as a 3W valve). This valve configuration is ideal for single-acting hydraulic cylinders, which extend under hydraulic pressure and retract or lower due to the force of gravity or an external load. The mechanism operates as follows: when the control station is activated for "power up," the electric motor drives the pump, and hydraulic fluid is directed through the 3-way valve to the cylinder's extend port, causing the load to lift. When the "gravity down" function is selected, the motor deactivates, and a solenoid-actuated release valve opens the return path from the cylinder to the reservoir, allowing the load to lower under its own weight in a controlled manner.
The solenoid-actuated, externally mounted release valve is a key component in this control scheme. Its external mounting facilitates easier serviceability and potentially offers improved heat dissipation compared to internally mounted valves. The solenoid provides precise, electrically controlled actuation of the valve, ensuring smooth and predictable lowering operations. The integration of a single cartridge valve within the system simplifies the hydraulic manifold design, contributing to the unit's overall compactness and reliability. The specific 3/8 NPT outlet port size is standard for many light-to-medium duty hydraulic applications, ensuring broad compatibility with common hydraulic hoses and fittings.
Safety is paramount in hydraulic system design. The 2500 PSI pressure rating indicates the maximum operating pressure the system is designed to handle, and the valve system inherently incorporates mechanisms, such as pressure relief valves (often integrated or set within the main valve body), to protect the system from over-pressurization. These features safeguard both the equipment and the operator from potential hazards.
User Interface and Electrical Integration

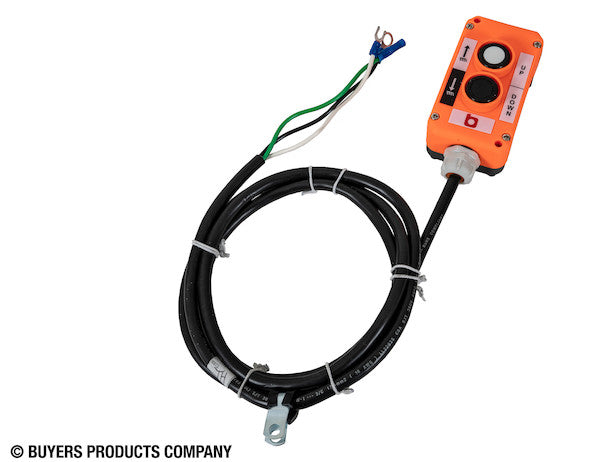

The unit includes a factory-wired control station, featuring push-button operation. This pre-wired configuration significantly reduces installation time and minimizes the risk of wiring errors, ensuring that the unit is operational quickly and correctly. The push-button interface is chosen for its simplicity, intuitive operation, and inherent robustness, making it suitable for gloved hands and harsh operating conditions. The control station is designed to be user-friendly, providing immediate and precise command over the hydraulic functions.
With a generous 72-inch control cable length, the operator has considerable flexibility in mounting the control station within the vehicle cab or at an accessible point on the equipment. This extended cable length ensures that the control is always within easy reach, enhancing both convenience and operational safety. All electrical connections within the unit are designed for durability and environmental resistance, typically featuring sealed connectors and appropriate wire gauging to handle the electrical current draw of the 12V, 2 HP motor reliably.
Robustness and Environmental Resilience
The statement that the unit "is built to withstand weather and tough work demands" underscores its industrial-grade construction. This involves several aspects:
- Environmental Sealing: Components, including the motor, electrical connections, and control station, are designed with appropriate ingress protection (IP) ratings to resist the intrusion of dust, moisture, and other contaminants.
- Corrosion Protection: Beyond the poly reservoir, metallic components are often treated with corrosion-resistant coatings or are manufactured from materials inherently resistant to rust and chemical degradation.
- Vibration and Shock Resistance: The entire assembly is engineered to withstand the significant vibrations and mechanical shocks commonly encountered in mobile and heavy equipment applications, ensuring components remain securely fastened and functional over time.
- Temperature Extremes: The materials and fluids selected are capable of performing reliably across a broad range of operating temperatures, from extreme cold to intense heat, without significant degradation in performance.
Installation and Maintenance Considerations
For optimal performance and longevity, proper installation and routine maintenance are paramount. The horizontal mounting position demands secure fastening to a stable surface to prevent movement during operation. Electrical connections must be made according to industry standards, utilizing appropriate wire gauges, fuses, and relays to protect the vehicle's electrical system and the power unit itself. Hydraulic lines should be routed correctly, avoiding sharp bends and potential pinch points, and all fittings should be torqued to specifications to prevent leaks.
Regular maintenance includes checking the hydraulic fluid level and condition, replacing filters as recommended, and inspecting electrical and hydraulic connections for signs of wear or damage. The double filtration system, while highly effective, requires periodic filter element replacement to maintain its efficiency and prevent flow restriction. Using the correct type and viscosity of hydraulic fluid, as specified by the manufacturer, is also critical for ensuring optimal pump and valve performance, lubrication, and heat transfer.
Conclusion
The 3-Way DC Power Unit with Electric Controls and a Horizontal 1.5 Gallon Poly Reservoir from Buyers Products stands as a testament to advanced hydraulic engineering and robust manufacturing. It is a purpose-built solution that integrates a powerful 12V DC motor, an efficient hydraulic pump, a durable glass-filled nylon reservoir, a precise 3-function valve for "power up/gravity down" applications, and a user-friendly electric control station into a cohesive and compact package. Designed for the rigors of heavy-duty and outdoor use, its specifications—including a 2 HP motor, 2500 PSI pressure rating, and double filtration—ensure consistent, reliable, and high-performance operation. This unit represents an intelligent investment for professionals seeking a dependable and easy-to-integrate hydraulic power source for their single-acting cylinder applications, promising sustained performance and reduced total cost of ownership through its exceptional durability and thoughtful design.
