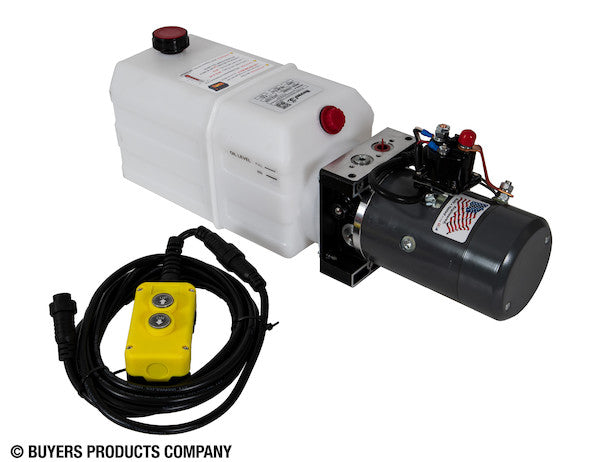

The 3-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. It's ideal for any power up/gravity down hydraulic application such as a plow or dump body. You get quick-response functionality at your fingertips from one small package. The unit contains a built-in pump, 12V motor, polymer or steel reservoir, 3 function valve, double filtration, factory-wired control station, and more. It also features a solenoid-actuated, externally mounted release valve. It's built to withstand weather and tough work demands.
Specifications
| Control Cable Length | 180 |
|---|---|
| Controller Included? | Y |
| Height | 7.87 |
| Length | 21.84 |
| Manual or Push Button | Push Button |
| Motor Horsepower | 2 |
| Motor Power (kW) | 2.0 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 1 |
| Outlet Port Size | 3/8 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Glass Filled Nylon |
| Reservoir Usable Volume | 1.50 |
| Reservoir Volume (Gal) | 1.50 |
| Spool Action | Power Up/Gravity Down |
| Width | 6.88 |
Buyers 3-Way DC Power Unit: Advanced Hydraulic Solution for Mobile Applications
The Buyers 3-Way DC Power Unit with Electric Controls and a Horizontal 1.5 Gallon Poly Reservoir represents a meticulously engineered hydraulic solution designed for demanding mobile applications. This comprehensive power pack integrates all essential hydraulic components into a single, robust, and compact assembly, delivering unparalleled performance and reliability for systems requiring a "power up/gravity down" operational paradigm. Its design philosophy centers on maximizing operational efficiency, ensuring system longevity, and simplifying installation and maintenance processes for a diverse range of heavy-duty equipment.
Integrated Architecture and Core Components
The efficiency and reliability of the Buyers 3-Way DC Power Unit stem from its intelligently integrated architecture. By combining the motor, pump, valve block, and reservoir into one cohesive unit, Buyers Products has achieved a compact footprint without compromising on power or functionality. This "all-in-one" design significantly reduces the complexity of hydraulic system installation, minimizes potential leak points, and enhances overall system integrity.
The High-Performance 12V DC Motor
Central to the unit's power delivery is its robust 12-volt DC electric motor, rated at 2 horsepower (equivalent to 2.0 kW). This motor is specifically selected for its ability to provide consistent and ample power for hydraulic actuation in mobile environments where a 12V electrical system is standard. The motor's design emphasizes high torque output at start-up and continuous operation, crucial for overcoming initial loads in applications such as lifting snow plows or raising dump bodies. Its direct current operation ensures compatibility with common vehicle electrical systems, making it an ideal choice for vehicular and mobile equipment installations. The electrical specifications underscore its capacity to generate significant hydraulic pressure, supporting the unit's 2500 PSI pressure rating, while remaining energy efficient for battery-powered applications.
Precision Hydraulic Pump
Integrated within the power unit is a high-efficiency hydraulic pump, typically a gear pump, renowned for its reliability and robust performance in mobile hydraulic applications. This pump is responsible for converting the mechanical energy from the 12V DC motor into hydraulic energy, generating the necessary fluid flow and pressure to actuate cylinders or motors. The pump's design is optimized for continuous operation under demanding conditions, ensuring consistent flow rates and pressure stability even in varying environmental temperatures. Its precise manufacturing tolerances contribute to high volumetric efficiency, meaning a greater percentage of the theoretical flow is converted into actual working flow, thus enhancing the overall responsiveness and performance of the hydraulic system. The seamless integration of the pump directly to the motor shaft eliminates external couplings, reducing vibration and enhancing the mechanical efficiency of the power transfer.
The Versatile 3-Function Valve Block
A critical component dictating the unit's operational versatility is its integrated 3-function valve block. This valve, configured for "power up/gravity down" operation, precisely controls the direction and flow of hydraulic fluid within the system. The "3-way" designation refers to its ability to manage fluid paths for three distinct operational states:
- Power Up: When activated, the valve directs pressurized fluid from the pump to the hydraulic cylinder or actuator, initiating the lifting or extending motion.
- Neutral/Hold: In this state, the valve blocks fluid flow, effectively holding the hydraulic cylinder or actuator in its current position, preventing drift.
- Gravity Down: For lowering or retracting, the valve opens a path for fluid to return to the reservoir, allowing gravity to pull the load down in a controlled manner. This relies on the weight of the implement or load.
Durable 1.5 Gallon Glass Filled Nylon Reservoir
The Buyers Power Unit features a 1.5-gallon reservoir constructed from high-quality, glass-filled nylon. This material choice offers significant advantages over traditional steel reservoirs, particularly in mobile and outdoor applications. Glass-filled nylon provides exceptional corrosion resistance, crucial for environments exposed to road salts, chemicals, and varying weather conditions. Its inherent strength-to-weight ratio contributes to the overall reduction in unit weight, which is beneficial for vehicle payload and fuel efficiency. The 1.5-gallon usable volume is carefully sized to accommodate the fluid displacement during cylinder actuation and provide sufficient capacity for heat dissipation, preventing hydraulic fluid degradation due to overheating. The horizontal mounting position of the reservoir is engineered for optimal installation flexibility in confined spaces, ensuring stability and proper fluid intake for the pump across a variety of equipment chassis.
Operational Principles and Advanced Features
Understanding the operational principles of the Buyers 3-Way DC Power Unit reveals its sophistication and suitability for its intended applications.
Power Up/Gravity Down Hydraulic Logic
The "power up/gravity down" hydraulic circuit is a highly efficient design for applications where the load is primarily lifted by hydraulic power, and then lowered by its own weight or external forces. In this configuration, the DC motor and pump are actively engaged to generate pressure and extend the cylinder, providing robust lifting force. When lowering is required, the control system activates the release valve, allowing hydraulic fluid to return to the reservoir without the need for the pump to actively push it. This passive lowering mechanism not only conserves electrical energy but also simplifies the hydraulic circuit, making the system more compact and cost-effective. This mode of operation is precisely why this unit is ideal for snow plows, where lifting requires significant power, but lowering simply involves gravity and a controlled descent, or dump bodies where the bed's weight facilitates lowering.
Solenoid-Actuated, Externally Mounted Release Valve
The integration of a solenoid-actuated, externally mounted release valve is a testament to the unit's emphasis on precise control and ease of maintenance. A solenoid valve utilizes an electrical current to generate a magnetic field, which in turn actuates a plunger to open or close the valve. This electro-mechanical operation allows for instantaneous and accurate control of the lowering function, enabling the operator to modulate the descent speed or stop the lowering action at any point. Its external mounting design is a practical advantage, simplifying access for routine inspections, troubleshooting, or component replacement without disassembling the main hydraulic block. This design choice contributes significantly to reducing downtime and operational costs over the unit's lifespan.
Enhanced Double Filtration System
Hydraulic fluid cleanliness is paramount for the longevity and reliable operation of any hydraulic system. The Buyers 3-Way DC Power Unit incorporates a double filtration system, a critical feature designed to protect sensitive internal components from harmful contaminants. Hydraulic fluid can accumulate particulate matter from various sources, including manufacturing debris, wear particles from moving parts, and environmental dust or moisture ingress. A double filtration system typically involves a coarser filter (e.g., suction filter) to protect the pump from larger particles, and a finer filter (e.g., return line filter) to ensure the overall cleanliness of the fluid returning to the reservoir, protecting control valves and cylinders. By maintaining superior fluid cleanliness, the double filtration system significantly extends the service life of the pump, motor, and valve components, minimizes wear, reduces the risk of system malfunctions, and ensures consistent performance under rigorous operating conditions.
Advanced Control and Ergonomics
The user experience is paramount, and the Buyers Power Unit excels in this area through its thoughtfully designed control system.
Factory-Wired Control Station with Push-Button Interface
The inclusion of a factory-wired control station is a significant convenience feature, greatly simplifying the installation process. By eliminating the need for complex, on-site wiring, it ensures electrical integrity, reduces the potential for wiring errors, and accelerates system deployment. The control station features an intuitive push-button interface, allowing for effortless operation. Push-button controls are tactile, easy to use even with gloved hands, and inherently durable, making them ideal for demanding outdoor applications. The generous 180-inch control cable length provides substantial flexibility for mounting the control station within easy reach of the operator, whether inside a vehicle cab or at a convenient external location, enhancing safety and operational efficiency.
Robust Construction and Environmental Resilience
Designed to perform reliably in the most challenging environments, the Buyers 3-Way DC Power Unit is built with durability as a core principle.
Weather Resistance and Tough Work Demands
Every aspect of this power unit is engineered to withstand severe weather conditions and the rigorous demands of heavy-duty work. The use of glass-filled nylon for the reservoir provides inherent resistance to corrosion, impact, and extreme temperatures. Critical electrical components, including the 12V DC motor and solenoid valve, are sealed to protect against moisture, dust, and debris ingress, ensuring continuous operation in wet, dirty, or icy conditions. The robust construction of the pump and valve block, typically made from high-strength cast iron or aluminum, provides structural integrity and resistance to operational stresses. This commitment to robust design ensures that the power unit delivers reliable performance year after year, minimizing the need for premature repairs or replacements, and thereby reducing the total cost of ownership.
Compact Dimensions for Versatile Mounting
With precise dimensions of approximately 21.84 inches in length, 6.88 inches in width, and 7.87 inches in height, the unit boasts an impressively compact footprint. This allows for flexible and efficient integration into a wide array of mobile equipment where space is often at a premium. The horizontal mounting position further enhances its versatility, enabling secure installation on vehicle frames, trailers, or utility platforms, optimizing weight distribution and preventing interference with other vehicle systems.
Broad Application Spectrum
The versatility of the Buyers 3-Way DC Power Unit makes it an indispensable component across numerous industries and applications:
- Snow Plows: Provides reliable power for lifting the plow and controlled gravity lowering.
- Dump Bodies: Ideal for raising small to medium-sized dump beds on utility trucks, trailers, or agricultural vehicles.
- Trailer Ramps and Tailgates: Facilitates the powered lifting of heavy ramps or tailgates, enhancing safety and reducing manual labor.
- Small Lifts and Hoists: Suitable for operating various small lifting platforms or hoists where precise control and compact design are critical.
- Agricultural Equipment: Can be used for actuating implements or attachments on tractors and other farm machinery.
- Utility Vehicles and ATVs: Powers various attachments or implements, extending the functionality of recreational and utility vehicles.
- Marine Applications: Its corrosion-resistant properties make it suitable for certain marine hydraulic systems, such as trim tabs or davits.
Installation and Maintenance Protocol
Installation of the Buyers 3-Way DC Power Unit is streamlined due to its integrated design and factory-wired components. The 3/8 NPT outlet port is a standard size, ensuring broad compatibility with common hydraulic hose and fitting configurations. Proper electrical connections to a 12V power source, including appropriate fusing and circuit protection, are essential. For optimal performance and longevity, it is crucial to use hydraulic fluid that meets the manufacturer’s specifications for viscosity and operating temperature range. Routine maintenance should include periodic checks of the hydraulic fluid level and condition, timely replacement of filtration elements, and inspection of electrical connections and seals. The externally mounted release valve further simplifies maintenance tasks, reinforcing the unit's design for long-term, trouble-free operation.
Conclusion
The Buyers 3-Way DC Power Unit with Electric Controls and a Horizontal 1.5 Gallon Poly Reservoir stands as a prime example of advanced hydraulic engineering. Its seamless integration of a powerful 12V motor, efficient pump, precise 3-function valve with solenoid actuation, and a durable glass-filled nylon reservoir, all underpinned by a double filtration system, delivers an unparalleled hydraulic solution. Designed for robust "power up/gravity down" applications, it offers exceptional performance, ease of use through its factory-wired push-button controls, and superior resilience against environmental challenges. This unit is not merely a component; it is a complete, reliable, and high-performance hydraulic system engineered to elevate the capabilities and longevity of a wide spectrum of mobile equipment, ensuring productivity and operational efficiency in the most demanding work environments.
