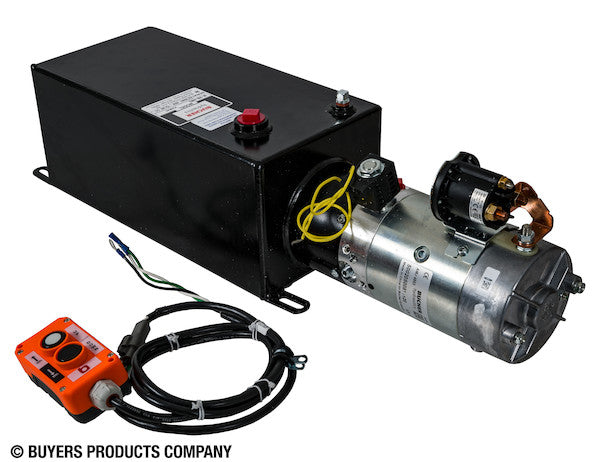

The 3-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. It's ideal for any power up/gravity down hydraulic application such as a plow or dump body. You get quick-response functionality at your fingertips from one small package. The unit contains a built-in pump, 12V motor, polymer or steel reservoir, 3 function valve, double filtration, factory-wired control station, and more. It also features a solenoid-actuated, externally mounted release valve. It's built to withstand weather and tough work demands.
Specifications
| Control Cable Length | 72 |
|---|---|
| Controller Included? | Y |
| Height | 7.31 |
| Length | 26.94 |
| Manual or Push Button | Push Button |
| Motor Horsepower | 2 |
| Motor Power (kW) | 1.5 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 1 |
| Outlet Port Size | 3/8 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Carbon Steel |
| Reservoir Usable Volume | 1.50 |
| Reservoir Volume (Gal) | 1.50 |
| Spool Action | Power Up/Gravity Down |
| Valve Function | 3W |
| Width | 7.25 |
Advanced Technical Overview: The 3-Way DC Power Unit with 1.5 Gallon Steel Reservoir and Electric Controls
The 3-Way DC Power Unit with 1.5 Gallon Steel Reservoir and Electric Controls from Buyers Products represents a pinnacle of compact hydraulic engineering, meticulously designed for demanding mobile applications requiring reliable power-up and gravity-down functionality. This integrated hydraulic power pack is an exemplary solution for a wide array of utility tasks, including the precise articulation of snowplows, efficient operation of dump bodies, and controlled actuation of various lifts and implements. Its holistic design consolidates critical hydraulic and electrical components into a single, robust enclosure, ensuring not only space efficiency but also simplified installation and heightened operational integrity in challenging environments.
Integrated System Architecture and Core Components
At the heart of this power unit is a carefully selected array of high-performance components, each contributing to its overall efficacy and durability:
High-Performance 12V DC Motor
The unit is powered by a robust 12V DC motor, delivering a substantial 2 horsepower (1.5 kW) output. This direct current motor is specifically engineered for intermittent duty cycles characteristic of hydraulic actuation, providing rapid and consistent power on demand. The 12V DC specification ensures seamless electrical integration with standard vehicle power systems, minimizing the need for complex power conversion. Its optimized design focuses on maximizing torque output at typical operating RPMs, which is crucial for initiating heavy loads and maintaining pressure against resistive forces. Furthermore, the motor's construction is designed to withstand fluctuating current demands and thermal stress, ensuring a prolonged operational lifespan even under rigorous use.
Precision Hydraulic Pump
Integrated within the power unit is a high-efficiency hydraulic pump, typically a positive displacement gear pump, renowned for its reliability and consistent flow characteristics. This pump is calibrated to deliver the necessary hydraulic fluid volume at a maximum pressure rating of 2500 PSI. This pressure capability is vital for lifting substantial loads, such as fully laden dump bodies or heavy-duty snowplows, ensuring that the system can overcome considerable mechanical resistance. The pump's design minimizes cavitation and ensures smooth fluid transfer, contributing to the overall quiet and efficient operation of the unit. Its integration within the compact framework is a testament to sophisticated engineering, optimizing volumetric efficiency and mechanical reliability.
Robust 1.5 Gallon Carbon Steel Reservoir
Fluid storage and management are handled by a durable 1.5-gallon carbon steel reservoir. The choice of carbon steel is paramount for applications where structural integrity, resistance to impact, and long-term durability against environmental factors are critical. Carbon steel offers superior strength compared to polymer alternatives, providing an added layer of protection against physical damage that can occur in demanding work settings. The reservoir’s 1.5-gallon capacity provides an adequate volume of hydraulic fluid for typical power-up/gravity-down cycles without excessive heating or aeration, which can degrade fluid properties and damage components. A sufficient fluid volume also allows for effective heat dissipation, preventing thermal breakdown of the hydraulic oil. The specified usable volume matching the total volume (1.50 gallons) indicates optimal design for fluid circulation and utilization. Furthermore, its horizontal mounting position is a critical design consideration, offering greater flexibility for integration into various vehicle chassis or equipment configurations where vertical space might be limited, while also contributing to a lower center of gravity for the overall unit.
Sophisticated 3-Function Valve with Power Up/Gravity Down Logic
The core of the unit's operational control lies in its 3-function valve, specifically configured for a "Power Up/Gravity Down" spool action. This configuration is exceptionally well-suited for applications where controlled ascent is driven by hydraulic power, and descent is managed by gravity with precise hydraulic dampening. The "Power Up" function is initiated by the hydraulic pump, which directs pressurized fluid to the actuator (e.g., a hydraulic cylinder), thereby lifting the load. The "Gravity Down" function is facilitated by a solenoid-actuated, externally mounted release valve. When energized, this solenoid valve opens a path for the hydraulic fluid to return to the reservoir, allowing the load to lower under its own weight. The controlled release of fluid through this valve ensures a smooth, predictable, and safe descent, preventing uncontrolled freefall. The external mounting of the release valve enhances its serviceability and allows for better heat dissipation from the solenoid coil. The valve's 3/8 NPT outlet port size is a widely adopted standard, ensuring compatibility with common hydraulic lines and fittings, and is appropriately sized to manage the required flow rates for efficient operation without excessive pressure drops.
Dual-Stage Filtration System
The longevity and reliability of any hydraulic system are heavily dependent on fluid cleanliness. This power unit incorporates a double filtration system, a critical feature for safeguarding internal components from particulate contamination. Typically, this involves a suction strainer to protect the pump from larger debris entering from the reservoir and a return-line filter to clean the fluid before it returns to the reservoir. This dual-stage approach effectively removes contaminants generated within the system or introduced externally, preventing abrasive wear on critical components such such as the pump, valves, and cylinders. By maintaining optimal fluid cleanliness, the double filtration system significantly extends the operational life of the hydraulic fluid and all hydraulic components, reducing maintenance intervals and overall cost of ownership.
Advanced Control and User Interface
The operational interface of this DC power unit is designed for intuitive use and immediate response, facilitated by its electric controls and factory-wired control station.
Factory-Wired Control Station with Push Button Operation
The inclusion of a factory-wired control station is a significant advantage, providing a plug-and-play solution that drastically reduces installation time and potential wiring errors. This pre-assembled and tested control unit ensures that electrical connections are secure and correctly configured from the outset. The push-button interface offers straightforward and ergonomic control, allowing operators to easily actuate the power-up and gravity-down functions. The tactile feedback from push buttons provides a clear indication of engagement, enhancing operator confidence and control precision. The system's responsiveness, mentioned in the initial description, is largely attributed to this direct and reliable electrical control pathway.
Extended Control Cable Length
A generous 72-inch (6-foot) control cable length provides substantial flexibility for mounting the push-button controller within the operator's cab or at a convenient remote location. This extended reach ensures that the operator can maintain a safe distance from moving parts while having full control over the hydraulic functions, or comfortably position the controller in an ergonomic location within a vehicle’s cabin, optimizing operational efficiency and safety.
Durability and Environmental Resilience
The construction of the 3-Way DC Power Unit is purpose-built to endure the harshest working conditions and environmental exposures, a testament to Buyers Products' commitment to rugged design:
Weather and Work Demand Resistance
Every aspect of this unit, from the carbon steel reservoir to the sealed electrical connections and industrial-grade components, is selected for its ability to withstand extreme weather conditions and the rigorous demands of heavy-duty applications. This includes resistance to moisture, road salt, dust, debris, and temperature fluctuations. Robust seals, protective coatings on metallic surfaces, and intelligently designed enclosures protect internal components from corrosive elements and physical impact. The external mounting of the solenoid release valve, while promoting serviceability, is also configured to resist environmental ingress, maintaining its functionality over time.
Detailed Specifications and Performance Implications
The technical specifications of this unit underscore its capability and suitability for high-performance applications:
- Motor Voltage (12V) and Power (2 HP / 1.5 kW): Provides ample power for demanding lifting tasks, perfectly aligned with standard vehicle electrical systems.
- Pressure Rating (2500 PSI): A high working pressure ensures the unit can generate sufficient force to move heavy loads with ease and efficiency. This rating is critical for the design and selection of actuators and cylinders, indicating the system's capacity to handle significant resistive forces.
- Reservoir Material (Carbon Steel) and Volume (1.50 Gallons): As discussed, this combination ensures robust fluid storage, thermal stability, and prolonged system life. The usable volume matching the total volume speaks to an optimized design for practical application.
- Outlet Port Size (3/8 NPT): A common and practical port size that balances flow rate requirements with connection integrity, suitable for most medium-duty hydraulic lines.
- Mounting Position (Horizontal): Offers critical installation versatility, allowing for integration into compact spaces typical of mobile equipment while contributing to efficient fluid management and reservoir breathing.
- Dimensions (Length: 26.94", Width: 7.25", Height: 7.31"): These compact dimensions are crucial for integration into modern work vehicles where space is at a premium. The thoughtful packaging of all components within this footprint ensures that high hydraulic performance is delivered without requiring extensive modification to the equipment.
Applications and Operational Benefits
The design and feature set of the 3-Way DC Power Unit make it exceptionally well-suited for a variety of critical applications:
- Snowplow Operation: Provides responsive and powerful lift for snowplow blades, and controlled gravity-down for engagement with the plowing surface. The quick response ensures efficient plowing operations, especially in challenging winter conditions where immediate adjustments are often necessary.
- Dump Body Actuation: Enables reliable and efficient tipping of dump bodies for material discharge. The power-up ensures the body is lifted to the desired angle, and the controlled gravity-down mechanism allows for smooth lowering, preventing abrupt impacts and minimizing wear on the truck chassis.
- Small Vehicle Lifts and Ramps: Ideal for operating smaller utility lifts, loading ramps, or other articulating components on service vehicles, utility trucks, or trailers where controlled upward motion and safe descent are paramount.
- Material Handling Equipment: Suitable for certain types of small-scale material handling equipment requiring vertical movement or tilting, offering a compact and powerful hydraulic solution.
Key operational benefits derived from this unit include increased productivity due to rapid response, enhanced safety through controlled lowering mechanisms, reduced operator fatigue with intuitive electric controls, and extended equipment lifespan thanks to robust construction and superior fluid management.
Installation and Maintenance Guidelines
For optimal performance and longevity, proper installation and routine maintenance are imperative:
- Installation: The unit should be mounted horizontally on a stable, vibration-dampening surface, ensuring adequate clearance for cooling and service access. Electrical connections must be secure, properly fused, and matched to the 12V DC power source, adhering to manufacturer specifications for wire gauge and fusing. Hydraulic lines should be clean, correctly sized, and routed to prevent kinking or chafing, and filled with the recommended hydraulic fluid type (e.g., AW-32 or AW-46, suitable for mobile hydraulics and varied temperature ranges).
- Maintenance: Regular checks of the hydraulic fluid level are essential, ensuring it remains within the prescribed operating range. Fluid quality should be monitored, and filters replaced according to a scheduled maintenance plan to capitalize on the double filtration system's benefits. Electrical connections and wiring should be inspected periodically for wear or corrosion. The external solenoid valve should be checked for proper operation and cleanliness. Adherence to these practices will preserve the unit's efficiency, prevent premature wear, and ensure consistent, reliable performance over many years of service.
Conclusion
The 3-Way DC Power Unit with 1.5 Gallon Steel Reservoir and Electric Controls from Buyers Products stands as a testament to engineering excellence in mobile hydraulic solutions. Its comprehensive integration of a powerful 12V DC motor, efficient hydraulic pump, robust carbon steel reservoir, and precise 3-function valve with a solenoid-actuated release, all governed by an intuitive electric control system, positions it as an industry-leading choice. Backed by double filtration and an uncompromising build quality designed to brave adverse conditions, this compact power pack delivers quick-response functionality, exceptional durability, and steadfast reliability. For professionals requiring a high-performance, compact, and resilient hydraulic system for power-up/gravity-down applications, this unit provides an unparalleled blend of technical sophistication and practical utility, ensuring peak operational efficiency and extended service life.
