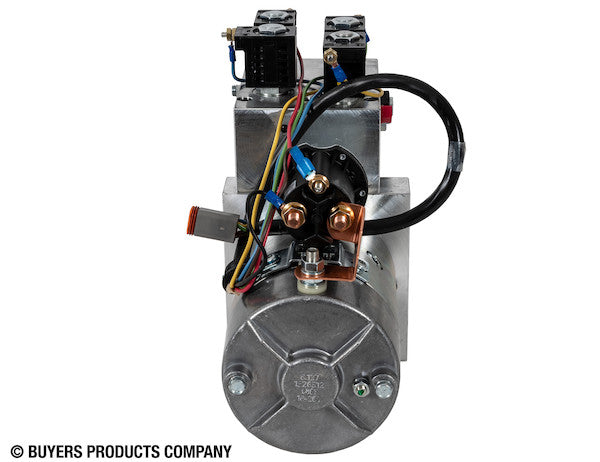

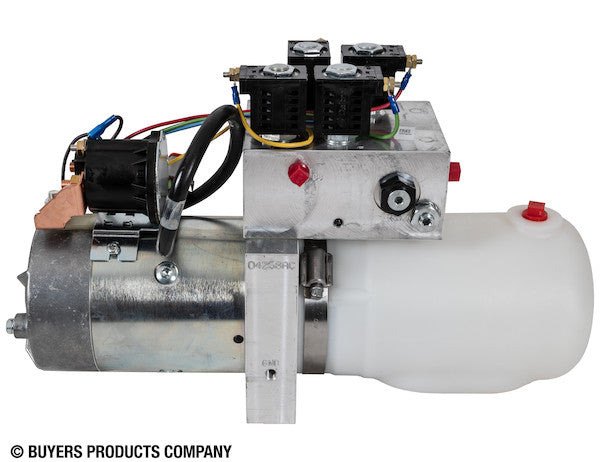

The 4 Way/3 Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations. It includes pre-wired rocker switch controls that provide 4-way/3-position fingertip control for Power Up/Hold/Gravity Down (plow hoist), and 4-way for exact left-right angling of the blade. A crossover relief valve protects the angle cylinder and the plow blade should the plow strike a hidden object.
Specifications
| Control Cable Length | 72 |
|---|---|
| Controller Included? | Y |
| Height | 9.66 |
| Length | 15.38 |
| Manual or Push Button | Rocker Switch |
| Motor Horsepower | 2 |
| Motor Power (kW) | 1.5 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 4 |
| Outlet Port Size | 1/4 NPT |
| Pressure Rating | 2000 |
| Reservoir Material | Glass Filled Nylon |
| Reservoir Usable Volume | 0.38 |
| Reservoir Volume (Gal) | 0.32 |
| Spool Action | Power Up/Power Down; Power Up/Gravity Down |
| Valve Function | 3W4W |
| Width | 5.25 |
Advanced Technical Overview: 4-Way/3-Way DC Power Unit with Electric Controls
The 4-Way/3-Way DC Power Unit from Buyers Products represents a pinnacle of electro-hydraulic integration, engineered for demanding mobile applications where space efficiency, robust performance, and precise control are paramount. This self-contained hydraulic power pack is designed to provide reliable, on-demand hydraulic force, specifically optimized for equipment requiring both lifting/lowering and directional actuation, such as professional-grade snow plows. Its horizontal mounting configuration, coupled with meticulously designed electric controls, delivers an unparalleled user experience and exceptional operational versatility.
Integrated Electro-Hydraulic System Architecture

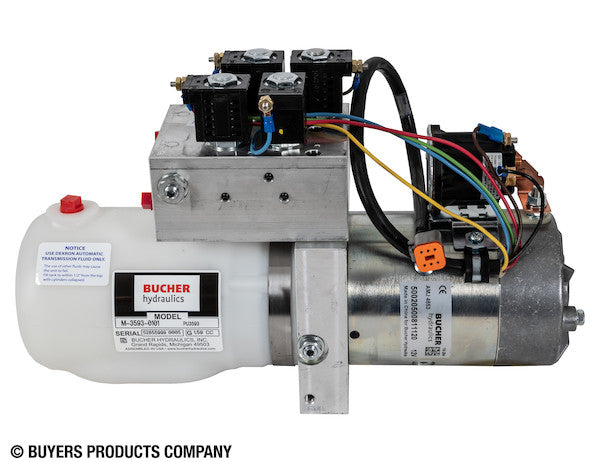

At its core, this power unit is a sophisticated assembly harmonizing a high-performance direct current (DC) electric motor, a robust hydraulic pump, a durable fluid reservoir, and an advanced valving system, all managed through intuitive electric controls. Operating on a 12V DC electrical system, the unit is perfectly suited for vehicle-mounted applications, drawing power directly from the vehicle’s battery. This integrated design minimizes external plumbing and wiring, streamlining installation and enhancing overall system reliability by reducing potential points of failure.
Dynamic Hydraulic Power Generation
Motor Performance and Efficiency
The motive force for this hydraulic system is provided by a powerful 12V DC electric motor, rated at 2 horsepower (HP), equivalent to 1.5 kilowatts (kW). This motor is specifically selected for its ability to deliver high torque and rapid response, crucial for dynamic operations like snow plow articulation. Its DC design ensures compatibility with standard vehicle electrical systems, while its efficiency is optimized to minimize current draw, preserving battery life even during prolonged periods of operation. The motor is engineered for intermittent duty cycles typical of auxiliary hydraulic functions, capable of handling the instantaneous power demands associated with lifting heavy loads or swiftly changing plow angles.
High-Pressure Hydraulic Pump
Paired with the electric motor is a precision-engineered hydraulic pump, typically a positive-displacement gear pump, renowned for its volumetric efficiency and reliability. This pump generates a substantial hydraulic pressure of up to 2000 PSI, providing ample force for demanding tasks. The consistent flow rate produced by the pump ensures smooth and predictable hydraulic action, translating into precise control over the attached implement. The pump's design minimizes cavitation and pulsation, contributing to the longevity of the hydraulic components and the quiet operation of the unit.
Advanced Fluid Management and Reservoir Design

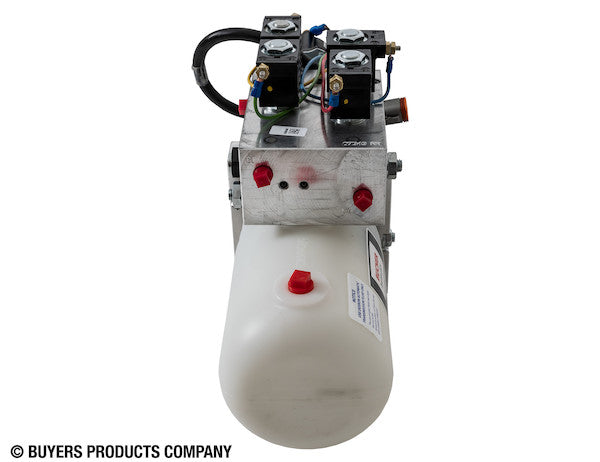

Central to any hydraulic system's performance and longevity is its fluid management. This power unit features a compact, yet adequately sized 0.32-gallon (approximately 1.21 liters) reservoir. The selection of glass-filled nylon for the reservoir material is a critical design choice, offering numerous advantages over traditional metal tanks:
- Corrosion Resistance: Glass-filled nylon is inherently resistant to rust and corrosion, which is vital in harsh environments where exposure to road salts, chemicals, and moisture is common, as with snow plow applications.
- Durability and Impact Resistance: The composite material provides excellent mechanical strength and impact resistance, safeguarding the hydraulic fluid and internal components from physical damage.
- Weight Reduction: A lighter reservoir contributes to the overall weight efficiency of the unit, which is beneficial for mobile equipment where payload capacity and fuel efficiency are considerations.
- Thermal Properties: While compact, the material properties aid in managing fluid temperature, although external cooling might be beneficial for extremely prolonged, high-duty cycles.
- Chemical Compatibility: The material is compatible with a wide range of standard hydraulic fluids, ensuring system integrity and performance.
The reservoir's horizontal orientation is crucial for stable mounting and optimal fluid pickup, particularly in dynamic applications where vehicle movement could cause fluid sloshing. Maintaining the correct hydraulic fluid level and ensuring fluid cleanliness are paramount for the long-term health and efficiency of the system.
Precision Hydraulic Control: Valving System
The sophisticated valving system is the nerve center of the power unit, enabling the precise and independent control of multiple hydraulic functions. The unit integrates four robust cartridge valves, meticulously configured to manage the distinct operational requirements of a multi-function implement.
Dual-Circuit Control for Versatility
The "4-Way/3-Way" designation refers to the unit's capability to control two primary hydraulic circuits:
-
Hoist Circuit (3-Position, Power Up/Hold/Gravity Down): This circuit is typically dedicated to lifting and lowering functions, such as raising and lowering a snow plow. It provides three distinct positions:
- Power Up: Activates the motor and pump to pressurize the lift cylinder, raising the implement.
- Hold: Deactivates the pump, and a built-in check valve, often integrated within a solenoid valve, locks the fluid in the cylinder, holding the implement at the desired height.
- Gravity Down: A solenoid valve opens a path to the reservoir, allowing the implement to lower under its own weight, offering efficient and controlled descent. The "Spool Action" specification also indicates a "Power Up/Power Down" option, suggesting a configuration where down-movement can also be powered for specific applications requiring downward force. For snow plows, Power Up/Gravity Down is the standard, allowing for efficient plow float.
-
Angling Circuit (4-Way, Power Left/Power Right): This circuit is designed for directional control, such as angling a snow plow blade left or right. It provides two powered positions:
- Power Left: Activates a solenoid to direct fluid to one side of an angle cylinder, pushing the blade left.
- Power Right: Activates another solenoid to direct fluid to the opposite side of the angle cylinder, pushing the blade right.
The integration of four cartridge valves allows for this dual-functionality, with dedicated valves managing the flow and pressure for each specific movement. These cartridge valves are selected for their quick response times, minimal leakage, and durability under high-pressure cycling.
Integrated Crossover Relief Valve for Enhanced Safety
A critical safety and protection feature embedded within this power unit is the crossover relief valve. This valve serves to protect the angle cylinder and the snow plow blade from mechanical shocks and hydraulic overloads. Should the plow blade encounter a hidden obstruction (e.g., a curb, manhole cover, or ice chunk) while angling, the impact could generate extreme pressure spikes within the hydraulic cylinder lines. The crossover relief valve detects these sudden pressure surges and momentarily diverts hydraulic fluid between the two sides of the angle cylinder, thereby absorbing the shock and preventing damage to the cylinder, hoses, and the plow structure itself. This proactive protection mechanism significantly extends the lifespan of the equipment and minimizes downtime due to unforeseen impacts.
Standardized Outlet Ports
The unit features 1/4 NPT (National Pipe Taper) outlet ports, a widely recognized and robust standard for hydraulic connections. This ensures compatibility with a broad range of hydraulic hoses and fittings, simplifying installation and future maintenance or component replacement.
Intuitive Electrical Control Interface

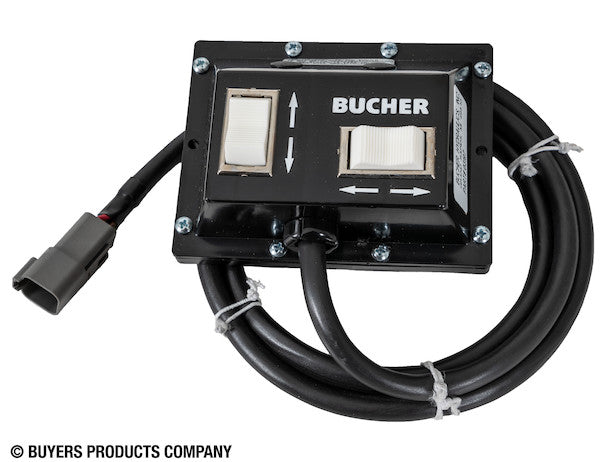

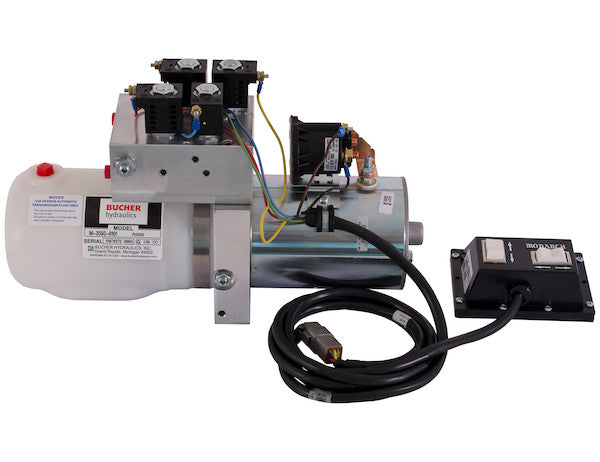

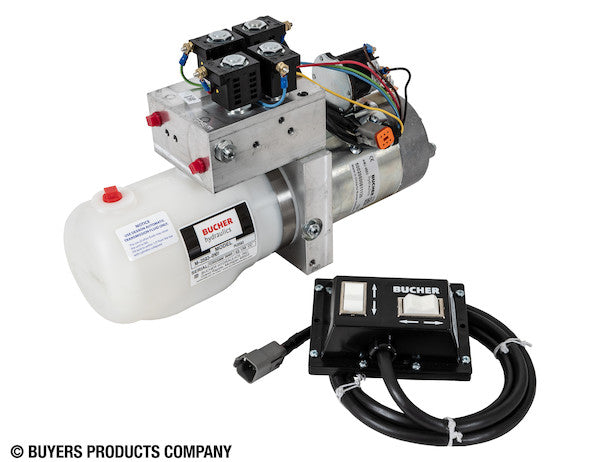

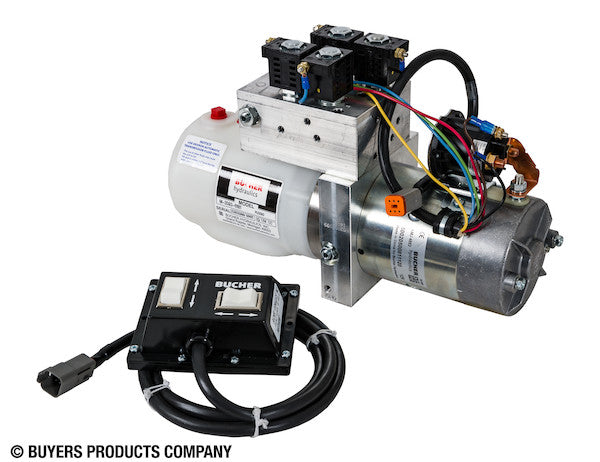

User-friendliness and precise command are delivered through the included pre-wired rocker switch controls. This ergonomic control unit is designed for fingertip operation, offering:
- 4-Way/3-Position Control for Hoist: An intuitive control allows the operator to effortlessly command Power Up, Hold, or Gravity Down movements for the implement. The tactile feedback of the rocker switch ensures confident operation even when wearing gloves or in low-visibility conditions.
- 4-Way Control for Angling: A separate, dedicated section of the rocker switch provides direct control for left and right angling, enabling swift and accurate blade positioning.
The pre-wired nature of the controls significantly reduces installation complexity and time, as all necessary connections between the rocker switch and the power unit's solenoid valves are factory-made and tested. A generous 72-inch (1.83 meter) control cable length provides substantial flexibility for mounting the controller in an accessible and comfortable location within the vehicle's cab, ensuring optimal operator ergonomics and safety.
Robust Construction and Environmental Resilience
Beyond the glass-filled nylon reservoir, the entire power unit is constructed with materials and manufacturing processes designed to withstand the rigors of heavy-duty, outdoor applications. Key considerations include:
- Corrosion Protection: Exposed metal components are typically treated with durable coatings or manufactured from corrosion-resistant alloys to combat the effects of moisture, salt, and abrasive materials.
- Seal Integrity: High-quality O-rings and seals are employed throughout the hydraulic system to prevent leaks, maintain pressure, and exclude contaminants, ensuring long-term operational reliability.
- Compact and Durable Housing: The external housing protects the internal electrical and hydraulic components from physical damage, dirt, and splash.
- Dimensions: With a length of 15.38 inches, a height of 9.66 inches, and a width of 5.25 inches, the unit boasts a remarkably compact footprint for its power output. This compact size and horizontal mounting capability allow for flexible installation in confined spaces, a critical advantage for vehicle-mounted equipment where space is at a premium.
Versatile Applications
While ideally suited for snow plow lift and angle operations, the inherent versatility of this 4-Way/3-Way DC Power Unit extends its applicability to a broad spectrum of other mobile hydraulic tasks. Its capabilities make it an excellent choice for:
- Dump Trailers and Small Dump Beds: Providing the lift and lower functions for compact utility trailers.
- Lift Gates: Powering the raising and lowering mechanisms for vehicle tailgates.
- Small Loader Attachments: Enabling the actuation of buckets, grapples, or other implements on compact utility loaders.
- Agricultural Implements: Supplying hydraulic power for various functions on small-scale farm equipment.
- Utility Vehicle Attachments: Operating spreaders, sprayers, or other tools mounted on UTVs or ATVs.
- Marine Applications: Powering anchors, trim tabs, or other auxiliary hydraulic functions on boats.
Its ability to provide both lifting/lowering and directional control from a single, compact unit makes it an invaluable component for any system requiring integrated electro-hydraulic actuation in a DC environment.
Installation, Operation, and Maintenance Considerations
The unit's design prioritizes straightforward installation and ease of operation. Proper installation involves securing the horizontal-mount unit to a stable surface, connecting it to the vehicle's 12V DC power supply (ensuring adequate fusing and wiring gauge), and plumbing the hydraulic lines to the respective cylinders. Regular maintenance includes routine checks of the hydraulic fluid level and condition, inspection of electrical connections for corrosion, and verification of hydraulic hose integrity. Adherence to manufacturer guidelines for hydraulic fluid type and replacement intervals is crucial for maximizing the lifespan and performance of the unit.
Conclusion
The 4-Way/3-Way DC Power Unit with Electric Controls from Buyers Products stands as a testament to advanced engineering in mobile hydraulics. Its integrated design, powerful 2 HP motor, high-pressure pump, durable glass-filled nylon reservoir, and precision valving system with vital safety features like the crossover relief valve, ensure robust and reliable performance. Coupled with its intuitive pre-wired rocker switch controls and compact dimensions, this unit offers an all-encompassing solution for demanding applications requiring both vertical and directional hydraulic actuation. It is an investment in efficiency, durability, and operational precision, destined to enhance the productivity and safety of your equipment.
