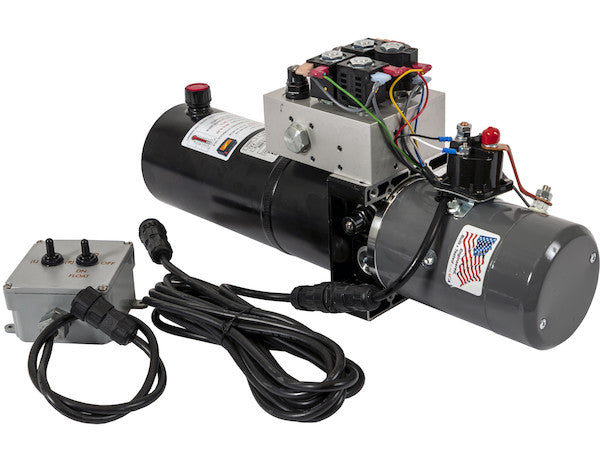

The 4 Way/3 Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations. It includes pre-wired rocker switch controls that provide 4-way/3-position fingertip control for Power Up/Hold/Gravity Down (plow hoist), and 4-way for exact left-right angling of the blade. A crossover relief valve protects the angle cylinder and the plow blade should the plow strike a hidden object.
Specifications
| Control Cable Length | 180 |
|---|---|
| Controller Included? | Y |
| Height | 5.50 |
| Length | 6.00 |
| Manual or Push Button | Push button |
| Motor Horsepower | 2 |
| Motor Power (kW) | 2.0 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 4 |
| Outlet Port Size | 1/4 NPT |
| Pressure Rating | 2000 |
| Reservoir Material | Carbon Steel |
| Reservoir Usable Volume | 1.00 |
| Reservoir Volume (Gal) | 0.83 |
| Spool Action | Power Up/Gravity Down; Power Up/Power Down |
| Width | 9.00 |
Buyers 4-Way/3-Way DC Power Unit: Advanced Hydraulic Control for Demanding Applications
The Buyers 4-Way/3-Way DC Power Unit with Electric Controls and a 0.75-gallon horizontal reservoir represents a pinnacle of compact hydraulic engineering, meticulously designed to meet the rigorous demands of mobile equipment, particularly snow plow operations. This sophisticated power unit integrates a robust DC motor, an efficient hydraulic pump, and an intelligent control system into a single, cohesive assembly, offering unparalleled performance, precision, and durability. Its horizontal mounting configuration, coupled with its compact dimensions (Height: 5.50 inches, Length: 6.00 inches, Width: 9.00 inches), ensures versatile installation options, making it an ideal choice for vehicles with limited space yet requiring substantial hydraulic power.
Core Engineering and System Architecture
At the heart of this power unit is a high-performance 12V DC electric motor, rated at a formidable 2 horsepower (2.0 kW). This motor is specifically engineered for intermittent duty cycles characteristic of snow plow operations, where bursts of high power are required for lifting and angling, followed by periods of rest. The choice of a 12V DC motor is paramount for vehicle integration, leveraging the existing electrical system for seamless power supply. The motor drives a precision-engineered hydraulic pump, which converts the rotational mechanical energy into hydraulic pressure. This pressure is then directed through a series of valves to actuate the connected hydraulic cylinders, such as those responsible for snow plow lift and blade angling.
Hydraulic Pumping and Reservoir System
The hydraulic pump works in conjunction with a generously sized 0.75-gallon carbon steel reservoir, which also boasts a usable volume of 0.83 gallons and a total volume of 1.00 gallon. The discrepancy between the stated 0.75-gallon in the title and the 0.83/1.00-gallon in the specifications table typically reflects the nominal operating volume versus the absolute capacity, ensuring sufficient fluid for system operation without cavitation and allowing for thermal expansion. The carbon steel construction of the reservoir provides exceptional strength and resistance to mechanical stress and environmental factors, crucial for outdoor, heavy-duty applications. The horizontal mounting position of the reservoir contributes to the unit's low-profile design, optimizing space utilization and often facilitating easier integration into vehicle chassis or under-hood compartments. Adequate hydraulic fluid volume in the reservoir is critical for heat dissipation and ensuring a continuous, uncontaminated supply of fluid to the pump, thereby prolonging the life of the entire hydraulic system.
Advanced Control System: Precision and Safety
A defining feature of the Buyers 4-Way/3-Way DC Power Unit is its integrated electric control system. This unit comes complete with a pre-wired rocker switch controller, offering intuitive "push button" operation. The generous 180-inch control cable length provides substantial flexibility for mounting the controller within the vehicle's cabin, ensuring ergonomic access for the operator without compromising safety or control responsiveness.
4-Way/3-Position Control for Hoist Operations
For snow plow hoist functions, the unit provides 4-way/3-position fingertip control, enabling precise management of the plow's vertical movement. This control scheme encompasses:
- Power Up: Engages the hydraulic pump and directs pressurized fluid to the lift cylinder, raising the plow. This provides the necessary force to overcome the weight of the plow and any accumulated snow or debris.
- Hold: Deactivates the pump and closes the relevant valve, trapping hydraulic fluid within the lift cylinder. This position maintains the plow at the desired height, preventing inadvertent drifting or lowering due to gravity or external forces. This static hold is critical for transport and precise positioning.
- Gravity Down: Deactivates the pump and opens a return path for hydraulic fluid from the lift cylinder to the reservoir, allowing the plow to lower under its own weight. This method is energy-efficient and provides a controlled descent, crucial for initial plow engagement and following terrain contours.
4-Way Control for Blade Angling
For precise left-right angling of the snow plow blade, the unit offers dedicated 4-way control. This functionality is achieved through a set of four cartridge valves. Each pair of these valves works in tandem to direct fluid flow to either side of the angling cylinder, enabling bi-directional power movement:
- Power Left: Activates the pump and specific valves to extend the cylinder on one side and retract it on the other, angling the blade to the left.
- Power Right: Similarly, activates the pump and alternate valves to extend the cylinder on the opposing side and retract the first, angling the blade to the right.
Integrated Safety and Protection Mechanisms
Understanding the harsh operating conditions and potential impacts associated with snow plowing, Buyers Products has engineered critical safety features into this power unit. Foremost among these is the integrated crossover relief valve. This valve is a fundamental component for protecting the hydraulic system and the plow assembly. Should the plow blade encounter a hidden object—such as a curb, manhole cover, or rock—during angling or plowing, an instantaneous pressure spike can occur within the angling hydraulic circuit. Without adequate protection, this surge could severely damage the angle cylinder, hydraulic lines, or even deform the plow blade itself. The crossover relief valve is designed to rapidly divert excessive hydraulic pressure from one side of the cylinder to the other (or back to the reservoir, depending on configuration), effectively absorbing the shock and preventing catastrophic component failure. This not only safeguards the equipment but also significantly enhances operational safety and reduces costly downtime and repairs.
The system's pressure rating of 2000 PSI is a key performance indicator, specifying the maximum safe operating pressure the hydraulic circuit can withstand. This rating ensures the unit can generate sufficient force for demanding tasks while maintaining a robust safety margin, critical for the longevity and reliability of the components under varying load conditions. The 1/4 NPT (National Pipe Taper) outlet port size is a standard dimension for hydraulic connections in this class of equipment, ensuring compatibility with a wide range of hydraulic hoses and fittings, simplifying installation and maintenance.
Technical Operational Principles
The Buyers DC Power Unit operates on fundamental hydraulic principles. When the 12V DC motor is energized via the rocker switch, it rotates the hydraulic pump. The pump draws hydraulic fluid from the carbon steel reservoir and forces it under pressure through the system's manifold and valve block. For the "Power Up" function of the plow hoist, the control signal activates a solenoid-operated directional control valve. This valve directs the high-pressure fluid to the base end of the single-acting lift cylinder, causing it to extend and raise the plow. During the "Hold" state, the valve is centered, blocking fluid flow and retaining pressure in the cylinder, thus holding the plow in position. For "Gravity Down," the valve is shifted to open a path for fluid from the cylinder's base end back to the reservoir, allowing the plow to lower under its own weight, controlled by the flow rate facilitated by the valve design.
For the "Power Up/Power Down" (bi-directional) angling function, the operation is more complex, involving the four cartridge valves mentioned. When the operator selects "angle left," specific solenoids are energized, activating two of the cartridge valves. One valve directs pressurized fluid to one side of the double-acting angle cylinder, while the other valve opens a return path for fluid from the opposite side of the cylinder back to the reservoir. This differential pressure causes the cylinder to extend or retract, angling the blade. Selecting "angle right" reverses this process, activating the other pair of cartridge valves to direct fluid to the opposite ports of the angle cylinder. This precise control mechanism allows for continuous, active adjustment of the blade angle, which is paramount for effective snow clearing and precise maneuverability in confined spaces or around obstacles.
Applications Beyond Snow Plows
While specifically optimized and explicitly designed for snow plow lift and angle operations, the inherent versatility of this Buyers 4-Way/3-Way DC Power Unit allows for potential integration into a broader spectrum of light to medium-duty mobile hydraulic applications. Any system requiring precise bi-directional linear actuation (Power Up/Power Down) for two separate functions, or a primary lift function combined with a secondary Power Up/Gravity Down operation, could benefit from this unit's capabilities. Examples might include small dump inserts for utility vehicles, auxiliary hydraulic tools on service trucks, or specific material handling equipment where compact size, 12V DC power, and a robust control system are critical. Its compact footprint and horizontal mounting make it particularly attractive for installations where space is a premium, and the need for a self-contained hydraulic power source is paramount.
Installation, Maintenance, and Durability Considerations
The design of the Buyers 4-Way/3-Way DC Power Unit emphasizes ease of installation and long-term durability. The pre-wired controller with a 180-inch cable simplifies the electrical connection process, reducing installation time and complexity. Proper installation involves secure horizontal mounting, ensuring adequate clearance for maintenance and heat dissipation. Electrical connections must be made according to industry standards, utilizing appropriate wire gauges for 12V DC systems and incorporating fusing to protect against overcurrent conditions, especially given the 2 HP motor. Hydraulic connections require robust hoses and fittings, rated for the 2000 PSI operating pressure, with meticulous attention to leak-free sealing using thread sealants or O-rings as specified.
Routine maintenance is straightforward but critical for extending the unit's lifespan. This primarily involves regular checks of the hydraulic fluid level and quality. Using the manufacturer-recommended hydraulic fluid is essential, as incorrect fluid can lead to pump damage, cavitation, and system malfunction. Periodic inspection of all hydraulic connections for leaks, electrical wiring for fraying or corrosion, and the general condition of the reservoir and external components is advised. The robust carbon steel reservoir contributes significantly to the unit's overall durability, offering excellent resistance to impact and environmental degradation, which is particularly important in corrosive winter environments where salt and chemicals are prevalent.
Conclusion
The Buyers 4-Way/3-Way DC Power Unit with Electric Controls and a 0.75-gallon horizontal reservoir stands as an exemplary solution for demanding mobile hydraulic applications. Its meticulously engineered components, including a powerful 12V DC motor, an efficient hydraulic pump, a durable carbon steel reservoir, and an intuitive electric control system, coalesce to deliver reliable and precise hydraulic actuation. The sophisticated 4-way/3-position control for lift and 4-way control for angling, coupled with the essential crossover relief valve, ensures both operational efficiency and equipment longevity. This compact, horizontally mounted unit is not merely a power source but a fully integrated hydraulic control system, representing a professional-grade investment for operators seeking superior performance, enhanced safety, and unwavering reliability in the most challenging operational environments.
