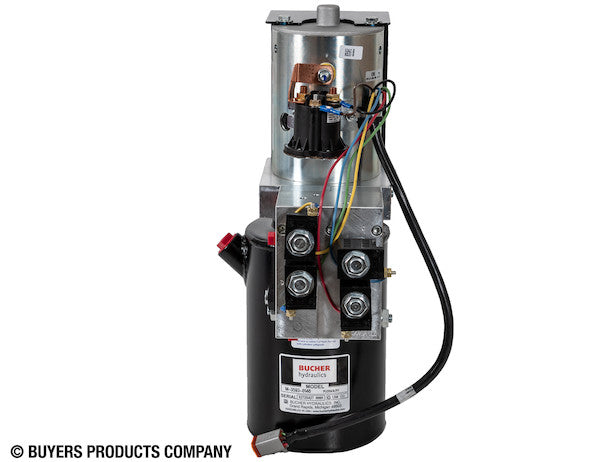

PU3593LRV - 4-Way/3-Way DC Power Unit-Electric Controls Vertical 0.75 Gallon Reservoir

The 4 Way/3 Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations. It includes pre-wired rocker switch controls that provide 4-way/3-position fingertip control for Power Up/Hold/Gravity Down (plow hoist), and 4-way for exact left-right angling of the blade. A crossover relief valve protects the angle cylinder and the plow blade should the plow strike a hidden object.

Specifications

Advanced Technical Overview: 4-Way/3-Way DC Power Unit with Electric Controls and Vertical Mounting

The 4-Way/3-Way DC Power Unit from Buyers Products represents a pinnacle of compact, integrated hydraulic power solutions engineered for demanding mobile applications. Designed with robust electric controls and specifically configured for vertical mounting, this unit delivers precise and reliable hydraulic power for a diverse range of tasks, with a primary focus on the complex operational requirements of snow plow systems, encompassing both lift and angle functionalities. This comprehensive technical description will delve into the intricate design, operational principles, key components, and performance advantages of this sophisticated power unit.

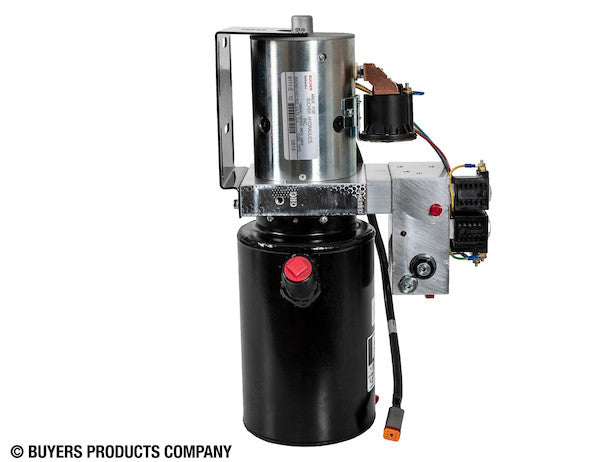

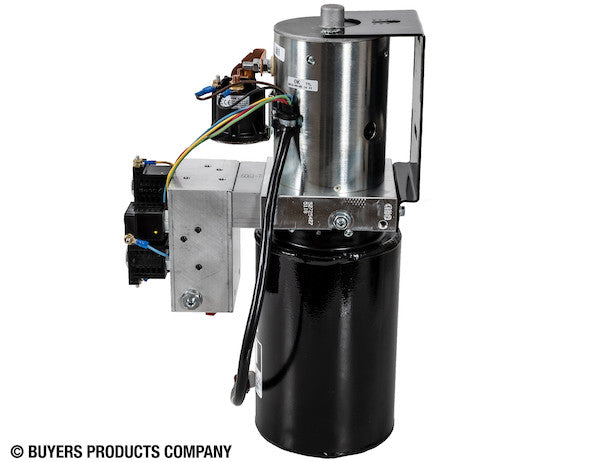

System Architecture and Core Components

At its core, this DC power unit is a self-contained hydraulic system comprising an electric motor, a hydraulic pump, an integrated fluid reservoir, a highly functional valve manifold, and an intuitive electrical control interface. Its compact dimensions (17.38 inches in length, 7.69 inches in width, and 10.81 inches in height) and vertical mounting orientation optimize space utilization, making it an ideal choice for installations where footprint is a critical consideration.

Direct Current (DC) Motor Specifications and Performance

The power unit is driven by a high-performance 12V DC electric motor, delivering a robust 2 horsepower (equivalent to 1.5 kW). This motor is specifically selected for its ability to provide high torque density and rapid response, crucial for dynamic hydraulic applications. Operating on 12-volt direct current, the unit is perfectly suited for integration into standard vehicle electrical systems, drawing power directly from the vehicle's battery. The motor's design emphasizes efficiency and durability, ensuring consistent performance even under intermittent, heavy-duty cycles typical of snow plowing operations. Its ability to generate significant hydraulic pressure quickly translates directly into responsive control over the attached implements, minimizing operational delays and maximizing productivity.

Hydraulic Pump and Pressure Generation

Coupled directly to the DC motor is a high-efficiency hydraulic pump, designed to generate the necessary fluid flow and pressure for the system's demands. With a formidable pressure rating of 2000 PSI (pounds per square inch), this pump is capable of handling heavy loads associated with lifting and angling substantial snow plow blades. While specific flow rates are not enumerated, the combination of a 2HP motor and a 2000 PSI pressure rating indicates a pump optimized for rapid actuation of hydraulic cylinders within its specified applications. The pump's robust construction ensures longevity and consistent performance across a wide range of operating temperatures and environmental conditions.

Integrated Fluid Reservoir

The unit features a resilient carbon steel reservoir, designed for maximum durability and resistance to environmental factors. With a nominal volume of 0.87 gallons and a usable volume specified at 1.00 gallon, the reservoir ensures an adequate supply of hydraulic fluid to the pump, preventing cavitation and maintaining system integrity. The carbon steel construction provides superior strength and corrosion resistance, contributing to the overall reliability and extended service life of the power unit. Proper hydraulic fluid selection, including consideration for viscosity and operating temperature range, is paramount to ensure optimal performance and longevity of the pump and hydraulic components. The vertical orientation of the reservoir plays a crucial role in its compact design, allowing for effective fluid management and heat dissipation within a minimal footprint.

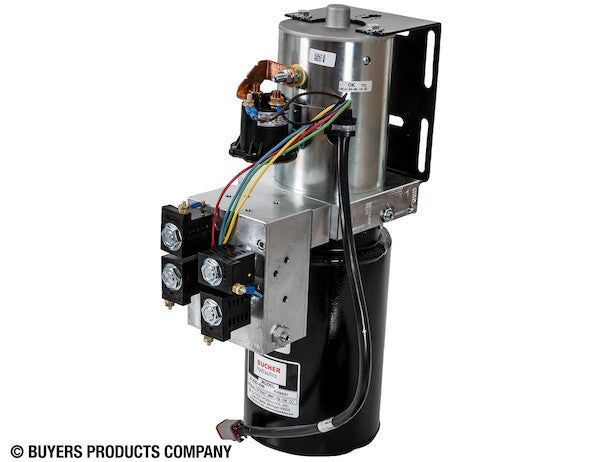

Advanced Valve Manifold and Control Logic

The core of this power unit's operational versatility lies in its sophisticated valve manifold, which incorporates four cartridge valves, enabling both 4-way and 3-way hydraulic control functions (designated as 3W4W). This advanced configuration allows for precise, independent control of multiple hydraulic circuits from a single power source.

4-Way Valve Functionality: Power Up/Power Down

The 4-way valve configuration is typically utilized for controlling double-acting hydraulic cylinders, which are commonly employed for the angling function of snow plow blades. In this mode, the valve directs pressurized fluid to one side of the cylinder while simultaneously allowing return fluid from the opposite side to flow back to the reservoir. The specified "Power Up/Power Down" spool action for the 4-way valves indicates that hydraulic pressure is actively applied for both extending and retracting the cylinder. This provides precise, controlled movement in both directions, essential for exact left-right angling of the plow blade. This active power-down capability offers superior control compared to gravity-down systems, especially when operating in uneven terrain or requiring fine adjustments.

3-Way Valve Functionality: Power Up/Gravity Down

The 3-way valve configuration is typically dedicated to single-acting hydraulic cylinders, which are characteristic of snow plow hoist mechanisms. For these applications, hydraulic pressure is applied to extend the cylinder (Power Up), lifting the plow blade. When the "Hold" position is selected, the valve blocks fluid flow, maintaining the blade's position. For lowering the blade, the "Gravity Down" function is engaged, where the valve opens a path for the fluid to return to the reservoir, allowing the weight of the plow to retract the cylinder. This Power Up/Hold/Gravity Down (PU/H/GD) functionality is standard for many lifting applications, offering simplicity and energy efficiency during the lowering cycle. The seamless integration of these valve types within the manifold underscores the unit's adaptability.

Integrated Crossover Relief Valve

A critical safety and protection feature incorporated into the manifold is the crossover relief valve. This valve is strategically positioned to safeguard the angle cylinder and the plow blade from potential damage caused by external impacts. Should the plow blade encounter an immovable object (e.g., a hidden curb, manhole cover, or large rock) while angling, the sudden shock load can generate extreme pressure spikes within the hydraulic cylinder and lines. The crossover relief valve detects these excessive pressures and momentarily diverts fluid, allowing the cylinder to absorb the impact without catastrophic failure. This not only protects the hydraulic components but also prevents structural damage to the plow blade itself, thereby extending the lifespan of the equipment and reducing costly repairs. The preset pressure threshold of this valve is carefully calibrated to ensure effective protection without hindering normal operational pressures.

Outlet Port Standardization

The hydraulic system is equipped with 1/4 NPT (National Pipe Taper) outlet ports. NPT connections are an industry standard for hydraulic systems, known for their robust sealing capabilities when properly installed. The 1/4-inch size is appropriate for the flow rates and pressures associated with light- to medium-duty mobile hydraulic applications like snow plows, ensuring compatibility with a wide array of hydraulic hoses and fittings.

Electrical Control System and User Interface

The "Electric Controls" aspect of this power unit denotes a sophisticated electrical interface designed for intuitive operation and seamless integration. The system utilizes solenoid-actuated valves, which are known for their rapid response times, precision, and durability in challenging environments.

Pre-Wired Rocker Switch Controller

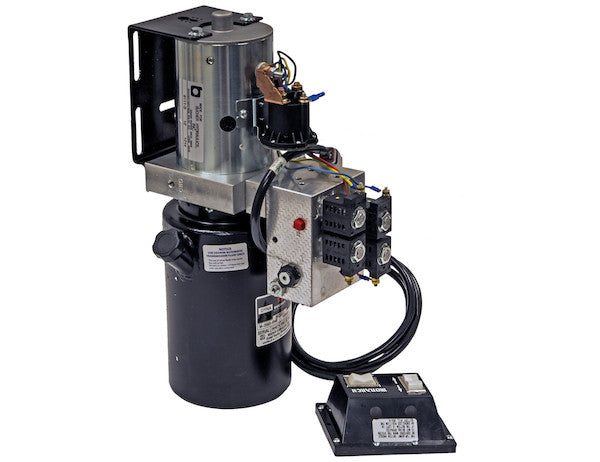

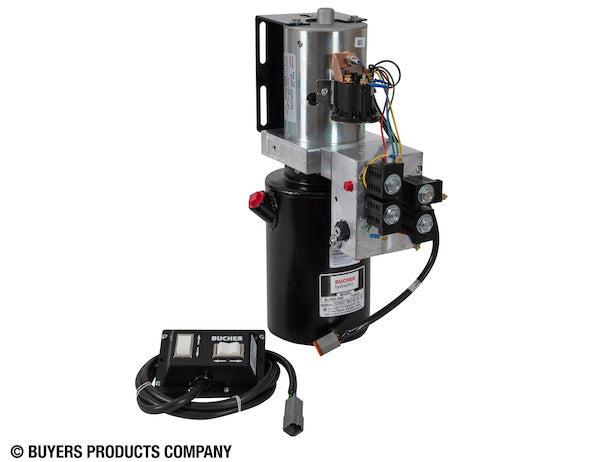

The unit comes complete with a pre-wired rocker switch controller, eliminating complex wiring during installation and ensuring immediate operational readiness. The controller is designed for ease of use, providing "push button" fingertip control. The 72-inch control cable length offers ample reach, allowing the operator to comfortably mount the controller within the vehicle's cab, ensuring ergonomic access and optimal visibility of operations. This integrated control system streamlines the user experience, enabling operators to manage both the lift and angle functions of the plow with minimal effort and maximum precision. The tactile feedback from the rocker switches ensures confident operation, even when wearing gloves or in low-light conditions.

System Integration and Power Management

Operating on a 12V DC electrical system, this power unit is designed for direct integration with standard vehicle electrical architectures. Its power consumption is optimized for intermittent operation, minimizing drain on the vehicle’s battery while delivering maximum power during actuation cycles. Proper electrical connection, including appropriate fusing and wire gauge, is critical for safe and reliable operation, preventing overheating and ensuring consistent power delivery to the motor and solenoids.

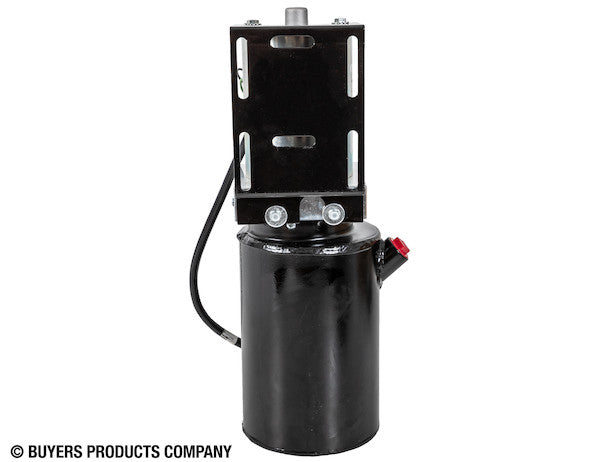

Vertical Mounting Position: Advantages and Considerations

A key distinguishing feature of this power unit is its designated vertical mounting position. Unlike horizontally mounted units, a vertical orientation can offer several benefits:

• **Space Efficiency:** Vertical mounting often requires a smaller footprint, making it ideal for confined spaces within vehicle compartments or chassis where horizontal clearance is limited.
• **Fluid Management:** In certain applications, vertical reservoir orientation can facilitate better fluid de-aeration and heat dissipation, contributing to cleaner fluid and extended component life.
• **Installation Flexibility:** It provides additional flexibility in mounting locations, particularly on truck frames or utility vehicles where vertical structural members are prevalent.

During installation, it is imperative to adhere to the manufacturer's guidelines for vertical mounting to ensure proper fluid level monitoring, reservoir breathing, and prevention of air ingestion into the pump. Proper securing of the unit is also paramount to withstand the vibrations and dynamic forces encountered in mobile applications.

Applications and Operational Benefits

While primarily engineered for snow plow lift and angle operations, the versatility of its 4-way/3-way valve system extends its applicability to a broader spectrum of mobile hydraulic tasks. These may include:

• **Small Dump Trailers:** Powering the lift cylinder for dumping functionality.
• **Lift Gates:** Providing hydraulic power for vehicle-mounted lift gates.
• **Auxiliary Implements:** Operating various hydraulic attachments on light-duty trucks and utility vehicles.
• **Trailer-Mounted Equipment:** Providing self-contained hydraulic power for portable machinery.

The operational benefits of this integrated power unit include:

• **Enhanced Control:** Precise fingertip control over complex operations, leading to greater efficiency and reduced operator fatigue.
• **Increased Safety:** The crossover relief valve offers critical protection against impact damage, extending equipment life and reducing operational hazards.
• **Durability in Harsh Environments:** Constructed from robust materials like carbon steel and designed for mobile outdoor use, ensuring reliable performance in demanding weather conditions.
• **Simplified Installation:** As an all-in-one, pre-wired unit, installation time and complexity are significantly reduced, translating to lower labor costs and faster deployment.
• **Compact Integration:** Its optimized vertical form factor allows for seamless integration into existing vehicle platforms without extensive modifications.

Maintenance and Longevity

To ensure the prolonged operational life and consistent performance of the 4-Way/3-Way DC Power Unit, adherence to a routine maintenance schedule is essential. Key maintenance considerations include:

• **Hydraulic Fluid Management:** Regular inspection of hydraulic fluid levels and cleanliness. Periodic fluid changes, using only recommended hydraulic fluids with appropriate viscosity and additives for the operating temperature range, are crucial. Contaminated or degraded fluid is a leading cause of hydraulic component failure.
• **Electrical System Integrity:** Verification of electrical connections, ensuring they are clean, tight, and free from corrosion. Inspection of wiring for any signs of wear, chafing, or damage.
• **Structural Inspection:** Periodic examination of the unit’s mounting and housing for any signs of stress, cracks, or loose fasteners.
• **Filter Maintenance:** While not explicitly listed as a replaceable component, external filtration may be employed in larger systems. Even without an external filter, maintaining fluid cleanliness is paramount.
• **Environmental Protection:** Ensuring the unit remains adequately protected from road salt, debris, and excessive moisture when not in operation.

By following these guidelines, the power unit will continue to deliver reliable and efficient hydraulic performance for many seasons.

Conclusion

The 4-Way/3-Way DC Power Unit with Electric Controls and Vertical Mounting is a testament to sophisticated engineering in mobile hydraulics. Its integrated design, powerful 12V DC motor, high-pressure pump, versatile 4-way/3-way valve manifold with safety features like the crossover relief valve, and user-friendly electric controls culminate in an exceptionally capable and reliable hydraulic power source. Optimized for vertical installation and designed for the rigorous demands of applications such as snow plow operations, this unit offers unparalleled performance, precision, and durability, making it an indispensable component for professionals seeking robust and efficient hydraulic solutions for their mobile equipment.
