The 3-Way Valve DC Power Unit - Manual Controls from Buyers Products is an all-in-one, compact power pack. It's ideal for any power up/gravity down hydraulic application such as a plow or dump body. You get quick-response functionality from one small package. The unit contains a built-in pump, 12V motor, polymer reservoir, 3 function valve, suction filter, manual handle controls and more. It also features an externally adjustable relief valve for more controlled down operation. It's built to withstand weather and tough work demands.
Specifications
| Controller Included? | No |
|---|---|
| Height | 4.50 |
| Length | 10 |
| Manual or Push Button | Manual |
| Motor Horsepower | 1.5 |
| Motor Power (kW) | 1.5 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 0 |
| Outlet Port Size | 1/4 NPT |
| Pressure Rating | 2000 |
| Reservoir Material | Polyethylene |
| Reservoir Volume (Gal) | 0.45 |
| Spool Action | Power Up/Power Down - Spring Center; Power Up/Gravity Down - Spring Center |
| Width | 4.5 |

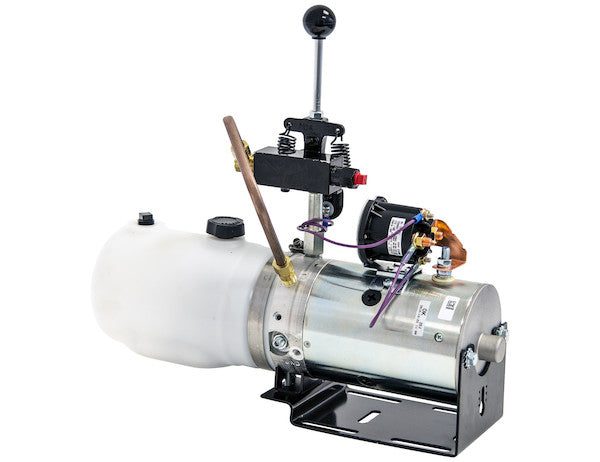

The 4 Way DC Power Unit: Precision Hydraulic Control for Demanding Applications
Introducing the advanced 4 Way DC Power Unit, a meticulously engineered hydraulic power solution designed for applications demanding precise, bidirectional control. This compact and robust unit integrates a high-performance pump, a responsive 12V DC motor, and a durable 1.3 quart horizontal reservoir, all managed through intuitive manual controls. Built for reliability and efficiency, it provides comprehensive hydraulic functionality for a diverse range of mobile and stationary equipment, ensuring optimal performance even in challenging operational environments. This unit exemplifies a commitment to delivering unparalleled control and enduring quality, making it an indispensable asset for various industrial and commercial operations.
Comprehensive 4-Way Hydraulic Control
The distinguishing feature of this power unit is its 4-way valve configuration, which provides superior control over hydraulic actuators, particularly double-acting cylinders. Unlike simpler 3-way systems that typically offer only power-up and gravity-down functionality, a 4-way valve enables full "power up" and "power down" capability. This means hydraulic pressure can be actively applied to both sides of a double-acting cylinder, allowing for precise extension and retraction with controlled force and speed in both directions. The "spring center" spool action ensures that the valve returns to a neutral position when not actively engaged, enhancing safety and preventing unintended movement. Furthermore, the versatile design also accommodates "power up/gravity down" applications, providing flexibility for systems utilizing single-acting cylinders where controlled lowering is achieved through the force of gravity, regulated by the unit's externally adjustable relief valve. This dual capability makes the 4 Way DC Power Unit exceptionally adaptable to a broad spectrum of hydraulic circuits, from snow plows and dump bodies requiring robust lifting and lowering, to more complex systems in agriculture, material handling, and automotive service equipment where nuanced control is paramount.
Integrated DC Power System: Robust 12V Motor Performance
At the heart of this compact power unit lies a powerful 12V DC motor, delivering a substantial 1.5 horsepower (1.5 kW) of output. This specification is crucial for generating the necessary hydraulic pressure and flow rates to operate various cylinders efficiently. The 12V DC architecture makes this unit ideal for integration into vehicle electrical systems or standalone battery-powered applications, offering unparalleled mobility and convenience without the need for an external AC power source. The motor is engineered for high torque and consistent performance, ensuring quick response times and reliable operation even under intermittent high-load conditions typical of hydraulic cycles. Its robust construction is designed to withstand the electrical demands and environmental stressors associated with mobile equipment, guaranteeing longevity and minimal maintenance. This high-efficiency motor is carefully matched with the hydraulic pump to optimize energy conversion, minimizing current draw while maximizing hydraulic output, which translates into extended battery life for mobile applications and overall operational cost savings.
Precision Manual Controls for Direct Operator Engagement
This 4 Way DC Power Unit is equipped with intuitive manual handle controls, putting direct and reliable hydraulic command at the operator's fingertips. The manual control interface offers several advantages: it is inherently robust, less susceptible to electronic failures compared to complex electrical systems, and provides a tactile, immediate response that many operators prefer for critical applications. The mechanical linkage ensures a direct connection to the valve's spools, offering precise metering of hydraulic flow. This level of direct control is invaluable in scenarios where fine adjustments are required, such as positioning a plow blade or carefully tipping a dump body. The design of the manual handles prioritizes ergonomics and durability, allowing for comfortable and sustained operation. The reliability of manual controls ensures uninterrupted functionality, critical for equipment operating in remote locations or harsh conditions where electronic components might be more vulnerable. The absence of a separate controller streamlines installation and reduces overall system complexity, contributing to the unit's "all-in-one" compact appeal.
Optimized Horizontal Reservoir Design: Capacity and Material Science
The unit features a horizontally mounted 1.3 quart (approximately 1.23 liters) polyethylene reservoir. This specific orientation and volume are strategically chosen for several reasons. The horizontal design minimizes the unit's overall height, allowing for versatile mounting in confined spaces, such as under truck beds or within equipment frames. This compact footprint (Height: 4.50 inches, Length: 10 inches, Width: 4.5 inches) is a key advantage for integrating the power unit seamlessly into existing machinery without significant structural modifications. The 1.3-quart capacity is optimized to provide sufficient hydraulic fluid for typical applications involving mid-sized cylinders, ensuring adequate heat dissipation and preventing fluid starvation during demanding cycles, while keeping the overall unit size and weight to a minimum. The choice of polyethylene as the reservoir material is deliberate, offering exceptional benefits: it is lightweight, corrosion-resistant, impact-resistant, and impervious to most common hydraulic fluids. This material ensures that the reservoir can withstand exposure to harsh weather conditions, road salts, chemicals, and physical impacts without degrading, contributing significantly to the unit's longevity and reliability in outdoor and industrial settings. The transparent or translucent nature of polyethylene often allows for visual inspection of the fluid level, facilitating routine maintenance checks.
Core Component Breakdown: Engineering for Peak Performance
Each component within this 4 Way DC Power Unit is carefully selected and integrated to achieve a harmonious and high-performing hydraulic system.
High-Performance Pump System
The unit incorporates a precision-engineered hydraulic pump designed to efficiently convert the motor's rotational energy into hydraulic flow and pressure. This pump is sized to match the 1.5 HP motor, ensuring optimal volumetric efficiency and consistent flow rates across its operating range. The pump's internal geometry and robust construction contribute to its reliability and ability to generate the specified 2000 PSI pressure rating, providing ample force for demanding applications. Its compact integration within the power pack minimizes potential leak points and enhances overall system integrity.
Advanced 4-Function Valve Block
Central to the unit's functionality is its integrated 4-function valve block. This sophisticated valve allows for dynamic control of hydraulic flow, directing fluid to extend, retract, or hold hydraulic cylinders. The design facilitates seamless transitions between functions, offering smooth and predictable actuator movement. With a spool action supporting both Power Up/Power Down and Power Up/Gravity Down with spring-center return, the valve block provides exceptional adaptability for single-acting or double-acting hydraulic cylinders. The valve's internal components are precision-machined to minimize internal leakage and maximize system efficiency, ensuring that hydraulic power is effectively transmitted to the workload.
Integrated Suction Filtration
To safeguard the hydraulic system from contaminants, a crucial suction filter is integrated within the unit. This filter is strategically placed to remove particulate matter from the hydraulic fluid before it enters the pump, protecting the pump, valve, and cylinders from abrasive wear and potential damage. Clean hydraulic fluid is paramount for the longevity and efficient operation of any hydraulic system. The integrated design simplifies maintenance and ensures consistent filtration performance, reducing the risk of costly downtime due to contamination-related issues.
Externally Adjustable Relief Valve
A key safety and control feature of this power unit is its externally adjustable relief valve. This valve acts as a pressure limiting device, protecting the hydraulic system from over-pressurization by diverting excess fluid back to the reservoir once a pre-set pressure threshold is reached. The external adjustability allows operators or technicians to precisely set the maximum system pressure to match the requirements of specific applications or to prevent damage to hydraulic components. This feature is critical for both operational safety and prolonging the life of the entire hydraulic circuit, ensuring that the system operates within its safe working limits.
Versatile Applications Beyond Standard Duty
While ideally suited for common applications like snow plows and dump bodies, the capabilities of this 4 Way DC Power Unit extend much further. Its robust design and precise control make it suitable for a wide array of mobile and industrial hydraulic systems, including:
- Agricultural Equipment: Operating small implement lifts, markers, or auxiliary functions on compact tractors and utility vehicles.
- Utility Vehicles: Powering small cranes, winches, or specialized attachments on service trucks and utility quads.
- Material Handling: Enabling lift and tilt functions on compact forklifts, scissor lifts, or specialized conveyors.
- Marine Applications: Actuating trim tabs, anchor winches, or small davits on boats and marine equipment.
- Construction Machinery: Providing auxiliary power for mini-excavator attachments, concrete mixers, or small compactors.
- Automotive Service: Powering small lift tables, shop presses, or tire changers.
Detailed Technical Specifications Analysis
A closer examination of the unit's technical specifications reveals its robust design and operational capabilities:
- Motor Voltage: 12V DC – Standard for mobile applications, allowing direct integration with vehicle electrical systems.
- Motor Horsepower: 1.5 HP (1.5 kW) – Provides significant power for high-pressure applications, ensuring rapid and decisive hydraulic action.
- Pressure Rating: 2000 PSI – This maximum working pressure indicates the unit's capacity to handle substantial loads, suitable for heavy-duty lifting and positioning tasks.
- Outlet Port Size: 1/4 NPT – A common thread standard, facilitating easy connection to existing hydraulic lines and components using readily available fittings.
- Mounting Position: Horizontal – Optimized for low-profile installation, simplifying integration into various equipment designs.
- Reservoir Material: Polyethylene – Chosen for its lightweight, corrosion resistance, and durability against environmental factors and hydraulic fluids.
- Reservoir Volume: 1.3 Quart (Nominal) – An optimized capacity that balances compactness with sufficient fluid volume for typical operational cycles, aiding heat dissipation.
- Spool Action: Power Up/Power Down - Spring Center; Power Up/Gravity Down - Spring Center – This dual functionality highlights the unit's versatility, capable of controlling both double-acting and single-acting cylinders effectively. The spring-center mechanism ensures failsafe return to neutral.
- Dimensions (HxLxW): 4.50" x 10" x 4.5" – Emphasizes the ultra-compact form factor, allowing installation in tight spaces without compromising performance.
Construction for Extreme Durability and Reliability
This 4 Way DC Power Unit is engineered to withstand the rigors of continuous use in demanding environments. The choice of a polyethylene reservoir, while contributing to lightness, also provides superior resistance to rust, dents, and chemical degradation that often plague metal reservoirs. The critical components, including the pump, motor, and valve block, are manufactured from high-grade materials and precision-assembled to ensure long-term operational integrity. Gaskets and seals are selected for their resistance to hydraulic fluid and temperature variations, preventing leaks and maintaining system pressure. The overall design minimizes external exposure of sensitive components, offering inherent protection against dust, moisture, and impact. This robust construction ethos extends to the electrical connections and wiring, ensuring consistent power delivery and control reliability under diverse climatic conditions, from freezing temperatures to high heat and humidity.
Installation, Operation, and Maintenance Best Practices
Installing the 4 Way DC Power Unit is straightforward due to its integrated design and compact horizontal form factor. Proper mounting on a stable, vibration-free surface is essential for optimal performance and longevity. Users should ensure correct electrical connections, matching the 12V DC power source with appropriate gauge wiring to prevent voltage drop and motor strain. Filling the reservoir with the recommended hydraulic fluid, typically an AW (Anti-Wear) 32 or 46, is crucial for proper lubrication and heat transfer. Operation is simple through the manual lever controls, requiring minimal training. For maintenance, regular checks of the hydraulic fluid level and quality are recommended. The integrated suction filter should be periodically inspected and replaced as per manufacturer guidelines to prevent system contamination. The externally adjustable relief valve should only be adjusted by qualified personnel using a pressure gauge to ensure the system operates within safe and efficient parameters. Adherence to these practices will maximize the lifespan and operational efficiency of the unit.
Strategic Advantages for Industrial and Commercial Operations
Investing in this 4 Way DC Power Unit provides significant strategic advantages for businesses. Its compact, all-in-one design reduces the complexity and cost associated with sourcing individual components and assembling a hydraulic system from scratch. The manual controls offer a reliable, intuitive, and cost-effective interface. The 12V DC operation allows for deployment in mobile applications where traditional AC power is unavailable, enhancing equipment versatility. Furthermore, the unit's robust construction and high-quality components lead to reduced downtime and lower maintenance costs over its operational lifespan. The ability to precisely control double-acting cylinders through its 4-way valve configuration opens up a wider range of applications, increasing the utility and value of existing equipment or enabling new hydraulic functionalities. This power unit represents a smart investment for operations seeking efficient, reliable, and adaptable hydraulic power solutions.
Safety and Compliance Considerations
The design of the 4 Way DC Power Unit incorporates several features that contribute to safe operation. The externally adjustable relief valve is a primary safety mechanism, preventing over-pressurization of the hydraulic system, which could otherwise lead to component failure or hazardous situations. The spring-center spool action ensures that hydraulic functions return to a neutral, safe state when not actively controlled, minimizing the risk of unintended movement. Operators should always follow standard hydraulic safety protocols, including wearing appropriate personal protective equipment, understanding load limits, and performing regular inspections. Electrical connections should be properly fused and insulated according to industry standards to prevent short circuits and electrical hazards. All components are designed to meet relevant industrial and electrical safety standards, ensuring that when properly installed and operated, the unit provides a secure working environment.
Conclusion
The 4 Way DC Power Unit with Manual Controls and a Horizontal 1.3 Quart Reservoir stands as a testament to advanced hydraulic engineering within a compact footprint. Its ability to provide precise, bidirectional control for both single and double-acting hydraulic cylinders, powered by a robust 12V DC motor, makes it an exceptionally versatile and reliable solution. From its durable polyethylene reservoir and high-performance pump to its intuitive manual controls and comprehensive safety features, every aspect of this unit is designed for maximum efficiency, longevity, and ease of use in the most demanding applications. Whether upgrading existing equipment or designing new hydraulic systems, this power unit offers the performance, durability, and flexibility required to succeed in a multitude of industrial, commercial, and mobile environments.
