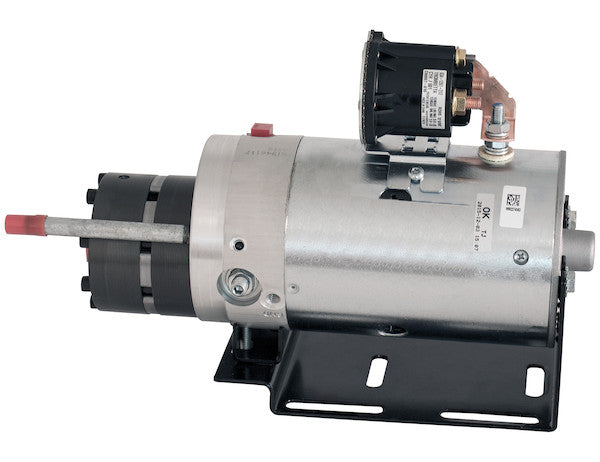

PU526 - DC Power Unit - Pump/Motor Only

The DC Power Unit - Pump/Motor Only from Buyers Products is ideal when you already have a reservoir and external valve to complete your DC hydraulic system. It includes a pump, motor, solenoid and strap, plus an externally adjustable relief valve.

Specifications

The DC Power Unit - Pump/Motor Only from Buyers Products represents a meticulously engineered core component designed for the specialized needs of hydraulic system integrators, OEMs, and advanced users who require precise control over their system architecture. This unit is not a standalone, self-contained hydraulic power unit but rather the robust engine and pumping assembly, specifically tailored for applications where existing or custom-selected reservoirs and external directional control valves are already implemented. By offering the pump, motor, solenoid, and an essential externally adjustable relief valve as a focused module, this product provides unparalleled flexibility, allowing for optimized system design and cost-efficiency in a broad spectrum of DC hydraulic applications.

Technical Overview: Core Components and Their Functions

The efficacy and reliability of any hydraulic system are fundamentally tied to its core power-generating components. This DC Power Unit is engineered with precision to deliver consistent performance, integrating several critical elements:

Hydraulic Pump

At the heart of this power unit is a high-performance hydraulic pump, designed to convert the mechanical energy from the electric motor into hydraulic energy in the form of pressurized fluid. While the specific pump type (e.g., gear pump) is commonly employed in DC power units for its robustness, efficiency, and tolerance to fluid contamination, its primary function remains consistent: to draw hydraulic fluid from an external reservoir and deliver it under pressure to the system. The pump’s displacement, coupled with the motor's RPM, dictates the flow rate, which in turn influences the speed of the hydraulic actuators (cylinders or motors) in the overall system. The internal construction features hardened components, precision machining, and advanced sealing technologies to ensure high volumetric efficiency and a long service life under challenging operational conditions. Attention to material selection for the pump body and internal gears or vanes provides resistance to wear and corrosion, crucial for maintaining performance across varying operational temperatures and fluid conditions. The pump’s inlet is designed for optimal suction from a remote reservoir, minimizing cavitation risks, while the outlet port, specified as 3/8 NPT, facilitates secure and leak-free integration into the high-pressure side of the hydraulic circuit.

DC Electric Motor (2 HP, 12V DC)

The motive force for the hydraulic pump is supplied by a robust 2 horsepower (HP), 12-volt (V) DC electric motor. This motor is specifically selected for its ability to deliver the necessary torque and rotational speed to the pump, enabling it to generate the specified 2500 PSI pressure. The 12V DC configuration makes this unit ideal for integration into vehicle electrical systems (e.g., trucks, trailers, utility vehicles) or other battery-powered mobile and stationary applications where a direct current power source is readily available. Typically, such motors are series-wound or permanent magnet types, known for their high starting torque and reliability. The motor's design incorporates features for efficient power conversion, minimizing electrical current draw while maximizing mechanical output. Thermal management is a critical aspect; the motor is engineered to dissipate heat effectively during its duty cycle, preventing overheating and ensuring consistent performance. The insulation class and enclosure rating contribute to its durability and operational safety in various environmental conditions. Proper sizing of electrical cabling and protective fusing is paramount to prevent voltage drop and safeguard the motor from overcurrent conditions, extending its operational lifespan and maintaining peak performance.

Solenoid

The integrated solenoid serves as the electrical interface for controlling the activation and deactivation of the DC motor. Functioning as a heavy-duty relay or contactor, it is responsible for switching the high current required by the 2 HP motor, effectively isolating the control circuit from the main power circuit. This component typically features a robust electromagnetic coil that, when energized by a low-current control signal (e.g., from a switch or controller), closes a set of heavy-duty contacts, allowing the high current from the 12V DC power source to flow to the motor. The solenoid’s design ensures reliable operation, offering quick response times for motor engagement and disengagement. Its robust construction and contact materials are chosen to withstand repeated switching cycles and the arcing associated with high-current loads, ensuring longevity and consistent motor control. This centralized control mechanism simplifies wiring for the end-user, providing a secure and efficient means of operating the power unit.

Strap

The inclusion of a mounting strap is a practical yet crucial detail that underscores the unit's readiness for integration. Designed for horizontal mounting, the strap provides a secure and stable means of affixing the pump/motor assembly to the desired mounting surface. Its construction material and design are optimized to withstand operational vibrations and the dynamic forces generated during system activation. Proper mounting is essential for several reasons: it minimizes noise and vibration transmission to the surrounding structure, ensures stable pump operation, and facilitates optimal motor cooling. The horizontal mounting orientation specifically addresses considerations related to fluid dynamics within the pump, ensuring efficient priming and operation while also providing a compact footprint suitable for diverse installation environments.

Externally Adjustable Relief Valve (1 Cartridge Valve)

A singularly critical safety and performance component within this power unit is the externally adjustable relief valve. This is identified as a cartridge valve, signifying a compact, robust design that can be easily installed and maintained. Its primary function is to protect the hydraulic system from over-pressurization, a condition that can lead to component failure, leaks, or even catastrophic rupture. The valve operates by diverting excess hydraulic fluid back to the reservoir (or a low-pressure return line) once a pre-set pressure threshold is exceeded. Being "externally adjustable" means that the maximum system pressure can be precisely calibrated by the user to match the specific requirements of the application, up to the unit's maximum rated pressure of 2500 PSI. This adjustability provides immense flexibility for system tuning, allowing for optimization of lifting capacity, clamping force, or other work functions without requiring disassembly of the valve. The relief valve is typically a direct-acting or pilot-operated poppet or ball type, selected for its rapid response and reliable sealing characteristics. Its presence is indispensable for both system safety and for defining the operational limits of the connected hydraulic actuators.

System Integration and Application Scenarios

The design philosophy behind the "DC Power Unit - Pump/Motor Only" is centered on modularity and adaptability. This unit serves as the heart of a hydraulic system, requiring the integration of several external components to form a complete, operational circuit.

The "Pump/Motor Only" Advantage

This configuration is particularly advantageous for:

• Custom Systems: Designers can select a reservoir of a specific size, material, or shape to fit unique space constraints or thermal requirements.
• Upgrades/Replacements: When an existing hydraulic power unit's pump and motor assembly fails, but its reservoir and directional control valves remain functional, this unit offers a cost-effective and efficient replacement.
• Specialized Valve Requirements: Applications demanding specific types of directional control valves (e.g., manual, electric, proportional, stackable, manifold-mounted) that are not typically integrated into standard compact power units can be easily accommodated.
• Distributed Systems: In scenarios where the reservoir or control valves need to be located remotely from the power source, this unit provides the necessary flexibility.

Integration into a Complete Hydraulic Circuit

To become a fully functional hydraulic system, this unit must be connected as follows:

1. Reservoir Connection: The pump’s suction port must be connected via a suction line (typically a larger diameter hose) to an appropriately sized hydraulic reservoir. The reservoir stores the hydraulic fluid, aids in heat dissipation, allows for air separation, and serves as a point for fluid conditioning (filtration).
2. External Valve Connection: The high-pressure outlet (3/8 NPT) of the pump/motor unit must be connected to the inlet port of an external directional control valve or manifold. This valve then directs the pressurized fluid to the specific hydraulic actuator (e.g., single-acting cylinder for lifting, double-acting cylinder for push/pull applications) required for the system's function.
3. Return Line: Fluid returning from the actuator, after performing work, is routed back to the reservoir, typically through the directional control valve.

This architectural flexibility empowers engineers to design systems that are precisely optimized for performance, footprint, and budget.

Ideal Applications

The 12V DC, 2 HP configuration with 2500 PSI pressure capability makes this unit suitable for a wide array of mobile and light-industrial hydraulic applications, including:

• Vehicle-Mounted Equipment:
  • Dump beds and trailers (for lifting and lowering).
  • Snowplows and salt spreaders (for blade angling and lifting).
  • Lift gates and truck cranes (for material handling).
  • Utility vehicle attachments (e.g., small augers, post drivers).
• Agricultural Machinery:
  • Small implements requiring hydraulic actuation.
  • Sprayers, cultivators, and other PTO-driven equipment with auxiliary hydraulic functions.
• Material Handling:
  • Compact scissor lifts and work platforms.
  • Small stackers and pallet jacks with powered lift functions.
• Industrial and Workshop Equipment:
  • Small presses and clamping fixtures.
  • Jig and fixture actuation in manufacturing.

Technical Considerations and Performance Parameters

Understanding the implications of the specified parameters is vital for successful system design and operation.

Pressure Rating (2500 PSI)

A maximum pressure rating of 2500 PSI (pounds per square inch) indicates a robust power unit capable of generating significant force. This pressure level is common in many medium-duty hydraulic applications, allowing for considerable lifting or clamping forces with relatively compact cylinder sizes. For instance, a 3-inch bore cylinder at 2500 PSI can generate approximately 17,671 pounds (nearly 9 tons) of force. This capability ensures that the unit can handle demanding tasks requiring substantial mechanical output. Engineers must ensure all downstream components (hoses, fittings, valves, cylinders) are rated for at least 2500 PSI, with appropriate safety factors, to prevent system failure.

Motor Horsepower (2 HP) and Voltage (12V DC)

The 2 HP motor, operating on 12V DC, balances power output with electrical system compatibility. Horsepower dictates the rate at which hydraulic work can be done (flow at a given pressure). For a 2 HP motor, typical hydraulic output (assuming ~80% efficiency) might be around 1.6 HP, translating to a specific combination of flow and pressure. For instance, at 2500 PSI, this motor could potentially deliver a flow rate in the range of 1.5 to 2.5 gallons per minute (GPM), depending on the pump's efficiency and displacement. This flow rate is suitable for moderate speed applications. The 12V DC power source necessitates careful consideration of battery capacity, cable gauge to minimize voltage drop, and proper fusing/circuit protection for the high current draw associated with a 2 HP motor at 12V (which can exceed 100-150 amps during operation).

Outlet Port Size (3/8 NPT)

The 3/8 NPT (National Pipe Taper) outlet port is a standard and widely compatible connection size for hydraulic systems. NPT threads provide a secure, tapered seal, crucial for high-pressure applications. Using appropriate thread sealants (e.g., PTFE tape or liquid sealant) is essential to prevent leaks. The port size is adequately dimensioned to handle the flow rates generated by the pump without excessive pressure drops or velocity, ensuring efficient fluid transfer to the external valve block.

Horizontal Mounting Position

The specified horizontal mounting position is important for pump performance and overall system longevity. This orientation typically facilitates easier pump priming by ensuring the pump's inlet is either below or level with the fluid surface in the external reservoir, aiding gravity feed and reducing the risk of cavitation. It also often simplifies the integration of the motor and pump package into compact spaces, common in mobile applications. Adhering to the recommended mounting position ensures that internal lubrication and cooling mechanisms within the motor and pump operate as intended.

Installation, Maintenance, and Longevity

To maximize the operational life and performance of the DC Power Unit - Pump/Motor Only, adherence to best practices for installation and a disciplined maintenance regimen are imperative.

Installation Best Practices

• Cleanliness: Hydraulic systems are highly sensitive to contamination. All connections, hoses, and the external reservoir must be scrupulously clean before assembly.
• Fluid Selection: Use only recommended hydraulic fluid, typically an anti-wear hydraulic oil (e.g., ISO VG32 or VG46), with appropriate viscosity for the expected operating temperature range.
• Suction Line Integrity: The suction line from the reservoir to the pump must be airtight, properly sized to minimize pressure drop, and as short as possible. Avoid unnecessary bends.
• Electrical Wiring: Employ appropriate gauge wiring for 12V DC applications with high current draw, minimizing runs to reduce voltage drop. Ensure secure, corrosion-resistant electrical connections and proper grounding. Install correctly rated fuses or circuit breakers.
• Priming: After initial installation or maintenance involving fluid drainage, the pump must be properly primed to ensure it draws fluid and does not run dry, which can cause severe damage. This often involves temporarily loosening a pressure line connection while briefly running the motor.
• Torque Specifications: Adhere to specified torque values for all fittings and mounting hardware to ensure secure connections and prevent leaks or loosening due to vibration.

Maintenance Schedule

• Hydraulic Fluid: Periodically inspect fluid level and quality (color, odor, presence of contaminants). Change fluid according to the manufacturer's recommendations or when contamination is evident.
• Filtration: Ensure the external hydraulic system incorporates appropriate filtration (return line, pressure line, or suction strainers) and replace filter elements regularly.
• Electrical Connections: Routinely check all electrical connections for tightness and signs of corrosion or arcing.
• Relief Valve Setting: Periodically verify the relief valve setting, especially if performance issues arise or after significant system modifications.
• Mounting Hardware: Check mounting strap and hardware for tightness to prevent vibration-induced damage.

Troubleshooting Common Issues

Understanding potential issues can aid in rapid diagnosis and resolution:

• No Pump Pressure/Flow: Check for insufficient fluid in the reservoir, air in the suction line (cavitation), a clogged suction filter, incorrect motor rotation, or a relief valve set too low or stuck open.
• Excessive Noise: Can indicate cavitation, misaligned components, worn pump bearings, or excessive fluid aeration.
• Motor Overheating: Often points to an undersized motor for the application, excessive duty cycle, low voltage, or high current draw due to high pressure/flow demands.
• Electrical Failures: Blown fuses, tripped breakers, or motor failure can be due to shorts, overloads, or poor connections.

Durability and Construction

Buyers Products is known for producing robust equipment designed for demanding commercial and industrial applications. The construction of this DC Power Unit reflects this commitment, utilizing durable materials and manufacturing processes that ensure longevity. Components are selected for their resistance to wear, fatigue, and environmental factors such as moisture, dust, and temperature fluctuations. Precision-machined components, robust motor windings, heavy-duty solenoids, and high-quality seals contribute to the overall reliability and extended service life of the unit, even in harsh operating environments.

Compliance and Standards

While specific certifications may vary, components like these are designed with adherence to general industry standards for hydraulic equipment and electrical safety. This may include considerations derived from organizations such as the National Fluid Power Association (NFPA), International Organization for Standardization (ISO) for hydraulic components and fluids, and relevant electrical codes for DC power systems. This ensures a level of quality, safety, and compatibility for system integrators.

Conclusion

The DC Power Unit - Pump/Motor Only from Buyers Products is an indispensable component for specialized hydraulic applications. By providing the essential pump, motor, solenoid, and an externally adjustable relief valve as a focused unit, it offers system integrators and OEMs the flexibility to design custom hydraulic systems with precise control over reservoir sizing, directional valve selection, and overall system architecture. Its robust 2 HP, 12V DC motor, coupled with a 2500 PSI pressure rating, ensures reliable power for a wide range of mobile and industrial tasks. This modular approach not only simplifies component selection for tailored solutions but also often presents a more cost-effective alternative for replacing existing power units or building unique hydraulic functionalities. With proper installation and maintenance, this unit promises exceptional durability and consistent performance, serving as the dependable core of any well-engineered DC hydraulic system.
