The 4-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack for operating your snow plow, lift gate, dump trailer, RV slideouts, etc. You get quick-response, power up/power down functionality from one small package that contains a built-in pump, 12V motor, reservoir, 4 function valve, triple filtration, factory-wired control station, and more. Push-button electric controls make the job easy. It's built to withstand weather and tough work demands. Choose from a polymer or steel reservoir in two sizes to meet your needs.
Specifications
| Control Cable Length | 72 |
|---|---|
| Controller Included? | Y |
| Height | 7.50 |
| Length | 17.38 |
| Manual or Push Button | Push Button |
| Motor Horsepower | 2 |
| Motor Power (kW) | 1.5 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 2 |
| Outlet Port Size | 3/8 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Glass Filled Nylon |
| Reservoir Usable Volume | 0.86 |
| Reservoir Volume (Gal) | 0.86 |
| Spool Action | Power Up/Power Down |
| Valve Function | 4W |
| Width | 6.60 |

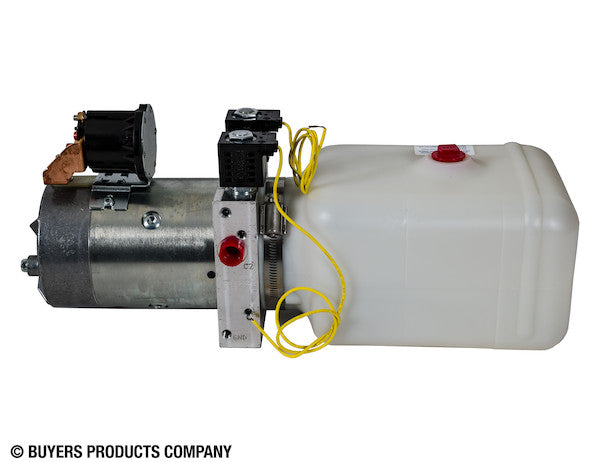

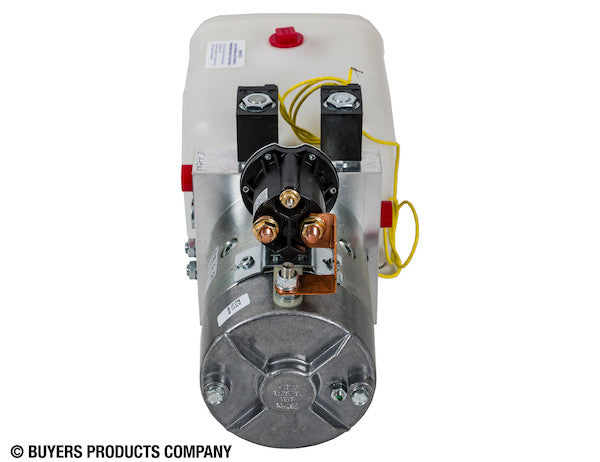

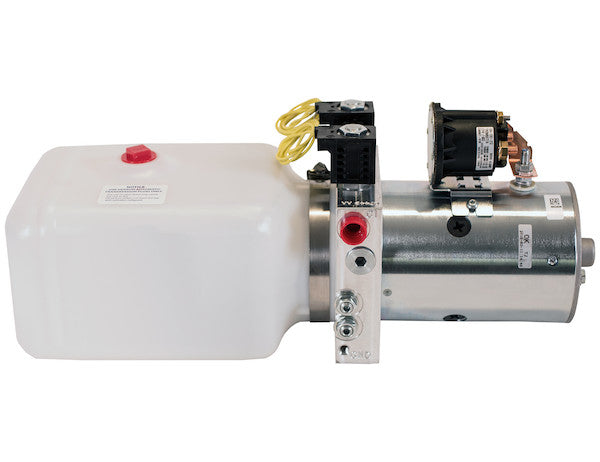

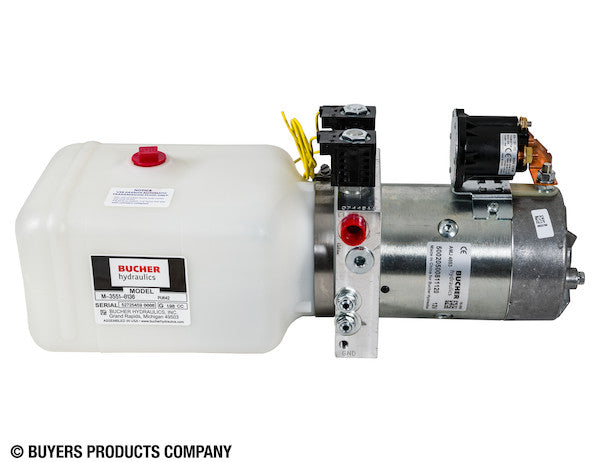

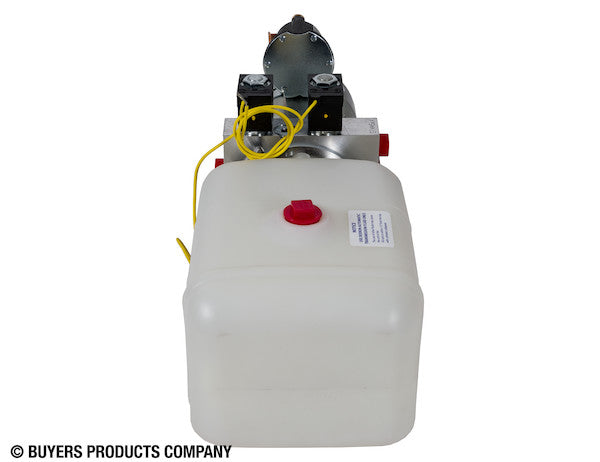

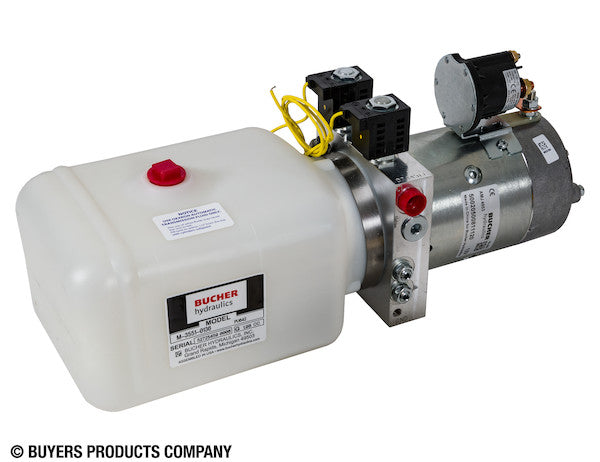

Technical Overview: The 4-Way DC Power Unit - Electric Controls with Horizontal 0.75 Gallon Poly Reservoir
The Buyers Products 4-Way DC Power Unit with Electric Controls represents a sophisticated integration of hydraulic and electrical engineering, meticulously designed to provide robust and reliable power for a diverse array of mobile and industrial applications. This compact, self-contained hydraulic power unit (HPU) delivers precise "power up/power down" functionality, making it an indispensable asset for operations demanding controlled movement and significant force generation, all within a constrained spatial envelope.
Core Functional Architecture and Integration
Engineered for optimal performance and operational simplicity, this HPU integrates all fundamental hydraulic components: an electric motor, a hydraulic pump, a fluid reservoir, a multi-function valve block, and an integrated control system. The design philosophy centers on maximizing power density while minimizing footprint, resulting in a unit measuring approximately 17.38 inches in length, 6.60 inches in width, and 7.50 inches in height. This compact form factor, coupled with its horizontal mounting orientation, facilitates versatile installation across various equipment types without extensive modification.
Detailed Component Analysis
1. High-Performance DC Electric Motor
The core of this power unit is its high-torque 12V DC electric motor, rated at 2 horsepower (HP) or 1.5 kilowatts (kW). This motor is specifically chosen for substantial power output under intermittent duty cycles, typical of hydraulic applications like lifting or lowering. The 12V DC configuration ensures compatibility with standard vehicle electrical systems, simplifying integration for mobile applications. Its robust construction is designed to withstand fluctuating load demands and ambient temperature variations, contributing to the unit's overall durability and longevity. Motor efficiency is critical in converting electrical energy into mechanical power to drive the hydraulic pump, ensuring rapid response and consistent pressure generation. Furthermore, the motor's design emphasizes thermal management to prevent overheating during prolonged or strenuous use, crucial for maintaining performance reliability across diverse operating conditions.
2. Integrated Hydraulic Pump
Directly coupled to the electric motor is a high-efficiency hydraulic pump. While the specific pump type is not detailed, it is engineered to deliver consistent hydraulic fluid flow, generating the necessary pressure to actuate cylinders or motors. The pump's design focuses on volumetric efficiency and pressure capability, enabling the system to achieve its specified 2500 PSI (pounds per square inch) pressure rating. This rating is a critical technical parameter, indicating the maximum operational force the unit can generate, directly correlating to the lifting and pushing capabilities of connected hydraulic actuators. The seamless integration of the pump with the motor reduces mechanical losses and enhances the overall power unit's compactness and reliability by eliminating external couplings or complex drive mechanisms.
3. Advanced 4-Way Valve Functionality
The HPU features a sophisticated 4-way valve block, central to its "power up/power down" spool action. This valve configuration, often implemented with two integrated cartridge valves, provides precise directional control of hydraulic fluid flow. A 4-way valve typically consists of four ports (Pressure, Tank, A, and B) and a spool that shifts to direct fluid from the pump to either port A or B, while simultaneously returning fluid from the opposite port to the tank. In a "power up/power down" system, this allows for active pressurization and retraction of a double-acting hydraulic cylinder or, in some cases, controlled descent for single-acting cylinders by directing fluid back to the reservoir under pressure. The inclusion of two cartridge valves within the manifold refines control, potentially allowing for finer modulation of flow and pressure, or enabling additional auxiliary functions. Precise engineering of these valves ensures smooth, controlled movements and prevents uncontrolled descent or drift of the hydraulic load.
4. Robust Glass-Filled Nylon Poly Reservoir
A distinctive feature of this unit is its 0.86-gallon (0.75 gallon usable) horizontal reservoir constructed from glass-filled nylon. This material selection offers significant technical advantages over traditional steel or pure polymer reservoirs. Glass-filled nylon exhibits exceptional mechanical strength, rigidity, and resistance to impact, chemical corrosion, and abrasion. These properties contribute to a longer service life, particularly in harsh outdoor or industrial environments where exposure to chemicals, debris, or extreme temperatures is common. Furthermore, the non-metallic nature of the reservoir prevents rust and reduces the overall weight of the HPU, beneficial for mobile applications where weight distribution and vehicle payload capacity are critical. The horizontal mounting position optimizes space utilization and ensures efficient fluid aspiration by the pump, maintaining consistent fluid level and preventing cavitation under varying operational angles.
5. Comprehensive Triple Filtration System
Contamination control is paramount in hydraulic systems. This power unit incorporates a triple filtration system, a key technical feature designed to maintain hydraulic fluid purity. While specific stages and micron ratings are not detailed, triple filtration typically involves:
- Suction Filtration: A coarse filter or strainer at the pump inlet to protect the pump from larger particles entering from the reservoir.
- Pressure Filtration: A finer filter downstream of the pump, protecting sensitive components like valves and cylinders from contaminants generated or introduced.
- Return Line Filtration: A filter on the return line to the reservoir, capturing contaminants before they re-enter the main fluid supply.
6. User-Friendly Electric Controls

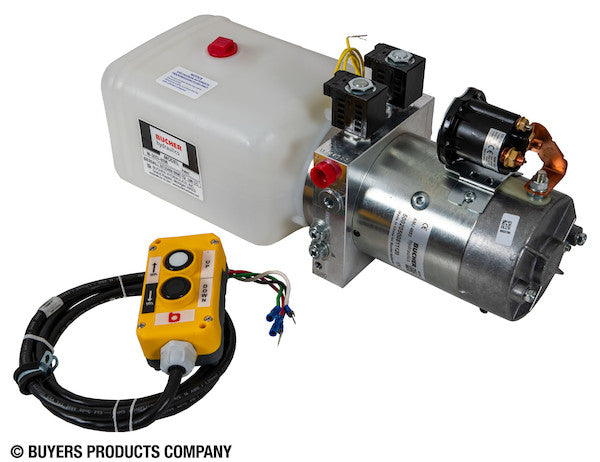

The HPU is equipped with a factory-wired push-button electric control station, complete with a 72-inch control cable. This design prioritizes ease of operation and safety. Factory-wiring simplifies installation, reducing potential wiring errors and ensuring immediate, reliable functionality. The 72-inch cable provides ample reach, allowing operators to control hydraulic functions from a safe and convenient distance, away from moving parts or potential hazards. Push-button controls are intuitive, requiring minimal training, and provide tactile feedback, essential in demanding work environments. Electrical components are typically rated for outdoor use and designed to be sealed against moisture and dust ingress, enhancing the unit's resilience in adverse weather conditions.
Hydraulic System Operational Principles
The "power up/power down" functionality is achieved through the coordinated action of the motor, pump, and 4-way valve. When "power up" is activated, the 12V motor drives the pump, which draws hydraulic fluid from the reservoir and pressurizes it. The 4-way valve directs this pressurized fluid to the "A" port of a double-acting cylinder, extending it, while simultaneously allowing fluid from the "B" port to return to the reservoir at low pressure. Conversely, when "power down" is pressed, the valve shifts, directing pressurized fluid to the "B" port, retracting the cylinder, and allowing fluid from the "A" port to return to the reservoir. This active control over both extension and retraction phases ensures precise positioning, enhanced safety, and efficient operation of the attached implement, distinguishing it from gravity-down systems.
Broad Spectrum of Applications
The versatile design and robust performance characteristics of this 4-Way DC Power Unit make it suitable for a wide range of mobile and semi-stationary hydraulic applications:
- Snow Plows: Provides precise control for raising, lowering, and angling snow plow blades, enabling efficient snow removal.
- Lift Gates: Powers hydraulic cylinders for vertical movement of vehicle lift gates, facilitating loading and unloading.
- Dump Trailers: Supplies hydraulic force to articulate dump trailer beds, ensuring efficient material discharge.
- RV Slide-outs: Offers reliable extension and retraction of recreational vehicle slide-out rooms, enhancing living space.
- Small Agricultural Equipment: Integrates into compact tractors or specialized implements for hydraulic actuation.
- Utility Service Vehicles: Powers auxiliary functions on utility trucks, such as small cranes, winches, or specialized tool attachments.
- Material Handling Equipment: Suitable for small scissor lifts, work platforms, or conveyor systems requiring intermittent hydraulic power.
Engineered for Durability and Environmental Resilience
The unit's construction is specifically engineered to withstand demanding work environments. The glass-filled nylon reservoir provides inherent resistance to corrosion, common with metallic reservoirs in moist or chemical-laden atmospheres. All external electrical connections are designed for weather resistance, typically incorporating sealed connectors and protective casings to prevent water ingress and electrical short circuits. The compact, all-in-one design reduces external components and potential points of failure, contributing to a higher mean time between failures (MTBF). Internal components are selected for resilience to vibration and shock, typical challenges in mobile equipment applications.
Installation and Maintenance Considerations
Installation is significantly streamlined due to the unit's integrated nature and factory-wired controls. Proper electrical connections to a 12V DC power source with adequate amperage capacity are crucial for optimal motor performance and preventing voltage drop. Hydraulic connections are standardized with a 3/8 NPT outlet port size, allowing straightforward integration with existing or new hydraulic circuits. While designed for minimal maintenance, routine checks of hydraulic fluid levels, cleanliness of the triple filtration system, and general inspection of electrical and hydraulic connections are recommended to ensure peak performance and extend operational life. The easily accessible reservoir facilitates fluid level checks and replenishment.
Performance Metrics and Efficiency
With a pressure rating of 2500 PSI, this unit generates significant hydraulic force, enabling it to handle substantial loads. The 2 HP motor ensures rapid response, minimizing cycle times for power up/power down operations. The efficient coupling of the motor and pump, combined with optimized valve design, contributes to high overall system efficiency, translating to less power consumption and reduced heat generation during operation. This efficiency is vital in 12V DC systems where battery life and available electrical power are often critical factors.
Safety and Reliability
Safety is paramount in hydraulic system design. The "power up/power down" functionality provides active control over load movement, reducing the risk of uncontrolled descent common with gravity-down only systems. Pressure relief valves, typically integrated within the valve block, protect the system from over-pressurization, safeguarding components and preventing hazardous conditions. The robust construction and triple filtration system contribute to overall reliability, reducing the likelihood of unexpected failures during critical operations. The integrated control station further enhances operator safety by providing remote control capability.
Conclusion
The Buyers Products 4-Way DC Power Unit with Electric Controls and a Horizontal 0.75 Gallon Poly Reservoir stands as a prime example of advanced, compact hydraulic engineering. Its comprehensive integration of a powerful 12V DC motor, high-efficiency pump, robust glass-filled nylon reservoir, precise 4-way valve block with "power up/power down" functionality, and triple filtration system, all managed by an intuitive electric control station, makes it an exceptionally reliable and versatile solution. Designed for demanding applications ranging from snow plows and lift gates to dump trailers and RV slide-outs, this unit delivers consistent, high-pressure performance while offering superior durability and ease of installation in challenging environments. It represents an optimal choice for professionals seeking a compact, efficient, and technically advanced hydraulic power source for critical mobile operations.
