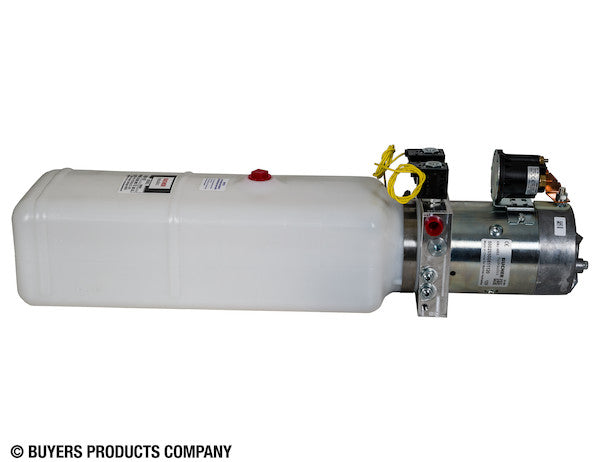

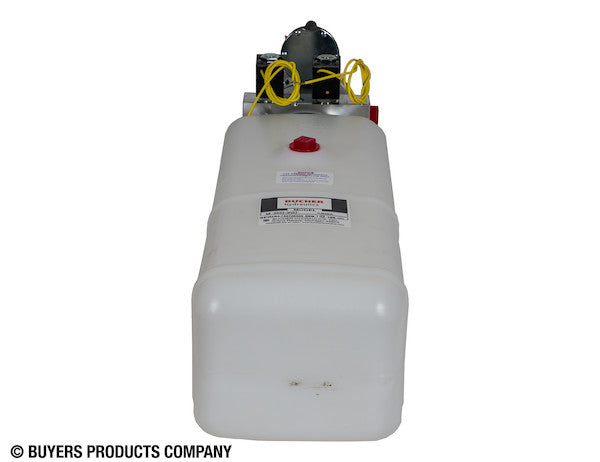

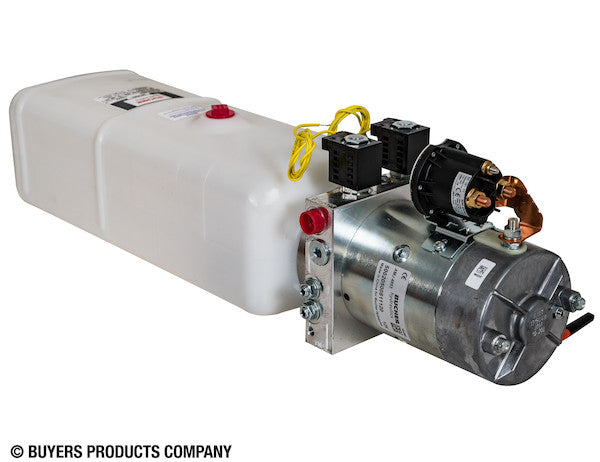

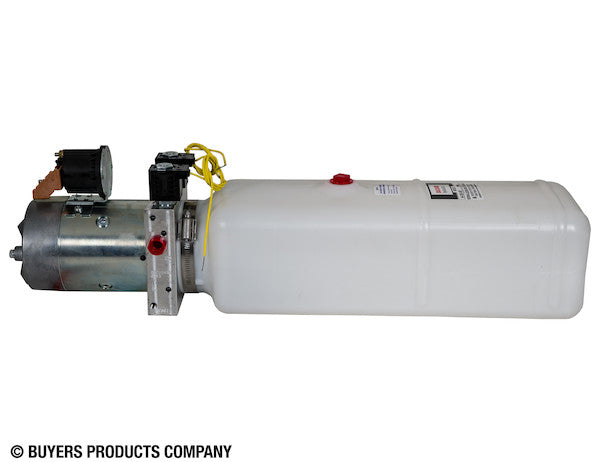

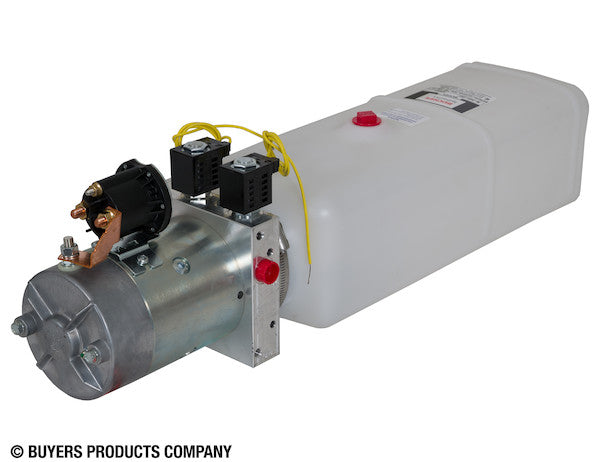

PU642LR - 4-Way DC Power Unit-Electric Controls Horizontal 1.5 Gallon Poly Reservoir

The 4-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack for operating your snow plow, lift gate, dump trailer, RV slideouts, etc. You get quick-response, power up/power down functionality from one small package that contains a built-in pump, 12V motor, reservoir, 4 function valve, triple filtration, factory-wired control station, and more. Push-button electric controls make the job easy. It's built to withstand weather and tough work demands. Choose from a polymer or steel reservoir in two sizes to meet your needs.

Specifications

The 4-Way DC Power Unit with Electric Controls and a Horizontal 1.5 Gallon Poly Reservoir represents a culmination of advanced hydraulic engineering and practical application design. Engineered by Buyers Products, this compact, self-contained hydraulic power unit (HPU) is meticulously crafted to deliver reliable, high-performance operation across a diverse range of mobile and stationary applications requiring robust, bidirectional hydraulic force. Its integrated design and specific technical attributes make it an indispensable component for systems demanding precise control, power, and durability in challenging environments.

At the core of this unit's capability is its 4-way valve function, a critical feature for controlling double-acting hydraulic cylinders. A 4-way valve directs fluid flow to two ports of a cylinder, enabling both extension and retraction with positive hydraulic pressure. This "Power Up/Power Down" spool action ensures that an attached cylinder can be precisely extended and retracted under hydraulic force, providing superior control, stability, and load-holding capacity compared to single-acting, gravity-down systems. This level of control is paramount for applications such as snow plows, which require precise blade positioning; lift gates, where controlled ascent and descent are vital for safety and load integrity; dump trailers, needing controlled tipping and lowering; and RV slide-outs, where smooth, synchronous movement is essential for functionality and user convenience. The ability to actively power both directions significantly enhances operational safety and efficiency across these varied uses.

Advanced Power and Control System Integration

The motive force for this HPU is provided by a robust 12V DC motor, specified at 2 horsepower (HP) or 1.5 kilowatts (kW). The choice of a 12V DC motor is deliberate, aligning perfectly with the electrical systems prevalent in most mobile applications, including vehicles, trailers, and recreational vehicles. This direct current (DC) power source offers several advantages: immediate torque generation, relatively simple electrical integration, and high power density for its size. The 2 HP output signifies ample power to generate the maximum rated pressure of 2500 PSI, ensuring that even heavy loads can be moved efficiently and reliably. The motor's design emphasizes durability and efficiency, crucial for applications that involve intermittent but high-intensity duty cycles, such as those encountered in snow removal or frequent lifting operations. A high-quality motor is fundamental to the longevity and performance of any hydraulic power unit, minimizing downtime and maximizing productivity.

Integrated seamlessly with the motor is a high-efficiency hydraulic pump, designed to convert the motor's rotational energy into hydraulic flow and pressure. While specific pump type details might vary, these units typically employ a gear pump, known for its robust construction, efficiency across a wide range of operating conditions, and suitability for the pressures and flows required by the target applications. The pump is engineered to deliver consistent fluid displacement, ensuring quick response times and smooth operation of the hydraulic actuators. The maximum pressure rating of 2500 PSI is a key performance indicator, determining the force that can be generated at the cylinder. This pressure capacity is well-suited for heavy-duty tasks, providing substantial lifting and pushing power necessary for commercial and industrial applications.

Resilience and Fluid Management: The Poly Reservoir and Triple Filtration

A distinctive feature of this particular unit is its 1.5-gallon nominal volume horizontal poly reservoir, specifically constructed from glass-filled nylon. This material choice offers a superior blend of mechanical strength, chemical resistance, and thermal stability, presenting significant advantages over traditional steel reservoirs in certain environments. Glass-filled nylon is inherently corrosion-resistant, eliminating concerns about rust and chemical degradation that can plague steel reservoirs, particularly in outdoor or marine applications, or when exposed to road salts and other corrosive agents. Its lightweight nature contributes to the overall compact design and reduces the unit's total weight, which can be a critical factor in mobile installations. Furthermore, glass-filled nylon provides excellent impact resistance and can better withstand temperature fluctuations, contributing to the unit's ability to "withstand weather and tough work demands."

The reservoir's volume of 1.5 gallons (with a usable volume of 1.87 gallons, indicating potential overfill capacity or designed head space for expansion) is meticulously sized to balance compactness with hydraulic system requirements. An adequately sized reservoir is crucial for several reasons: it provides sufficient fluid volume for the hydraulic circuit during operation, allows for effective heat dissipation from the hydraulic fluid, and provides a quiescent area for air bubbles to escape and contaminants to settle. While a larger reservoir generally aids in heat management, the compact nature of this unit necessitates efficient design in other areas to mitigate heat, such as pump efficiency and system duty cycle considerations. The horizontal mounting position of the reservoir is engineered for versatile installation, particularly in applications with limited vertical clearance, making it ideal for integration into truck beds, trailer frames, or under vehicle chassis.

Crucially, the power unit incorporates a triple filtration system. Contamination is the primary cause of failure in hydraulic systems, making robust filtration indispensable. A "triple filtration" system typically implies multiple stages of contaminant removal, often involving a suction strainer to protect the pump from larger particles, a return line filter to clean fluid returning to the reservoir, and potentially a pressure line filter for critical components. This multi-stage approach ensures that the hydraulic fluid remains exceptionally clean, protecting the pump, valves, and cylinders from abrasive wear, extending the lifespan of all hydraulic components, and maintaining peak system efficiency. This commitment to fluid cleanliness underscores the unit's professional design and long-term reliability.

Ergonomics and Installation: Electric Controls and Compact Design

Operational control is facilitated by the included, factory-wired push-button electric control station. The "Push Button" interface offers intuitive and straightforward operation, requiring minimal training and reducing the potential for operator error. The "Controller Included" specification and the 72-inch control cable length provide significant flexibility for mounting the control station in a convenient and safe location, away from the hydraulic unit itself. This extended cable allows the operator to control the unit from inside a vehicle cab, alongside the equipment, or from another vantage point, enhancing safety and operational convenience. Factory wiring ensures proper electrical connections and circuit protection, simplifying installation and enhancing reliability right out of the box.

The physical dimensions of the unit are a testament to its compact, all-in-one design: Length 26.38 inches, Width 6.60 inches, and Height 7.50 inches. These precise measurements highlight the engineering effort to minimize the footprint without compromising performance or component integration. Such compactness is a critical advantage for mobile applications where space is often at a premium. The horizontal mounting position, combined with these dimensions, allows for flexible installation options in confined spaces, enhancing the unit's versatility across a wide array of equipment platforms. The 3/8 NPT (National Pipe Taper) outlet port size is a standard in hydraulic connections, ensuring compatibility with a broad range of hydraulic hoses and fittings, further simplifying integration into existing or new hydraulic circuits.

Valve Configuration and Hydraulic Logic

The unit's "4 function valve" and "Number of Cartridge Valves: 2" indicate a sophisticated hydraulic control block. A 4-function valve typically means it can direct fluid to enable four distinct operational movements or states. In the context of a 4-way Power Up/Power Down system, this might refer to "Extend," "Retract," "Hold Neutral," and potentially an "Emergency Stop" or a separate relief function. The utilization of "2 Cartridge Valves" suggests a modular design for the control block. Cartridge valves are compact, screw-in hydraulic valves known for their reliability, ease of maintenance, and ability to create complex hydraulic circuits within a small manifold. In this configuration, two cartridge valves could be combined within the manifold to achieve the desired 4-way, Power Up/Power Down functionality, offering precise control over the hydraulic cylinder's movement. This modular approach also simplifies potential servicing or replacement of individual valve components, enhancing the unit's long-term serviceability.

Applications in Depth and Performance Considerations

The versatility of this 4-Way DC Power Unit makes it suitable for numerous demanding applications:

• Snow Plows: For snow plowing operations, rapid and precise control over blade lift, lower, and angle functions is critical. The "Power Up/Power Down" action ensures the plow can be positively driven into snow and precisely raised or lowered for transport or clearing. The unit's robust construction and polymer reservoir are particularly advantageous in cold, corrosive winter environments, resisting freezing and chemical damage from de-icing agents.
• Lift Gates: Whether on commercial trucks or utility vehicles, lift gates require smooth, controlled, and reliable vertical movement. The unit provides the necessary hydraulic power for lifting heavy loads, and the "Power Down" feature allows for controlled lowering, enhancing safety for both operators and cargo. The compact design facilitates installation on the vehicle chassis without impeding cargo space.
• Dump Trailers: For dump trailers used in construction, landscaping, or agriculture, this HPU delivers the force required to lift the trailer bed for efficient material discharge. The ability to actively power the lowering motion can provide greater control over the dumping process, especially with uneven loads or in tight spaces, although many dump trailers typically use a power-up/gravity-down system, the power-down capability offers enhanced control if designed into the system.
• RV Slide-outs: In recreational vehicles, slide-outs provide expanded living space and require synchronized, smooth, and precise extension and retraction. This power unit’s dependable 12V motor and controlled valve action ensure that slide-outs operate reliably, preventing misalignment and potential damage, crucial for user comfort and convenience.
• Other Industrial and Commercial Uses: Beyond these core applications, the unit is well-suited for a variety of other systems requiring a compact, mobile hydraulic power source. This includes small cranes, winches, compactors, presses, and various agricultural implements where 12V DC power is readily available and precise hydraulic control is necessary.

Technical Robustness and Operational Reliability

The declaration that the unit is "built to withstand weather and tough work demands" is substantiated by its engineering choices. The glass-filled nylon reservoir inherently resists corrosion, UV degradation, and temperature extremes better than many materials. High-quality seals, robust electrical connectors, and a well-protected motor assembly contribute to its weather resilience. Internally, the components are selected for their durability under continuous heavy-duty cycles. The triple filtration system actively contributes to the unit's longevity by ensuring the hydraulic fluid, the lifeblood of the system, remains clean and free of abrasive particles, which can cause premature wear to pumps and valves. This attention to detail in material selection and component integration significantly reduces the total cost of ownership through minimized maintenance and extended operational life.

In summary, the 4-Way DC Power Unit-Electric Controls with its Horizontal 1.5 Gallon Poly Reservoir from Buyers Products stands as a prime example of a meticulously engineered hydraulic solution. It masterfully combines power, precision, durability, and compact design. From its 2 HP, 12V DC motor and 2500 PSI pressure rating, to its corrosion-resistant glass-filled nylon reservoir and advanced triple filtration system, every aspect of this unit is designed for maximum performance and reliability in demanding mobile and industrial environments. The integrated push-button electric controls with a 72-inch cable enhance user convenience and safety, making it an ideal choice for a wide spectrum of hydraulic applications where robust, controlled power is paramount. This unit is not just a collection of components; it is a fully integrated, high-performance hydraulic system engineered for relentless work and exceptional control.
