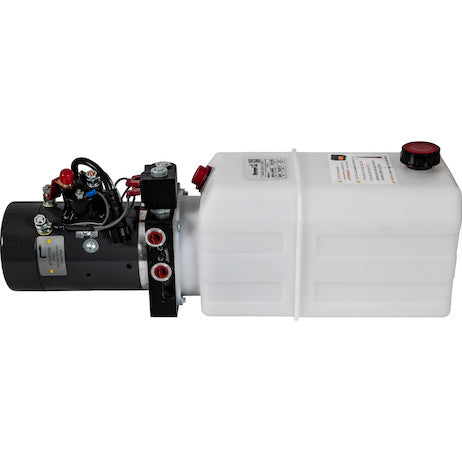

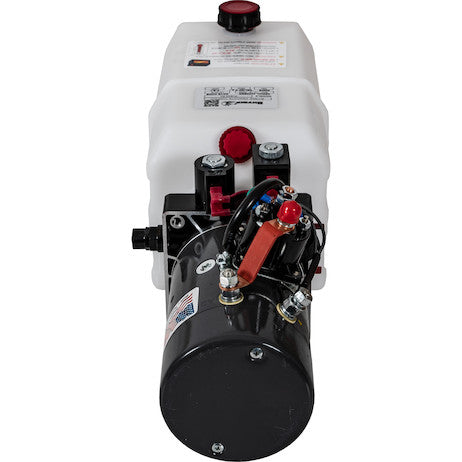

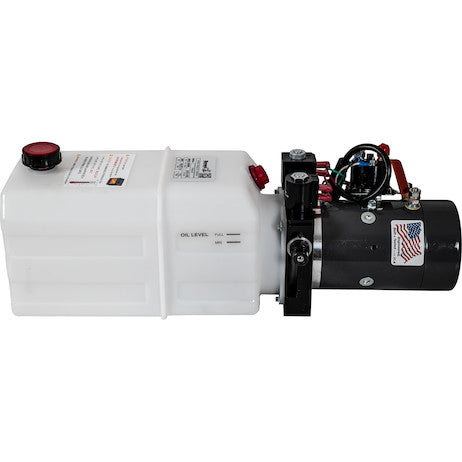

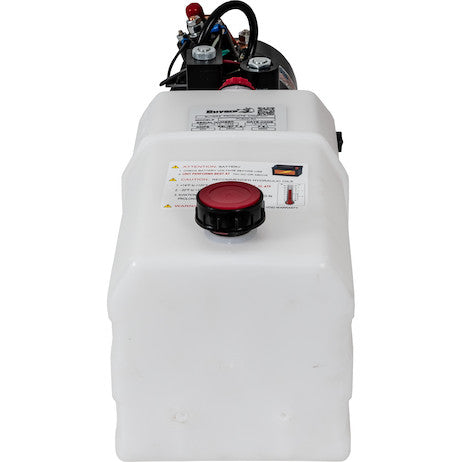

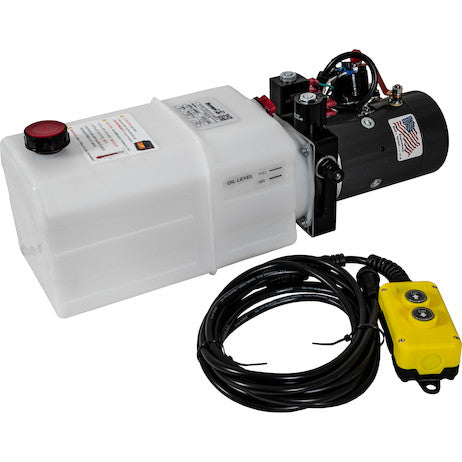

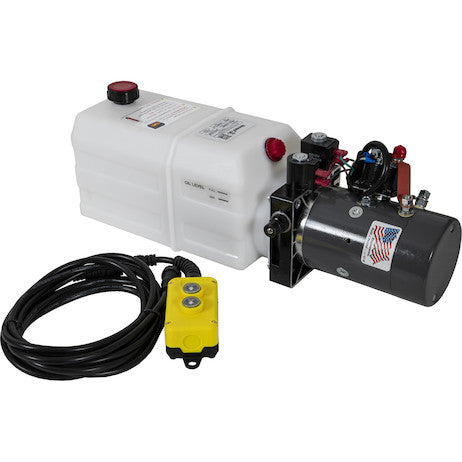

The 4-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack for operating your snow plow, lift gate, dump trailer, RV slideouts, etc. You get quick-response, power up/power down functionality from one small package that contains a built-in pump, 12V motor, reservoir, 4 function valve, triple filtration, factory-wired control station, and more. Push-button electric controls make the job easy. It's built to withstand weather and tough work demands. Choose from a polymer or steel reservoir in two sizes to meet your needs.
Specifications
| Control Cable Length | 180 |
|---|---|
| Controller Included? | Y |
| Height | 7.90 |
| Length | 21.50 |
| Manual or Push Button | Push Button |
| Motor Horsepower | 2 |
| Motor Power (kW) | 2.0 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 2 |
| Outlet Port Size | 3/8 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Glass Filled Nylon |
| Reservoir Usable Volume | 1.50 |
| Reservoir Volume (Gal) | 1.50 |
| Spool Action | Power Up/Power Down |
| Width | 7.00 |
Buyers 4-Way DC Power Unit: Advanced Electro-Hydraulic System Integration
The Buyers 4-Way DC Power Unit with Electric Controls and a Horizontal 1.5 Gallon Poly Reservoir represents a culmination of advanced hydraulic engineering and robust electrical control, meticulously designed for demanding mobile applications. This comprehensive, self-contained hydraulic power unit (HPU) delivers reliable and precise hydraulic power, making it an indispensable component for a wide array of industrial, commercial, and recreational equipment requiring sophisticated movement control. Its compact footprint, combined with a high degree of integration and resilient construction, positions it as a premier choice for professionals seeking optimal performance and longevity in challenging operational environments.
Core System Architecture and Component Analysis
At the heart of this power unit lies a sophisticated integration of several key hydraulic and electrical components, each engineered to work in concert to deliver efficient and controllable power. The system comprises a high-performance 12V DC motor, a precision hydraulic pump, a durable 1.5-gallon glass-filled nylon reservoir, a versatile 4-function valve block incorporating two cartridge valves, and an advanced triple filtration system, all managed by a factory-wired push-button control station.
High-Efficiency 12V DC Motor
The motive force for the hydraulic system is provided by a robust 12-volt DC electric motor, rated at 2 horsepower (2.0 kW). This specification signifies its capability to generate substantial mechanical power, which is then converted into hydraulic pressure and flow. The choice of a 12V DC motor is critical for mobile applications, allowing direct integration with standard vehicle electrical systems, such as those found in trucks, trailers, and utility vehicles. The motor is engineered for efficiency, minimizing current draw while maximizing torque, an essential characteristic for battery-powered systems where energy conservation is paramount. Its design takes into account intermittent duty cycles typical of hydraulic operations like lifting and lowering, ensuring thermal stability and extended service life even under peak demand. The motor's construction is typically sealed to protect against ingress of moisture and particulate matter, a common concern in outdoor and rugged applications.
Precision Hydraulic Pump
Coupled directly to the DC motor, the hydraulic pump is responsible for converting mechanical energy into hydraulic energy. While the specific pump type is not detailed, units of this configuration typically employ a positive displacement gear pump. Gear pumps are renowned for their robust construction, reliability, and ability to deliver consistent flow rates across a range of operating pressures. This pump is designed to generate a maximum pressure of 2500 PSI (pounds per square inch), a formidable pressure rating that enables the unit to effortlessly actuate hydraulic cylinders and motors for lifting heavy loads, operating complex mechanisms, or generating significant force for various applications. The precise manufacturing tolerances within the pump ensure optimal volumetric efficiency, minimizing internal leakage and maximizing the effective hydraulic power output.
Durable 1.5 Gallon Glass-Filled Nylon Reservoir
The hydraulic fluid reservoir serves several critical functions: storing the hydraulic fluid, dissipating heat, allowing air bubbles to escape, and settling contaminants. This particular unit features a 1.5-gallon (1.50 usable volume) reservoir constructed from glass-filled nylon. This material choice offers significant advantages over traditional steel reservoirs in certain applications. Glass-filled nylon provides excellent corrosion resistance, making it impervious to rust and many chemical agents, which is particularly beneficial in environments exposed to road salts, harsh weather, or corrosive substances. Furthermore, it contributes to a lighter overall unit weight, aiding in installation and reducing strain on mounting structures. The horizontal mounting position of the reservoir is engineered to facilitate easy integration into chassis, truck beds, or equipment compartments where vertical space may be limited. The design ensures proper fluid suction and return dynamics for consistent performance.
Advanced 4-Function Valve Block with Cartridge Valves
A defining feature of this power unit is its integrated 4-function valve block, which incorporates two cartridge valves. The term "4-Way" refers to the valve's ability to direct fluid in four distinct paths, enabling complex hydraulic movements. In the context of "power up/power down" functionality and operating multiple hydraulic circuits, this typically means the valve block contains electro-hydraulic solenoid valves that precisely control the flow of hydraulic fluid to and from the actuators. Each cartridge valve is an electrically actuated spool valve, which, when energized, shifts to direct fluid flow. With "two cartridge valves" and "4 function valve" combined, this configuration suggests the capability to control two independent double-acting hydraulic cylinders, or one double-acting cylinder with additional auxiliary functions, providing highly versatile control over an application's hydraulic movements. This level of control allows for not only raising and lowering (power up/power down) but potentially also extending/retracting or tilting operations with precision and reliability.
Triple Filtration System for Hydraulic System Longevity
Maintaining the cleanliness of hydraulic fluid is paramount for the longevity and reliable operation of any hydraulic system. The Buyers 4-Way DC Power Unit incorporates a triple filtration system, a critical design element that significantly enhances system protection. This multi-stage filtration typically involves:
- Suction Filtration: A filter at the pump inlet to protect the pump from larger particles before fluid enters the high-pressure circuit.
- Pressure Filtration: A filter placed downstream of the pump, protecting sensitive components like control valves and actuators from contaminants generated by the pump or entering through the reservoir.
- Return Filtration: A filter in the return line, capturing contaminants that have entered the system or been generated by wear and tear before the fluid returns to the reservoir.
Integrated Push-Button Electric Controls

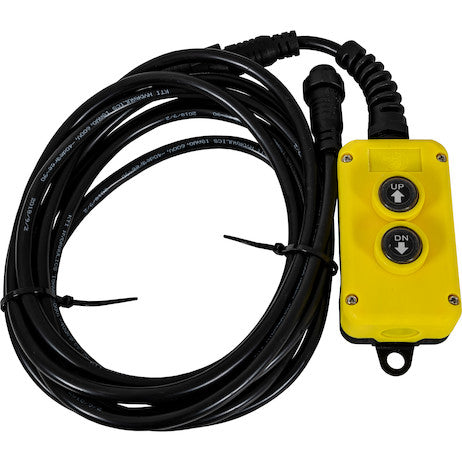

User interface and control are streamlined through a factory-wired push-button control station. The inclusion of a controller and a generous 180-inch (15-foot) control cable provides operators with flexibility in mounting the control station at a convenient and safe location, away from the hydraulic unit itself. Push-button controls offer intuitive operation, reducing the learning curve and improving operational efficiency. The factory-wired nature ensures correct electrical connections and reduces installation time and potential wiring errors. This robust electrical control system ensures immediate response to operator commands, facilitating smooth and precise actuation of connected hydraulic components. The integration of the controller means that the entire system is designed for seamless plug-and-play functionality, minimizing complex electrical setups during installation.
Performance Characteristics and Operational Advantages
The engineering of the Buyers 4-Way DC Power Unit is focused on delivering superior performance, control, and durability across its diverse application spectrum.
Power Up/Power Down Spool Action
The "Power Up/Power Down" spool action is a hallmark feature, distinguishing this unit from simpler gravity-down systems. This capability allows for active, controlled movement in both directions of a hydraulic cylinder's stroke. For instance, when lifting a snow plow, the motor powers the cylinder upwards. When lowering the plow, the motor also powers the cylinder downwards, rather than relying solely on gravity. This provides enhanced control, enabling precise positioning, slower descent rates when required, and the ability to apply downward force if necessary. This controlled action is invaluable for applications where precise load handling and safety are critical, preventing uncontrolled drops or jerky movements.
Robust Pressure Rating and Flow Dynamics
With a pressure rating of 2500 PSI, this power unit is capable of handling significant hydraulic force requirements. This pressure enables the actuation of cylinders under heavy loads, ensuring that applications like dump trailers, lift gates, and heavy-duty snow plows operate effectively. While the flow rate isn't explicitly listed, the combination of a 2 HP motor and 2500 PSI suggests a flow rate optimized for the quick and responsive movements expected in its target applications, balancing speed with the power demands of a 12V DC system.
Optimized Duty Cycle Management
DC hydraulic power units typically operate under intermittent duty cycles to prevent overheating of the electric motor and pump. The design of this unit, including its robust motor and efficient pump, is optimized for the typical on/off demands of mobile equipment. While continuous operation is generally not recommended for DC HPUs, its specifications indicate a design capable of handling the repetitive, short bursts of power required for its intended applications, with ample recovery time built into the operational cycle.
Versatile Applications Across Industries
The comprehensive design and robust performance of the Buyers 4-Way DC Power Unit make it exceptionally versatile, suitable for a broad spectrum of mobile hydraulic applications:
- Snow Plows: Providing rapid and reliable power for raising, lowering, and angling snow plow blades, crucial for efficient snow removal operations.
- Lift Gates: Enabling smooth and controlled vertical movement for vehicle lift gates on delivery trucks and utility vehicles, enhancing loading and unloading efficiency.
- Dump Trailers and Truck Bodies: Powering the hydraulic cylinders responsible for tilting dump beds, facilitating quick and complete material discharge.
- RV Slide-Outs: Ensuring effortless extension and retraction of recreational vehicle slide-out sections, improving user convenience and experience.
- Utility and Service Vehicle Attachments: Actuating various hydraulic tools and attachments on utility trucks, such as small cranes, winches, or specialized equipment.
- Small Agricultural Equipment: Providing hydraulic power for compact tractors or specialized farming implements requiring controlled movements.
- Mobile Work Platforms: Powering the lifting and lowering mechanisms of small mobile work platforms or scissor lifts.
- Specialty Machinery: Integrating into custom-built mobile machinery requiring reliable, self-contained hydraulic power.
Installation, Durability, and Maintenance Considerations
The design of this power unit prioritizes ease of installation, maximum durability, and straightforward maintenance.
Compact, All-in-One Design
The "all-in-one, compact power pack" philosophy greatly simplifies installation. By integrating the motor, pump, reservoir, and valve block into a single unit, it reduces the complexity of plumbing and wiring, minimizing the number of individual components to mount. Its dimensions (7.90" Height, 21.50" Length, 7.00" Width) are optimized for space-constrained installations, allowing it to be tucked away efficiently in vehicle compartments or under chassis.
Horizontal Mounting Position
The specified horizontal mounting position is key to its compact design and offers specific benefits. It allows for a lower profile installation, which can be advantageous in applications with limited vertical clearance. Proper horizontal mounting also ensures optimal fluid level management for the pump's suction port, preventing cavitation and ensuring consistent performance.
Rugged Construction for Harsh Environments
Built to withstand "weather and tough work demands," the unit features robust materials and construction techniques. The glass-filled nylon reservoir offers inherent resistance to corrosion and impact. Electrical connections are typically sealed, and the motor housing is designed to be resistant to environmental factors like moisture, dust, and debris. This ruggedness ensures reliable operation in demanding outdoor and industrial settings, where exposure to elements is common.
Standardized Outlet Port for Easy Integration
The 3/8 NPT (National Pipe Taper) outlet port size is a widely recognized and utilized standard in hydraulic plumbing. This ensures compatibility with a broad range of hydraulic hoses, fittings, and quick couplers, simplifying the integration of the power unit into existing hydraulic circuits or new installations. The tapered thread design ensures a leak-tight seal when properly assembled.
Simplified Maintenance
While rugged, all hydraulic systems require periodic maintenance. The thoughtful design of this unit facilitates easier maintenance. The reservoir material allows for visual inspection of fluid levels (if translucent or with an indicator), and the triple filtration system extends the interval between fluid changes by keeping the oil cleaner. Regular checks of hydraulic fluid levels, cleanliness, and filter replacement according to manufacturer guidelines will ensure the power unit continues to operate at peak efficiency and reliability for many years.
Conclusion
The Buyers 4-Way DC Power Unit with Electric Controls and a Horizontal 1.5 Gallon Poly Reservoir stands as a testament to intelligent hydraulic system design, offering an unparalleled blend of power, precision, and durability. Its integrated architecture, featuring a robust 12V DC motor, high-pressure pump, chemically resistant polymer reservoir, versatile 4-function valve with power up/power down capability, and comprehensive triple filtration, positions it as an ideal solution for professionals requiring reliable mobile hydraulic power. From heavy-duty commercial applications like snow plows and lift gates to recreational vehicle enhancements, this unit provides a compact, efficient, and user-friendly solution, engineered to perform consistently in the most challenging conditions and deliver exceptional value through extended operational life and minimized maintenance.
