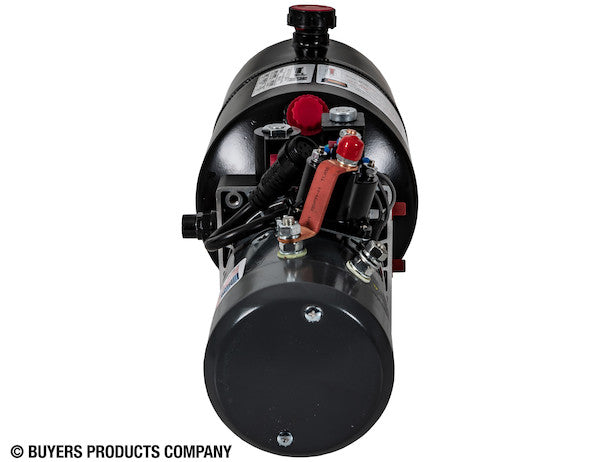

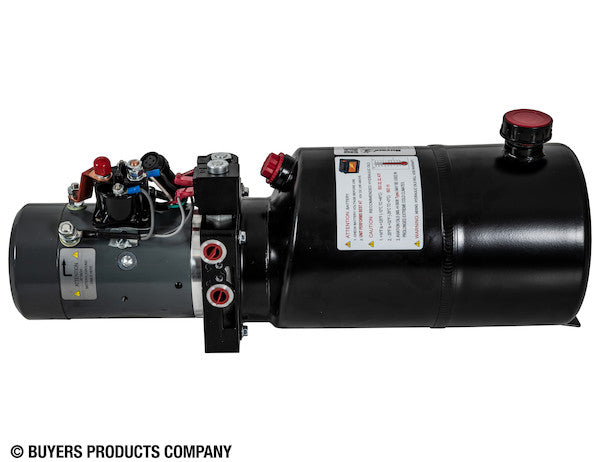

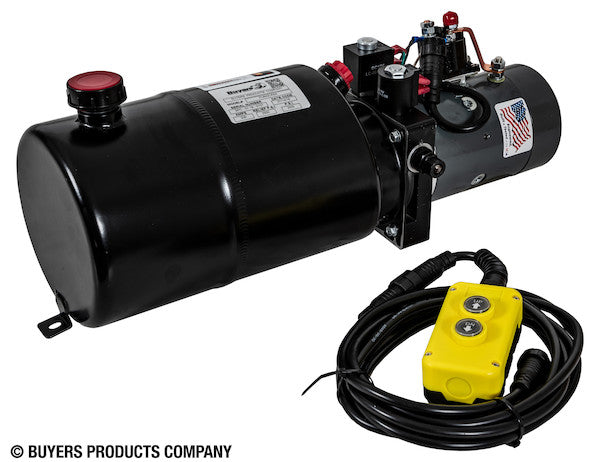

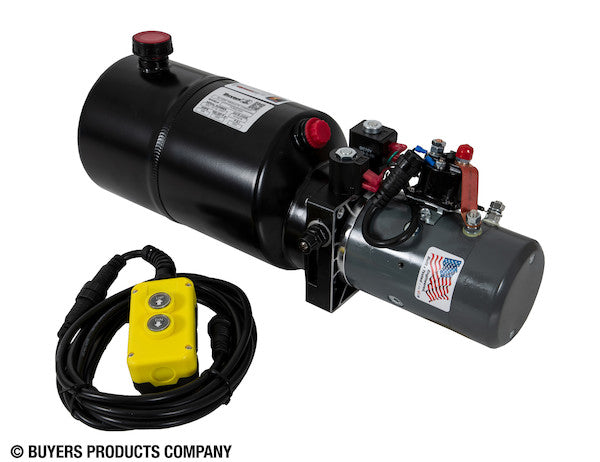

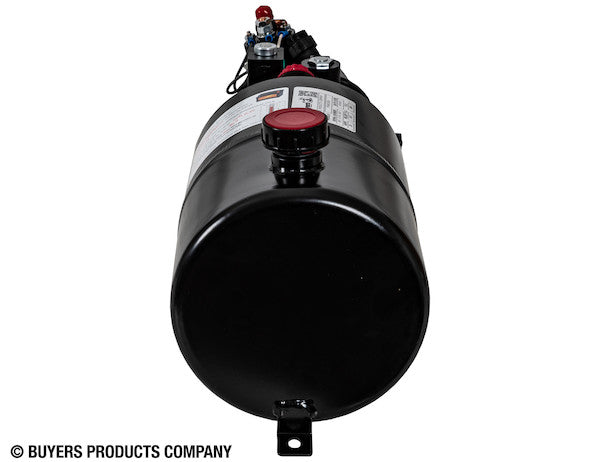

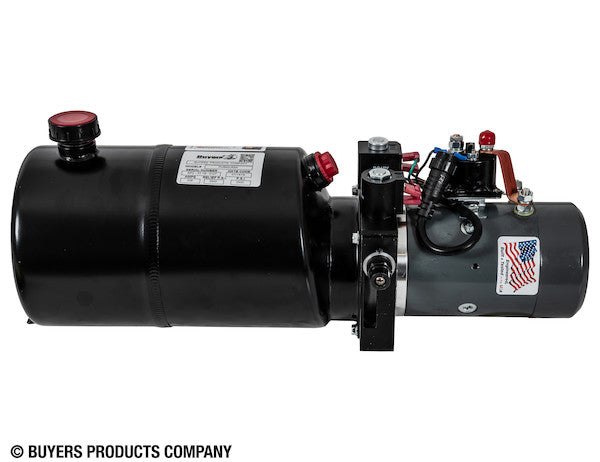

The 4-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack for operating your snow plow, lift gate, dump trailer, RV slideouts, etc. You get quick-response, power up/power down functionality from one small package that contains a built-in pump, 12V motor, reservoir, 4 function valve, triple filtration, factory-wired control station, and more. Push-button electric controls make the job easy. It's built to withstand weather and tough work demands. Choose from a polymer or steel reservoir in two sizes to meet your needs.
Specifications
| Control Cable Length | 180 |
|---|---|
| Controller Included? | Y |
| Height | 6.90 |
| Length | 20.70 |
| Manual or Push Button | Push Button |
| Motor Horsepower | 2 |
| Motor Power (kW) | 2.0 |
| Motor Voltage | 12 |
| Mounting Position | Horizontal |
| Number of Cartridge Valves | 2 |
| Outlet Port Size | 3/8 NPT |
| Pressure Rating | 2500 |
| Reservoir Material | Carbon Steel |
| Reservoir Usable Volume | 1.50 |
| Reservoir Volume (Gal) | 1.50 |
| Spool Action | Power Up/Power Down |
| Width | 6.90 |
The Buyers 4-Way DC Power Unit with Electric Controls, featuring a Horizontal 1.5 Gallon Steel Reservoir, represents a pinnacle in compact hydraulic power solutions. Engineered for versatility and reliability, this self-contained unit is meticulously designed to provide robust and precise hydraulic control for a broad spectrum of mobile and stationary applications. Its "all-in-one" designation is not merely a convenience but a testament to its integrated design, combining essential hydraulic and electrical components into a single, cohesive system that significantly simplifies installation and operation.
Advanced 4-Way Hydraulic Control for Demanding Applications
At the core of this power unit's exceptional functionality is its 4-Way hydraulic valve system, a critical feature that differentiates it from simpler hydraulic configurations. A 4-Way valve, in the context of hydraulic power, refers to a valve with four ports that can direct fluid flow to control double-acting hydraulic cylinders or motors in both extension/retraction or clockwise/counter-clockwise directions. This capability is paramount for applications requiring precise, bi-directional movement, such as lifting and lowering, angling, or rotating heavy loads. The inclusion of a 4-function valve and specifically two cartridge valves, as indicated in the specifications, ensures a high degree of control over the hydraulic circuit, allowing for complex operational sequences and nuanced positioning of hydraulic actuators.
The "Power Up/Power Down" spool action is a hallmark of this unit's sophisticated design. Unlike gravity-return or single-acting systems, a Power Up/Power Down system actively drives the hydraulic cylinder in both directions. This provides several critical advantages: enhanced control over the load throughout its entire range of motion, increased operational speed for both extension and retraction, and improved safety by preventing uncontrolled descent. For applications like lift gates, dump trailers, and snow plows, this precise control is indispensable, ensuring smooth operation, reducing wear on mechanical components, and enhancing user safety by maintaining positive hydraulic pressure at all times during movement. The system's ability to maintain pressure even when stationary further bolsters its safety profile, securing loads in desired positions.
Integrated DC Power Architecture for Mobile Efficiency
The heart of this compact power unit lies in its robust DC power architecture, specifically tailored for mobile and auxiliary applications. A high-performance 12V DC motor, rated at 2 horsepower (2.0 kW), drives the hydraulic pump. This motor is chosen for its efficiency, high starting torque, and compatibility with standard vehicle electrical systems, eliminating the need for complex AC power conversion on the go. The 12V DC configuration allows the unit to draw power directly from a vehicle's battery, making it an ideal solution for retrofitting existing equipment or integrating into new designs where a dedicated power grid is impractical or unavailable.
The motor is seamlessly coupled with a purpose-built hydraulic pump, which is responsible for converting the mechanical energy from the motor into hydraulic pressure. This pump is designed to generate a substantial pressure rating of 2500 PSI (pounds per square inch). This pressure is a key indicator of the unit's force-generating capability, allowing it to actuate cylinders and motors under significant loads. The selection of pump type, likely a gear pump for its compact size, robust nature, and efficiency in a wide range of mobile hydraulic applications, is crucial for delivering consistent flow and pressure, ensuring reliable performance even in demanding conditions. The synergy between the motor and pump is optimized to provide quick response and consistent hydraulic output, translating directly into efficient and smooth operation of the connected equipment.
Optimized Fluid Management: Reservoir and Triple Filtration
Central to any hydraulic system's longevity and performance is its fluid management, and this Buyers unit excels with its 1.5 Gallon Carbon Steel Horizontal Reservoir and advanced triple filtration system. The 1.5-gallon usable volume of the reservoir is carefully sized to ensure adequate hydraulic fluid capacity for typical operational cycles, preventing cavitation and overheating while maintaining system pressure. The choice of carbon steel for the reservoir material offers superior durability and resistance to impact and abrasion, making it suitable for harsh outdoor and industrial environments. Its horizontal mounting position provides flexibility in installation, allowing for optimal space utilization on various equipment types, contributing to the unit's overall compact footprint (20.70" L x 6.90" W x 6.90" H).
Beyond material and volume, the integration of a triple filtration system is a significant technical advantage. Hydraulic fluid cleanliness is paramount; even microscopic contaminants can lead to premature wear of pumps, valves, and cylinders, resulting in system downtime and costly repairs. The triple filtration system ensures hydraulic fluid maintains optimal purity through multiple stages:
- Suction Filtration: Typically located on the pump's inlet, this coarse filter prevents larger particles from entering the pump, protecting it from immediate damage.
- Pressure Filtration: Positioned downstream of the pump, this fine filter captures smaller contaminants that could harm sensitive valve components and actuators, operating under the system's full pressure.
- Return Line Filtration: Located in the return line to the reservoir, this filter captures contaminants generated within the system (e.g., wear particles from cylinders, degraded fluid components) before the fluid re-enters the reservoir for recirculation.
This multi-stage approach drastically reduces particulate contamination, extends the service life of hydraulic components, minimizes maintenance intervals, and ensures consistent, high-performance operation. It is a critical engineering detail that underscores the unit's professional-grade design.
Intuitive Electric Controls and Enhanced User Interface
The integration of electric controls with a push-button interface significantly elevates the user experience and operational precision of this power unit. Unlike manual lever controls, electric controls convert operator input into electrical signals that actuate solenoid valves, which then direct hydraulic fluid flow. This method offers several advantages:
- Precision and Responsiveness: Electric controls allow for finer, more immediate control over hydraulic functions.
- Reduced Operator Fatigue: Push-button operation requires minimal physical effort compared to actuating mechanical levers.

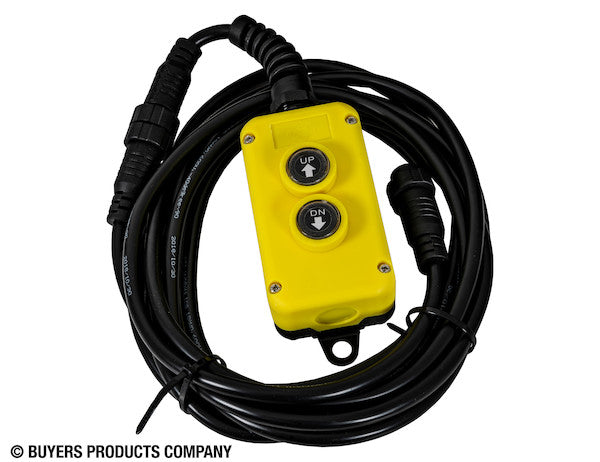

- Flexible Mounting: The "factory-wired control station" with an impressive 180-inch control cable length provides substantial flexibility for mounting the controller in an ergonomically favorable and safe position within the operator's reach, irrespective of the power unit's mounting location.
- Enhanced Safety: Electric controls can be easily integrated with safety interlocks, emergency stop functions, and fault detection systems, contributing to a safer operational environment.
- Durability: The included controller is designed to withstand the rigors of commercial and industrial use, ensuring reliable performance in demanding conditions.
The factory-wired nature of the control station minimizes installation complexity and reduces the risk of wiring errors, ensuring that the unit is ready for integration quickly and efficiently upon delivery. This thoughtful design element underscores a commitment to both performance and ease of deployment.
Broad Spectrum of Applications
The Buyers 4-Way DC Power Unit is engineered for exceptional versatility, making it an indispensable component for a wide array of mobile and auxiliary equipment. Its robust design and precise control capabilities cater to demanding applications across various industries:
- Snow Plows: Provides reliable power for lifting, lowering, and angling snow plow blades, essential for efficient snow removal operations.
- Lift Gates: Enables smooth and controlled raising and lowering of vehicle lift gates, facilitating safe and efficient loading and unloading of cargo.
- Dump Trailers: Powers the hydraulic cylinder responsible for tilting dump beds, ensuring quick and effective material discharge.
- RV Slideouts: Offers precise and quiet operation for extending and retracting recreational vehicle slideouts, enhancing convenience and usability.
- Utility Trailers: Adaptable for various hydraulic functions on utility trailers, such as tilt beds or integrated cranes.
- Small Agricultural Implements: Can power hydraulic functions on compact tractors or specialized farm equipment.
- Work Truck Accessories: Ideal for powering cranes, hoists, or other hydraulic tools mounted on service and utility vehicles.
- Portable Hydraulic Systems: Its compact and self-contained nature makes it suitable for custom-built portable hydraulic presses, cutters, or jacking systems.
- Marine Applications: Applicable for powering davits, trim tabs, or other hydraulic components on boats and marine vessels, though attention to environmental sealing would be critical for prolonged marine exposure.
The unit's 3/8 NPT outlet port size offers standard compatibility with widely available hydraulic hoses and fittings, further enhancing its adaptability and ease of integration into existing or new hydraulic circuits.
Robustness, Durability, and Longevity
Built to endure the harshest environments and the most strenuous work demands, the Buyers 4-Way DC Power Unit is constructed with an emphasis on durability and longevity. The carbon steel reservoir, as noted, provides excellent structural integrity and resistance to physical damage. All internal hydraulic components are designed for high-pressure operation (2500 PSI) and continuous duty cycles, ensuring reliable performance over an extended lifespan. Key aspects contributing to its robustness include:
- Weather Resistance: Components are selected and protected to withstand exposure to moisture, dirt, and temperature fluctuations, ensuring consistent operation in outdoor and challenging conditions. This often involves sealed electrical components and corrosion-resistant coatings.
- Vibration Resistance: Designed to absorb and withstand operational vibrations inherent in mobile applications, preventing premature wear or component loosening.
- Quality Materials: Beyond the steel reservoir, critical components like the pump housing, motor casing, and valve bodies are typically manufactured from high-grade metals or composites selected for their strength and resistance to hydraulic forces and environmental factors.
These design considerations translate into a power unit that offers not only exceptional performance but also a reduced total cost of ownership through minimized maintenance and extended operational life.
Installation and Maintenance Considerations
The "all-in-one" design of the Buyers 4-Way DC Power Unit significantly streamlines the installation process. With its built-in pump, motor, reservoir, and valve system, users are primarily tasked with securely mounting the horizontal unit, connecting it to a 12V power source, and plumbing it to the hydraulic actuators via the 3/8 NPT outlet ports. The factory-wired control station further simplifies electrical hook-up, requiring only connection to the power unit and mounting in the desired operator location. Proper installation is crucial for optimal performance and safety, including ensuring adequate wire gauge for the 12V connection and securely routing hydraulic lines to prevent abrasion or kinking.
Routine maintenance is straightforward and essential for maximizing the unit's lifespan. This primarily involves:
- Hydraulic Fluid Management: Regularly checking the hydraulic fluid level and ensuring the use of the manufacturer-recommended fluid type and viscosity.
- Filter Replacement: Adhering to a schedule for replacing the triple filtration system's filters to maintain fluid cleanliness. This is arguably the single most important maintenance item for hydraulic systems.
- Electrical Connections: Periodically inspecting all electrical connections for tightness and corrosion.
- General Inspection: Checking for leaks, physical damage, and proper functioning of controls.
By following these guidelines and adhering to the product's operational manual, users can expect years of reliable service from their Buyers 4-Way DC Power Unit.
Conclusion
The Buyers 4-Way DC Power Unit-Electric Controls with a Horizontal 1.5 Gallon Steel Reservoir stands as a testament to advanced hydraulic engineering. Its comprehensive integration of a powerful 12V DC motor, high-pressure pump, durable steel reservoir, sophisticated 4-way valve system with Power Up/Power Down functionality, and triple filtration sets a high standard for performance and reliability. Coupled with intuitive push-button electric controls and a robust, weather-resistant construction, this unit provides an unparalleled solution for demanding mobile and auxiliary hydraulic applications. From snow plows and lift gates to dump trailers and RV slideouts, its versatility, ease of installation, and long-term durability make it the preferred choice for professionals seeking an efficient, compact, and highly controllable hydraulic power source. This power unit is not just a component; it is a critical investment in operational efficiency, safety, and longevity for a diverse range of equipment.
