The 4-Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack for operating your snow plow, lift gate, dump trailer, RV slideouts, etc. You get quick-response, power up/power down functionality from one small package that contains a built-in pump, 12V motor, reservoir, 4 function valve, triple filtration, factory-wired control station, and more. Push-button electric controls make the job easy. It's built to withstand weather and tough work demands. Choose from a polymer or steel reservoir in two sizes to meet your needs.
Specifications
| ForQuickOrderPad | y |
|---|

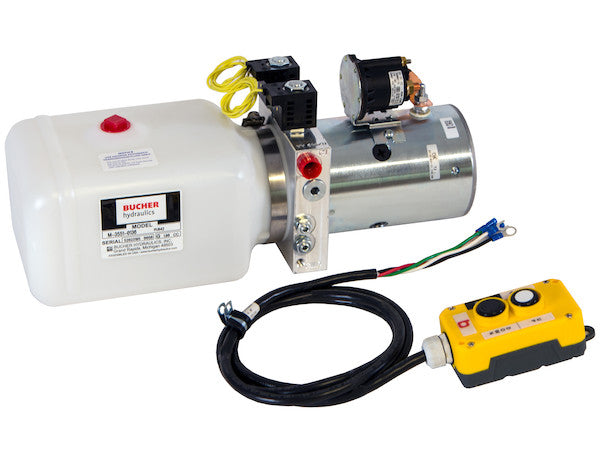

The POWER UNIT, 12V, DOUBLE ACTION, TOP PORTS, is a sophisticated integration of hydraulic and electrical engineering, designed for robust, reliable, and precise power across diverse mobile applications. This self-contained 12-volt DC power unit provides a complete hydraulic solution for demanding "double action" force, ensuring powered cylinder extension and retraction. Its innovative design strategically positions all hydraulic connection ports at the top, optimizing plumbing, streamlining installation, and maximizing operational efficiency in confined spaces. Engineered for unwavering performance, it encapsulates a high-efficiency pump, robust 12V DC motor, hydraulic fluid reservoir, precision 4-function solenoid valve, and advanced triple filtration. The factory-wired control station enhances plug-and-play readiness, minimizing installation complexity and ensuring immediate operation. This holistic design guarantees quick response and enduring durability against adverse weather and intensive operational cycles.
Technical Deep Dive into Core Components
The Hydraulic Pump System
Central to the unit’s hydraulic performance is its high-pressure gear pump, chosen for high volumetric efficiency and reliability. This positive displacement pump generates consistent flow and pressure, vital for predictable cylinder movement and robust load handling. By trapping fluid between rotating gear teeth, it delivers a precise volume, ideal for consistent speed and force. The pump's design minimizes internal leakage, maintaining high efficiency and converting motor energy into hydraulic power. Pressure capabilities match intended applications, providing ample force for lifting snowplows, operating lift gates, or articulating dump trailer cylinders. Precision-machined components ensure smooth, quiet operation and extended service life, even under continuous pressure cycles.
The 12V DC Electric Motor
A heavy-duty 12-volt DC electric motor powers the hydraulic pump, chosen for its high torque and efficient operation from a vehicle’s electrical system. Typically a permanent magnet design, it offers high power density and reliable starting. Engineered for intermittent duty cycles common in mobile hydraulic applications, its HP/kW ratings define capacity to drive the pump against system pressure. Robust construction, including sealed bearings and a protective enclosure, resists environmental contaminants and moisture. Integrated thermal overload protection prevents damage from excessive heat, safeguarding longevity. Motor efficiency is critical, impacting battery life and vehicle electrical demands. Its ability to deliver instantaneous torque is paramount for quick-response functionality.
The Hydraulic Reservoir
Beyond fluid storage, the reservoir fulfills critical functions. It acts as a heat exchanger, dissipating operational heat to maintain optimal fluid viscosity and prevent thermal degradation. It also provides a settlement area for contaminants, allowing heavier particles to settle before being drawn into the pump. Furthermore, it accommodates fluid volume changes from cylinder movement and thermal expansion/contraction. Both polymer and steel options are available. Polymer reservoirs offer superior corrosion resistance, lighter weight, and lower cost, ideal where weight is a concern or in corrosive environments. Steel reservoirs provide enhanced structural rigidity, greater impact resistance, and better heat dissipation for rugged industrial settings. Both options feature adequate capacity to prevent cavitation and ensure a constant oil supply, including a visual fluid level indicator, fill port with cap, and drain plug for maintenance.
The 4-Function Solenoid Valve
The unit’s control system centers on its sophisticated 4-function solenoid valve, engineered for double-acting cylinder operation. This 4-way, 2-position, or 3-position directional control valve uses electromagnetic solenoids to shift an internal spool, directing hydraulic fluid to specific cylinder ports for extension or retraction. In a typical 4-way configuration, it features Pressure (P), Tank (T), and two work ports (A and B). To extend, fluid goes to port A; fluid from port B returns to the tank. For retraction, solenoids shift the spool to direct fluid to port B; fluid from port A returns to the tank. This precise flow control enables "power up/power down," offering full hydraulic control—a significant advantage over single-acting systems for controlled descent or load holding. Robust solenoids provide high cycle life and rapid response. A factory-set pressure relief valve, integrated or separate, is an essential safety feature limiting maximum system pressure, protecting components from over-pressurization.
The Triple Filtration System
A triple filtration system maximizes system longevity and operational reliability, addressing contamination as the primary cause of hydraulic component failure. A typical system includes:
- Suction Strainer: A coarse filter at the pump inlet, preventing larger particles from pump damage.
- Return Line Filter: A finer filter in the return line, removing system-generated contaminants before fluid returns to the reservoir.
- Breather Filter: Integrated into the reservoir’s vent cap, cleaning air entering/exiting to prevent airborne dust and moisture contamination.
This comprehensive approach ensures exceptionally clean hydraulic fluid, mitigating wear on pump, valve spools, and cylinder seals, extending operational life and reducing costly maintenance.
Electric Controls and System Integration
The factory-wired control station with push-button electric controls prioritizes user-friendliness and ease of installation. This pre-assembled, pre-tested unit simplifies electrical connections, reducing wiring errors and expediting deployment. Momentary push-buttons provide intuitive "power up" and "power down" functionality. The durable electrical harness features weather-resistant connectors and protective sleeving for harsh conditions. Integration with a vehicle’s 12V electrical system requires a fused power connection directly to the battery for stable current during high-load conditions. Solenoids' low current draw allows for lighter gauge control circuit wiring, enhancing placement flexibility.
Operational Performance and Applications
Double-Action Functionality
The "double-action" capability offers distinct advantages over single-acting hydraulic systems. Pressure is actively applied to both sides of the cylinder piston, enabling controlled extension and retraction. This is critical where gravity is insufficient for retraction, or where a load must be positively pushed down or precisely held. For snow plows, double action allows both lifting and applying downward pressure for effective scraping. In lift gate scenarios, it provides controlled descent, enhancing safety and operational smoothness. This precise control over actuator movement improves operational efficiency, safety, and functionality across various tasks.
Quick-Response Characteristics
The integrated design, combining pump, motor, valve, and reservoir in one compact package, contributes significantly to quick-response characteristics. Minimized hydraulic line lengths reduce fluid inertia and pressure drop, allowing the system to react almost instantaneously to control inputs. This rapid engagement is vital for applications requiring immediate action, such as emergency stops or quick adjustments. The 12V motor's efficient electrical commutation supports responsiveness, delivering peak torque instantly upon activation.
Versatile Applications
Beyond snow plows, lift gates, dump trailers, and RV slideouts, the 12V double-action power unit's versatility extends to a broad spectrum of mobile and stationary applications:
- Agricultural Equipment: Operating small implements, adjusting trailer ramps, controlling seeding.
- Utility Vehicles: Actuating truck attachments, operating small cranes/hoists, manipulating tool positioning.
- Marine Applications: Operating trim tabs, small davits, anchor winches.
- Construction Machinery: Powering small excavators' auxiliary functions, concrete mixer chutes, controlling scissor lifts.
- Material Handling: Driving conveyor belts, operating compactors, adjusting loading dock equipment.
- Automotive Service: Powering tire changers, small vehicle lifts, shop presses.
Its robust construction and precise control make it indispensable for any system requiring dependable, bidirectional hydraulic force in a compact, self-contained package.
Design and Construction Excellence
Compact Footprint and Top Ports Configuration
The power unit’s compact nature facilitates installation in space-constrained mobile equipment. Its "all-in-one" philosophy reduces extensive plumbing and wiring, simplifying system integration. The unique "TOP PORTS" configuration offers a significant ergonomic and engineering advantage: locating all hydraulic pressure and return ports on the valve block’s top surface. This makes plumbing more accessible, simplifies hose routing, and optimizes the installation footprint, especially when mounted against a bulkhead or within an enclosure. This configuration also helps prevent debris accumulation and streamlines maintenance access.
Durability and Environmental Resistance
Built for "weather and tough work demands," this power unit features high-quality, resilient materials.
- Enclosures and Coatings: Motor and valve components are housed in robust enclosures, often with corrosion-resistant finishes (e.g., powder coating) to protect against rust and environmental degradation.
- Seals and Gaskets: High-performance elastomeric seals prevent fluid leaks and ingress of moisture or dust, contributing to a high Ingress Protection (IP) rating, essential for outdoor applications.
- Operating Temperature Range: Designed for reliable performance across a wide ambient temperature range, from extreme cold to intense heat.
- Vibration Resistance: Securely mounted components withstand high vibration levels in mobile machinery, preventing loosened connections or premature wear.
This industrial-grade construction ensures peak performance and extended operational life in challenging conditions.
Installation and Maintenance Considerations
Ease of Installation
The unit’s pre-assembled and factory-wired design significantly reduces installation time and complexity. Key installation considerations include:
- Mounting: Securely mount to a stable, vibration-dampening surface, ensuring clearance for ventilation, hose routing, and maintenance.
- Electrical Connection: Direct, fused connection to a 12V battery, with appropriate cable gauge for the motor's peak current.
- Hydraulic Connections: Correctly connect hoses from the power unit’s top ports to the double-acting cylinder, ensuring proper port identification.
- Fluid Fill: Fill the reservoir with manufacturer-specified hydraulic fluid.
The integrated control station simplifies wiring, providing a straightforward operator interface.
Maintenance Protocols
Routine maintenance is crucial for the hydraulic power unit's reliability and longevity. Key tasks include:
- Fluid Level Checks: Regularly inspect and top off hydraulic fluid.
- Fluid Quality: Periodically check fluid for contamination (discoloration, particulate matter) and replace per manufacturer recommendations.
- Filter Replacement: Adhere to scheduled replacement for triple filtration components to maintain fluid cleanliness.
- Electrical Connections: Inspect all electrical connections for corrosion, tightness, and damage.
- Hose and Fitting Inspection: Check hydraulic hoses and fittings for leaks, cracks, or abrasion.
- Motor Inspection: For brush-type motors, periodically inspect and replace brushes as needed.
- Pressure Relief Valve Check: Verify integrity during professional servicing for safety.
Proactive maintenance reduces unexpected downtime and extends the unit's service life.
Safety Features and Compliance
Beyond the integrated pressure relief valve, this power unit incorporates safety features protecting equipment and operator, such as motor thermal overload protection during strenuous conditions. Electrical components meet relevant safety standards, and overall construction adheres to industry best practices for hydraulic and electrical systems. The "factory-wired control station" ensures electrical connections are made by qualified personnel, reducing potential wiring hazards.
Conclusion
The POWER UNIT, 12V, DOUBLE ACTION, TOP PORTS, is a meticulously engineered, fully integrated hydraulic solution for rigorous mobile and industrial demands. Its combination of high-efficiency pump, robust 12V motor, durable reservoir options, precise 4-function valve, and advanced triple filtration system, all in a compact, top-ported configuration, delivers unparalleled performance, reliability, and ease of installation. With quick-response double-action functionality and resilience to challenging environmental conditions, this power unit stands as a testament to advanced hydraulic engineering. It provides a dependable, powerful solution for tasks from critical commercial operations to essential recreational functions, prioritizing longevity, maintainability, and operational excellence.
