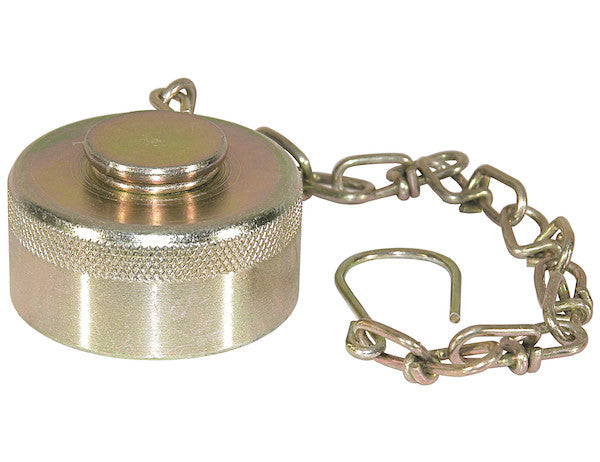

QDDC201 - Steel Dust Cap With Chain For 1-1/4 Inch NPT Coupler

The Steel Dust Cap from Buyers Products protects a quick coupler from harmful dirt and dust, keeping contaminants out of your hydraulic system when not in use. It comes with an attached chain.

Specifications

Advanced Technical Overview: The Critical Role of the Steel Dust Cap in Hydraulic System Integrity

In the demanding environments where hydraulic systems operate, maintaining fluid cleanliness is paramount to ensuring optimal performance, longevity, and safety. The Steel Dust Cap with Chain for 1-1/4 Inch NPT Coupler serves as a fundamental, yet critically important, protective component. While seemingly simple, its design and material specifications are precisely engineered to safeguard complex and expensive hydraulic circuits from the myriad threats posed by environmental contaminants. This detailed technical exposition will delve into the critical functions, material science, engineering specifications, and operational benefits of this indispensable hydraulic accessory.

The Imperative of Contamination Control in Hydraulic Systems

Hydraulic systems rely on the precise movement and control of pressurized fluid to transmit power. The integrity of this fluid, and indeed the entire system, is extraordinarily vulnerable to contamination. Particulate matter, moisture, air, and chemical ingress can lead to a cascade of detrimental effects, significantly impacting system efficiency, reliability, and lifespan.

Particulate Contamination: Microscopic solid particles, such as dust, dirt, metallic wear debris, and sealant fragments, are the primary culprits in hydraulic system degradation. These particles, often invisible to the naked eye, act as abrasive agents within the system. They cause:

• Abrasive Wear: As fluid circulates, entrained particles abrade critical surfaces, including pump gears, valve spools, cylinder walls, and bearing surfaces. This leads to increased internal leakage, reduced volumetric efficiency, and premature component failure.
• Erosive Wear: High-velocity fluid carrying abrasive particles can erode soft component materials and protective coatings, particularly in areas of flow constriction or abrupt direction changes.
• Adhesive Wear: Under boundary lubrication conditions, metal-to-metal contact can occur, leading to welding and tearing of surface material, exacerbated by contaminants.
• Silting and Sticking: Fine particles can accumulate in close-tolerance areas, such as valve lands and orifices, impeding movement, causing valve sticking, and degrading control precision.
• Filter Clogging: While filters are designed to capture contaminants, an excessive influx of particles can rapidly overload filters, leading to increased pressure drops, bypass activation, and potentially unfiltered fluid circulating through the system.

Moisture Ingress: Water is another insidious contaminant. It can enter the system through exposed ports, breathers, or damaged seals. Its presence leads to:

• Fluid Degradation: Water can react with hydraulic fluid additives, promoting oxidation, sludge formation, and acid generation, which degrades the fluid's lubricating properties and accelerates corrosion.
• Corrosion: Direct corrosion of ferrous components, particularly during downtime, can weaken materials and generate additional particulate contamination (rust).
• Cavitation: Entrained water can vaporize at low-pressure points, leading to cavitation erosion, especially in pumps and valves.
• Reduced Lubricity: Water displaces oil, reducing the protective film thickness and increasing friction and wear between moving parts.

The open port of a hydraulic quick coupler, when disconnected, presents a direct pathway for these contaminants to enter the closed hydraulic circuit. Without adequate protection, a single disconnection can introduce enough harmful elements to initiate a chain reaction of wear and degradation throughout the system. This is precisely why a robust and reliable dust cap, like the Steel Dust Cap from Buyers Products, is not merely an accessory but a foundational element of proactive hydraulic system maintenance.

Engineered for Durability: The Carbon Steel Advantage

The selection of material for critical protective components is paramount. This dust cap is fabricated from high-quality carbon steel, a material renowned for its excellent mechanical properties, durability, and cost-effectiveness in industrial applications. The "Material: Carbon Steel" specification indicates a deliberate choice based on a balance of performance characteristics.

Mechanical Properties of Carbon Steel:

• High Tensile Strength: Carbon steel exhibits significant resistance to breaking under tension, ensuring the cap can withstand mechanical stresses and impacts in rugged operational environments without deforming or failing.
• Good Yield Strength: This property indicates the stress level at which the material begins to deform permanently. The high yield strength of carbon steel ensures the cap maintains its shape and sealing capabilities even under moderate external forces.
• Excellent Hardness: The material's hardness provides resistance to abrasion and indentation, allowing the cap to endure repeated handling and exposure to harsh conditions without significant surface wear.
• Fatigue Resistance: In environments with vibrations or cyclical loading, carbon steel demonstrates good fatigue resistance, meaning it can withstand repeated stress cycles without developing cracks.

Manufacturing and Economic Considerations: Carbon steel is highly machinable, formable, and weldable, allowing for precise manufacturing processes that result in consistent product quality and tight tolerances for a secure fit. Its widespread availability and established processing techniques contribute to its overall cost-effectiveness, making it an economically viable solution without compromising on performance or protective capability.

Corrosion Resistance and Surface Treatments: While carbon steel offers superior mechanical strength, its primary limitation is its susceptibility to corrosion, particularly oxidation (rust) when exposed to moisture and oxygen. To counteract this, carbon steel dust caps are typically subjected to protective surface treatments. Common treatments include:

• Zinc Plating: A thin layer of zinc acts as a sacrificial coating, corroding preferentially to the steel substrate and providing excellent galvanic protection. Zinc plating often includes a chromate conversion coating for enhanced corrosion resistance and a specific color (e.g., clear, yellow, black).
• Powder Coating: This involves applying a dry powder (thermoplastic or thermoset polymer) electrostatically to the steel, which is then cured under heat to form a hard, durable finish. Powder coating offers excellent resistance to chipping, scratching, UV radiation, and some chemicals, while also providing an aesthetic finish.
• Electroless Nickel Plating: For more severe corrosive or abrasive environments, electroless nickel offers a harder and more uniformly thick coating, providing superior wear and corrosion resistance compared to zinc.

The choice of carbon steel, coupled with appropriate surface finishing, ensures that the dust cap not only provides robust physical protection but also maintains its structural integrity and appearance over an extended service life in demanding industrial settings.

Precision Fit: Understanding 1-1/4 Inch NPT

The specification "For 1-1/4 Inch NPT Coupler" is critical, defining the precise interface and sealing mechanism of the dust cap. NPT, or National Pipe Taper, is a widely adopted standard for tapered threads used on pipes and fittings to create a liquid-tight and gas-tight seal.

The NPT Standard Explained:

• Tapered Threads: Unlike parallel (straight) threads that rely on a gasket or O-ring for sealing, NPT threads are conical. Both the male (external) and female (internal) threads taper at a specified angle (3/4 inch per foot or 1 degree 47 minutes). This taper allows the threads to wedge together, creating a metal-to-metal interference fit as they are tightened.
• Sealing Mechanism: The seal is formed by the deformation of the thread material as the tapered threads are drawn tightly together. For optimal sealing and to prevent galling (cold welding) of the threads, a thread sealant (e.g., PTFE tape or liquid pipe dope) is highly recommended. The sealant fills any remaining helical gaps between the mating threads, ensuring a leak-proof connection even under high pressure.
• Thread Profile: NPT threads have a 60-degree included angle and flat roots and crests, conforming to ANSI B1.20.1 standards. This precise geometry is essential for proper mating and sealing.

The "1-1/4 Inch" Nominal Size: It is important to note that the "1-1/4 inch" in NPT refers to a nominal pipe size (NPS), not the actual outside diameter of the threads. The actual major diameter of a 1-1/4 inch NPT male thread is approximately 1.660 inches, and the actual outside diameter of the pipe it mates with would be closer to 1.660 inches. The nominal size designation historically relates to the inside diameter of early steel pipes. For quick couplers and fittings, this size typically corresponds to systems designed to handle specific flow rates and pressure ranges common in heavy-duty applications.

Applications of 1-1/4 Inch NPT Couplers: Couplers of this size are commonly found in:

• Medium to large hydraulic circuits on heavy construction equipment (excavators, loaders, bulldozers) for attachments such as hammers, augers, and grapples.
• Agricultural machinery for operating implements like plows, planters, and sprayers that require substantial hydraulic power.
• Industrial machinery requiring significant fluid transfer volumes or higher pressure capabilities.
• Hydraulic systems on large trucks and trailers (e.g., dump truck hoists, refuse compactors).

The 1-1/4 inch NPT dust cap provides a secure, tight-fitting closure for these specific couplers, preventing any ingress of contaminants that could compromise the integrity of the hydraulic fluid and the sophisticated components it lubricates and powers. The precision of the NPT threading ensures that the cap, when installed correctly, forms an effective barrier against the external environment.

Ergonomics and Security: The Integrated Chain

The inclusion of an "attached chain" is a seemingly minor detail that provides significant operational benefits, addressing a common challenge in field maintenance: lost or misplaced protective caps.

Practical Advantages of the Attached Chain:

• Loss Prevention: In dynamic and often chaotic work environments, small components are easily misplaced or lost. The chain ensures that the dust cap remains physically connected to the coupler or the host equipment, preventing it from being dropped, rolled away, or forgotten. This minimizes replacement costs and ensures the cap is always available when needed.
• Operational Efficiency: By keeping the cap tethered, operators can quickly remove and replace it without searching for it, streamlining connection and disconnection procedures. This reduces downtime and improves workflow efficiency, especially during urgent operations.
• Safety: A misplaced cap could become a trip hazard or interfere with moving parts. By keeping it secured, the chain contributes to a safer work environment.
• Cleanliness: A tethered cap is less likely to fall into mud, oil, or other contaminants on the ground, ensuring that the cap itself remains clean and does not inadvertently introduce new contaminants when re-applied to the coupler.

Chain Material and Attachment: Typically, these chains are made from galvanized steel or stainless steel, offering good corrosion resistance and mechanical strength to withstand the rigors of industrial use. The attachment method to both the cap and the coupler (or equipment frame) is designed to be robust, often involving a crimped ferrule, a securely welded lug, or a robust split ring, ensuring the chain remains attached despite vibrations, pulls, and general wear and tear.

The integrated chain transforms the dust cap from a standalone item prone to loss into an integral and always-present protective element of the hydraulic system, underscoring thoughtful design focused on real-world utility.

Diverse Applications and Operational Environments

The Steel Dust Cap with Chain for 1-1/4 Inch NPT Coupler finds its indispensable application across a broad spectrum of industries, each presenting unique environmental challenges that necessitate robust protection:

• Construction and Mining: Heavy machinery such as excavators, bulldozers, wheel loaders, and drilling rigs operate in environments characterized by extreme dust, mud, gravel, and temperature fluctuations. Exposed hydraulic lines and couplers are prime entry points for abrasive silica dust, which can rapidly degrade hydraulic components. This dust cap is essential for protecting quick-attach implements when not in use.
• Agriculture: Tractors, combines, planters, and sprayers routinely operate in fields with soil, crop residue, fertilizers, and moisture. The hydraulic systems powering various implements require constant protection from these agricultural contaminants to prevent premature wear and maintain operational reliability during critical planting and harvesting seasons.
• Transportation and Logistics: Hydraulic systems on commercial trucks, trailers (e.g., dump trailers, car carriers with hydraulic ramps), and refuse vehicles are exposed to road grime, salt, rain, and corrosive chemicals. Dust caps are vital for protecting the hydraulic lines used for auxiliary functions or power take-offs (PTOs).
• Industrial Manufacturing: In factory settings, hydraulic presses, assembly line machinery, and material handling equipment may be exposed to metal shavings, lubricants, coolants, and airborne dust from machining or fabrication processes. Even seemingly cleaner indoor environments require protection against internal process contaminants.
• Marine and Offshore: Although carbon steel would require specific enhanced coatings for severe marine environments, applications such as deck cranes, winches, and auxiliary systems on boats or offshore platforms can benefit from dust caps. The primary threats here are saltwater corrosion and particulate matter from dredging or drilling operations.

In all these diverse environments, the common denominator is the presence of agents capable of compromising hydraulic system integrity. The dust cap acts as a proactive defense mechanism, mitigating risks and extending the service life of expensive components and the hydraulic fluid itself.

Contribution to System Longevity and Cost-Efficiency

Investing in a high-quality dust cap might seem minor compared to the overall cost of a hydraulic system, but its contribution to longevity and cost-efficiency is substantial and quantifiable.

• Reduced Component Wear and Replacement: By effectively preventing particulate and moisture ingress, the dust cap directly reduces abrasive wear on pumps, valves, cylinders, and motors. This translates to significantly longer operational lives for these expensive components, deferring or eliminating the need for costly replacements and associated labor.
• Extended Fluid Life: Contamination accelerates the degradation of hydraulic fluid. Particles can catalyze oxidation, and moisture breaks down additives. A clean system, maintained with the aid of a dust cap, ensures the hydraulic fluid retains its optimal viscosity, lubricity, and protective properties for longer periods, extending fluid change intervals and reducing consumable costs.
• Minimized Downtime: System failures due to contamination often result in unexpected and prolonged equipment downtime. Each hour of downtime can incur substantial financial losses in terms of lost productivity, missed deadlines, and repair expenses. The dust cap acts as an inexpensive insurance policy against such costly disruptions, contributing to greater operational uptime and reliability.
• Optimized Performance: Contamination degrades system performance, leading to reduced power transmission efficiency, erratic control, and sluggish operation. By preserving fluid cleanliness, the dust cap helps maintain the system's peak performance, ensuring machinery operates at its designed specifications.
• Lower Maintenance Costs: Beyond component replacement, contamination leads to increased filter changes, more frequent fluid analysis, and troubleshooting efforts. Proactive use of dust caps reduces the overall maintenance burden and associated costs.

In essence, the Steel Dust Cap represents a small, low-cost investment that yields significant returns by safeguarding the overall health and operational efficiency of critical hydraulic assets. It is a prime example of how foundational components contribute disproportionately to the long-term economic viability of complex machinery.

Installation, Maintenance, and Best Practices

To maximize the protective benefits of the Steel Dust Cap, proper installation and routine maintenance are essential:

• Installation: The cap should be threaded onto the NPT coupler firmly by hand, then tightened with a wrench to achieve a secure, leak-proof seal. While overtightening can damage threads, insufficient torque will compromise the seal. A small amount of thread sealant can be used, though for a cap, the primary goal is a dust and dirt barrier rather than a high-pressure fluid seal.
• Regular Inspection: Periodically inspect the dust cap and its chain for any signs of wear, damage, or corrosion. The integrity of the NPT threads on the cap should be checked to ensure they are not stripped or cross-threaded. The chain should be securely attached and free from kinks or breaks.
• Cleaning: Before applying the cap, ensure both the coupler port and the inside of the cap are clean and free of debris. The cap itself should be routinely cleaned to prevent it from introducing contaminants when reapplied.
• Replacement: A damaged or worn dust cap should be replaced immediately. A compromised cap cannot provide adequate protection, negating its purpose and exposing the hydraulic system to unnecessary risk.

Conclusion

The Steel Dust Cap with Chain for 1-1/4 Inch NPT Coupler is far more than a simple cover; it is a meticulously engineered component critical for the proactive protection of sophisticated hydraulic systems. Its construction from durable carbon steel, designed for a precise NPT fit, and enhanced by an integral chain, collectively ensures superior defense against the pervasive threat of environmental contamination. By preventing the ingress of harmful particulate matter and moisture, this dust cap plays an indispensable role in mitigating abrasive wear, extending fluid life, reducing costly downtime, and ultimately preserving the operational integrity and economic viability of heavy machinery and industrial equipment. It embodies a fundamental principle of hydraulic system management: that comprehensive protection begins at every potential point of vulnerability.
