Specifications
| Coupler Material | Brass |
|---|---|
| Flow Rate (GPM) | 50 |
| Type | NPT |
| Wing Material | Cast Iron |

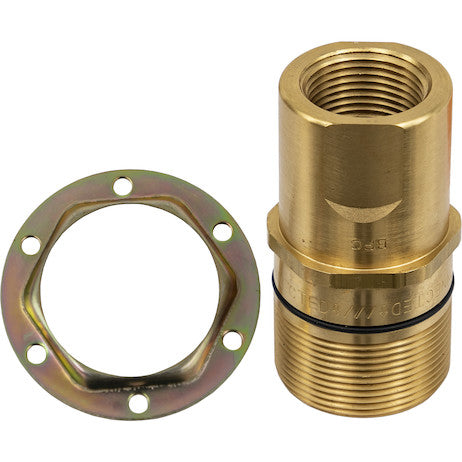

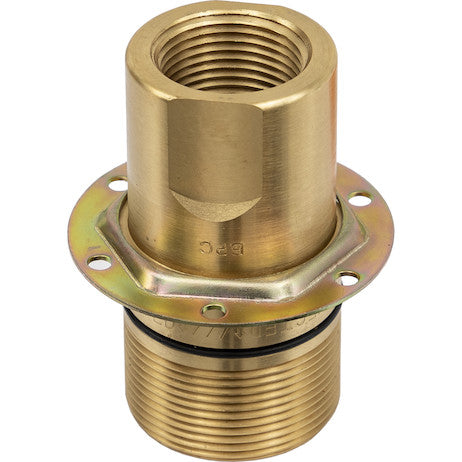

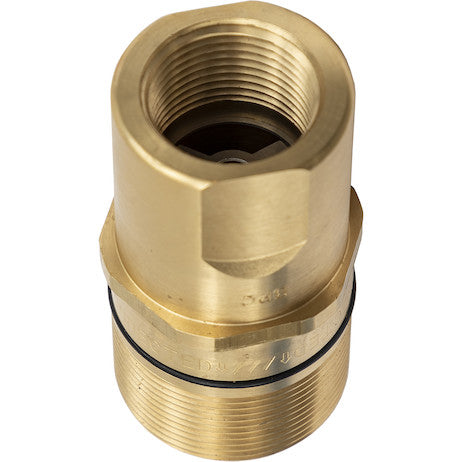

The 1 Inch Wing-Type Hydraulic Quick Coupler, specifically the male end, represents a critical component in modern hydraulic systems, engineered for robust performance and operational efficiency. This specific model, crafted by Buyers Products, is designed to facilitate swift and reliable connections and disconnections within high-pressure fluid transfer lines. Its designation as a "male end only" signifies its role as the plug component in a two-part coupling system, typically connecting to a corresponding female receptacle. This detailed description will delve into the technical specifications, material science, operational advantages, and application contexts of this essential hydraulic component, providing a comprehensive understanding for engineers, technicians, and system integrators.
At the core of its utility is the innovative wing-type design. Unlike conventional threaded connections that require multiple rotations and tools, the wing-type mechanism allows for a "simple twist" attachment and detachment. This ergonomic design significantly reduces the time and effort involved in swapping hydraulic attachments or performing maintenance, thereby maximizing operational uptime. The integrated wings provide superior leverage, enabling operators to achieve secure connections even when wearing gloves or in challenging environmental conditions. This ease of use is not merely a convenience but a critical factor in improving field efficiency and reducing potential for operator fatigue, directly impacting productivity in demanding applications such as construction, agriculture, and municipal services.
Material selection is paramount for hydraulic components, and the choice of solid brass for the coupler body underscores a commitment to durability and performance. Brass, an alloy primarily of copper and zinc, possesses a unique combination of properties that make it exceptionally well-suited for hydraulic applications. Its excellent corrosion resistance is a primary benefit, safeguarding the coupler against rust and degradation when exposed to moisture, chemicals, and varying environmental elements. This resistance extends to compatibility with a wide range of hydraulic fluids, including petroleum-based oils, synthetic lubricants, and some water-glycol mixtures, ensuring system integrity across diverse operational parameters. Furthermore, brass exhibits superior machinability, allowing for the precise manufacturing of internal components and sealing surfaces crucial for maintaining leak-free connections under high pressure. Its inherent strength and ductility contribute to a robust structure capable of withstanding the dynamic stresses inherent in hydraulic systems, providing a long service life and reliable operation. The thermal conductivity of brass also aids in dissipating heat, which can be a minor but contributing factor to system longevity in continuous operation.
Complementing the brass body, the wing section of this quick coupler is fabricated from cast iron. While the broader category is "Cast Iron," the specific mention of "ductile iron" in the product description highlights a superior variant. Ductile iron, also known as spheroidal graphite iron, is a form of cast iron renowned for its enhanced mechanical properties compared to traditional gray cast iron. Through a specific manufacturing process that introduces magnesium into the melt, the graphite within the microstructure forms discrete spheres rather than brittle flakes. This alteration significantly improves the material's ductility, tensile strength, and impact resistance. For a component like the wing section, which experiences substantial leverage and potential impact during connection and disconnection cycles, ductile iron provides the necessary robustness to resist bending, cracking, and wear over time. This robust wing material ensures that the primary mechanism for quick coupling remains reliable and resistant to deformation, maintaining the integrity and ease of use of the overall coupler assembly.
The nominal pipe size of 1 inch, coupled with the NPT (National Pipe Taper) thread type, specifies the critical interface dimensions for this male coupler. NPT threads are a widely adopted standard in North America for joining pipes and fittings in hydraulic and pneumatic systems. The tapered design of NPT threads allows for a mechanical seal to be formed when the male and female threads are tightened together, often supplemented by thread sealant or PTFE tape for an optimal leak-proof connection. A 1-inch NPT connection is indicative of a robust fluid pathway, typically employed in medium to heavy-duty hydraulic circuits. This sizing dictates the cross-sectional area available for fluid flow, directly influencing the volumetric flow rate and, consequently, the power transmission capabilities of the hydraulic system. Proper selection and matching of NPT thread sizes are absolutely critical to prevent leakage, ensure system integrity, and avoid damage to components due to incompatible connections. The precision engineering of the 1-inch NPT threads on this male coupler guarantees seamless compatibility with standard female NPT ports of the same size, facilitating straightforward integration into existing hydraulic infrastructure.
A notable performance metric for this coupler is its impressive flow rate capacity of 50 Gallons Per Minute (GPM). In hydraulic engineering, the flow rate is a fundamental parameter that directly correlates with the speed of actuators (e.g., cylinders, motors) and the overall power output of the system. A 50 GPM rating signifies that this coupler is engineered to handle substantial volumes of hydraulic fluid with minimal pressure drop across the connection. Maintaining a low pressure drop is crucial for system efficiency, as excessive pressure drop translates into wasted energy, increased heat generation, and reduced performance of downstream components. The internal design of the coupler, including its bore diameter and valve mechanism (if applicable), is optimized to minimize flow restrictions, ensuring that the rated flow can pass through without creating detrimental backpressure or cavitation. This high flow capacity makes the 1-inch wing-type coupler suitable for a broad spectrum of hydraulic machinery, from agricultural implements and construction equipment to industrial power units and utility vehicles, where rapid movement and significant hydraulic power are essential.
The operational landscape for the 1 Inch Wing-Type Hydraulic Quick Coupler Male End Only is vast and diverse. In the agricultural sector, these couplers are indispensable for rapidly connecting various implements such as plows, cultivators, and loaders to tractors, allowing farmers to switch tasks quickly and efficiently. For construction equipment, they enable the fast attachment and detachment of hydraulic hammers, augers, grapples, and other tools to excavators, skid steers, and backhoes, thereby enhancing versatility and reducing downtime on job sites. Municipal and utility vehicles benefit greatly from quick couplers for operating snowplows, salt spreaders, aerial lifts, and other specialized attachments. The "male end only" configuration means this particular product is ideal for attachment manufacturers or end-users who need replacement male couplers for their tools, or who are building new hydraulic implements that need to connect to existing female receptacles on power units. Its rugged construction and high flow rate capacity ensure reliable performance in harsh outdoor environments, characterized by exposure to dirt, dust, extreme temperatures, and heavy vibrations.
Beyond initial installation, proper maintenance and operational practices are key to maximizing the lifespan and reliability of any hydraulic quick coupler. When installing this 1-inch NPT male end, it is critical to apply an appropriate thread sealant to the tapered threads to ensure a leak-proof connection. Care must be taken to align the threads correctly and avoid cross-threading, which can permanently damage both the coupler and the mating port. Tightening should be performed to the manufacturer's recommended torque specifications using appropriate tools, without overtightening, which could stress the material. Regular inspection of the coupler is advised, focusing on the brass body for any signs of physical damage, corrosion, or wear. The cast iron wings should be checked for cracks or deformation, which could impair the connection mechanism. The internal sealing elements, typically O-rings or other elastomer seals, are consumable components and should be inspected for degradation or hardening and replaced as part of routine preventative maintenance to prevent leaks. Crucially, hydraulic lines should always be depressurized before attempting to connect or disconnect quick couplers to prevent injury from high-pressure fluid ejection and to facilitate easier connection by removing residual pressure that can make coupling difficult. Maintaining cleanliness is also paramount; always wipe the coupler faces clean before connecting to prevent the ingress of dirt and contaminants into the hydraulic system, which can cause significant damage to pumps, valves, and cylinders.
The integration of this male quick coupler into a hydraulic system demands careful consideration of several technical factors. While the 50 GPM flow rate is specified, it is crucial to ensure that the system's maximum operating pressure does not exceed the coupler's rated pressure capacity. Although not explicitly listed for this specific part, hydraulic quick couplers of this size and material typically operate effectively within common mobile and industrial hydraulic pressure ranges. Users must verify this compatibility with their system requirements. Fluid compatibility extends beyond the base material to the internal seals; ensuring that the selected hydraulic fluid will not degrade the seal material is essential for leak-free operation. Additionally, the operational temperature range of the hydraulic system should fall within the specified limits for both the brass body and the internal seals to prevent material degradation or performance issues. The robust construction of this Buyers Products quick coupler, featuring solid brass and ductile iron components, signifies a product designed for longevity and resilience even under challenging conditions, offering a reliable solution for critical hydraulic connections.
In conclusion, the 1 Inch Wing-Type Hydraulic Quick Coupler Male End Only from Buyers Products stands as a testament to engineering excellence in hydraulic connectivity. Its thoughtful design, incorporating a user-friendly wing-type mechanism for rapid attachment and detachment, significantly enhances operational efficiency across diverse applications. The strategic selection of solid brass for the main body ensures exceptional corrosion resistance, fluid compatibility, and structural integrity, while the ductile cast iron wings provide superior strength and durability against mechanical stresses. With a robust 1-inch NPT connection for universal compatibility and an impressive 50 GPM flow rate for high-performance fluid transfer, this male coupler is engineered to meet the stringent demands of modern hydraulic systems. By facilitating quick, secure, and leak-free connections, this component plays a pivotal role in minimizing downtime, improving safety, and extending the lifespan of valuable hydraulic equipment. Its professional-grade construction and reliable performance make it an indispensable choice for professionals seeking efficiency and durability in their hydraulic applications.
