Specifications
| Coupler Material | Brass |
|---|---|
| Flow Rate (GPM) | 50 |
| Size | 1 NPT |
| Type | NPT |
| Wing Material | Cast Iron |

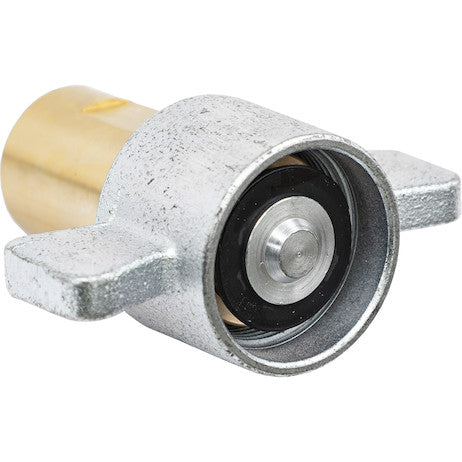

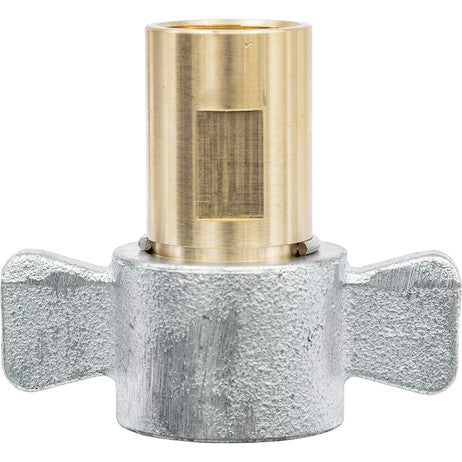

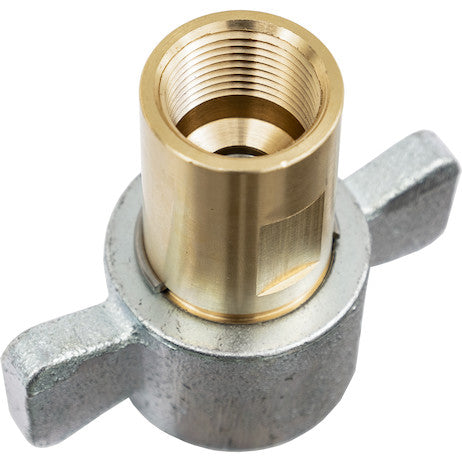

The 1 Inch Wing-Type Hydraulic Quick Coupler Female End Only represents a critical component in the design and maintenance of robust hydraulic systems. Engineered for demanding environments and frequent connection/disconnection cycles, this female coupler provides a secure, efficient interface for hydraulic fluid transfer. Its design prioritizes operational reliability, ease of use, and material integrity, making it an indispensable part for a wide array of industrial, agricultural, construction, and mobile hydraulic applications. This detailed exposition will delve into the technical specifications, material science, operational advantages, and strategic applications of this specialized hydraulic component.
Advanced Engineering and Operational Mechanics
The core functionality of any quick coupler lies in its ability to facilitate rapid and secure hydraulic connections without significant fluid loss or air ingress. The wing-type mechanism, a distinguishing feature of this coupler, offers distinct operational advantages. This design typically involves a robust outer sleeve (the wing section, often made of ductile or cast iron for enhanced durability and impact resistance) that, when rotated, compresses or releases an internal locking mechanism. For the female end specifically, this mechanism secures the male counterpart firmly, ensuring a leak-free and pressure-resistant union. The "simple twist" action described underscores the ergonomic efficiency of the design, minimizing operator effort and reducing the time required for equipment changeovers or system reconfigurations.
The securement process involves a positive locking action that prevents accidental disengagement even under vibratory stress or dynamic load conditions common in heavy machinery. This robust mechanical interlock is paramount for safety and operational continuity. Furthermore, the design inherently reduces the risk of dirt and contaminants entering the hydraulic system during coupling and uncoupling, a critical factor for extending the lifespan of hydraulic pumps, valves, and actuators. Contamination control is a cornerstone of hydraulic system longevity and efficiency, and the design of quick couplers plays a vital role in maintaining system cleanliness.
Material Science: The Integrity of Brass and Cast Iron
The selection of materials for hydraulic components is not arbitrary but rather the result of rigorous engineering analysis concerning performance requirements, environmental resistance, and cost-effectiveness. This coupler utilizes solid brass for its primary coupling body and, when part of a complete set, a cast iron wing section. Each material brings specific properties that contribute to the coupler's overall performance profile.
Brass (Coupler Material)
Brass, an alloy primarily composed of copper and zinc, is an exceptional choice for hydraulic couplers due to a combination of inherent metallurgical properties:
- Corrosion Resistance: Brass exhibits excellent resistance to corrosion from water, many chemicals, and atmospheric exposure. This property is crucial in outdoor applications, marine environments, or settings where exposure to corrosive fluids or elements is common, ensuring the longevity and integrity of the sealing surfaces and internal mechanisms.
- Durability and Wear Resistance: While not as hard as steel, brass offers good wear resistance, particularly against galling and seizing. This is critical for components that undergo frequent mechanical engagement and disengagement, as it preserves the smoothness of the mating surfaces, extending the effective life of the coupler.
- Machinability: Brass is highly machinable, allowing for precise manufacturing of complex geometries and tight tolerances. This precision is essential for creating effective sealing surfaces and accurate locking mechanisms, which directly impact the coupler's ability to maintain pressure and prevent leaks.
- Thermal Conductivity: Brass has good thermal conductivity, which can help dissipate heat generated by fluid flow or ambient conditions, contributing to stable operational temperatures within the component itself.
- Cost-Effectiveness: Compared to more exotic alloys, brass offers a favorable balance of performance and material cost, making it a practical choice for a wide range of industrial applications without compromising critical performance attributes.
- Anti-Sparking Properties: In certain environments where flammable materials are present, the non-sparking nature of brass can be an important safety consideration.
Cast Iron (Wing Material - for a complete set)
Although this product is the female end only, the mention of "ductile iron wing section" in the general description for a complete coupler is significant. Cast iron, particularly ductile iron, offers:
- High Tensile Strength and Ductility: Ductile iron is engineered to be more ductile and fracture-resistant than traditional gray cast iron. This characteristic makes it highly suitable for components that may experience impact loads or require a degree of flexibility without brittle failure.
- Vibration Damping: Cast iron exhibits excellent vibration damping properties, which is beneficial in applications where machinery generates significant operational vibrations. This can help preserve the integrity of the mechanical connection over time.
- Wear Resistance: Similar to brass, cast iron offers good wear resistance, which is advantageous for the wing section that experiences mechanical stresses during operation.
- Economic Value: Cast iron is a cost-effective material for manufacturing large, intricate parts, providing a robust structural component without excessive material costs.
Hydraulic Performance: Size, Flow Rate, and Pressure Dynamics
The specifications of "1 NPT Size" and "50 GPM Flow Rate" are crucial indicators of this coupler's performance envelope and application suitability.
1 NPT Thread Standard
NPT, or National Pipe Taper, is a widely adopted standard for tapered threads used on pipes and fittings in the United States and Canada. The 1-inch NPT designation refers to the nominal pipe size, which corresponds to the internal diameter of the pipe. The tapered nature of NPT threads means that as the male and female threads are tightened, they wedge together, creating a seal. This mechanical interference, often augmented with thread sealant (tape or compound), is critical for maintaining a pressure-tight connection in hydraulic systems.
- Sealing Mechanism: Unlike parallel threads that rely solely on an external seal (like an O-ring or gasket), NPT threads provide a metal-on-metal seal across the flanks of the threads when properly tightened. The 1-inch size ensures compatibility with standard hydraulic lines of corresponding dimensions, facilitating straightforward integration into existing or new hydraulic circuits.
- Industry Standard: The prevalence of NPT threads simplifies sourcing and ensures interoperability with a vast range of hydraulic components, from hoses and pipes to valves and cylinders.
- Robust Connection: The tapered thread creates a very strong mechanical connection, resisting disconnection under high pressure and vibration.
50 GPM (Gallons Per Minute) Flow Rate
The flow rate of 50 GPM signifies the maximum volume of hydraulic fluid that can pass through the coupler per minute without excessive pressure drop or fluid turbulence. This is a critical parameter for system design:
- System Efficiency: A coupler with an adequate flow rate minimizes energy losses within the hydraulic system. If the flow rate capacity of a coupler is lower than the required system flow, it can act as a restriction, causing a pressure drop, increased fluid temperature, and reduced overall system efficiency. The 50 GPM rating suggests this coupler is designed for medium to high-flow hydraulic applications.
- Power Transmission: Hydraulic power is a function of flow rate and pressure. A higher flow rate capability allows for faster actuation of cylinders and motors, translating to quicker machine cycles and enhanced productivity in operations that demand rapid movement.
- Application Suitability: This flow capacity makes the 1-inch wing-type female coupler suitable for a broad spectrum of heavy-duty equipment, including agricultural tractors with multiple implements, construction excavators, loaders, forestry equipment, and various industrial presses or material handling systems. For example, in an agricultural setting, quick connection and disconnection of implements like plows, seeders, or cultivators often involves high flow rates for efficient operation of hydraulic cylinders controlling depth, lift, and steering.
- Minimizing Cavitation: Proper sizing of a coupler to match system flow prevents cavitation, a phenomenon where air bubbles form and collapse in the fluid due to localized pressure drops, leading to component damage and reduced system performance.
The Strategic Advantage of a Female End Only Coupler
The availability of the female end only is not merely a convenience but a strategic offering that caters to specific maintenance, repair, and operational requirements:
- Replacement Part: In many hydraulic systems, one end of a quick coupler (either male or female) may experience more wear or damage than the other due to its fixed or exposed position, or specific connection dynamics. Offering the female end separately allows for cost-effective replacement without requiring the purchase of an entire coupler set.
- Custom Configurations: Designers and engineers often require flexibility in integrating quick couplers into custom hydraulic circuits. By providing individual ends, they can specify the exact components needed, such as pairing this female end with a specialized male end from a different manufacturer (provided compatibility is ensured) or for use with a proprietary attachment.
- System Expansion and Modularity: As hydraulic systems evolve or are expanded, new connections may be needed. Having access to individual female ends allows for the creation of new hydraulic lines or the addition of new implements without redundant component purchasing.
- Inventory Management: For operations with large fleets of hydraulic equipment, maintaining an inventory of common failure points or high-wear components like individual coupler ends can significantly reduce downtime by ensuring immediate availability for repairs.
Applications Across Industries
The versatility and robust nature of the 1 Inch Wing-Type Hydraulic Quick Coupler Female End make it ideal for a diverse range of applications where quick, reliable hydraulic connections are paramount:
- Agriculture: Tractors, combines, sprayers, and various implements often require frequent connection and disconnection of hydraulic lines for functions like lifting, steering, and operating auxiliary equipment. The wing-type design's ease of use is highly valued in the field.
- Construction: Excavators, skid steers, loaders, backhoes, and other heavy equipment rely on quick couplers for attaching and detaching buckets, grapples, hammers, and other hydraulic tools. The robust cast iron wing material in a complete set would withstand the harsh conditions of construction sites.
- Forestry: Log loaders, feller bunchers, and chippers utilize hydraulic quick couplers for efficient attachment changes and maintenance, often operating in challenging terrain and weather.
- Industrial Manufacturing: In factories and processing plants, hydraulic power units often connect to various presses, clamping devices, or material handling systems, where quick changes can enhance production line flexibility.
- Mobile Hydraulics: Utility vehicles, service trucks, and municipal equipment frequently use quick couplers for auxiliary functions or power take-offs, necessitating reliable connections that can be made and broken quickly.
- Oil & Gas: Though often requiring specialized materials for extreme conditions, general-purpose quick couplers can be found in supporting roles for wellhead equipment or service vehicles.
Installation and Maintenance Best Practices
To ensure optimal performance and longevity of the 1 Inch Wing-Type Hydraulic Quick Coupler Female End, proper installation and diligent maintenance are crucial:
- Thread Preparation: Before installation, ensure the male NPT thread of the hose or pipe is clean and free from burrs or debris. Apply an appropriate thread sealant (PTFE tape or liquid pipe sealant) to the male threads. This is vital for achieving a leak-free seal with the tapered NPT female coupler.
- Proper Tightening: Hand-tighten the coupler until snug, then use a wrench to turn it an additional 1 to 2 turns, following manufacturer recommendations. Over-tightening can damage threads or distort the coupler, while under-tightening will lead to leaks.
- System Flushing: After installation, it is good practice to flush the hydraulic system to remove any air or contaminants introduced during the connection process.
- Regular Inspection: Periodically inspect the coupler for signs of wear, corrosion, or damage, especially on the sealing surfaces and the wing mechanism. Check for any leaks around the connection points.
- Sealing Component Integrity: Ensure that any internal O-rings or seals within the female coupler are in good condition. Worn or damaged seals are a primary cause of leakage and can compromise system pressure.
- Cleanliness: Always clean the mating surfaces of both the male and female couplers before connection to prevent dirt and grit from entering the hydraulic system. Dust caps or plugs should be used on unconnected couplers to maintain cleanliness.
- Pressure Cycling: Monitor the coupler's performance during operational pressure cycles. Any unusual noise, excessive heat, or leakage should be investigated promptly.
Buyers Products Commitment to Quality and Performance
Buyers Products has a long-standing reputation for engineering and manufacturing high-quality components for the work truck and trailer equipment industries. This 1 Inch Wing-Type Hydraulic Quick Coupler Female End reflects their commitment to producing durable, reliable products that meet the rigorous demands of professional use. By selecting robust materials like brass and adhering to industry-standard specifications such as 1 NPT and a 50 GPM flow rate, Buyers Products ensures that this component provides consistent performance, enhances operational safety, and contributes to the overall efficiency of hydraulic systems. The emphasis on solid construction and a user-friendly design underscores their understanding of the practical challenges faced by operators and maintenance personnel in the field.
Conclusion
The 1 Inch Wing-Type Hydraulic Quick Coupler Female End Only is a meticulously engineered component designed to facilitate rapid, secure, and leak-free connections within high-performance hydraulic systems. Its construction from solid brass, combined with its 1 NPT sizing and impressive 50 GPM flow rate, establishes it as a superior choice for a multitude of demanding applications. The wing-type mechanism ensures ease of use and dependable locking, while the material selection guarantees resistance to corrosion, wear, and the stresses of continuous operation. Whether for replacement, custom system builds, or strategic inventory management, this female quick coupler provides the reliability, efficiency, and durability that modern hydraulic operations require, reinforcing the commitment to operational excellence offered by Buyers Products.
