Specifications
| Coupler Material | Brass |
|---|---|
| Flow Rate (GPM) | 75 |
| Type | NPT |
| Wing Material | Cast Iron |
Advanced Technical Overview: 1-1/4 Inch Wing-Type Hydraulic Quick Coupler Male End Only – Precision Engineering for High-Performance Hydraulic Systems

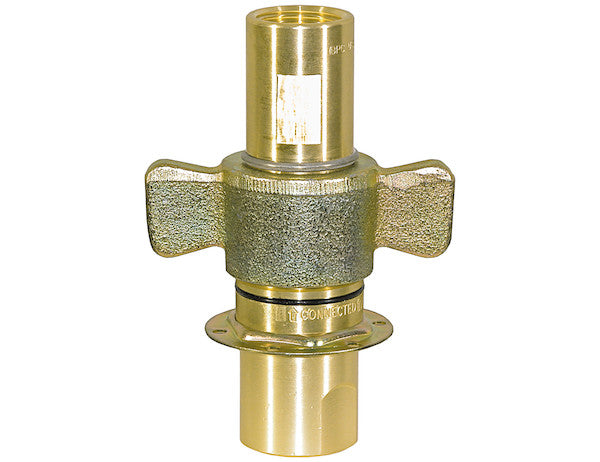

The 1-1/4 Inch Wing-Type Hydraulic Quick Coupler, specifically the male end (identified by part number sequence QDWC##1), represents a cornerstone of efficient and reliable hydraulic system operation. Engineered for robust performance in demanding industrial, agricultural, and construction environments, this component is designed to facilitate rapid, secure, and leak-free connections within high-flow hydraulic circuits. Its distinct wing-type design, combined with premium material construction, ensures superior operational longevity and user-friendliness, making it an indispensable asset for any professional requiring swift interchangeability of hydraulic attachments and tools.
The 1-1/4 Inch Wing-Type Hydraulic Quick Coupler (male end only) features a revered wing-type mechanism for simplicity and effectiveness. Unlike threaded connections, it allows swift attachment and detachment with a mere twist, significantly reducing downtime and enhancing productivity. The substantial wing grip ensures effortless manipulation, even with gloved hands or in adverse conditions. This male end integrates seamlessly into compatible female receivers, forming a mechanically secure, hydraulically sealed connection. This design minimizes accidental disconnection under vibrational stress or hydraulic surge, ensuring continuous, reliable power transmission in demanding environments.
Material Excellence: The Uncompromising Strength of Solid Brass
Solid brass for the coupler body reflects a commitment to durability, corrosion resistance, and optimal performance. Brass, an alloy of copper and zinc, offers properties ideal for hydraulic applications, particularly inherent resistance to oxidation and galvanic corrosion in harsh outdoor environments. This ensures structural integrity and appearance are maintained over extended periods where other materials would falter. Beyond corrosion resistance, brass offers excellent machinability for precise internal geometries, vital for reliable sealing and fluid flow. Its smooth bore minimizes turbulent flow and pressure drop, optimizing hydraulic system efficiency. Brass combines strength and ductility, withstanding high pressures while absorbing minor impacts without fracturing, enhancing mechanical shock resistance. Its thermal conductivity aids heat dissipation, contributing to overall thermal stability. Furthermore, brass offers broad compatibility with mineral oil-based, synthetic, and water-glycol hydraulic fluids, making this coupler versatile across diverse equipment types and reducing material degradation risks. The non-sparking property of brass also enhances safety in flammable environments, extending suitability for stringent industrial applications. Its density contributes to robust feel and vibrational damping, ensuring stable connections even under dynamic loads.
Reinforced Durability: The Robustness of the Cast Iron Wing
The wing section, vital for ergonomic engagement, is robust cast iron, strategically paired with the brass body for resilience. Cast iron’s exceptional compressive strength, rigidity, and wear resistance are critical for the wing, enduring mechanical stress and impacts. This ensures the wing withstands repeated handling, resisting deformation and maintaining reliability. Its stiffness ensures precise alignment for proper male end engagement, preventing misalignment, wear, or leakage. Cast iron’s vibration absorption further benefits high-impact machinery, reducing strain, and providing a durable grip for reliable, long-lasting connections even in severe conditions.
Optimized Flow Performance: The Significance of 75 GPM and NPT Standard
The coupler's impressive 75 GPM flow rate signifies its suitability for heavy-duty hydraulic systems, ensuring rapid fluid transfer to power large actuators and implements. This high flow, crucial for maximizing efficiency and preventing overheating in agricultural machinery or construction excavators, is supported by an optimized internal design that minimizes turbulence and hydraulic losses. Complementing this is adherence to the National Pipe Taper (NPT) thread standard, widely recognized in North America. NPT's tapered design creates a self-sealing mechanical bond as threads tighten, providing a highly reliable, leak-proof seal under pressure when properly installed with sealant. The 1-1/4 inch NPT size ensures standard interoperability across hydraulic components, simplifying system design, assembly, and maintenance. This combination makes the coupler ideal for systems where performance and reliability are paramount, ensuring hydraulic power is transmitted with minimal energy loss, contributing to fuel efficiency and extended component life. The robust NPT connection resists vibration loosening, underscoring its role as a high-performance component in demanding hydraulic circuits.
Versatile Applications Across Demanding Sectors
The 1-1/4 Inch Wing-Type Hydraulic Quick Coupler Male End is highly versatile across industries requiring robust, high-flow hydraulic connections. In the agricultural sector, it's indispensable for rapidly connecting/disconnecting implements like cultivators, plows, and sprayers, saving time and maximizing field productivity. Its resistance to dirt and corrosive fertilizers suits harsh farm work. For the construction industry, this coupler is vital for quick attachment changes on heavy equipment such as excavators and loaders, minimizing job site downtime. The cast iron wing withstands rough handling, while the brass body ensures reliable fluid transfer under high pressures and varying temperatures.
In industrial manufacturing, couplers are employed in hydraulic presses, material handling, and automated assembly lines, ensuring continuous operation and quick tooling maintenance. Forestry and logging rely on them for connecting tools to feller bunchers and skidders in challenging terrains, with high flow supporting powerful hydraulic demands. Beyond these, the coupler serves municipal services (snowplows, refuse trucks), mining operations (dusty, abrasive environments), and heavy-duty transport/utility vehicles. Its performance across diverse fluids and extreme temperatures broadens applicability, making it a go-to for reliability and operational flexibility.
Operational Integrity and Longevity: Installation, Maintenance, and Performance Considerations
Optimal performance and extended lifespan require adherence to installation, operation, and maintenance best practices. Proper installation is critical for a leak-free NPT connection; use a high-quality thread sealant (PTFE tape or anaerobic pipe sealant) to fill microscopic gaps. Avoid over-tightening (deforms threads) and under-tightening (leaks). The wing-type's "simple twist" secures the male-female connection, but initial thread engagement is paramount. Quick couplers typically incorporate valve mechanisms to prevent fluid loss/air ingress; their proper function and integrity of O-rings/seals (critical for system cleanliness) are essential. Regular inspection for wear or deformation on sealing surfaces is recommended. The 75 GPM flow implies operating within specified working pressure and temperature limits is crucial; exceeding them causes premature failure. Brass offers temperature stability, but continuous exposure beyond recommended fluid ranges degrades seals. Fluid compatibility is vital; ensure hydraulic fluid doesn't chemically react with brass or sealing materials. Routine preventative maintenance, like keeping coupler faces clean and applying lubricant, significantly extends service life, maximizing reliability, efficiency, and safety benefits.
Strategic Component Selection: The Advantage of a Male End Only
The 1-1/4 Inch Wing-Type Hydraulic Quick Coupler as a male end only (QDWC##1) offers significant advantages for system designers, maintenance, and users. This modular approach allows precise customization and cost-effective maintenance. For multiple hydraulic tools with a single power unit, having male ends on each tool ensures quick interchangeability with one female receiver, eliminating purchasing complete sets when only additional tool-side connections are needed. In wear-and-tear scenarios, replacing just the male end is economical for replacements, streamlining maintenance and minimizing downtime. This flexibility also supports custom hydraulic circuits where female ports are integrated, or specific male-to-male/male-to-hose configurations are needed. The "male end only" offering underscores Buyers Products' understanding of diverse customer needs, empowering users to build, modify, and maintain hydraulic systems with precision and economic efficiency, optimizing workflows and enhancing infrastructure longevity.
Conclusion: Uncompromised Quality and Performance for Demanding Hydraulic Systems
The 1-1/4 Inch Wing-Type Hydraulic Quick Coupler Male End Only from Buyers Products is a meticulously engineered component delivering uncompromised performance, reliability, and ease of use in demanding hydraulic applications. Solid brass ensures exceptional corrosion resistance, pressure integrity, and fluid compatibility, while the robust cast iron wing provides superior durability. Its impressive 75 GPM flow rate supports high-power systems, minimizing pressure drop and maximizing efficiency. Standardized NPT threading guarantees seamless integration and a secure, leak-free seal. Used across agriculture, construction, industrial manufacturing, forestry, and mining, this male coupler facilitates rapid equipment changes, reduces downtime, and enhances operational safety and productivity. Its standalone availability provides critical flexibility for replacements, system expansions, and custom configurations. Choosing this Buyers Products quick coupler is an investment in durable design, superior material science, and engineering excellence, ensuring a robust solution for optimizing your hydraulic system's performance and longevity.
