Specifications
| Coupler Material | Brass |
|---|---|
| Flow Rate (GPM) | 100 |
| Type | NPT |
| Wing Material | Cast Iron |

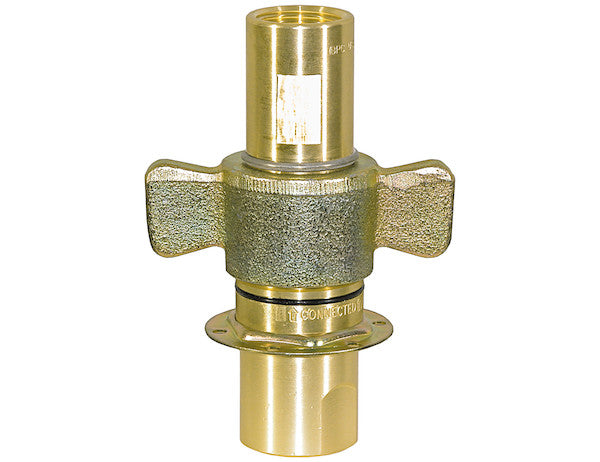

The 1-1/2 Inch Wing-Type Hydraulic Quick Coupler Male and Female Assembly represents a critical component for sophisticated hydraulic systems demanding efficiency, reliability, and robust performance. Engineered to facilitate rapid and secure connections and disconnections within high-pressure fluid power circuits, this assembly is indispensable across a multitude of heavy-duty industrial, agricultural, and construction applications. Its design, combining a solid brass coupler body with a resilient cast iron wing section, is meticulously crafted to withstand the rigorous demands of harsh operating environments while maintaining optimal hydraulic flow and system integrity. This detailed technical exposition will delve into the intrinsic features, material science, operational advantages, and application specificities of this advanced quick coupler system, underscoring its pivotal role in enhancing productivity and operational safety.
At the core of its functionality is the innovative wing-type mechanism. Unlike traditional threaded connections that require time-consuming manual tightening and loosening, or push-to-connect systems that may lack the intuitive tactile feedback for secure engagement, the wing-type design offers unparalleled ease of use. The "simple twist" action facilitates a swift and positive lock, ensuring that the male and female components are fully seated and sealed, thereby minimizing the risk of accidental disconnection or fluid leakage under pressure. This mechanism is particularly advantageous in scenarios where frequent connection and disconnection cycles are necessary, dramatically reducing downtime and operator effort. The ergonomic design of the cast iron wings provides ample leverage for comfortable and secure manipulation, even when dealing with residual pressure or challenging orientations.
The selection of materials for this quick coupler assembly is a testament to its engineering for durability and performance. The primary coupler body, both male and female ends, is meticulously machined from solid brass. Brass, an alloy primarily of copper and zinc, is renowned for its exceptional properties that are highly beneficial in hydraulic applications. Foremost among these is its superior corrosion resistance. Hydraulic systems often operate in environments exposed to moisture, chemicals, and various types of hydraulic fluids, some of which can be aggressive. Brass resists oxidation, pitting, and general degradation far more effectively than many other metals, ensuring the longevity and integrity of the fluid path. Furthermore, brass exhibits excellent machinability, allowing for the precise tolerances required for a leak-free seal and smooth operation. Its inherent lubricity also contributes to reduced wear between mating surfaces, extending the operational life of the coupler. The material’s moderate strength and ductility make it resilient against pressure surges and mechanical stress, preventing brittle fracture and deformation.
Complementing the brass coupler body is the robust cast iron wing section. While the brass components manage the fluid interface, the cast iron wings provide the structural strength and resilience necessary for the locking mechanism. Cast iron, specifically grey cast iron as commonly used, possesses high compressive strength, excellent vibration damping characteristics, and superior wear resistance. This makes it an ideal material for components that endure significant mechanical stress during connection and disconnection, as well as potential impacts in industrial settings. The decision to use cast iron for the wing section, distinct from the brass coupler, is a deliberate engineering choice to leverage the optimal properties of each material where they are most effective. This multi-material approach ensures that the entire assembly provides a balanced combination of corrosion resistance, structural integrity, and ergonomic functionality.
A fundamental technical specification of this assembly is its 1-1/2 inch NPT (National Pipe Taper) thread type. The NPT standard is a widely recognized and utilized threading convention for general purpose sealing of pipe and pipe fittings. Its tapered design allows for a mechanical interference fit between the male and female threads, forming a metal-to-metal seal that becomes tighter as the connection is made. When augmented with appropriate thread sealant or PTFE tape, NPT connections provide highly reliable, leak-proof joints critical for maintaining hydraulic system efficiency and preventing environmental contamination. The 1-1/2 inch nominal size indicates a substantial flow capacity, signifying its suitability for hydraulic circuits requiring significant fluid transfer. This larger bore size inherently supports lower pressure drops across the connection, which is vital for preserving system energy efficiency and maximizing the power delivery to hydraulic actuators and motors.
The impressive flow rate capacity of 100 GPM (Gallons Per Minute) is a hallmark of this quick coupler assembly's high-performance design. This substantial flow capability indicates that the internal geometry of the coupler is optimized to minimize restriction to fluid flow. In hydraulic systems, minimizing pressure drop across components is paramount. Excessive pressure drop leads to energy loss, which translates into wasted power, increased heat generation within the fluid, and reduced overall system efficiency. A 100 GPM flow rate ensures that even in systems with high-volume pumps or multiple concurrent hydraulic operations, the coupler does not become a bottleneck, allowing the system to operate at its peak designed performance. This makes the coupler ideal for large construction equipment, heavy agricultural machinery, industrial presses, and other applications where rapid and substantial fluid transfer is a prerequisite.
While specific pressure ratings and temperature ranges are not explicitly listed, the robust material composition and high flow capacity inherently suggest a design capable of operating under considerable hydraulic pressures and a typical range of industrial temperatures. Hydraulic systems often operate at pressures ranging from 2,000 PSI to over 5,000 PSI. The selection of solid brass for the coupler body and cast iron for the wings implies an intrinsic strength designed to withstand such demanding conditions. Furthermore, hydraulic fluids themselves have operational temperature ranges, typically from -40°F to 200°F (approx. -40°C to 93°C). The chosen materials maintain their structural integrity and sealing performance across these common industrial temperature fluctuations, ensuring consistent reliability without material degradation or excessive thermal expansion/contraction that could compromise the seal.
The applications for the 1-1/2 Inch Wing-Type Hydraulic Quick Coupler are extensive and varied, demonstrating its versatility and essential utility in numerous sectors. In the construction industry, these couplers are vital for excavators, bulldozers, loaders, and other heavy equipment where attachments (buckets, hammers, grapples) need to be rapidly swapped out to perform different tasks. The quick-connect feature minimizes equipment downtime, directly translating to increased productivity on job sites. Agricultural machinery, such as large tractors and their implements (plows, planters, sprayers), also heavily relies on these couplers for efficient connection of hydraulic lines to power various functions, often in challenging and dirty outdoor environments where the corrosion resistance of brass and the robustness of cast iron are invaluable. In industrial settings, they find use in material handling equipment, manufacturing machinery, and mobile hydraulic platforms, where the need for swift tool changes or circuit reconfigurations is common. The oil and gas sector also benefits, particularly in offshore or remote land-based operations where equipment durability and resistance to harsh elements are paramount.
Proper installation, operation, and maintenance are crucial for maximizing the lifespan and ensuring the safe performance of this hydraulic quick coupler assembly. During installation, it is imperative to use appropriate thread sealant or PTFE tape on the 1-1/2 inch NPT threads to ensure a leak-proof connection to the hydraulic lines. The components should be torqued to manufacturer specifications, avoiding both under-tightening (which can lead to leaks) and over-tightening (which can damage threads or distort components). Before connecting, both male and female mating surfaces should be inspected for cleanliness. Dirt, debris, or foreign particles can prevent a proper seal, cause premature wear, or contaminate the hydraulic fluid, leading to system failures. When connecting, the wing-type mechanism allows for a positive engagement with a simple twist; operators should ensure the wings are fully seated and locked, providing a visual and tactile confirmation of a secure connection. Disconnection should also be performed with care, ensuring that residual system pressure is relieved if possible to prevent sudden fluid release or difficulty in separation.
Routine maintenance involves periodic inspection of both the male and female coupler ends for signs of wear, corrosion, damage, or leaks. Worn or damaged components should be promptly replaced to prevent system failure. The brass and cast iron materials offer inherent resistance to many forms of degradation, but severe abrasive conditions or chemical exposure can still impact longevity. Cleaning the coupler surfaces regularly, especially after use in dirty environments, will prevent debris from entering the hydraulic system. Storing disconnected couplers with protective caps is also highly recommended to prevent contamination of the internal mechanisms and fluid passages. Adhering to these best practices for installation, operation, and maintenance will ensure that the 1-1/2 Inch Wing-Type Hydraulic Quick Coupler Male and Female Assembly continues to provide reliable, high-performance service throughout its operational life, safeguarding both equipment and personnel.
In summary, the Buyers Products 1-1/2 Inch Wing-Type Hydraulic Quick Coupler Male and Female Assembly stands as a testament to advanced engineering in fluid power connectivity. Its combination of solid brass construction for superior corrosion resistance and precise fluid handling, coupled with a robust cast iron wing section for mechanical strength and ease of operation, delivers an unparalleled solution for demanding hydraulic applications. The substantial 1-1/2 inch NPT thread size and impressive 100 GPM flow rate ensure optimal fluid transfer efficiency and minimal pressure drop, critical for high-performance systems. Designed for rapid, secure, and leak-free connections with a simple twist, this coupler significantly enhances operational efficiency, reduces downtime, and contributes to the overall safety and reliability of hydraulic machinery across diverse industries. It represents an intelligent investment in maintaining the peak performance and longevity of critical hydraulic infrastructure.
