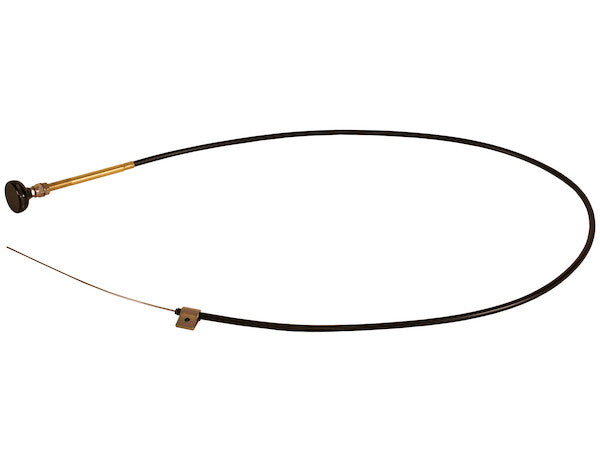

Buyers Products R38D Series Control Cable with 5 Inch Travel features a corrosion resistant stainless steel core to ensure long life. The cable has 5 in. of total travel with no neutral detent. The cable is available in lengths ranging from 6 ft to 30 ft to fit a variety of jobs, and can be easily customized by cutting conduit and core wire. It includes a small clamp to secure the output end for added stability, and a 2 in. control knob.
Specifications
| Total Travel (in.) | 5.00 " |
| Knob Material | Polymer |
| End Type | Plain |
| Bulkhead Thread Size | - " |
| Cable Core Material | Stainless Steel |
| Conduit Diameter | 0.375 " |
| Knob Thread Size | 3/8-24 " |
| Conduit Material | PVC |
| Cable Dia (in.) | 0.088 " |
| Rod End Thread Size | - " |
| Mount Thread Size (in.) | 1/2-20 " |
| Cable Series | R38D Series |
| Cable Length (ft.) | 15.00 ' |
The Buyers Products R38D Series Control Cable, specifically the 15-foot variant, represents a robust and highly adaptable solution for mechanical control applications demanding precision, durability, and operational reliability. This detailed technical description will delve into the material science, design principles, functional mechanics, and application versatility of this critical component. Engineered to withstand demanding operational environments, the R38D series cable is distinguished by its corrosion-resistant stainless steel core, a feature paramount to its extended service life and consistent performance across diverse industrial and commercial settings.
Material Science and Construction
At the heart of the R38D series cable's exceptional performance is its meticulously chosen material composition. The core wire, identified as "Stainless Steel Core Wire," is fabricated from high-grade stainless steel. This material is selected for its superior mechanical properties, including high tensile strength, excellent fatigue resistance, and, most importantly, outstanding corrosion resistance. Stainless steel derives its corrosion-resistant properties from the presence of chromium, which forms a passive, self-repairing oxide layer on the surface when exposed to oxygen. This passive layer acts as a barrier, preventing rust and other forms of oxidation, even in harsh environments such as those encountered in marine, agricultural, or industrial applications where exposure to moisture, chemicals, or abrasive substances is common. The precise grade of stainless steel (e.g., 302, 304, or 316) is typically chosen based on the specific balance of strength, ductility, and corrosion resistance required, ensuring optimal performance for its intended operational lifespan.
The conduit, which encapsulates and protects the stainless steel core wire, is constructed from Polyvinyl Chloride (PVC). PVC is a synthetic polymer renowned for its flexibility, chemical resistance, and excellent dielectric properties. In the context of control cables, PVC conduit serves multiple critical functions. Firstly, it provides mechanical protection to the delicate core wire, shielding it from physical abrasion, impact, and contaminants. Secondly, its inherent flexibility allows the cable to be routed through complex pathways without kinking or compromising the smooth operation of the core wire. The specified Conduit Diameter of 0.375 inches indicates a robust outer sheath capable of providing substantial protection while maintaining a manageable form factor for installation. The PVC material is also resistant to many common industrial chemicals, oils, and greases, further enhancing the cable's durability in challenging environments. The smooth inner surface of the PVC conduit minimizes friction during core wire travel, contributing to the cable's efficiency and responsiveness.
The synergy between the stainless steel core and the PVC conduit is a cornerstone of the R38D series design philosophy. This combination ensures not only longevity but also consistent, low-friction operation, which is vital for precise control applications. The overall Cable Dia (in.) of 0.088 inches for the core wire points to a carefully engineered balance between flexibility and rigidity, allowing for efficient transmission of mechanical force over the 15-foot length.
Operational Mechanics and Performance Characteristics
The R38D Series Control Cable is designed for direct mechanical actuation, offering a Total Travel of 5.00 inches. This specific travel distance is critical for applications requiring a distinct range of motion, such as throttle control, valve actuation, or remote engagement/disengagement mechanisms. The absence of a "neutral detent" is a significant design characteristic. A detent typically provides a tactile "click" or resistance at specific points along the travel path, indicating a predefined position. The lack of a detent in this R38D series cable implies a smooth, continuous, and infinitely adjustable control action across its entire 5-inch travel range. This feature is particularly advantageous in applications where precise, variable positioning is required, rather than discrete, pre-set positions. Operators can modulate the output end with fine granularity, making it suitable for proportional control systems or applications demanding nuanced adjustments.
The control mechanism is facilitated by a 2-inch Polymer control knob. Polymer materials are chosen for their ergonomic properties, resistance to environmental degradation (such as UV radiation or chemical exposure), and typically lower thermal conductivity compared to metal, making them comfortable to operate in varying temperatures. The Knob Thread Size of 3/8-24 inches indicates a standard, robust connection to the cable assembly, ensuring secure attachment and reliable force transmission from the operator's input to the cable core. The "Plain" End Type at the output suggests a versatile termination that can be adapted to various linkages, levers, or clevises using the included small clamp or other custom fittings, allowing for maximum flexibility in integrating the cable into existing or new mechanical systems.
The ability to customize the cable by "cutting conduit and core wire" is a critical feature that significantly enhances its adaptability. While this particular product is a 15-foot unit, the series offers lengths from 6 ft to 30 ft. However, the field customizability means that if an application requires an exact length not precisely met by standard offerings, the cable can be trimmed. This reduces waste, simplifies inventory management for end-users, and ensures a perfect fit, minimizing slack and optimizing response. Proper cutting techniques, involving specialized tools for both the PVC conduit and the stainless steel wire, are essential to maintain the integrity of the cable and ensure smooth operation without fraying or burrs that could impede travel.
The inclusion of a "small clamp to secure the output end for added stability" underscores the practical considerations in its design. This clamp is crucial for preventing unwanted movement or disengagement of the cable's working end, especially in dynamic environments where vibrations or external forces could otherwise compromise control integrity. Secure anchoring of the output end ensures that the transmitted force is accurately converted into motion at the target mechanism, enhancing system reliability and safety.
Installation and Integration
The installation of the R38D Series Control Cable is designed to be straightforward yet robust. The Mount Thread Size (in.) of 1/2-20 inches specifies the dimensions for securing the cable assembly to a panel, bulkhead, or mounting bracket. This standard thread size allows for easy integration into various equipment designs, using common fastening hardware. The robust threading ensures a secure, vibration-resistant mount, which is essential for maintaining precise control and preventing operational drift over time. The plain end type at the output side provides flexibility for connecting to various actuation points. Common methods include attaching to a pivot, a lever arm, or a bellcrank, often using a clevis pin or a custom bracket secured by the included clamp. The lack of a specific "Rod End Thread Size" or "Bulkhead Thread Size" for the output side reinforces the customizability aspect, enabling users to implement their preferred termination solution.
Applications and Versatility
The 15-foot Buyers Products R38D Series Control Cable is highly versatile and finds application across a broad spectrum of industries and equipment types. Its robust construction and precise control capabilities make it ideal for:
- Heavy Equipment: In construction machinery, agricultural equipment, and utility vehicles, these cables are commonly used for throttle control, PTO (Power Take-Off) engagement, hydraulic valve actuation, and remote shifter controls. The stainless steel core's corrosion resistance is particularly beneficial in outdoor, harsh environments.
- Marine Applications: Boats and marine vessels often utilize such cables for engine throttle and gear shift controls. The stainless steel core is imperative in resisting saltwater corrosion, ensuring reliable operation in demanding marine conditions.
- Truck and Trailer Industry: For municipal trucks, refuse vehicles, tow trucks, and other commercial vehicles, these cables can control various auxiliary functions, such as dump body mechanisms, spreader controls, or remote latch releases.
- Material Handling: In forklifts, conveyor systems, and other material handling equipment, they can be employed for directional control, braking mechanisms, or emergency shut-offs.
- Custom Machinery and Robotics: Due to their adaptability and customizability, these cables are often integrated into custom-built machinery, prototyping projects, and robotic systems where precise mechanical linkages are required over a distance.
- Off-Road and Recreational Vehicles: ATVs, UTVs, and other recreational vehicles can benefit from these cables for throttle, choke, or transmission controls, offering durable performance in challenging terrains.
The availability in various lengths (6 ft to 30 ft), with the 15 ft model offering a significant reach, further enhances its utility, allowing engineers and designers to select the optimal length for minimal signal loss and maximum responsiveness across different machine configurations.
Technical Advantages and Benefits
- Corrosion Resistance: The stainless steel core ensures exceptional longevity and reliability, significantly reducing maintenance and replacement costs, especially in corrosive or high-moisture environments.
- Durability: The combination of a robust stainless steel core and protective PVC conduit provides superior resistance to mechanical wear, abrasion, and environmental degradation, ensuring consistent performance over an extended operational life.
- Precise Control: With 5 inches of continuous travel and no neutral detent, the cable allows for fine, nuanced adjustments, making it suitable for applications requiring proportional or variable control.
- Customizability: The ability to cut the conduit and core wire to specific lengths on-site offers unparalleled flexibility during installation and adaptation to unique application requirements, minimizing waste and ensuring optimal fit.
- Ease of Installation: Standard mounting thread sizes and a plain output end, coupled with the included clamp, simplify integration into diverse mechanical systems.
- Ergonomic Operation: The polymer control knob is designed for comfortable and reliable user interaction, enhancing operational efficiency and safety.
- Reduced Friction: The smooth internal surface of the PVC conduit, combined with the inherent properties of the stainless steel core, ensures low-friction operation, translating to responsive and effortless control.
Conclusion
The 15-foot Buyers Products R38D Series Control Cable with its stainless steel core exemplifies engineering excellence in mechanical control solutions. Its meticulous design, encompassing high-quality materials such as corrosion-resistant stainless steel for the core and durable PVC for the conduit, ensures superior performance characteristics including exceptional longevity, precise control, and robust durability. The thoughtful incorporation of features like 5 inches of smooth, detent-free travel, a comfortable polymer control knob, and crucial field customizability, positions this cable as an invaluable component for a wide array of demanding industrial, marine, and vehicular applications. By providing a reliable, responsive, and highly adaptable linkage between operator input and mechanical output, the R38D series cable significantly contributes to the efficiency, safety, and operational integrity of the systems it serves, making it a professional-grade choice for engineers and technicians seeking uncompromising quality and performance.
