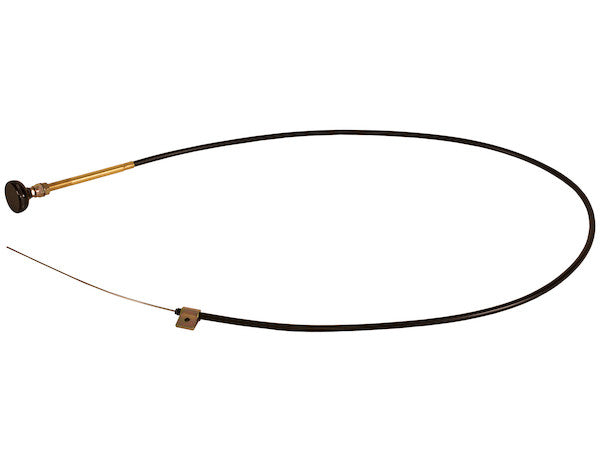

R38D6X25 - 25 Foot Stainless Steel Core Wire

Buyers Products R38D Series Control Cable with 5 Inch Travel features a corrosion resistant stainless steel core to ensure long life. The cable has 5 in. of total travel with no neutral detent. The cable is available in lengths ranging from 6 ft to 30 ft to fit a variety of jobs, and can be easily customized by cutting conduit and core wire. It includes a small clamp to secure the output end for added stability, and a 2 in. control knob.

Specifications

Buyers Products R38D Series 25 Foot Stainless Steel Core Control Cable: Precision Engineering for Demanding Applications

The Buyers Products R38D Series Control Cable, specifically the 25-foot variant, represents a pinnacle of mechanical control cable design, engineered for robust performance and enduring reliability in a diverse range of industrial, automotive, and heavy equipment applications. This detailed exposition will delve into the technical specifications, material science, operational principles, and practical advantages of this exceptional control cable, emphasizing its suitability for environments requiring precise actuation and high resistance to environmental degradation.

Core Engineering and Material Science: Stainless Steel Superiority

At the heart of the R38D Series cable's longevity and operational integrity is its 0.088-inch diameter stainless steel core wire. Stainless steel, particularly the grades typically employed in such applications (often 302/304 or 316 for enhanced corrosion resistance), offers a superior combination of mechanical properties. Its high tensile strength ensures the cable can transmit significant forces without permanent deformation or breakage, crucial for reliable control in strenuous conditions. More critically, stainless steel's inherent corrosion resistance is paramount. Unlike carbon steel, stainless steel forms a passive chromium oxide layer on its surface when exposed to oxygen, which self-repairs if scratched, providing excellent protection against rust, oxidation, and corrosive agents. This characteristic makes the R38D Series ideal for outdoor use, marine environments, agricultural machinery, and vehicles exposed to road salt, chemicals, or high humidity, significantly extending its service life and reducing maintenance requirements.

The precision drawn nature of the stainless steel core wire is also a critical factor. A smooth, uniform surface finish minimizes internal friction as the core moves within its conduit, contributing to the cable's smooth operation and reducing wear on both the core and the conduit lining. The specific wire construction, whether solid or stranded (though typically stranded for flexibility), is engineered to balance tensile strength with flexibility. For control cables requiring movement and bending, a stranded configuration is almost always preferred, as it allows the cable to flex repeatedly without fatiguing, a common failure mode for solid wires under dynamic stress.

Conduit System: Protection and Performance

Encasing the stainless steel core is a robust conduit system, specifically designed for protection and efficient force transmission. The 0.375-inch diameter conduit is constructed from Polyvinyl Chloride (PVC), a material selected for its excellent balance of flexibility, abrasion resistance, and chemical stability. PVC provides a durable outer jacket that shields the internal components from physical damage, moisture, dirt, and many common industrial chemicals and solvents. Its inherent flexibility allows the cable to be routed around obstacles and through complex pathways without kinking, which could impede the core wire's movement. Furthermore, PVC offers good UV resistance, preventing material degradation and embrittlement when exposed to sunlight over prolonged periods, a crucial factor for external applications.

The interior of the conduit, though not explicitly detailed, typically features a low-friction liner (often made from high-density polyethylene, nylon, or a proprietary polymer blend) to facilitate the smooth gliding of the stainless steel core wire. This liner is critical in minimizing friction, which directly impacts the force required to operate the cable and the precision of the transmitted motion. Reduced friction translates to a smoother, more responsive control feel for the operator and less wear on the core and conduit, prolonging the cable's operational life. The integration of this low-friction liner with the robust PVC outer jacket creates a system optimized for both durability and performance.

Operational Mechanics: 5-Inch Total Travel with No Neutral Detent

The R38D Series cable is designed to provide 5 inches of total travel for the core wire. This 5-inch displacement is a critical specification, determining the range of motion or actuation distance achievable at the output end. Depending on the application, this travel can be directly translated into linear movement, rotational displacement (via levers or linkages), or the engagement/disengagement of a mechanism. The absence of a "neutral detent" is a significant design choice. A detent is a mechanism that holds the cable in a specific position, often a central or "off" state, requiring a deliberate force to move past it. By omitting the detent, the R38D Series cable offers smooth, continuous, and unhindered movement throughout its entire 5-inch range. This makes it ideal for applications requiring proportional control or smooth adjustments where a fixed "neutral" position is not desired or would be cumbersome. Examples include throttle control, valve actuation where precise flow regulation is needed, or continuous position adjustments on machinery.

Customization and Installation Flexibility

A key advantage of the R38D Series, and particularly relevant for the 25-foot length, is its inherent customization capability. The ability to easily customize the cable by "cutting conduit and core wire" allows installers to precisely tailor the cable length to specific application requirements on-site. This eliminates the need for stocking multiple bespoke lengths and simplifies inventory management. Proper cutting tools and techniques are essential to maintain the integrity of the conduit and prevent fraying of the core wire, ensuring optimal performance after customization. This flexibility is invaluable in diverse installation scenarios where exact cable runs may vary.

The installation process is further facilitated by the inclusion of a "small clamp to secure the output end for added stability" and a 2-inch control knob. The clamp is crucial for fixed installations, preventing unwanted movement of the cable conduit relative to the mounting point and ensuring that all transmitted force is directed to the actuation mechanism. This enhances the precision and reliability of the control system. The 2-inch polymer control knob, with its 3/8-24 thread size, provides an ergonomic interface for the operator. Polymer construction offers good tactile feel, resistance to common environmental factors, and is typically lightweight and durable. The specified thread size ensures compatibility with standard mounting hardware and allows for secure attachment to the cable core.

Detailed Specifications and Their Implications

• Cable Length (ft.): 25.00' - This specific length positions the cable for applications requiring longer runs, such as remote engine controls, extensive hydraulic system linkages on large equipment, or situations where the control panel is significantly distanced from the actuated mechanism. The 25-foot length balances long-distance capability with manageable routing.
• Conduit Diameter: 0.375" - The conduit's outer diameter influences its routing flexibility and the size of mounting holes required. A 0.375-inch diameter is robust enough for industrial use while remaining sufficiently flexible for installation.
• Conduit Material: PVC - As discussed, PVC provides excellent protection, flexibility, and environmental resistance.
• Cable Dia (in.): 0.088" - The core wire's diameter is crucial for its tensile strength and stiffness. At 0.088 inches, the stainless steel core offers significant strength for transmitting control forces effectively.
• Cable Core Material: Stainless Steel - The primary material for corrosion resistance and durability.
• Mount Thread Size (in.): 1/2-20" - This specification refers to the threaded portion of the cable assembly used to secure the conduit to a panel or bulkhead. The 1/2-20 thread is a common, robust size, ensuring a secure and stable mounting point that can withstand operational stresses.
• Knob Material: Polymer - Provides a durable, comfortable, and environmentally resistant interface for the operator.
• Knob Thread Size: 3/8-24" - Specifies the thread for attaching the control knob to the core wire, ensuring a secure connection.
• End Type: Plain - A "Plain" end type signifies that the cable core wire is supplied without pre-attached fittings (like threaded studs or eyes) on the output end. This design choice directly supports the "customizable by cutting" feature, allowing the installer to attach specific end fittings tailored to the application after cutting the cable to length. This offers maximum versatility for various linkage designs.
• Cable Series: R38D Series - Identifies the specific product line, indicating adherence to a particular set of design standards and performance characteristics by Buyers Products.
• Total Travel (in.): 5.00" - The maximum linear displacement of the core wire, critical for determining the actuation range.
• Bulkhead Thread Size & Rod End Thread Size: "-" - The hyphen indicates that these specific features are not applicable or not pre-fitted as standard on this particular configuration, again supporting the customizable "plain end" design.

Applications and Operational Environments

The R38D Series 25-foot stainless steel core control cable is exceptionally well-suited for applications demanding robust, reliable, and corrosion-resistant mechanical control. Its versatility makes it indispensable across numerous sectors:

• Heavy Equipment and Construction: Ideal for throttle controls, choke cables, PTO (Power Take-Off) engagement, and auxiliary hydraulic valve actuation on excavators, bulldozers, loaders, and other construction machinery where exposure to dirt, moisture, and vibration is constant.
• Agricultural Machinery: Suitable for tractor controls, implement adjustments, and sprayer boom actuation, withstanding fertilizers, pesticides, and harsh outdoor conditions.
• Trucks and Commercial Vehicles: Used for remote throttle controls, engine kill switches, heating/ventilation controls, and auxiliary equipment engagement in refuse trucks, utility vehicles, and municipal fleets. Its corrosion resistance is particularly beneficial against road salt.
• Marine Applications: Though not explicitly marine-grade certified, the stainless steel core and PVC conduit offer significant advantages for boat engine controls, steering linkages (for auxiliary motors), and deck equipment actuation, where saltwater exposure is a primary concern.
• Industrial Machinery: For precise control of gates, dampers, valves, and various mechanical linkages in manufacturing plants, processing facilities, and material handling systems.
• Specialty Vehicles: Adapted for custom vehicle builds, emergency vehicles, and off-road applications requiring durable and reliable control mechanisms.

Advantages of the R38D Series 25-Foot Cable

• Exceptional Corrosion Resistance: The stainless steel core ensures longevity in the most challenging environmental conditions, reducing premature failure due to rust and chemical degradation.
• Smooth, Reliable Operation: The combination of a low-friction conduit and a precisely engineered core wire ensures consistent, responsive control with minimal effort.
• Durability: Robust PVC conduit protects against physical damage, abrasion, and environmental factors, extending the cable's service life.
• Customization Flexibility: The ability to cut the conduit and core wire on-site, coupled with a plain end, allows for exact fitment and adaptation to unique application requirements, minimizing waste and simplifying installation.
• No Neutral Detent: Facilitates proportional control and smooth, continuous adjustments, ideal for applications requiring fine-tuned actuation.
• Comprehensive Design: Includes essential components like a control knob and securing clamp, providing a complete solution for mechanical control.
• Trusted Manufacturer: Buyers Products is known for producing high-quality components for commercial and industrial markets, ensuring product reliability and support.

Conclusion

The Buyers Products R38D Series 25 Foot Stainless Steel Core Control Cable is a meticulously engineered component designed for the rigorous demands of industrial and heavy-duty applications. Its foundation in superior material science, particularly the corrosion-resistant stainless steel core and durable PVC conduit, coupled with thoughtful design features such as 5 inches of smooth, detent-free travel and inherent customizability, positions it as an indispensable solution for precise mechanical control. Whether used in construction, agriculture, commercial transport, or industrial automation, this cable delivers consistent performance, extended service life, and significant operational advantages, making it a professional's choice for reliable actuation in challenging environments.
