R38D6X30 - 30 Foot Stainless Steel Core Wire

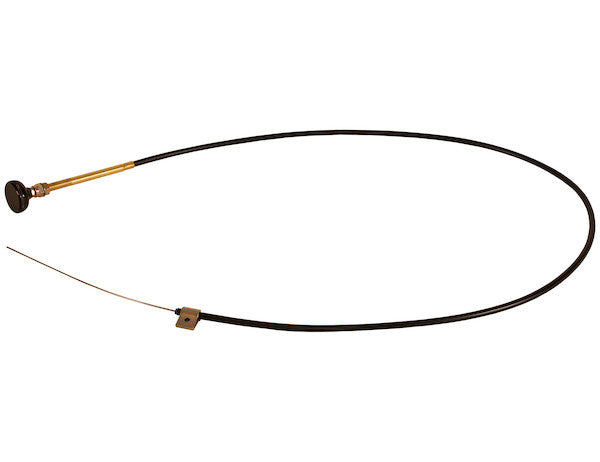

Buyers Products R38D Series Control Cable with 5 Inch Travel features a corrosion resistant stainless steel core to ensure long life. The cable has 5 in. of total travel with no neutral detent. The cable is available in lengths ranging from 6 ft to 30 ft to fit a variety of jobs, and can be easily customized by cutting conduit and core wire. It includes a small clamp to secure the output end for added stability, and a 2 in. control knob.

Specifications

Buyers Products R38D Series 30 Foot Stainless Steel Core Control Cable: Precision Engineering for Demanding Applications

The Buyers Products R38D Series Control Cable, specifically the 30-foot variant with its robust stainless steel core, represents a pinnacle of design and engineering for mechanical control applications. This comprehensive description delves into the technical specifications, material science, operational principles, and application suitability of this critical component, emphasizing its professional utility and long-term reliability in diverse industrial and commercial environments.

Material Science and Corrosion Resistance: The Stainless Steel Advantage

At the heart of the R38D Series cable's durability and performance is its stainless steel core. Stainless steel, an alloy primarily composed of iron, chromium, and often nickel, molybdenum, and other elements, is renowned for its exceptional corrosion resistance. The minimum 10.5% chromium content in stainless steel forms a passive, self-repairing oxide layer on its surface when exposed to oxygen. This chromium oxide layer acts as a barrier, preventing further oxidation and protecting the underlying metal from rust and various forms of chemical degradation. For a control cable, this is paramount, as it ensures the integrity of the core wire even in harsh environments characterized by moisture, road salts, chemicals, and extreme temperatures.

The specific grade of stainless steel utilized for the core wire, while not explicitly stated, is engineered to provide an optimal balance of strength, flexibility, and corrosion resistance. Common grades like 302, 304, or 316 are often employed in such applications. Grade 304, for instance, offers good formability and excellent corrosion resistance, making it suitable for general-purpose applications. Grade 316, with its molybdenum content, provides enhanced resistance to pitting and crevice corrosion, particularly in chloride-rich environments like marine or coastal settings. The selection of stainless steel directly contributes to the "long life" promised by the product description, reducing maintenance requirements and total cost of ownership over the cable's operational lifespan.

Conduit System and Environmental Protection

The stainless steel core wire is encased within a PVC (Polyvinyl Chloride) conduit. PVC is a thermoplastic polymer widely recognized for its robust physical properties and chemical inertness. Its key attributes that make it an ideal material for cable conduits include:

• Durability: PVC is inherently tough and resistant to abrasion, impact, and tearing, protecting the internal core wire from mechanical damage during installation and operation.
• Chemical Resistance: It exhibits excellent resistance to a wide range of chemicals, including acids, alkalis, oils, and greases, which are often encountered in automotive, industrial, and agricultural settings.
• Weather Resistance: PVC is largely unaffected by UV radiation (when properly formulated), moisture, and temperature fluctuations, ensuring consistent performance across varying climatic conditions.
• Flexibility: While providing structural integrity, the PVC conduit maintains sufficient flexibility (Conduit Diameter: 0.375 inches) to allow for routing around obstacles, facilitating easier installation in complex machinery layouts.

The combination of a stainless steel core and a PVC conduit creates a highly durable and environmentally resilient control cable system. This dual-layer protection strategy ensures that the functional integrity of the cable is maintained even when subjected to challenging operational stresses and environmental exposures.

Precision Control and Operational Dynamics: 5-Inch Total Travel with No Neutral Detent

The R38D Series cable is designed for precise, direct-action control, characterized by its "5 in. of total travel with no neutral detent." This specification is crucial for applications requiring continuous, variable adjustment rather than indexed positions. A detent-free mechanism offers several advantages:

• Fine Adjustment: Operators can achieve very granular control over the actuated mechanism, making it ideal for tasks that demand nuanced positioning or speed regulation.
• Smooth Operation: The absence of a detent ensures a fluid and uninterrupted movement across the entire 5-inch stroke, minimizing jerkiness or resistance that could interfere with precise control.
• Versatility: Without a fixed neutral position, the cable can be configured to control devices that require full stroke movement from one extreme to the other, or any intermediate position, without an inherent 'rest' point. This versatility expands its application range considerably.

The 5-inch total travel is a significant stroke length for a mechanical control cable, enabling a wide range of motion for the controlled component. This is particularly beneficial for applications like throttle control, PTO engagement, valve actuation, or remote choke control where substantial linear displacement is required.

Customization and Installation Flexibility

A key practical feature highlighted is the cable's customizability: "can be easily customized by cutting conduit and core wire." This attribute is invaluable for installers and equipment manufacturers, as it allows for on-site length adjustments to perfectly match specific application requirements. While the product is available in standard lengths up to 30 ft, the ability to fine-tune the length prevents excess slack, which can lead to inefficient operation or potential snagging, and reduces the need to stock multiple, precise cable lengths. Proper tools and techniques are essential for cutting to ensure a clean, burr-free cut that does not compromise the conduit's integrity or the core wire's smooth travel.

The "small clamp to secure the output end for added stability" is a thoughtful inclusion that further simplifies installation and enhances operational reliability. This clamp ensures that the output end of the cable, where the core wire exits the conduit to connect to the controlled mechanism, remains securely anchored. This prevents unintended movement of the conduit relative to the core wire, ensuring that all input motion is accurately translated into output motion, and reduces stress on the connection point.

Ergonomics and User Interface: The 2-Inch Control Knob

The inclusion of a "2 in. control knob" directly interfaces with the operator, underscoring the product's completeness as a control system. The knob, specified as "Polymer" material, offers:

• Ergonomics: A 2-inch diameter provides a comfortable grip, allowing for effortless manipulation and precise control, even when wearing gloves.
• Durability: Polymer materials are selected for their resistance to wear, impact, and chemical degradation, ensuring the knob maintains its aesthetic and functional integrity over time.
• Thermal Insulation: Unlike metal, polymer knobs remain comfortable to the touch in extreme hot or cold environments, enhancing operator comfort and safety.

The "Knob Thread Size" of 3/8-24" specifies the threading standard for attaching the knob to the cable's input shaft. This is a common and robust thread size, ensuring a secure and stable connection, resistant to vibration and repeated use.

Detailed Technical Specifications and Their Implications

The provided table of specifications offers critical engineering data:

• Knob Thread Size: 3/8-24": As noted, this is a standard coarse thread, indicating a strong mechanical connection.
• Knob Material: Polymer: Confirms the ergonomic and durable nature of the operator interface.
• Bulkhead Thread Size: -": Indicates that this particular cable configuration does not include a threaded bulkhead for panel mounting. The mounting mechanism is likely integrated into the cable assembly or relies on other fastening methods. This informs installers about the necessary mounting considerations.
• Conduit Material: PVC: Reinforces the protective and durable properties of the outer casing.
• Conduit Diameter: 0.375": This external diameter is compact yet robust, allowing for flexible routing while providing adequate protection for the internal core.
• Mount Thread Size (in.): 1/2-20": This refers to the thread size for mounting the cable assembly itself to a panel or bracket. A 1/2-20 thread is a fine thread, offering a strong, vibration-resistant connection suitable for applications where secure mounting is critical.
• Cable Series: R38D Series: Identifies the specific product line, crucial for replacement parts and compatibility.
• Cable Dia (in.): 0.088": This is the diameter of the stainless steel core wire. A relatively small diameter core wire, combined with the correct strand count and lay, contributes to the cable's flexibility and smooth operation within the conduit. This dimension is vital for calculating tensile strength and bend radius limits.
• Cable Core Material: Stainless Steel: Confirms the superior corrosion resistance and durability.
• Cable Length (ft.): 30': This is the product's distinguishing feature and denotes the maximum available length in this series, accommodating applications requiring significant reach.
• Total Travel (in.): 5.0": Reconfirms the linear displacement capability, emphasizing precision and range of motion.
• End Type: Plain: The "Plain" end type for the core wire indicates a raw, un-terminated end. This design choice further enhances the customization aspect, allowing users to attach specific fittings (e.g., clevises, ball joints, threaded rods) that precisely match the requirements of the actuated mechanism. This flexibility is a significant advantage for specialized or bespoke installations.
• Rod End Thread Size: -": Corroborates the "Plain" end type, indicating no pre-threaded rod end is provided, leaving termination options entirely open to the installer.

Applications and Use Cases

The 30 Foot Stainless Steel Core Wire, specifically the Buyers Products R38D Series Control Cable, is engineered for a broad spectrum of demanding applications where reliable, long-distance mechanical control is paramount. Its robust construction and precise operation make it ideal for:

• Heavy-Duty Commercial Vehicles: Actuating throttles, chokes, PTO (Power Take-Off) systems, dump bed controls, and auxiliary equipment on trucks, buses, and municipal vehicles (e.g., snowplows, refuse trucks). The 30-foot length is particularly useful for routing controls from the cab to remote engine compartments or rear-mounted equipment.
• Construction Equipment: Operating various levers and valves on excavators, loaders, bulldozers, and cranes, especially for remote or auxiliary functions where electrical controls might be impractical or susceptible to damage.
• Agricultural Machinery: Controlling implements, throttle settings, or hydraulic valves on tractors, combines, and other farm equipment, often in dusty, muddy, and corrosive environments.
• Marine Applications: Though not explicitly stated as marine-grade, the stainless steel core offers significant corrosion resistance suitable for boat throttles, steering (in some cases), or auxiliary equipment controls where exposure to saltwater spray is common.
• Industrial Machinery: Actuating safety gates, conveyors, or process valves in manufacturing plants, warehouses, and other industrial settings where robust mechanical linkage is preferred.
• Utility Vehicles: For specialized utility vehicles used in maintenance, landscaping, or emergency services, controlling auxiliary systems and equipment.

The 30-foot length is a critical factor, enabling operators to control mechanisms located a considerable distance from the control panel. This extended reach minimizes the need for complex intermediate linkages, reducing potential points of failure and simplifying overall system design.

Maintenance and Longevity

While designed for long life, proper installation and periodic inspection contribute significantly to the cable's extended operational longevity. Ensuring the conduit has appropriate bend radii, avoiding sharp angles that could induce excessive friction or stress on the core wire, is crucial. The customizability feature, allowing precise length adjustments, helps in preventing unnecessary loops or tight bends. Regular checks for any signs of wear on the PVC conduit, proper seating of the output clamp, and smooth operation of the control knob will help preempt potential issues and ensure consistent, reliable performance over many years of service.

Conclusion

The Buyers Products R38D Series 30 Foot Stainless Steel Core Control Cable is a meticulously engineered component that delivers reliable, precise, and durable mechanical control over extended distances. Its foundation lies in the strategic selection of materials: a corrosion-resistant stainless steel core encapsulated within a resilient PVC conduit. This combination, coupled with a 5-inch detent-free travel, robust mounting options, and user-friendly polymer control knob, positions it as an essential solution for demanding applications across commercial, industrial, and agricultural sectors. The ability to customize length on-site further enhances its adaptability, making it a versatile and cost-effective choice for professionals seeking uncompromised performance and longevity in their mechanical control systems.
