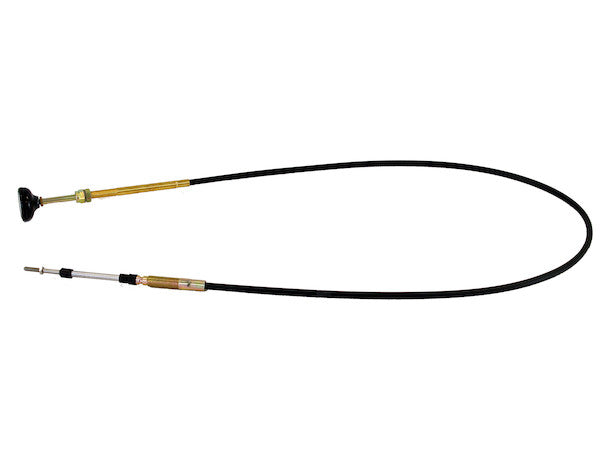

R38DR3X12 - 12 Foot Stainless Steel Core Wire with Rod End Control

R38DR Series Control Cable with 3 Inch Travel and Rod End Control from Buyers Products is designed for heavier applications. The cable is built to last with a rust-resistant stainless steel core, and long lay construction. Replaceable control knob included. Order nuts and washers separately. For bulkhead applications order the BNW015 Control Cable Nut and Washer Kit.

Specifications

The R38DR Series Control Cable, a meticulously engineered solution from Buyers Products, represents a pinnacle in mechanical control system design, specifically tailored for the most demanding and heavy-duty applications across a spectrum of industries. This 12-foot variant, featuring a robust stainless steel core wire and a precision rod end control, offers unparalleled reliability, durability, and operational accuracy. Developed with an acute understanding of the challenges faced in commercial vehicle operations, industrial machinery, and other rigorous environments, this control cable system is more than just a component; it is a critical interface designed to withstand harsh conditions while maintaining smooth and consistent functionality.

At the heart of this control cable's superior performance is its construction, beginning with the stainless steel core wire. Stainless steel, specifically chosen for its exceptional material properties, provides a multifaceted advantage over conventional materials. Its inherent corrosion resistance is paramount, especially in environments exposed to moisture, road salts, chemicals, or marine conditions, where traditional galvanized or carbon steel cables would quickly succumb to degradation. This resistance is due to a passive chromium oxide layer that forms on the surface, actively protecting the underlying metal from oxidation. This attribute ensures the longevity of the cable's structural integrity and maintains low-friction operation over extended periods, significantly reducing the likelihood of seizing or stiffening which can compromise system responsiveness and operator safety. Furthermore, stainless steel offers a high tensile strength and excellent fatigue resistance. This combination is crucial for applications involving repetitive push-pull forces, where the cable core undergoes continuous tensioning and compression cycles. The ability to endure millions of such cycles without material fatigue translates directly into an extended service life and reduced maintenance downtime, offering a compelling return on investment for fleet operators and industrial clients.

The core wire’s mechanical properties are further enhanced by its “long lay construction.” This specific manufacturing technique refers to the way individual strands of wire are twisted together to form the cable. In a long lay configuration, the length of the twist, or lay, is significantly longer compared to a regular lay. This design imparts several key benefits. Firstly, it provides superior flexibility, allowing the cable to navigate complex routing paths within machinery or vehicle chassis without experiencing undue stress or kinking. This flexibility is essential for smooth articulation and minimizing frictional losses. Secondly, long lay construction contributes to a more compact and stable cable structure, which reduces the tendency for the cable to birdcage or unravel under load, thereby increasing its overall durability and resistance to wear. The precise cable diameter of 0.088 inches (approximately 2.24 mm) is meticulously calibrated to strike an optimal balance between strength and flexibility. A larger diameter would offer increased ultimate tensile strength but at the cost of reduced flexibility, potentially making routing difficult and increasing the required actuation force. Conversely, a smaller diameter, while more flexible, might compromise the cable’s load-bearing capacity and resistance to stretching under operational loads. The selected diameter ensures that the cable can effectively transmit the necessary forces over its 12-foot length while maintaining the requisite flexibility for a 3-inch total travel.

Encasing and protecting this high-performance core is a robust PVC conduit. The conduit, with an outer diameter of 0.375 inches (approximately 9.53 mm), serves multiple critical functions. Primarily, it acts as a protective sheath, shielding the stainless steel core from external contaminants such as dirt, dust, moisture, and corrosive agents, which could otherwise accelerate wear and degrade performance. The PVC material itself is chosen for its excellent chemical resistance, flexibility, and insulation properties. It can withstand a wide range of operating temperatures and resist common industrial fluids, oils, and greases, contributing to the cable's reliability in diverse and often harsh operating environments. Beyond protection, the conduit plays a pivotal role in ensuring smooth, low-friction operation. The inner lining of the conduit is engineered to provide a low coefficient of friction against the moving stainless steel core. This design minimizes the effort required to actuate the control, providing the operator with a responsive and tactile feel. Proper conduit routing is paramount for maintaining this low-friction characteristic; avoiding tight bends or sharp angles in the conduit prevents increased frictional forces and potential binding, thereby preserving the 3-inch total travel and the cable's overall efficiency.

The control cable's interface with the actuated mechanism is facilitated by its robust rod end control. This end type is a sophisticated mechanical linkage, widely recognized in engineering for its ability to transmit linear motion with high precision and to accommodate angular misalignment between connected components. Often referred to as a spherical bearing or Heim joint, a rod end consists of a spherical inner ring with a bore, housed within an outer casing that has a threaded shank. The 1/4-28 inch rod end thread size ensures a secure and precise connection to the controlled mechanism, offering a high degree of adjustability and a strong, positive mechanical link. The primary advantages of using a rod end are its exceptional load-bearing capacity and its ability to compensate for minor shifts or misalignments in the application’s geometry. Unlike simpler clevis or fork ends, a rod end allows for multidirectional articulation, which is vital in heavy-duty applications where perfect linear alignment between the cable and the actuator cannot always be guaranteed or maintained due to chassis flex, component vibration, or thermal expansion. This design prevents binding and premature wear at the connection point, ensuring a consistent and reliable transmission of force over the cable's 3-inch travel range. The robust construction of the rod end, often from high-strength steels, is engineered to withstand significant compressive and tensile loads inherent in heavy-duty control systems, providing a resilient and long-lasting mechanical interface.

Operator interaction with the system is managed through a thoughtfully designed control knob. The included control knob is constructed from a durable polymer, chosen for its ergonomic properties, resistance to common environmental factors, and its tactile feedback. Polymer materials offer good chemical resistance against oils, fuels, and cleaning agents commonly encountered in industrial and automotive settings, ensuring the knob retains its integrity and appearance over time. Its design prioritizes ease of grip and comfortable operation, crucial for reducing operator fatigue during prolonged use. A key feature of this R38DR Series cable is its replaceable control knob. This design choice underscores a commitment to maintainability and longevity. Should the knob become worn, damaged, or if a different ergonomic profile is desired, it can be easily replaced without needing to replace the entire cable assembly. The knob thread size of 3/8-24 inches provides a standard, secure attachment point, allowing for firm engagement while permitting straightforward removal and reinstallation. This modularity not only extends the product's useful life but also offers flexibility for customization or upgrades, catering to specific operational requirements or aesthetic preferences.

The R38DR Series control cable is engineered with a total travel of 3.00 inches (approximately 76.2 mm), a specification critical for a wide array of heavy-duty applications. This specific travel length is optimized for precise control over mechanisms requiring a moderate but definite range of motion. For instance, in throttle control systems, this travel allows for nuanced adjustments from idle to full acceleration. In PTO (Power Take-Off) engagement, it provides sufficient displacement for full engagement or disengagement of auxiliary equipment. Similarly, in valve actuation or transmission shifting, the 3-inch travel ensures complete and positive operation of the controlled device. The accuracy and consistency of this travel are paramount for the safe and efficient operation of the machinery. The cable’s design, with its low-friction conduit and robust core, ensures that nearly all of the operator's input motion is translated into effective linear displacement at the rod end, minimizing lost motion or backlash. This mechanical efficiency is fundamental to achieving responsive and predictable control, which is a hallmark of high-quality control cables.

Installation and securement of the control cable are crucial aspects of its overall performance and reliability. Buyers Products has designed this cable with versatile mounting options, including provisions for bulkhead applications. The bulkhead thread size of 5/8-18 inches allows for secure mounting through panels or chassis components, creating a stable and rigid anchor point for the cable conduit. This type of mounting prevents the cable from shifting or vibrating during operation, which could otherwise lead to premature wear or inconsistent performance. For specific attachment points, the mount thread size of 1/2-20 inches provides additional flexibility in securing the cable assembly to various structures within the equipment. It is important to note that nuts and washers are ordered separately, emphasizing the modular approach to installation, allowing users to select appropriate hardware for their specific application. For convenient and secure bulkhead mounting, Buyers Products offers the BNW015 Control Cable Nut and Washer Kit, which provides the necessary components to ensure a professional and durable installation. Proper torquing of these fastening elements is essential to prevent loosening under vibration and to maintain the integrity of the connection over time.

The R38DR Series control cable is explicitly designed for "heavier applications," a classification that encompasses environments demanding exceptional resilience, high force transmission, and continuous operation. Such applications typically involve commercial transportation (e.g., heavy-duty trucks, refuse vehicles, utility vehicles), construction equipment (e.g., excavators, loaders, dozers), agricultural machinery (e.g., tractors, harvesters), and various industrial equipment. In these contexts, control cables are frequently subjected to severe mechanical stresses, exposure to extreme temperatures, dirt, grime, and vibrations. The engineering choices made for this cable – the stainless steel core, long lay construction, PVC conduit, and robust rod end – collectively address these demanding conditions. Specific functions might include managing engine RPMs (throttle control), regulating fuel-air mixtures (choke control), engaging or disengaging auxiliary systems like plows, salt spreaders, or hydraulic pumps (PTO control), operating manual transmission shifters, or actuating critical valves within hydraulic or pneumatic systems. The cable's 12-foot length offers considerable flexibility in routing, accommodating longer distances between the operator interface and the actuated mechanism, a common requirement in larger vehicles and complex machinery.

In summary, the 12 Foot Stainless Steel Core Wire with Rod End Control from Buyers Products' R38DR Series is a meticulously engineered mechanical control solution that stands out for its exceptional durability, reliability, and precision in heavy-duty applications. Its rust-resistant stainless steel core with long lay construction provides unparalleled strength and flexibility, ensuring smooth operation and an extended service life even in the most challenging environments. The protective PVC conduit shields the core from contaminants and minimizes friction, while the robust rod end control offers a positive, high-capacity mechanical connection capable of accommodating angular misalignment. With a precise 3-inch travel and a user-friendly, replaceable polymer control knob, this cable system delivers consistent and responsive actuation. The thoughtful design extends to versatile mounting options, including specialized bulkhead configurations, underscoring its adaptability and ease of integration into diverse machinery. This control cable is not merely a component; it is a vital system element engineered to enhance operational efficiency, reduce downtime, and provide reliable control where it matters most, making it the preferred choice for professionals who demand the highest standards of performance and longevity from their equipment.
