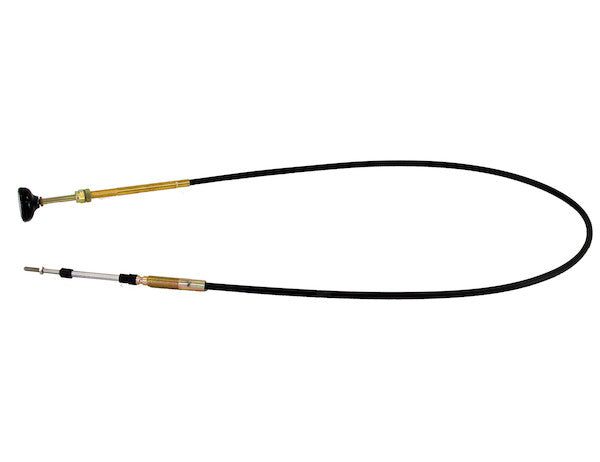

R38DR3X15 - 15 Foot Stainless Steel Core Wire with Rod End Control

R38DR Series Control Cable with 3 Inch Travel and Rod End Control from Buyers Products is designed for heavier applications. The cable is built to last with a rust-resistant stainless steel core, and long lay construction. Replaceable control knob included. Order nuts and washers separately. For bulkhead applications order the BNW015 Control Cable Nut and Washer Kit.

Specifications

Precision Engineering for Demanding Environments: The R38DR Series 15-Foot Stainless Steel Core Control Cable with Rod End Control

The R38DR Series Control Cable, a paramount offering from Buyers Products, represents a pinnacle in mechanical control system engineering, specifically designed to address the rigorous demands of heavy-duty applications. This 15-foot cable, featuring a robust stainless steel core and a sophisticated rod end control mechanism, is meticulously crafted to deliver unparalleled reliability, precision, and longevity in environments where lesser components would falter. Its design philosophy centers on maximizing operational efficiency and minimizing downtime across a broad spectrum of industrial, automotive, and marine contexts. The integration of advanced materials and manufacturing techniques ensures that this control cable not only meets but often exceeds the performance expectations for critical control linkages.

Unrivaled Durability: The Stainless Steel Core and Long Lay Construction

At the heart of the R38DR Series Control Cable's exceptional performance lies its rust-resistant stainless steel core. This critical component is selected for its superior material properties, which are indispensable in heavy-duty applications. Stainless steel, primarily known for its chromium content (typically 10.5% or more), forms a passive oxide layer that inherently resists corrosion, pitting, and crevice corrosion, even when exposed to harsh environmental elements such as moisture, road salt, chemicals, and industrial contaminants. This intrinsic corrosion resistance ensures that the core wire maintains its structural integrity and smooth operational characteristics over an extended service life, significantly reducing the risk of friction build-up, binding, or catastrophic failure due to material degradation.

Beyond its chemical resilience, the mechanical properties of stainless steel contribute profoundly to the cable's overall durability. It exhibits high tensile strength and excellent fatigue resistance, allowing the core wire to withstand repetitive push-pull cycles and dynamic loads without succumbing to deformation or fracture. The precise cable diameter of 0.088 inches for the core wire is optimized to balance strength with flexibility, facilitating smooth movement within the conduit while ensuring sufficient rigidity for accurate force transmission. This meticulous material selection and dimensioning are crucial for sustaining precise control inputs in applications ranging from throttle actuation to PTO engagement.

Complementing the superior material choice is the cable’s "long lay construction." This specific method of cable fabrication involves spiraling the individual strands of wire in the same direction over a relatively long pitch length. In contrast to regular lay or short lay constructions, long lay cables offer several distinct advantages critical for control cable applications. Firstly, long lay cables typically exhibit greater flexibility, which is beneficial for routing through complex pathways common in heavy equipment, minimizing the risk of kinking or excessive bending stresses that could prematurely wear the cable or conduit. Secondly, the longer pitch length results in a smoother exterior surface, which reduces friction against the inner wall of the conduit, leading to lower operating forces and extended cable life. Thirdly, long lay construction tends to distribute stress more evenly among the wire strands, enhancing the cable's overall fatigue resistance and load-bearing capacity. This design choice is a deliberate engineering decision to optimize the cable for sustained, high-cycle operations, providing a reliable and responsive control link that operators can depend on.

Optimized Actuation: 3-Inch Total Travel and Rod End Control

The R38DR Series Control Cable is engineered with a total travel of 3 inches, a specific displacement designed to accommodate a wide range of actuation requirements in heavy-duty machinery. This precise travel length is ideal for applications requiring distinct and measurable mechanical action, such as engaging or disengaging power take-offs (PTOs), precisely modulating engine throttles, operating hydraulic valves, adjusting damper settings, or controlling various auxiliary functions. The 3-inch travel ensures sufficient range for full engagement or disengagement of components, while simultaneously maintaining the sensitivity required for fine adjustments, offering operators granular control over critical system functions.

Further enhancing the cable's actuation capabilities is the sophisticated rod end control mechanism, featuring a 1/4-28 inch thread size for secure attachment. A rod end, also known as a spherical plain bearing, is a specialized mechanical articulating joint typically comprised of an outer housing and an inner spherical ball, allowing for angular misalignment between the connected components. This design is paramount in heavy-duty environments where perfect axial alignment is often impractical or subject to dynamic shifts. The rod end's ability to accommodate angular movement prevents binding and excessive stress on the cable assembly and the actuated component, thereby extending the lifespan of the entire system and ensuring consistently smooth operation. Its robust construction is inherently resistant to vibration and shock loads, common occurrences in mobile equipment, making it an ideal choice for maintaining positive control in challenging operational scenarios. The standardized 1/4-28 inch thread size ensures broad compatibility with a variety of linkage components and simplifies integration into existing systems or custom fabrications.

Protective Conduit System: PVC and Optimal Dimensions

The integrity and performance of the stainless steel core wire are meticulously preserved by its robust conduit system, featuring a PVC (Polyvinyl Chloride) conduit material with a precisely engineered diameter of 0.375 inches. PVC is chosen for a multitude of technical advantages crucial for industrial-grade control cables. Its inherent flexibility allows for easier routing and installation around bends and obstacles without compromising the internal core's movement, while its durability provides excellent protection against external abrasion, impact, and cuts. Furthermore, PVC exhibits exceptional resistance to a wide array of chemicals, oils, greases, and common automotive fluids, which are frequently encountered in heavy-duty applications, preventing degradation of the conduit material and subsequent exposure of the core.

The material also possesses excellent weatherability, including resistance to UV radiation and a broad operational temperature range, ensuring stable performance in diverse climatic conditions without becoming brittle in cold or softening excessively in heat. The smooth interior surface of the PVC conduit, coupled with the long lay construction of the core, minimizes the coefficient of friction, resulting in effortless push-pull operation and reduced operator fatigue. This low-friction characteristic also contributes to the longevity of the cable by preventing premature wear on both the core and the conduit. The 0.375-inch conduit diameter provides an optimal balance between protective robustness and installation flexibility, ensuring the core wire is adequately shielded without creating an overly rigid or bulky assembly. This comprehensive conduit design is critical for maintaining precise control and extending the service life of the cable assembly in aggressive operating environments.

Secure and Versatile Mounting: Bulkhead and Mount Thread Sizes

The R38DR Series Control Cable is engineered for secure and versatile integration into a variety of equipment architectures, facilitating straightforward installation and reliable long-term performance. The cable features a bulkhead thread size of 5/8-18 inches, a common industrial standard that ensures robust attachment to control panels, dashboards, or chassis bulkheads. This substantial thread size provides a strong, stable mounting point, minimizing any potential play or movement of the cable assembly during operation, which is critical for maintaining the precision of control inputs. A securely mounted cable prevents stress concentrations at the point of entry and exit, safeguarding both the cable and the bulkhead from wear and tear induced by vibration or operational forces.

In addition to the primary bulkhead mounting, the cable also incorporates a mount thread size of 1/2-20 inches, which typically pertains to the mounting of the control mechanism itself, or potentially an intermediate support point. This additional mounting capability further enhances the stability and versatility of the installation, allowing for secure fastening in complex setups. The precise threading and durable construction of these mounting points are designed to withstand the torque applied during installation and the dynamic forces encountered during the cable's operational life, ensuring a consistently firm and reliable connection. For optimal installation and to prevent common issues such as loose connections or premature wear, it is imperative to use appropriate nuts and washers. While these essential components are ordered separately, Buyers Products offers the BNW015 Control Cable Nut and Washer Kit specifically for bulkhead applications. Utilizing this dedicated kit ensures that the correct grade and size of hardware are employed, facilitating a proper, secure, and long-lasting installation that adheres to best practices for mechanical control systems.

Ergonomic and Reliable Operator Interface: The Replaceable Polymer Knob

The operator interface for the R38DR Series Control Cable is meticulously designed to offer both ergonomic comfort and long-term reliability. The cable includes a replaceable control knob crafted from a high-quality polymer material, featuring a 3/8-24 inch thread size for secure attachment. The choice of polymer for the knob material provides several significant advantages. Polymers are inherently durable, resistant to impact, abrasion, and a wide range of chemicals and environmental factors, ensuring that the knob maintains its aesthetic and functional integrity even in harsh industrial or outdoor settings. Unlike metal, polymer knobs offer a comfortable tactile experience, remaining thermally stable across varying temperatures – they won't get excessively hot in direct sunlight or uncomfortably cold in freezing conditions, enhancing operator comfort during prolonged use.

Furthermore, the polymer's non-conductive properties add an extra layer of safety, particularly in environments where electrical components are present. The replaceable nature of the knob is a critical feature, allowing for easy maintenance, customization, or replacement in the event of wear or damage without requiring the replacement of the entire cable assembly. This modularity contributes to the product's overall cost-effectiveness and reduces downtime. The 3/8-24 inch thread size is a standard dimension, ensuring a secure and positive connection to the cable's internal mechanism, preventing loosening or slippage during operation. The ergonomic design of the knob provides a comfortable grip and precise feel, enabling operators to execute control commands with confidence and minimal fatigue, directly contributing to operational safety and efficiency.

Broadening the Scope: Applications and Industry Suitability

The inherent robustness and precision engineering of the R38DR Series Control Cable make it an indispensable component across a vast array of "heavier applications" within various demanding industries. Its design is particularly well-suited for environments characterized by high vibration, extreme temperatures, persistent moisture, corrosive agents, and heavy mechanical cycling. Key applications include, but are not limited to:

• Heavy-Duty Commercial Vehicles: Essential for critical functions in dump trucks, refuse vehicles, fire apparatus, and utility trucks, controlling aspects such as power take-offs (PTOs) for auxiliary equipment, throttle adjustments, various valve actuations, and specialized equipment linkages. The 15-foot length provides the necessary reach for routing from cab controls to remote chassis-mounted components.
• Construction and Agricultural Equipment: Integral to the precise operation of excavators, loaders, dozers, tractors, and other off-highway machinery. This cable can manage throttle controls, implement engagement, hydraulic valve activation, and other critical linkages where reliable, precise, and durable control is paramount.
• Marine Applications: The stainless steel core and PVC conduit offer exceptional resistance to saltwater corrosion and harsh marine environments, making it ideal for boat throttle controls, shift linkages, steering mechanisms (where applicable), and other auxiliary marine equipment.
• Industrial Machinery: Utilized in manufacturing plants for process control, engaging clutches, disengaging brakes, operating dampers in HVAC systems, or controlling various material handling equipment where remote, robust mechanical actuation is required.
• Specialized & Off-Highway Vehicles: From forestry equipment to mining vehicles, the R38DR series provides the reliable control necessary for specialized functions in extreme conditions.

In each of these sectors, the R38DR cable's resistance to environmental degradation, its ability to transmit force efficiently over 15 feet, and its reliable rod end articulation translate into enhanced operational safety, reduced maintenance intervals, and improved overall system performance. The thoughtful selection of materials and construction methods ensures that this cable maintains its functional integrity and responsiveness throughout its demanding service life.

Installation Best Practices and Long-Term Value

Achieving the maximum operational lifespan and performance from the 15 Foot Stainless Steel Core Wire with Rod End Control necessitates adherence to established installation best practices. Proper routing is paramount; installers should always strive to maintain the largest possible bend radius to minimize friction and prevent kinking or undue stress on the cable core and conduit. Sharp bends can significantly increase operating effort and reduce the cable's fatigue life. Secure fastening of the cable at all designated mounting points, particularly the bulkhead and mount thread locations, using the appropriate torque values, is critical to prevent movement, abrasion, and premature wear. The separate ordering of nuts and washers, along with the availability of the BNW015 Control Cable Nut and Washer Kit, underscores the importance of using specified, high-quality mounting hardware to ensure a secure, vibration-resistant installation that withstands the rigors of heavy-duty operation.

From a maintenance perspective, the R38DR Series Control Cable is designed for minimal upkeep. The stainless steel core and PVC conduit inherently resist common forms of degradation, reducing the need for frequent lubrication or anti-corrosion treatments. Periodic inspection for signs of external damage to the conduit, secureness of mounting points, and smooth operation of the control knob and rod end linkage will ensure continued peak performance. The replaceable control knob further simplifies any component-level maintenance requirements.

Investing in the R38DR Series Control Cable from Buyers Products represents a strategic decision for businesses and operators who prioritize reliability, precision, and longevity in their mechanical control systems. Its robust construction, featuring a rust-resistant stainless steel core with long lay construction, a protective PVC conduit, a precise 3-inch travel, and a resilient rod end control, collectively ensures superior performance in the most challenging applications. This control cable is not merely a component; it is a critical enabler of efficient, safe, and dependable operation for heavy-duty vehicles and industrial machinery, ultimately delivering significant long-term value through reduced downtime and consistent, accurate control.
