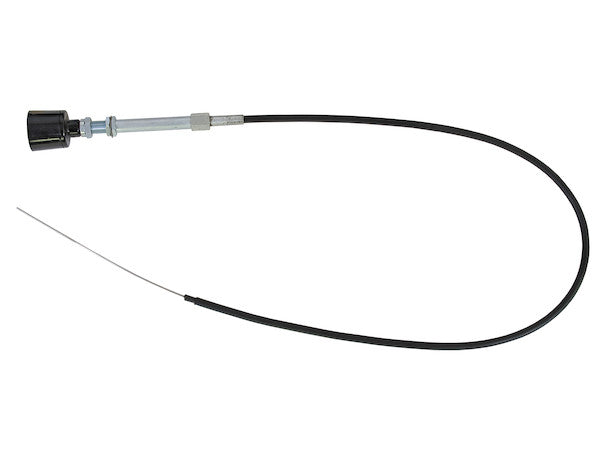

R38LL5X08 - 8 Foot Plain End Control Cable

The Plain End Mid-Latch Control Cable with 5 Inch Travel from Buyers Products provides smooth operation of hydraulic valves and forward-reverse PTOs on dump bodies and other heavy machinery. The cable has a 5 in. total travel and is designed to travel 2.5 in. from neutral in either direction. It features a large, easy-to-grab knob that allows gloved hands to activate and deactivate the cable. The mid-latch controls satisfy OSHA requirements for latching hoist controls for dump body applications. It has a strong .091 stainless steel core wire for stable operation and can be cut to fit your specific needs.

Specifications

The 8 Foot Plain End Control Cable, a key component within the R38L Series from Buyers Products, represents a robust and precisely engineered solution for demanding mechanical control applications. This control cable is specifically designed to facilitate the smooth and reliable operation of critical hydraulic valves and forward-reverse power take-offs (PTOs) commonly found in heavy-duty machinery such as dump bodies, snowplows, salt spreaders, and other vocational trucks. Its technical specifications and design features underscore its suitability for environments where operational precision, durability, and safety compliance are paramount.

At its core, the functionality of this control cable hinges on its plain end design combined with a sophisticated mid-latch mechanism. The term "plain end" signifies a versatile termination that allows for custom attachment solutions on the output side, enabling integration with a wide array of existing mechanical linkages or specialized fittings tailored to specific equipment requirements. This adaptability is a significant advantage for system designers and maintenance professionals, providing the flexibility to achieve optimal connection points and precise actuation for diverse hydraulic systems.

The total travel of the cable is meticulously engineered to provide 5 inches of linear displacement. This travel is symmetrically distributed, allowing for 2.5 inches of movement from a neutral position in either direction. Such precise bidirectional travel is critical for applications like operating hydraulic valves, where an exact degree of opening or closing is necessary for fluid flow control, or for engaging/disengaging PTOs with specific forward and reverse functionalities. The consistent and repeatable nature of this travel ensures reliable engagement and disengagement of connected mechanisms, thereby optimizing machine performance and operator control.

One of the distinguishing features of the R38L Series control cable is its ergonomic and highly functional operator interface. The cable is equipped with a large, easily grippable knob crafted from durable polymer. The substantial size and material choice for the knob are not merely aesthetic; they are deliberately engineered to facilitate effortless activation and deactivation, even when operators are wearing heavy-duty work gloves. This attention to user interface design minimizes operator fatigue and enhances safety by ensuring a firm and secure grip, particularly in adverse weather conditions or high-stress operational scenarios.

Crucially, the mid-latch control mechanism incorporated into this cable system addresses critical safety standards, particularly those mandated by OSHA (Occupational Safety and Health Administration) for latching hoist controls in dump body applications. A mid-latch system provides a positive mechanical lock in the neutral position, preventing inadvertent activation or deactivation of the connected equipment. For dump bodies, this means that the hoist mechanism remains securely disengaged until deliberately activated, significantly reducing the risk of accidental bed deployment or retraction, which can lead to severe accidents or structural damage. Compliance with OSHA regulations not only ensures worker safety but also minimizes legal and operational liabilities for equipment owners.

The internal construction of the cable is a testament to its engineered resilience. A robust 0.091-inch diameter stainless steel core wire forms the backbone of the system. Stainless steel is chosen for its superior tensile strength, excellent corrosion resistance, and inherent durability, making it ideal for the demanding environments of heavy machinery. This high-strength core ensures stable operation, resists stretching and fatigue over extended periods of use, and maintains precise control even under significant operational loads. The integrity of the core wire is critical for transmitting force accurately and consistently from the operator interface to the remote mechanism, guaranteeing predictable performance throughout the cable's operational lifespan.

The overall cable assembly is protected by a high-quality PVC conduit, which offers several layers of protection. With a conduit diameter of 0.375 inches, the PVC sheathing safeguards the stainless steel core from external elements such as moisture, dirt, dust, and abrasive particles. PVC is selected for its flexibility, chemical resistance, and ability to withstand temperature variations, ensuring the smooth movement of the core wire within the conduit without binding or excessive friction. This protective layer is vital for maintaining the cable's operational integrity and extending its service life in harsh industrial and outdoor environments.

A significant advantage of the 8-foot plain end control cable is its "cut-to-fit" capability. While supplied at a nominal length of 8.00 feet, the plain end design allows for precise length adjustment in the field. This flexibility is invaluable for custom installations or for replacing existing cables where exact length requirements may vary. Field cutting and termination require appropriate tools and technical expertise to ensure a secure and reliable connection, but this feature significantly reduces inventory complexity for distributors and end-users, as a single cable SKU can be adapted to multiple application lengths.

Mounting the control cable is facilitated by a 5/8-18 inch mount thread size, a common standard in heavy-duty equipment applications. This thread size ensures compatibility with a wide range of mounting brackets and panels, providing a secure and stable installation point for the operator control unit. A robust mounting ensures that the control cable remains firmly in place during operation, preventing unwanted movement or stress on the cable assembly that could lead to premature wear or failure.

In summary, the 8 Foot Plain End Control Cable (R38L Series) from Buyers Products is a meticulously engineered component designed to meet the rigorous demands of heavy machinery applications. Its combination of a durable stainless steel core, protective PVC conduit, precise 5-inch bidirectional travel, ergonomic polymer knob, and critical mid-latch safety mechanism makes it an indispensable solution for controlling hydraulic valves and PTOs. The plain end design offers unparalleled adaptability for custom installations, while its compliance with OSHA requirements underscores its commitment to operational safety. This control cable embodies a confluence of technical excellence, user-centric design, and robust construction, providing reliable, consistent, and safe operation across a spectrum of challenging industrial environments.

Further technical consideration reveals the interplay of materials science and mechanical engineering principles in the design of this control cable. The choice of 0.091-inch diameter stainless steel for the cable core is deliberate. This specific diameter offers an optimal balance between flexibility for routing through complex machine architectures and rigidity necessary to transmit actuation forces without excessive stretch or compression. The grade of stainless steel typically employed in such applications, often 302 or 304, provides excellent resistance to corrosion from water, road salt, chemicals, and other environmental aggressors common in vocational truck operations. This inherent corrosion resistance is crucial for maintaining the long-term integrity and smooth operation of the cable, preventing internal friction increases due to rust formation that could lead to premature failure or stiff operation.

The PVC conduit, with its 0.375-inch diameter, is not merely a protective sleeve but an integral part of the cable's low-friction operation. The interior surface of the PVC conduit is typically engineered to be exceptionally smooth, minimizing the coefficient of friction between the cable core and the conduit wall. This low-friction interface is essential for ensuring that the operator experiences minimal resistance when moving the control knob, leading to a smooth, precise, and effortless feel. The flexibility of PVC also allows the cable to be routed with gentle bends, accommodating various installation requirements without imparting undue stress on the core wire or impeding its movement. Furthermore, PVC offers good dielectric properties, which can be beneficial in applications where there's a need for electrical isolation, though its primary role here is mechanical protection and friction reduction.

The 5-inch total travel, precisely distributed as 2.5 inches from neutral in either direction, is a critical specification for proportional control. This range of motion allows for fine-tuning of hydraulic valve positions, enabling operators to achieve variable flow rates or precise engagement levels for PTO-driven implements. For instance, in a snowplow application, a progressive engagement of the blade lift or angle mechanism requires such nuanced control, which is directly facilitated by the specified travel. The detent mechanism, identified as "Mid-Latch," provides tactile feedback to the operator, confirming that the cable is securely locked in the neutral position. This tactile assurance is a crucial safety feature, preventing accidental movement and ensuring the equipment remains in a safe, disengaged state until intentionally operated.

The mount thread size of 5/8-18 inches is a testament to the cable's industrial robustness. This coarse thread pitch is designed for secure fastening in high-vibration environments typical of heavy machinery. The selection of a common thread size simplifies installation and ensures compatibility with standard industrial fasteners and mounting solutions. The mechanical integrity of the mounting point is critical, as it is the interface between the operator control and the machine's chassis, transferring all actuation forces. A strong, stable mount prevents loosening over time, which could lead to play in the control system or even complete detachment.

The polymer material used for the knob is chosen for a combination of properties: durability, impact resistance, and chemical inertness. Polymers like nylon or acetal are common choices, offering excellent wear resistance and resistance to common industrial fluids such as oils, greases, and cleaning agents. The ergonomic design, specifically tailored for gloved hands, reflects an understanding of the practical working conditions faced by heavy equipment operators. A larger surface area and textured grip (though not explicitly stated, implied by "easy-to-grab") contribute to enhanced operational safety and comfort, particularly during extended shifts or in challenging weather conditions.

The "Plain End" classification indicates that the distal end of the cable core is supplied without a factory-attached terminal. This configuration offers maximum flexibility for specialized applications where a standard terminal might not be suitable. This might involve custom-fabricated clevises, ball joints, threaded rods, or other unique linkages designed to interface with specific hydraulic valve spools or PTO engagement levers. This "build-to-suit" characteristic requires technical proficiency during installation to ensure proper cable termination, which typically involves crimping, swaging, or threading, depending on the chosen end fitting. The ability to cut the cable to a precise length (8.00 ft. nominal) further enhances this customizability, minimizing excess cable length which can lead to inefficient routing, increased friction, and potential snagging.

The cable series designation, R38L Series, implies a family of control cables sharing common design philosophies and material specifications, with variations potentially in length, end fittings, or travel characteristics. This standardization within a series provides confidence in the product's quality and performance consistency across different configurations. The R38L Series is designed for reliable performance in critical applications where a high degree of control accuracy and operational safety are non-negotiable.

In conclusion, the 8 Foot Plain End Control Cable (R38L Series) from Buyers Products is more than just a simple mechanical linkage; it is a precisely engineered control system component. Its design meticulously balances material science, mechanical principles, and ergonomic considerations to deliver a product that is robust, reliable, and safe. From the corrosion-resistant stainless steel core and low-friction PVC conduit to the OSHA-compliant mid-latch mechanism and adaptable plain end, every aspect of this cable is optimized for the demanding operational environments of heavy machinery. Its technical specifications ensure high performance, extended service life, and adherence to critical safety standards, making it an exemplary choice for professionals seeking uncompromising control solutions for their hydraulic and PTO systems.
