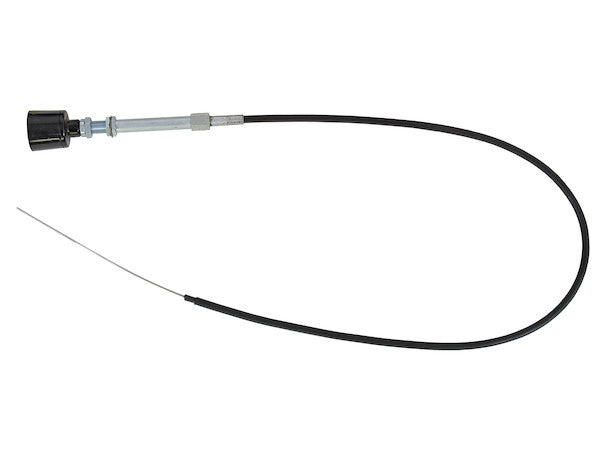

The Plain End Mid-Latch Control Cable with 5 Inch Travel from Buyers Products provides smooth operation of hydraulic valves and forward-reverse PTOs on dump bodies and other heavy machinery. The cable has a 5 in. total travel and is designed to travel 2.5 in. from neutral in either direction. It features a large, easy-to-grab knob that allows gloved hands to activate and deactivate the cable. The mid-latch controls satisfy OSHA requirements for latching hoist controls for dump body applications. It has a strong .091 stainless steel core wire for stable operation and can be cut to fit your specific needs.
Specifications
| Cable Length (ft.) | 15.00 ' |
| Conduit Diameter | 0.375 " |
| End Type | Plain |
| Total Travel (in.) | 5.00 " |
| Rod End Thread Size | - " |
| Bulkhead Thread Size | - " |
| Cable Series | R38L Series |
| Knob Material | Polymer |
| Mount Thread Size (in.) | 5/8-18 " |
| Detent Type | Mid-Latch |
| Conduit Material | PVC |
| Cable Dia (in.) | 0.091 " |
| Cable Core Material | Stainless Steel |
| Knob Thread Size | - " |
The Buyers Products 15 Foot Plain End Control Cable represents a robust and highly adaptable solution engineered for the precise and reliable actuation of critical hydraulic systems and power take-off (PTO) mechanisms in demanding heavy-duty applications. This advanced control cable is specifically designed to meet the rigorous operational and safety requirements prevalent in commercial vehicles, construction equipment, agricultural machinery, and various industrial settings where positive control and operator safety are paramount.
At its core, this control cable operates on a sophisticated push-pull mechanical principle, translating linear input from the operator interface (the control knob) into precise linear movement at the actuated end. This system is instrumental in modulating the flow within hydraulic valves—thereby controlling hydraulic cylinders, motors, and other actuators—or engaging/disengaging forward-reverse PTOs, which direct power from the vehicle's engine to auxiliary equipment. The inherent reliability of a mechanical cable system, particularly one constructed to industrial standards, offers immediate, predictable response without the complexities and potential latency associated with pneumatic or electronic control systems in certain environments.
A critical feature of this control cable is its precisely engineered 5-inch total travel, which translates to 2.5 inches of movement from the neutral position in either direction. This bi-directional capability is essential for applications requiring precise modulation, such as feathering hydraulic controls for nuanced movements or engaging distinct forward and reverse PTO functions. The specified travel length is carefully selected to ensure compatibility with a wide range of standard hydraulic valve spools and PTO engagement mechanisms, allowing for full engagement and disengagement without over-travel or insufficient actuation. The design prioritizes a linear and consistent force transmission across the entire travel range, minimizing hysteresis and ensuring that operator input is faithfully translated into output action.
The integrated control knob is meticulously designed for ergonomic efficiency and practical utility in challenging work environments. Fabricated from a high-durability polymer, the knob offers excellent resistance to abrasion, impact, and a broad spectrum of environmental contaminants including oils, greases, and common industrial solvents. Its generously proportioned design ensures a secure grip, even when operators are wearing heavy work gloves, which is a common necessity in cold, wet, or otherwise harsh operating conditions. This attention to tactile feedback and ease of manipulation significantly enhances operator comfort, reduces fatigue during prolonged operation, and minimizes the potential for accidental slippage or incorrect actuation.
A standout safety feature of this R38L Series control cable is its mid-latch detent mechanism. This innovative design provides a positive, tactile "latch" at the neutral or central position, preventing inadvertent movement of the control lever. This is particularly crucial for dump body hoist controls, where compliance with Occupational Safety and Health Administration (OSHA) requirements for latching mechanisms is mandated to prevent accidental engagement or disengagement of the hoist, thereby safeguarding operators and surrounding personnel. The mid-latch detent ensures that the operator must apply a deliberate, conscious force to move the control out of its latched position, significantly reducing the risk of unintended equipment activation due to vibration, bumps, or accidental contact. This mechanical lockout function is a testament to the product’s commitment to operational safety and regulatory compliance, directly mitigating hazards associated with unintended equipment movement.
The structural integrity and long-term performance of the control cable are underpinned by its robust construction materials. The core wire, with a precise diameter of 0.091 inches, is manufactured from high-grade stainless steel. Stainless steel is chosen for its superior properties, including exceptional tensile strength, excellent resistance to corrosion (especially critical in outdoor, marine, or corrosive industrial environments), and high fatigue resistance. These characteristics ensure that the cable maintains its mechanical properties over millions of cycles, resisting elongation, fraying, and brittle fracture. The precise diameter contributes to the cable’s rigidity, ensuring efficient push-pull force transmission with minimal compressive deformation or slack, leading to a highly responsive and stable control feel.
Encasing the stainless steel core is a protective conduit made from PVC (Polyvinyl Chloride). PVC is an ideal material for this application due to its combination of flexibility, chemical resistance, and excellent abrasion resistance. The 0.375-inch conduit diameter is engineered to provide an optimal clearance around the core wire, allowing for smooth, low-friction movement while preventing ingress of dirt, moisture, and other contaminants that could compromise cable operation. PVC's inherent flexibility allows for complex routing paths within vehicle chassis or machinery frames without impeding cable performance, while its environmental resistance ensures durability against UV exposure, temperature fluctuations, and various operational fluids. This multi-layered protection guarantees the longevity and consistent performance of the internal components, even in the most challenging operational scenarios.
The "Plain End" termination of this control cable offers unparalleled versatility for custom installations. Unlike cables with pre-fitted threaded rods or specific clevis ends, the plain end allows technicians to cut the cable to a precise length on-site and affix a custom termination fitting specific to the application's unique linkage requirements. This "cut-to-fit" capability streamlines inventory management for distributors and end-users, reducing the need for an extensive stock of pre-configured cable lengths. It also provides significant flexibility during installation, enabling field adjustments and bespoke solutions for non-standard equipment or customized setups. Proper termination of a plain end requires specialized tools and expertise to ensure secure, reliable attachment that withstands the dynamic forces of continuous operation.
The specific cable length of 15 feet provides ample reach for a wide variety of heavy machinery configurations, accommodating long routing paths from the operator's station to the remote hydraulic valve bank or PTO unit. This length is particularly beneficial in larger vehicles or complex machinery where the control panel is situated a considerable distance from the actuated component. The mounting mechanism for the control knob end features a 5/8-18 inch thread size, which is a common industry standard for bulkhead and panel mounting applications. This ensures compatibility with a broad range of control panels and mounting hardware, facilitating secure and stable installation that resists vibration and operational stress.
The R38L Series designation, while not fully detailed in the provided specifications, typically implies a family of control cables designed for robust, heavy-duty applications, often featuring enhanced sealing against environmental elements, optimized internal components for reduced friction, and superior overall construction for extended service life. Such series are engineered to meet or exceed specific performance criteria for force transmission, fatigue life, and environmental resilience, catering to demanding industrial and mobile equipment sectors.
In terms of application, beyond dump bodies, the 15 Foot Plain End Mid-Latch Control Cable is ideally suited for a diverse array of heavy machinery. This includes, but is not limited to: various types of construction equipment such as excavators, wheel loaders, and backhoes for controlling auxiliary functions like grapple rotation or bucket tilt; agricultural machinery for engaging implements or managing hydraulic functions on tractors, harvesters, and sprayers; utility vehicles like bucket trucks and service vehicles for operating cranes, winches, or other specialized tools; marine applications for throttle control or gear shifting in workboats; and material handling equipment for manipulating forklifts attachments or conveyor systems. Anywhere a robust, precise, and safety-conscious mechanical linkage is required to control hydraulic or mechanical power, this cable system provides an optimal solution.
Proper installation and routine maintenance are crucial for maximizing the longevity and performance of this control cable. Careful routing of the conduit is essential to avoid sharp bends, which can increase friction and wear on the internal core wire, leading to premature failure. The routing should also protect the cable from chafing against other components, excessive heat sources, or areas prone to crushing. While the internal components are designed for low friction, periodic inspection and, if applicable, lubrication of the cable core can further extend its service life and ensure continued smooth operation. The robust design, including the stainless steel core and PVC conduit, minimizes the need for extensive maintenance, but a proactive approach to operational checks ensures optimal system health.
In conclusion, the Buyers Products 15 Foot Plain End Mid-Latch Control Cable is a meticulously engineered component that delivers superior performance, reliability, and safety for critical control applications in heavy-duty environments. Its combination of a durable stainless steel core, protective PVC conduit, precise 5-inch travel, ergonomic polymer knob, and the indispensable mid-latch detent mechanism positions it as a premier choice for operators and fleet managers who prioritize precision control, operational safety, and long-term durability. The added flexibility of the plain end and cut-to-fit capability underscores its adaptability, making it an invaluable asset for a broad spectrum of industrial and mobile equipment requiring high-quality mechanical control systems. This cable is not merely a component; it is a vital link in the chain of safe and efficient heavy machinery operation, designed to withstand the rigors of continuous use and contribute significantly to overall system integrity and productivity.
