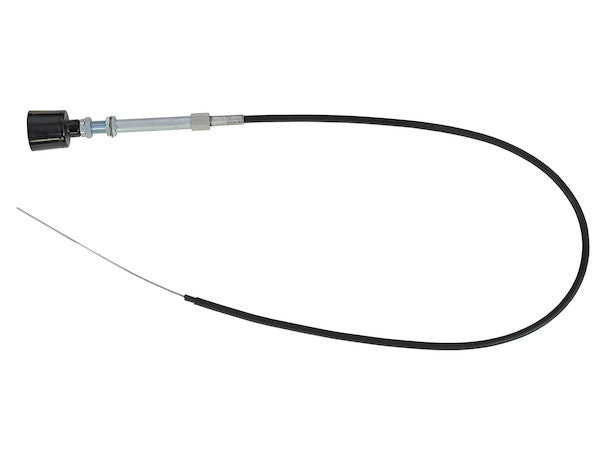

The Plain End Mid-Latch Control Cable with 5 Inch Travel from Buyers Products provides smooth operation of hydraulic valves and forward-reverse PTOs on dump bodies and other heavy machinery. The cable has a 5 in. total travel and is designed to travel 2.5 in. from neutral in either direction. It features a large, easy-to-grab knob that allows gloved hands to activate and deactivate the cable. The mid-latch controls satisfy OSHA requirements for latching hoist controls for dump body applications. It has a strong .091 stainless steel core wire for stable operation and can be cut to fit your specific needs.
Specifications
| Rod End Thread Size | - " |
| Cable Length (ft.) | 20.00 ' |
| Bulkhead Thread Size | - " |
| End Type | Plain |
| Conduit Diameter | 0.375 " |
| Detent Type | Mid-Latch |
| Knob Thread Size | - " |
| Cable Series | R38L Series |
| Conduit Material | PVC |
| Knob Material | Polymer |
| Mount Thread Size (in.) | 5/8-18 " |
| Cable Core Material | Stainless Steel |
| Total Travel (in.) | 5.00 " |
| Cable Dia (in.) | 0.091 " |
The 20 Foot Plain End Control Cable, part of the R38L Series from Buyers Products, is a critical component engineered for precise, reliable actuation of hydraulic systems and power take-off (PTO) mechanisms in heavy-duty applications. Designed to meet the rigorous demands of commercial trucking, construction, agriculture, and municipal service vehicles, it ensures operational efficiency and operator safety through its sophisticated mechanical design and adherence to stringent industry standards.
Advanced Mechanical Design and Core Functionality
At the heart of this control cable’s performance is its engineered push-pull mechanism. Unlike purely electrical or hydraulic control systems susceptible to electromagnetic interference or fluid contamination, mechanical control cables offer a direct, tactile, and inherently reliable method of transferring force and motion over distance. The primary function of this 20-foot control cable is to translate manual input from an operator’s hand, via the ergonomic knob, into precise linear movement at the remote end, engaging or disengaging a hydraulic valve or PTO unit. This direct mechanical linkage ensures minimal latency and predictable responsiveness, paramount for tasks requiring immediate and accurate control.
The core of the R38L Series cable features a robust 0.091-inch diameter stainless steel wire. Stainless steel for the core material is a deliberate engineering choice, driven by its superior properties. Typically grades such as 302 or 304, stainless steel offers excellent corrosion resistance, crucial for applications exposed to moisture, road salts, chemicals, and varying atmospheric conditions. This resistance significantly extends the operational lifespan of the cable, preventing premature degradation that could lead to increased friction, stiffness, or catastrophic failure. Furthermore, stainless steel exhibits high tensile strength and fatigue resistance, enabling the cable to withstand repetitive push-pull cycles and dynamic loads inherent in heavy machinery operation without stretching or breaking. Its 0.091-inch diameter balances flexibility, allowing optimal routing within vehicle chassis, with rigidity for efficient force transmission without buckling.
Conduit System and Environmental Protection
Encasing the stainless steel core is a high-performance conduit system, vital for both guiding the core wire and protecting it from the external environment. The cable utilizes a 0.375-inch PVC (Polyvinyl Chloride) conduit, selected for its advantageous blend of properties: abrasion resistance, flexibility, and broad operational temperature range. The PVC jacket protects the internal wire from physical damage, such as nicks and cuts, as well as from environmental ingress of dirt, dust, water, and corrosive agents. This protective barrier is critical in maintaining the smooth, low-friction operation of the cable over its entire service life. The flexibility of the PVC conduit also facilitates easier installation and routing through tight spaces, while its inherent strength resists kinking, which could otherwise impede the smooth travel of the core wire.
An internal low-friction polymer liner, such as PTFE, minimizes resistance between the stainless steel core and conduit wall. This interface significantly contributes to smooth operation, reducing operator effort and enhancing control precision. The 0.375-inch conduit diameter is carefully matched to the core wire, providing adequate clearance for unimpeded movement while minimizing internal space that could allow for excessive play or accumulation of contaminants.
Precision Control and Ergonomic Interface
The operational precision of this control cable is defined by its 5-inch total travel, which translates to 2.5 inches of movement from a central neutral position in either the push or pull direction. This specific travel distance is engineered to optimally interface with common hydraulic valve spools and PTO engagement mechanisms, which typically require a defined range of motion for full activation or deactivation. The ability to precisely control the extent of engagement is crucial for modulated control of hydraulic functions, allowing for fine-tuning of system performance rather than mere on/off operation.
An indispensable feature contributing to both safety and usability is the "Mid-Latch" detent type. This mechanical detent system ensures that once the cable is moved to a specific position – whether engaged or disengaged – it remains securely in that position without constant manual pressure. For applications like dump body hoist controls, this is not just a convenience but a critical safety feature. The mid-latch mechanism actively satisfies OSHA (Occupational Safety and Health Administration) requirements for latching hoist controls. These regulations mandate that control levers for hydraulic hoists, particularly those on dump trucks, must feature a mechanism that prevents unintentional disengagement or engagement due to vibration, accidental bumps, or operator fatigue. The mid-latch system provides a positive mechanical lock, ensuring that the dump bed stays raised or lowered as intended, mitigating the risk of inadvertent movement that could lead to serious injury or property damage.
The user interface is further enhanced by a large, easy-to-grab polymer knob. The polymer material is chosen for its durability, resistance to impact, and ability to withstand exposure to various environmental elements including UV radiation, oils, and common chemicals found in industrial settings. The generous size of the knob is an ergonomic consideration, specifically designed to be operated comfortably and effectively by gloved hands, a common necessity for operators of heavy machinery in all weather conditions. This attention to ergonomic detail reduces operator strain and improves the efficiency of repetitive tasks.
Versatility of the Plain End Design
A distinguishing characteristic of this particular control cable is its "Plain End" design. Unlike cables with pre-installed threaded rods, clevises, or other terminal fittings, the plain end offers unparalleled flexibility for custom applications. This design allows technicians and engineers to cut the 20-foot cable to the exact length required for a specific installation, eliminating excess slack that could interfere with other components or create undesirable resistance. Once cut, the plain end can be terminated with a variety of specialized fittings, selected based on the precise requirements of the application. Common termination methods include swaging various types of clevises, threaded studs, ball joints, or custom mounting brackets. This adaptability makes the R38L Series cable an ideal solution for OEM installations where unique routing paths and attachment points are common, as well as for aftermarket modifications and repairs where exact replacements are difficult to source or custom solutions are preferred. The absence of pre-threaded rod or bulkhead fittings also implies a design intended for integration into systems where the end-user specifies and installs the final connection hardware, providing maximum customizability.
Mounting and Installation Considerations
The cable features a robust 5/8-18 inch mount thread size, a standard dimension in industrial control applications. This threading ensures a secure and vibration-resistant attachment point for the cable conduit to a control panel or bulkhead. The fine pitch of the 18 threads per inch provides excellent grip and stability, crucial for maintaining the precise positioning of the cable and preventing loosening under constant vibration experienced in heavy equipment. Proper installation utilizing this threaded mount, typically with a jam nut, ensures that the cable conduit remains stationary relative to the operator control panel, allowing the inner core to travel freely and accurately.
When installing a plain end control cable, several best practices should be observed to ensure optimal performance and longevity. Firstly, careful planning of the cable route is essential. Excessive bends or sharp turns should be avoided to prevent kinking of the conduit and to minimize frictional resistance on the inner core wire, which can lead to premature wear and increased operating effort. The minimum bend radius specified by the manufacturer (if available, or general industry guidelines) should always be adhered to. Secondly, when cutting the cable to length, specialized cable cutters designed for steel wire should be used to achieve a clean, non-frayed cut on the stainless steel core. The PVC conduit should also be cut cleanly. After cutting, it is often advisable to seal the exposed ends of the conduit to prevent moisture and contaminants from entering the cable interior, especially if internal lubrication is present. Finally, proper termination of the plain end with appropriate fittings is critical. These fittings must be securely crimped or swaged to the stainless steel core, ensuring a strong and reliable mechanical connection that can withstand the operational loads without slippage or failure.
Applications in Heavy Machinery and Beyond
- Dump Bodies and Commercial Trucks: Essential for controlling dump body hoist mechanisms (OSHA compliant) and PTO engagement for auxiliary equipment like salt spreaders, plows, and refuse compactors.
- Construction Equipment: Engaging auxiliary hydraulic circuits, controlling various attachments, or for throttle control in harsh environments.
- Agricultural Machinery: Controlling implements, PTOs for powered attachments, and hydraulic functions like raise/lower mechanisms for plows or seeders.
- Utility Vehicles and Municipal Fleets: Operating booms, brushes, plow blades, and other specialized equipment on boom trucks, street sweepers, and snow removal vehicles.
- Marine Applications: Suitable for certain marine controls due to stainless steel core and PVC conduit's corrosion resistance in saltwater and humidity.
- Industrial and Manufacturing Equipment: Remote control of valves, gates, and various mechanical linkages in static industrial equipment where robust mechanical control is preferred.
Quality Assurance and Performance Standards
Buyers Products maintains a strong commitment to engineering excellence, evident in the R38L Series control cable. This dedication is reflected in the selection of premium materials and precise assembly processes. Every aspect, from the stainless steel core's tensile strength to the polymer knob's UV resistance and the PVC conduit's protective qualities, is chosen for maximum durability and performance under demanding conditions. Rigorous testing validates its operational lifespan, environmental resistance, and consistent travel.
The adherence to OSHA safety requirements for latching controls underscores the product's focus on operational safety. This is not merely a feature but a fundamental design principle that protects operators and bystanders from potential hazards associated with uncontrolled equipment movement. By providing a positive engagement mechanism, the cable contributes significantly to a safer work environment, reducing the risk of accidents caused by accidental disengagement or engagement of critical functions.
Longevity and Maintenance
While the R38L Series control cable is designed for minimal maintenance due to its sealed construction and durable materials, periodic inspection is always recommended, especially in high-cycle or extreme environment applications. Operators and maintenance personnel should routinely check for any signs of external damage to the PVC conduit, such as abrasions, cracks, or kinking, which could compromise the internal wire’s protection. The smooth operation of the knob and the travel of the cable should be verified; any increase in friction or stiffness could indicate internal wear or contamination. For plain end cables, the integrity of the end terminations should be inspected to ensure they remain securely fastened and free from signs of fatigue or corrosion. Adhering to a scheduled inspection regimen can preempt potential failures, extend the cable's already long service life, and maintain the high level of safety and operational efficiency inherent in its design.
Conclusion
The 20 Foot Plain End Control Cable from Buyers Products’ R38L Series stands as a testament to advanced mechanical engineering, combining robust material science with practical design principles. Its 0.091-inch stainless steel core, protective PVC conduit, ergonomic mid-latch polymer knob, and versatile plain end configuration collectively deliver a high-performance solution for demanding hydraulic and PTO control applications. From ensuring OSHA compliance in dump body operations to providing precise actuation in construction and agricultural machinery, this cable offers unparalleled reliability, durability, and safety. Its adaptability, ease of installation (with proper termination), and resistance to environmental stressors make it an optimal choice for professionals seeking a long-lasting and efficient control mechanism for their heavy equipment.
