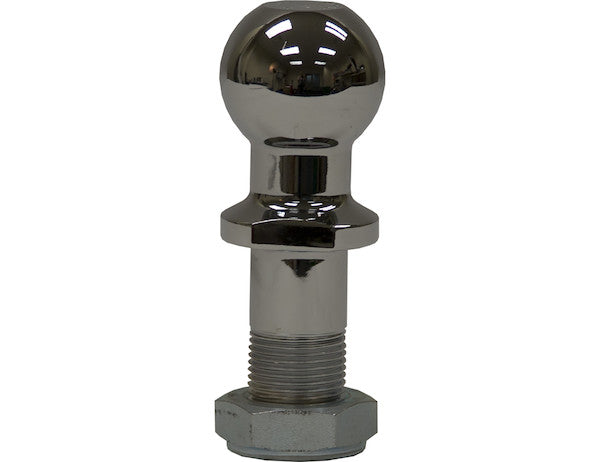

RB1780 - 1-7/8 Inch Replacement Ball With Nut For RM6 Series & BH8 Series

Buyers Products Replacement Tow Balls RM6 and BH8 Series Hitches have a chrome finish. Includes zinc-coated hex jam nylock nut (except RB50MM).

Specifications

Precision Engineering for Heavy-Duty Towing: The 1-7/8 Inch Replacement Ball for RM6 & BH8 Series Hitches

This comprehensive technical description elaborates on the 1-7/8 Inch Replacement Ball with Nut, specifically engineered for compatibility with Buyers Products RM6 Series and BH8 Series Hitches. Designed to meet the stringent demands of heavy-duty towing applications, this component exemplifies robust construction, material integrity, and precision manufacturing, ensuring optimal performance and safety within its specified operational parameters.

Critical Design and Material Specifications

Ball Diameter: 1-7/8 Inches (47.625 mm)

The 1-7/8 inch ball diameter is a critical industry standard, ensuring precise coupling with compatible receivers. Accurate dimensions prevent improper fitment, excessive wear, or disengagement under load. This size, balanced for compactness and high load capacity, guarantees uniform load distribution and minimizes stress concentrations. Consistency is ensured through rigorous manufacturing processes like forging and precision machining, vital for dimensional accuracy and surface finish, ensuring safe towing.

Maximum Gross Trailer Weight (M.G.T.W.): 12,000 lbs (5,443 kg)

The 12,000 lbs M.G.T.W. is a crucial safety parameter, validated through material analysis, FEA, and load testing. This rating signifies the ball’s capacity to withstand both static (tongue weight) and dynamic towing forces. Exceeding it risks structural integrity, potentially causing deformation, fracture, or catastrophic failure. This heavy-duty rating suits commercial utility, large cargo, industrial equipment, and agricultural trailers. Adherence to this M.G.T.W. is a mandatory safety requirement, aligning with industry standards like SAE J684 and national regulations.

Material: Carbon Steel

Carbon steel, typically medium to high-carbon alloy grades with optimized manganese content, is chosen for its superior tensile strength, yield strength, and toughness, crucial for components enduring significant dynamic and repetitive stresses. Material selection balances ductility with hardness for resistance to brittle fracture and surface wear. Hot forging refines the steel's grain structure, eliminating voids and enhancing strength and fatigue resistance, particularly at the ball-to-shank junction. Subsequent heat treatments, such as quenching and tempering, achieve the desired microstructure and mechanical properties, ensuring the tow ball withstands cyclic loading without fatigue or excessive deformation. This inherent strength directly supports the product's 12,000 lbs M.G.T.W. rating, providing a reliable and durable connection point.

Ball Finish: Chrome

Chrome plating creates a durable, impermeable barrier against corrosion from moisture and road salts, extending service life and preserving structural integrity. Typically applied in multiple electroplated layers (e.g., nickel then chromium), this system offers superior protection. The hard chrome surface also provides excellent wear resistance, reducing friction between the tow ball and coupler, minimizing wear on both components. Aesthetically, the bright finish presents a professional appearance, while the smooth surface aids cleaning and inspection, enhancing safe operation.

Shank Diameter: 1.115 Inches (28.321 mm)

The 1.115-inch shank diameter ensures a precise, secure fit within the ball mount bore. An undersized shank causes play, excessive nut stress, and fatigue cracking. Maintained within tight manufacturing tolerances, this diameter guarantees a robust connection. The critical ball-to-shank transition incorporates a generous fillet radius, effectively distributing forces to mitigate stress concentrations and prevent premature fatigue failure. This interface integrity is paramount for transferring vertical and horizontal towing forces.

Shank Length: 2.250 Inches (57.15 mm)

The 2.250-inch shank length accommodates typical heavy-duty hitch ball mount thickness, ensuring sufficient thread engagement. Adequate length allows the nut to be fully torqued, creating a secure, pre-tensioned joint resistant to vibration and dynamic forces. Insufficient length compromises connection strength due to inadequate thread engagement. This length is optimized for RM6 and BH8 series hitches, ensuring maximum thread engagement without spacers. Combined with the correct shank diameter, it provides a robust, reliable attachment for the 12,000 lbs M.G.T.W.

Advanced Fastening System: Zinc-Coated Hex Jam Nylock Nut

The inclusion of a zinc-coated hex jam Nylock nut is a significant feature enhancing the security and reliability of the tow ball installation. This specialized nut combines several engineering features to prevent loosening under the extreme conditions of heavy-duty towing.

Hex Jam Nut Design

The "hex jam nylock nut" is designed for secure, tight fastening. Its hexagonal shape facilitates easy installation and removal with standard wrenches, providing ample surface area for torque application. Precise threading ensures full engagement with the tow ball's shank, distributing clamping forces evenly and maximizing holding power.

Nylock (Nylon Insert) Feature

As the nut threads onto the shank, the internal threads engage the nylon insert, creating an interference fit. This exerts continuous radial compressive force on the bolt threads, providing frictional resistance that effectively prevents the nut from rotating loose, even under severe vibration, shock, and dynamic towing loads. Unlike single-use locking washers, the Nylock insert maintains locking capability across multiple cycles (though effectiveness may diminish), crucial for preventing catastrophic loosening.

Zinc Coating for Enhanced Protection

The zinc coating on the hex jam Nylock nut provides vital sacrificial corrosion protection. It acts as a barrier against moisture and road salt, preferentially corroding before the underlying steel if scratched, offering cathodic protection and extending service life. This resistance is crucial for exposed components, ensuring threads remain free from rust and seizing, facilitating proper torque application and easier removal.

Exception: RB50MM

The notation "(except RB50MM)" indicates that a specific model, likely a metric 50mm ball, may not include this specific type of nut or a zinc-coated one. This highlights the importance of matching components precisely to their intended application and specifications, as variations exist to accommodate different standards or product lines.

Compatibility and System Integration: RM6 Series & BH8 Series Hitches

This replacement tow ball is explicitly designed for seamless integration with Buyers Products RM6 Series and BH8 Series Hitches. This specificity underscores the importance of using manufacturer-approved components to maintain the integrity and rated capacity of the entire towing system. Buyers Products designs their hitch systems with specific dimensional tolerances, material strengths, and load distribution characteristics. Using a non-specified or incompatible tow ball could compromise these engineered properties.

• RM6 Series Hitches: These hitches are typically characterized by their robust construction, often employed in commercial and heavy-duty towing scenarios where reliability and high load capacity are paramount. The 1-7/8 inch ball with its 12,000 lbs M.G.T.W. aligns perfectly with the operational envelope of the RM6 series, ensuring that the critical connection point is equally as capable as the hitch itself. The shank diameter and length are precisely matched to the receiver bores and material thickness of the RM6 hitch ball mounts, guaranteeing a flush, secure, properly torqued installation.
• BH8 Series Hitches: Similarly, the BH8 series represents another line of heavy-duty hitches from Buyers Products, likely tailored for specific vehicle classes or towing requirements. The engineering compatibility extends to ensuring proper clearance, appropriate load transfer, and resistance to dynamic stresses when paired with this replacement ball. The material properties of both the hitch and the tow ball are synergistic, designed to work in concert to distribute and absorb the forces generated during towing, preventing localized stress concentrations or premature wear.

Adherence to manufacturer specifications for replacement parts is not merely a recommendation; it is a critical safety practice. It ensures that the entire towing system continues to operate within its certified parameters, maintaining its rated capacity and preventing potential failures that could arise from mismatched components.

Engineering Excellence and Quality Assurance

The 1-7/8 inch replacement ball’s design and manufacturing are founded on rigorous engineering and quality assurance, meticulously controlling every aspect from material selection to final finish for superior performance and longevity.

• Stress Analysis: Utilizing Finite Element Analysis (FEA), engineers model stress distribution under various loads (vertical, braking, lateral). This analysis informs design modifications, like the fillet radius at the ball-to-shank transition, optimizing material use and enhancing fatigue life.
• Material Traceability: Raw carbon steel undergoes stringent incoming inspections, including chemical composition and mechanical property testing, ensuring consistent quality. Full material traceability from raw stock to finished product allows comprehensive quality auditing.
• Manufacturing Processes: Tow balls are typically hot forged, creating a continuous grain flow that significantly enhances strength, toughness, and resistance to impact and fatigue over machined or cast components. Precision machining refines spherical profile and shank dimensions to exact tolerances.
• Surface Treatment and Plating Control: The chrome plating process (including pre-treatment, nickel, and chromium plating) is carefully controlled for optimal adhesion, uniform thickness, and aesthetic quality. Regular salt spray testing verifies corrosion resistance performance to industry standards.
• Dimensional Accuracy: Each tow ball undergoes rigorous dimensional inspection using calibrated instruments, verifying precise conformance to specifications for ball diameter, shank diameter, and shank length. This ensures perfect fitment, preventing dimensional inaccuracy issues.
• Load Testing: Representative samples from production batches undergo destructive and non-destructive load testing, confirming M.G.T.W. capabilities and adherence to safety factors. Tests often simulate stresses far beyond rated capacity to validate safety margins.

Installation Procedures and Safety Considerations

Proper installation of the tow ball is as crucial as its inherent quality. Adherence to recommended procedures ensures the integrity of the connection and the safety of the towing operation.

1. Component Inspection: Before installation, visually inspect the tow ball for any manufacturing defects, shipping damage, or signs of wear. Similarly, inspect the hitch ball mount's bore for cleanliness, burrs, or deformation.
2. Positioning: Insert the shank of the tow ball through the designated hole in the hitch ball mount. Ensure the ball is fully seated against the mounting surface.
3. Nut Application: Thread the provided zinc-coated hex jam Nylock nut onto the shank. Hand-tighten until snug.
4. Torque Specification: Crucially, tighten the nut to the manufacturer's specified torque value (e.g., 250-450 ft-lbs for heavy-duty applications; consult hitch manual). A calibrated torque wrench is essential. Insufficient torque leads to loosening; excessive torque can damage threads or deform the ball mount.
5. Final Inspection: After tightening, visually inspect the assembly to ensure the ball is firmly secured, and there is no visible play. The nylon insert of the Nylock nut should be fully engaged with the shank threads.

Safety Precaution: Always ensure the tow ball's M.G.T.W. meets or exceeds that of the trailer, hitch, and towing vehicle. Never exceed the lowest-rated component. Regularly inspect the tow ball for wear, corrosion, or damage, replacing it if compromised.

Maintenance for Extended Service Life

To ensure the prolonged operational integrity and safety of the 1-7/8 inch replacement tow ball, consistent maintenance practices are highly recommended:

• Routine Inspection: Prior to each towing operation, conduct a thorough visual inspection of the tow ball. Look for signs of wear on the chrome finish, deformation of the spherical surface, cracks at the ball-to-shank transition, or any indications of rust, especially around the nut. Pay close attention to the area where the coupler contacts the ball, as this is prone to friction wear.
• Cleaning: After each use, particularly after exposure to harsh environments (e.g., saltwater, road salts, mud), clean the tow ball and shank thoroughly with mild soap and water. Rinse thoroughly and dry completely to prevent corrosion.
• Lubrication: Apply a thin layer of high-quality, water-resistant grease (e.g., marine-grade grease) to the surface of the tow ball before each towing session. This lubrication reduces friction and wear between the ball and the trailer coupler, prolonging the life of both components and facilitating smoother coupling and uncoupling.
• Nut Tightness Check: Periodically check the tightness of the hex jam Nylock nut, especially after initial use and before long trips. While the Nylock feature provides vibration resistance, extreme conditions can test its limits. Retorque to the manufacturer's specification if any looseness is detected.
• Replacement Criteria: Replace a tow ball immediately if any of the following conditions are observed:
  • Visible cracks, deformation, or deep gouges on the ball surface or shank.
  • Significant wear that changes the spherical contour, particularly if a flat spot is visible.
  • Corrosion that has penetrated the chrome finish and is actively compromising the steel substrate.
  • The nut no longer holds torque effectively, or the threads on the shank or nut are damaged.
  • The tow ball has been involved in an accident or has experienced an extreme overloading event, even if no visible damage is apparent, as internal structural integrity may be compromised.

Conclusion

The 1-7/8 Inch Replacement Ball with Nut for RM6 Series & BH8 Series Hitches is a technically superior, essential component for safe, effective heavy-duty towing. Its meticulously engineered specifications—precise 1-7/8 inch diameter, robust 12,000 lbs M.G.T.W., durable carbon steel with chrome finish, and securely fastened 1.115-inch shank with 2.250-inch length—ensure unparalleled reliability. The integrated zinc-coated hex jam Nylock nut guarantees a vibration-resistant, steadfast connection. Designed as a direct replacement for Buyers Products RM6 and BH8 series hitches, this tow ball upholds high standards of safety, durability, and performance. Investing in this OEM-compatible replacement ensures continuous operational integrity and safety, reflecting engineering excellence for demanding applications.
