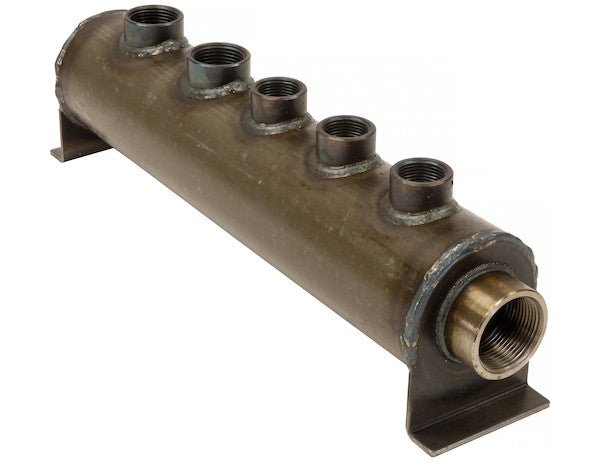

Buyers Products Return Line Manifold improves unsightly tangle of hoses by centrally locating return circuits. The manifold consolidates your return line plumbing into a single unit. It is constructed of tough 11 Ga steel that has been oil-fogged for maximum rust protection. The manifold features six heavy duty forged steel ports for various NPT sizes.
Specifications
| Bushing Finish | Plain |
|---|---|
| Diffuser Material | Carbon Steel |
| Overall Length | 15 |
