RM12P - 12 Ton Receiver Mount Pintle Hook

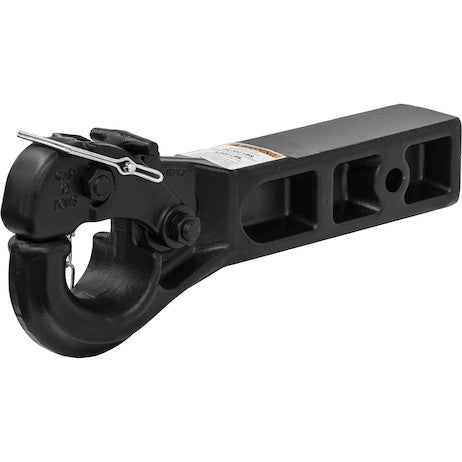

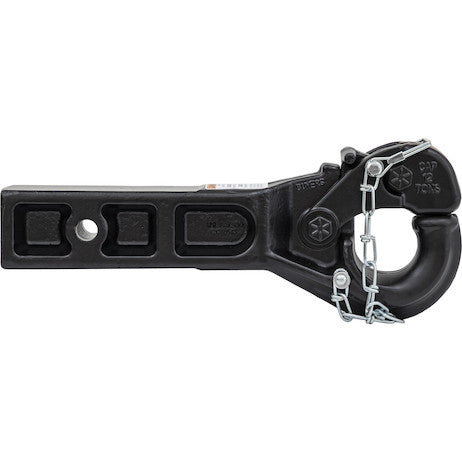

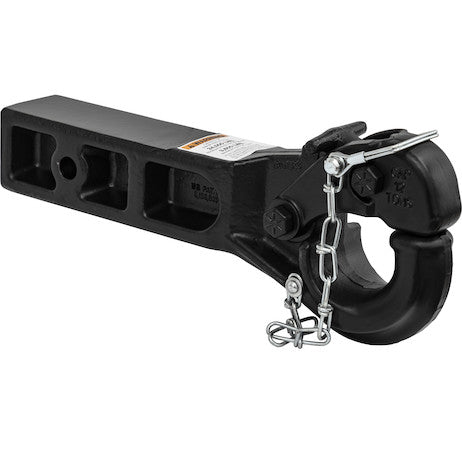

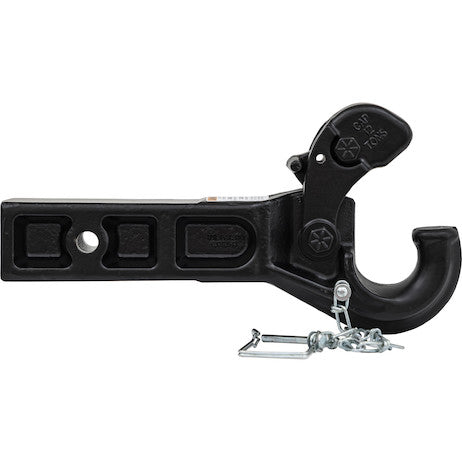

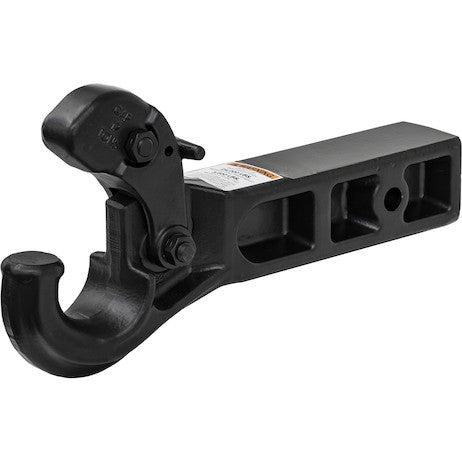

Buyers Products 12 Ton Pintle Hook features a single-piece, drop-forged lower jaw and a black powder-coated finish for maximum durability and resistance to corrosion. It fits a 2 1/2 in. receiver tube for easy installation and removal. The pintle hook is ideal for loads up to 10,000 lbs. The 5/8 in. hitch pin is sold separately.

Specifications

The Buyers Products 12 Ton Receiver Mount Pintle Hook represents a pinnacle of engineering excellence and robust functionality within the heavy-duty towing equipment sector. Designed for discerning professionals who demand uncompromising reliability and durability, this pintle hook is meticulously crafted to address the rigorous challenges encountered in industrial, commercial, agricultural, and construction environments. Its design integrates advanced material science with precision manufacturing processes to deliver superior performance characteristics and an extended service life.

At its core, the structural integrity of this pintle hook is anchored in its material composition and fabrication method. Constructed from high-strength forged steel, the component benefits from a manufacturing process known as drop forging. This technique involves shaping hot metal using compressive forces within a die, resulting in a significantly enhanced grain structure compared to casting or machining from plate. The benefits of drop forging are multifaceted: it refines the internal grain, eliminates porosity, and aligns the grain flow with the contour of the part. This metallurgical improvement translates directly into superior tensile strength, exceptional yield strength, and remarkable resistance to impact and fatigue stresses—critical attributes for components subjected to dynamic loads and abrasive conditions typical in heavy towing operations. The single-piece, drop-forged lower jaw further reinforces this structural advantage, eliminating potential points of weakness that could arise from welded or multi-component assemblies, thereby distributing stress more uniformly across the entire load-bearing surface.

Beyond its inherent material strength, the Buyers Products 12 Ton Pintle Hook is engineered for maximum protection against environmental degradation. The application of a black powder-coated finish serves as a formidable barrier against corrosion, abrasion, and chipping. Powder coating is a dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded component. The charged powder particles adhere to the surface until melted and fused into a smooth, even coating in a curing oven. This process yields a finish that is significantly tougher and more durable than conventional liquid paints, offering superior resistance to chemical exposure, UV radiation, and mechanical damage. The aesthetic black finish also contributes to a professional appearance while providing long-lasting protection, ensuring the pintle hook retains its structural integrity and operational efficiency even in harsh outdoor conditions.

The operational specifications of this pintle hook underscore its formidable capabilities. With a Maximum Gross Trailer Weight (M.G.T.W.) rating of 24,000 lbs (equivalent to 12 tons), it is designed to manage the substantial weight of large commercial trailers, heavy equipment transporters, and industrial machinery. It is imperative to distinguish M.G.T.W. as the total weight of the trailer plus its cargo. Complementing this, the Maximum Vertical Load (M.V.L.) is rated at 3,600 lbs. The M.V.L., often referred to as tongue weight, represents the downward force exerted by the trailer’s tongue onto the hitch assembly. Maintaining an appropriate M.V.L. is crucial for vehicle stability, braking performance, and steering control during towing. An M.V.L. too low can lead to trailer sway, while an M.V.L. too high can overload the tow vehicle’s rear suspension, affecting handling and potentially damaging the vehicle or hitch. The robust M.V.L. rating of this pintle hook ensures it can effectively handle the significant downward forces associated with heavy-duty trailers, thereby enhancing towing safety and performance. While the product is rated for up to 24,000 lbs M.G.T.W., it is specifically noted as ideal for practical loads up to 10,000 lbs, suggesting a conservative recommendation for typical operational scenarios, or perhaps indicating optimal performance and longevity at this particular load range. Users should always adhere to the lower of the two ratings when considering their specific application.

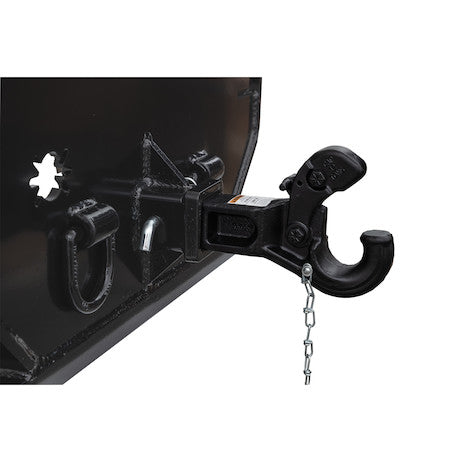

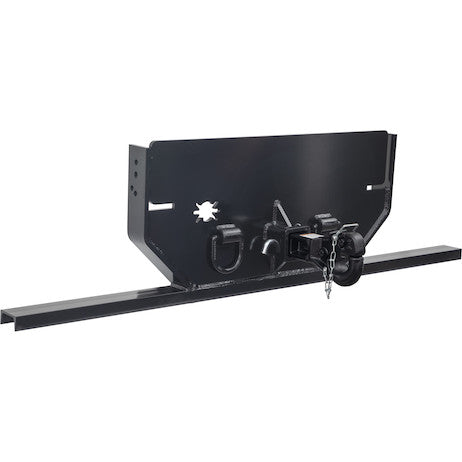

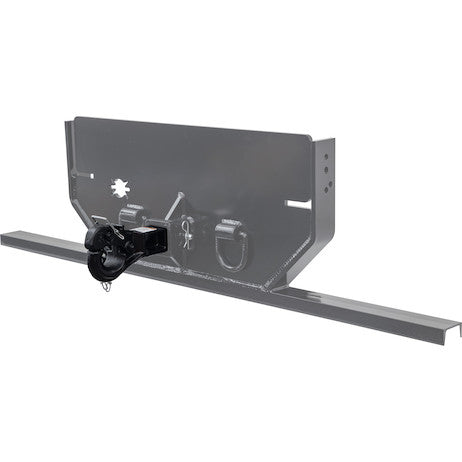

Integration and ease of use are paramount for efficiency in demanding work environments. This pintle hook features a 2 1/2 inch receiver shank size, ensuring compatibility with standard heavy-duty receiver tubes found on a wide array of commercial trucks, utility vehicles, and specialized towing platforms. The receiver mount design offers several advantages over permanent bolt-on solutions, including rapid installation and removal, allowing for quick interchangeability with other receiver-mounted attachments like ball hitches or specialized tools. This modularity enhances the versatility of the tow vehicle, adapting it to various tasks with minimal downtime. The 5/8 inch hitch pin, though sold separately, is the critical component that secures the pintle hook within the receiver tube, preventing longitudinal movement and ensuring a secure connection. The specified mounting hole pattern is designed for precise alignment with this industry-standard hitch pin, simplifying the setup process.

The drawbar eye inner diameter compatibility, ranging from 2.00 to 3.00 inches, signifies the versatility of this pintle hook across a broad spectrum of trailer types. This range accommodates most common lunette rings, which are the circular coupling mechanisms found on pintle-style trailers. The design of the pintle hook, with its upper jaw and lower fixed jaw, allows for a greater degree of articulation between the tow vehicle and the trailer compared to ball hitches. This increased articulation is particularly advantageous in off-road conditions, uneven terrain, or during maneuvers requiring significant angular movement, preventing binding and reducing stress on both the tow vehicle and the trailer hitch. This makes it an ideal choice for construction sites, logging operations, mining activities, and agricultural fields where terrain can be unpredictable and challenging.

In professional contexts, the longevity and minimal maintenance requirements of equipment are direct contributors to operational efficiency and cost-effectiveness. The combination of forged steel construction, single-piece design, and advanced powder coating ensures that the Buyers Products 12 Ton Pintle Hook stands up to years of heavy use without significant degradation. The resistance to rust and corrosion extends the lifespan of the unit, reducing the frequency of replacements and associated labor costs. Furthermore, the inherent strength of the material minimizes the risk of deformation or structural failure under rated loads, providing consistent, reliable performance. Routine inspection, as with all towing equipment, is recommended to ensure the integrity of the coupling mechanism, particularly the latching mechanism and any wear surfaces, but the robust design inherently reduces the need for frequent, extensive maintenance.

Safety is paramount in any towing operation, especially when dealing with loads up to 24,000 lbs. The precise engineering and robust construction of this pintle hook are foundational to safe towing. However, proper operational protocols must always be observed. Users must ensure that the pintle hook’s rating meets or exceeds the M.G.T.W. and M.V.L. of the trailer being towed. The 5/8 inch hitch pin must always be securely in place, and for added security, a locking hitch pin is often recommended to prevent theft and accidental removal. Regular checks for wear on the pintle hook, lunette ring, and receiver tube are critical, along with ensuring the latch mechanism operates freely and securely. Adherence to manufacturer guidelines for both the pintle hook and the tow vehicle's towing capacity is non-negotiable for safe and compliant operation.

In summary, the Buyers Products 12 Ton Receiver Mount Pintle Hook is a meticulously engineered component designed for the most demanding towing applications. Its utilization of drop-forged steel provides unparalleled strength and durability, further augmented by a resilient powder-coated finish that protects against environmental stressors. With a substantial M.G.T.W. of 24,000 lbs and an M.V.L. of 3,600 lbs, it is capable of handling significant loads with confidence. The 2 1/2 inch receiver mount design facilitates quick and secure installation, offering versatility and ease of use. Its compatibility with a wide range of drawbar eyes and superior articulation capabilities make it an indispensable tool for professionals in sectors where reliable heavy-duty towing is a daily necessity. This pintle hook embodies a commitment to quality, safety, and performance, making it a critical asset for any heavy-duty towing fleet or operation.
