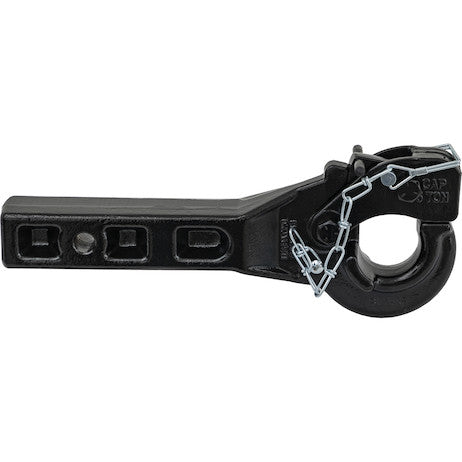

Buyers Products 5 Ton Pintle Hook features a single-piece, drop-forged lower jaw and a black powder-coated finish for maximum durability and resistance to corrosion. It fits a 2 in. receiver tube for easy installation and removal. The pintle hook is ideal for loads up to 10,000 lbs. The 5/8 in. hitch pin is sold separately.
Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.0-3.0 |
| Finish | Powder-Coat |
| M.G.T.W. (lbs) | 10,000 |
| M.V.L. (lbs) | 2,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.656 |
| Pintle Hook Type | Reciever Mount |
| Receiver Shank Size | 2 |
The Buyers Products 5 Ton Receiver Mount Pintle Hook: Engineered for Uncompromising Performance and Durability
In the demanding world of heavy-duty towing, where safety, reliability, and robust performance are paramount, the Buyers Products 5 Ton Receiver Mount Pintle Hook stands as an exemplary solution. This meticulously engineered towing component is designed to meet and exceed the rigorous requirements of commercial, industrial, agricultural, and utility applications. With a substantial Gross Trailer Weight (M.G.T.W.) rating of 10,000 lbs and a Maximum Vertical Load (M.V.L.) capacity of 2,000 lbs, this pintle hook is calibrated for the most challenging tasks, providing a secure and dependable connection for heavy trailers equipped with lunette rings.
Advanced Material Science: The Drop-Forged Advantage
At the core of this pintle hook's exceptional strength and longevity is its construction from high-grade forged steel, specifically featuring a single-piece, drop-forged lower jaw. The choice of drop forging over alternative manufacturing processes like casting or welding is a deliberate design decision rooted in advanced material science and engineering principles. Drop forging involves shaping metal under immense localized compressive forces, resulting in a superior metallurgical grain structure that closely follows the contour of the part. This optimized grain flow eliminates internal voids, porosity, and inclusions commonly found in cast components, which can act as stress concentrators and points of failure under dynamic loads.
The benefits of a drop-forged lower jaw are manifold. Firstly, it endows the pintle hook with significantly enhanced tensile strength, yield strength, and fatigue resistance. These properties are critical for components subjected to the constant acceleration, deceleration, and torsional forces inherent in towing heavy loads. The material's inherent toughness, resistance to shock loading, and improved ductility mean it can absorb energy and deform slightly before fracturing, offering a crucial safety margin. Unlike welded assemblies where weld seams can introduce metallurgical discontinuities and potential stress points, the single-piece forged construction ensures uniform strength throughout the critical load-bearing areas, reducing the risk of catastrophic failure under extreme conditions. This robust fabrication method directly translates into a longer service life, reduced maintenance requirements, and unparalleled peace of mind for operators.
Superior Protection: The Black Powder-Coated Finish
Beyond its formidable structural integrity, the Buyers Products 5 Ton Pintle Hook is further enhanced by a premium black powder-coated finish. This advanced coating technology provides a superior protective layer that far surpasses traditional liquid paints in terms of durability and environmental resistance. Powder coating is an electrostatically applied dry powder, which is then cured under heat to create a hard, uniform, and exceptionally resilient finish. This process eliminates solvents, making it an environmentally friendlier option while delivering a high-performance protective barrier.
The black powder coat on this pintle hook serves multiple critical functions. Primarily, it offers outstanding resistance to corrosion, a persistent threat to metal components exposed to harsh outdoor environments, road salts, moisture, chemicals, and abrasive elements. This ensures that the pintle hook maintains its structural integrity and aesthetic appeal even after prolonged exposure to severe weather and operational conditions. Secondly, the finish provides excellent abrasion and impact resistance, protecting the underlying steel from chips, scratches, and minor mechanical damage that can compromise the metal and initiate rust. Furthermore, powder coatings exhibit superior UV stability, preventing fading, chalking, and degradation when exposed to direct sunlight over extended periods. The sleek black finish is not merely aesthetic; it is a testament to the product's engineering for long-term resilience and performance in the most demanding operational settings, ensuring the pintle hook retains its professional appearance and functional integrity throughout its operational lifespan.
Seamless Integration: The 2-Inch Receiver Mount System
The design of the Buyers Products 5 Ton Pintle Hook centers on its seamless integration with standard 2-inch receiver tubes. This choice of mounting mechanism provides a multitude of practical and operational advantages. The 2-inch receiver shank is an industry-standard size, ensuring broad compatibility with a vast array of tow vehicles, including commercial trucks, utility vehicles, agricultural tractors, and heavy-duty SUVs equipped with appropriately rated receiver hitches. This universality eliminates the need for specialized adapters or permanent modifications, making the pintle hook an incredibly versatile asset for fleets and individual operators alike.
The receiver mount design facilitates exceptionally easy installation and removal. The pintle hook can be quickly inserted into the receiver tube and secured with a standard 5/8 inch hitch pin (sold separately), allowing for rapid interchangeability between different tow vehicles or swift removal when not in use. This modularity not only enhances operational efficiency but also provides convenience, allowing users to adapt their towing setup to specific task requirements. Compared to rigid mount pintle hooks that require bolting directly to a frame or bumper, the receiver mount offers greater flexibility, quicker changeovers, and often a cleaner vehicle aesthetic when the hook is detached. The precision manufacturing ensures a snug fit within the receiver, minimizing play and enhancing stability during towing operations, thereby contributing to safer and more controlled movement of heavy loads.
Unyielding Performance: Understanding Load Capacities and Safety
A fundamental aspect of any towing apparatus is its specified load capacities, and the Buyers Products 5 Ton Receiver Mount Pintle Hook is rated for robust performance. It is crucial to understand the significance of these ratings for safe and compliant operation.
Maximum Gross Trailer Weight (M.G.T.W.): 10,000 lbs (5 Tons)
The M.G.T.W. rating of 10,000 lbs signifies the maximum permissible total weight of the fully loaded trailer that the pintle hook is engineered to safely tow. This includes the weight of the trailer itself plus all cargo, equipment, and consumables onboard. This rating is derived from extensive engineering analysis, material testing, and adherence to industry standards for towing components. Operating within this specified limit is absolutely critical for maintaining the structural integrity of the pintle hook, preventing premature wear, and ensuring overall towing safety. Exceeding the M.G.T.W. can lead to component failure, loss of control, and severe accidents. The 5-ton capacity places this pintle hook squarely in the heavy-duty category, suitable for hauling a wide range of substantial equipment and materials, from excavators and trenchers to large industrial generators and construction materials.
Maximum Vertical Load (M.V.L.): 2,000 lbs
The M.V.L., often referred to as tongue weight or vertical load, specifies the maximum downward force that the trailer's lunette ring can exert on the pintle hook. Proper tongue weight is essential for stable and safe towing. An M.V.L. of 2,000 lbs indicates the pintle hook's capability to safely support a significant portion of the trailer's weight directly over the hitch point. Typically, tongue weight should represent 10% to 15% of the M.G.T.W. for conventional trailers, though pintle hitches, especially for off-road or construction applications, might have different optimal ratios. Adequate tongue weight prevents trailer sway, improves vehicle handling, and maintains proper braking efficiency. Insufficient tongue weight can lead to dangerous trailer instability, while excessive tongue weight can overload the tow vehicle's rear axle and suspension, affecting steering and braking. The substantial M.V.L. rating of this pintle hook underscores its design for heavy, properly balanced trailers.
Drawbar Eye Inner Diameter (2.0-3.0 in.)
Compatibility with drawbar eyes (lunette rings) is a key feature of any pintle hook. This pintle hook accommodates lunette rings with inner diameters ranging from 2.0 to 3.0 inches. This wide compatibility ensures that it can securely couple with a broad spectrum of heavy-duty trailers commonly found in commercial and industrial settings. The design ensures minimal slack between the pintle hook and the lunette ring, reducing jarring and wear during towing, thereby contributing to a smoother and more controlled towing experience.
Precision and Secure Attachment: Mounting Hole and Pin Integration
The specified Mounting Hole Diameter of 0.656 inches is a critical dimension related to the secure attachment of the pintle hook within the receiver tube. While the 5/8 inch (0.625 inch) hitch pin is sold separately, the slightly larger nominal diameter of the mounting hole (0.656 inches) accounts for manufacturing tolerances, paint/coating thickness, and provides a small clearance for easy pin insertion. However, the integrity of the connection relies on the robust fit of the hitch pin. A high-quality, properly sized 5/8-inch hitch pin is essential to secure the pintle hook within the 2-inch receiver. This pin acts as the primary shear element, transmitting longitudinal towing forces and preventing the pintle hook from disengaging. The precise engineering of the receiver shank and the mounting hole ensures that once the hitch pin is inserted and secured, any movement or play is minimized, leading to a more stable and reliable towing connection and reducing wear on both the hitch pin and the receiver tube.
Versatile Applications Across Industries
The robust design and high load capacity of the Buyers Products 5 Ton Receiver Mount Pintle Hook make it an indispensable tool across a diverse range of industries:
- Construction: Ideal for towing dump trailers, equipment trailers carrying mini excavators, skid steers, concrete mixers, and scaffolding. Its durability is well-suited for rugged construction site environments.
- Agriculture: Capable of hauling heavy farm implements, livestock trailers, hay wagons, and other agricultural equipment across varied terrain.
- Utility Companies: Essential for power companies, telecommunication providers, and municipal utility services to tow cable reels, generator trailers, aerial lifts, and other specialized equipment.
- Landscaping and Tree Care: Suitable for transporting chippers, stump grinders, large utility trailers filled with debris, and heavy-duty landscaping machinery.
- Government and Municipal Fleets: Used by public works departments, parks and recreation, and military logistics for a multitude of towing tasks, emphasizing reliability and adherence to safety standards.
- Industrial Operations: For inter-facility transport of heavy carts, specialized industrial trailers, and other material handling equipment where a robust connection is needed.
In each of these sectors, the pintle hook’s ability to handle significant loads with a secure and durable connection translates directly into increased operational efficiency and enhanced safety.
Operational Considerations and Maintenance Protocols
While engineered for exceptional durability, adhering to proper operational considerations and minimal maintenance protocols will ensure the Buyers Products 5 Ton Receiver Mount Pintle Hook delivers maximum service life and unwavering performance. Prior to each towing operation, a thorough visual inspection is recommended. This includes checking the pintle hook for any signs of excessive wear, deformation, cracks, or corrosion, particularly in the lower jaw and receiver shank areas. Ensure the lunette ring is free of damage and fits securely within the pintle hook, with minimal play when the arm is latched. The latch mechanism should operate smoothly and securely, locking firmly in place to prevent inadvertent detachment.
The condition of the hitch pin and its retaining clip (cotter pin, hairpin, or lock) must also be verified. The hitch pin is a wear item, and any bending, shear marks, or significant reduction in diameter indicates it needs replacement. Keeping the latch mechanism clean and free of debris, and applying a light lubricant to pivot points periodically, will ensure smooth operation. The integrity of the powder-coated finish should also be periodically checked; while highly durable, any significant chips or scratches that expose the bare metal should be touched up to prevent localized corrosion. Adherence to the specified M.G.T.W. and M.V.L. is not merely a recommendation but a critical safety mandate. By integrating these simple checks into routine pre-trip inspections, operators can confidently rely on the robust performance and extended longevity of their Buyers Products pintle hook.
Conclusion: A Commitment to Reliability and Performance
The Buyers Products 5 Ton Receiver Mount Pintle Hook represents a sophisticated blend of advanced materials, precision engineering, and practical design, all geared towards providing an unparalleled heavy-duty towing solution. From its single-piece drop-forged lower jaw that ensures superior strength and fatigue resistance, to its protective black powder-coated finish that defies corrosion and abrasion, every aspect of this pintle hook is meticulously crafted for maximum durability and reliability. Its seamless compatibility with 2-inch receiver tubes and adaptability to drawbar eyes ranging from 2.0 to 3.0 inches makes it a versatile tool for a myriad of demanding applications across various industries.
With impressive load ratings of 10,000 lbs M.G.T.W. and 2,000 lbs M.V.L., it instills confidence in operators handling the heaviest trailers, ensuring safety and stability under challenging conditions. Choosing the Buyers Products 5 Ton Receiver Mount Pintle Hook is an investment in a component that is not only built to last but engineered to perform flawlessly, trip after trip, year after year. It’s more than just a towing accessory; it’s a critical link in the operational chain, guaranteeing robust performance, enhanced safety, and ultimate peace of mind for professionals who demand nothing but the best in their equipment.
