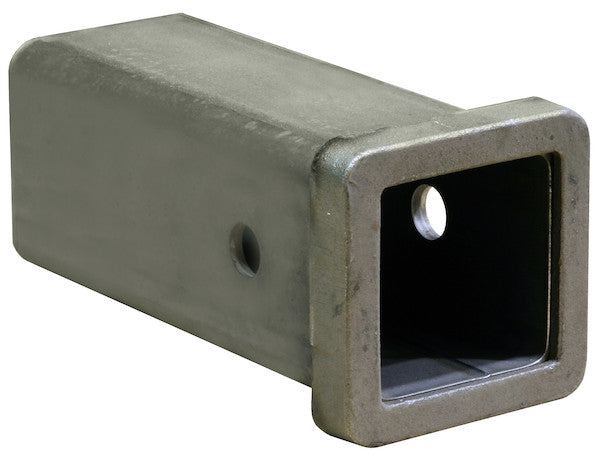

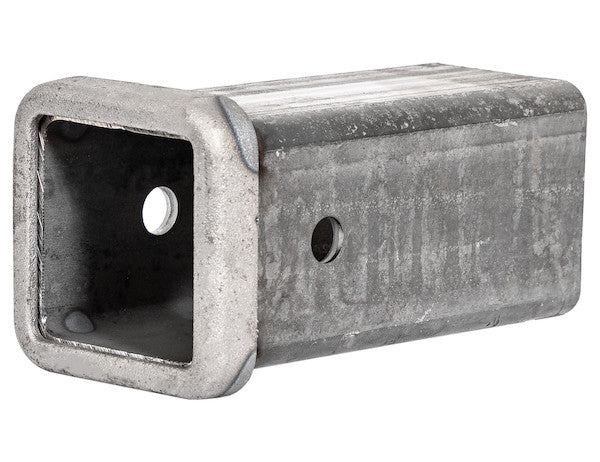

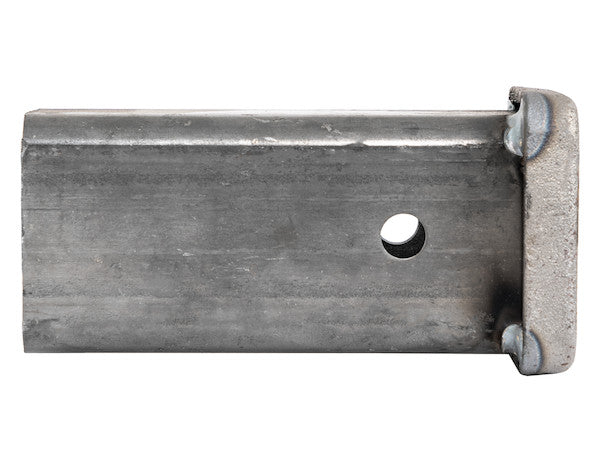

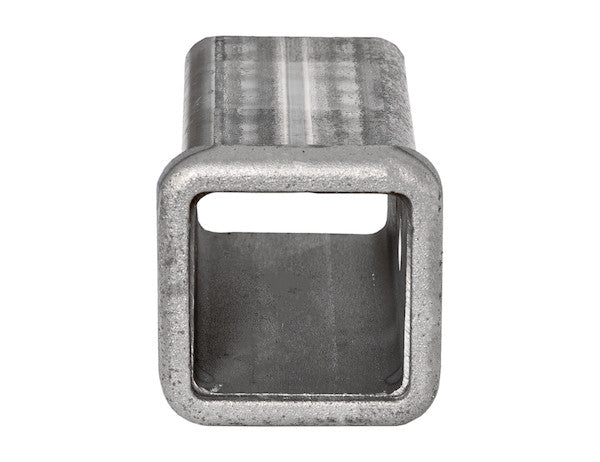

Receiver Tubes from Buyers Products are available in a variety of lengths, dimensions, and finishes to match your towing needs. The 2, 2-1/2, and 3 in. tubes have a cast steel collar. All tubes feature a solid stress collar opening. The 2, 2-1/2, and 3 in. tubes have a 5/8 in. hitch pin hole.
Specifications
| Finish | Plain |
|---|---|
| Length (in.) | 8.00 |
| Material | Carbon Steel |
| Mount Type | Weld On |
| Mounting Hole Size (in.) | 0.656 |
| Receiver Size (in.) | 2.50 |
The 2-1/2 Inch Plain Receiver Tube with an 8 Inch Shank, manufactured by Buyers Products, represents a critical component in heavy-duty towing and custom fabrication applications. Engineered for robust performance and enduring reliability, this receiver tube is meticulously designed to integrate seamlessly into a wide array of vehicle frames, industrial machinery, and specialized equipment. Its foundational design, incorporating a 2.50-inch receiver size and an 8.00-inch shank length, addresses the precise demands of challenging operational environments where structural integrity and secure load management are paramount. Constructed from high-quality carbon steel and featuring a weld-on mount type, this component is not merely a standardized part but a sophisticated solution for complex towing and attachment requirements.
Engineering and Material Science: Carbon Steel Excellence
At the core of this receiver tube's superior performance is its material composition: carbon steel. Carbon steel is a ferrous alloy primarily composed of iron and carbon, with carbon content typically ranging up to 2.1% by weight. The specific grade of carbon steel chosen for this application is optimized for an exceptional balance of strength, ductility, and weldability, crucial properties for components subjected to dynamic and static loads inherent in towing operations. The designation of "carbon steel" signifies a material renowned for its high tensile strength and yield strength, characteristics that enable the receiver tube to withstand substantial pulling forces, compressive loads, and torsional stresses without permanent deformation or catastrophic failure.
The microstructure of the carbon steel utilized for this receiver tube plays a pivotal role in its mechanical attributes. Through controlled alloying and processing, the steel achieves a fine-grained structure, enhancing its toughness and resistance to fatigue crack propagation. This is particularly important for a component that will experience repetitive stress cycles during its operational lifespan. Furthermore, the material exhibits excellent impact resistance, a vital characteristic for absorbing sudden shocks and jolts that are common during towing over uneven terrain or abrupt braking maneuvers. The inherent hardness of carbon steel also contributes to its wear resistance, extending the longevity of the receiver tube even with frequent insertion and removal of hitch accessories.
The selection of carbon steel for a "plain" finish component is also deliberate. While some applications might call for pre-finished materials, the plain finish on carbon steel is ideal for weld-on applications. This eliminates the need for stripping protective coatings prior to welding, streamlining the fabrication process and ensuring superior weld penetration and bond integrity. Post-welding, the user has the flexibility to apply specialized coatings or paints tailored to the specific environmental conditions the component will face, whether it be harsh weather, corrosive chemicals, or abrasive contact.
Precision Manufacturing and Design Features
The manufacturing process for the 2-1/2 Inch Plain Receiver Tube is a testament to precision engineering, ensuring each unit conforms to rigorous quality standards. The process typically begins with the procurement of high-grade carbon steel billets, which are then either hot-rolled or cold-formed into the desired square or rectangular tubing profile. Hot rolling provides excellent ductility and toughness, while cold forming allows for tighter dimensional tolerances and a smoother surface finish. Given the critical nature of receiver tubes, precise dimensional control is paramount for proper fitment of hitch inserts.
Following the formation of the base tubing, the 8.00-inch shank length is achieved through precision cutting techniques, such as band sawing or abrasive cutting, which minimize material distortion and ensure square, clean edges. A crucial design feature is the inclusion of a solid stress collar opening. For 2-inch, 2-1/2 inch, and 3-inch tubes, this collar is specifically cast steel. Casting the collar offers several advantages over simple fabrication from plate steel. Cast steel collars possess isotropic properties, meaning their mechanical properties are uniform in all directions, providing superior resistance to stress concentrations. The casting process also allows for complex geometries that optimize stress distribution around the critical hitch pin hole, preventing localized yielding and deformation under extreme loads. This solid stress collar effectively reinforces the area around the 0.656-inch mounting hole, mitigating the risk of material fatigue and increasing the overall shear strength capacity of the receiver tube system.
The mounting hole itself, precisely drilled to 0.656 inches, is designed to accommodate standard 5/8 inch (0.625 inch) hitch pins with appropriate clearance for easy insertion and removal, even under slight misalignments or in the presence of minor surface contaminants. This slight oversize ensures functional compatibility while maintaining structural integrity. The meticulous execution of these features underscores the product's commitment to reliability and operational safety.
Dimensional Specifications and Their Implications
Understanding the specific dimensions of this receiver tube is crucial for its proper application and integration:
-
Receiver Size (2.50 in.)
The 2.50-inch receiver size is a standard dimension within the heavy-duty towing industry, particularly prevalent for Class IV and Class V hitches. This standardization ensures compatibility with a vast range of drawbar inserts, ball mounts, weight distribution hitches, and other towing accessories designed for 2.5-inch receivers. The internal dimensions are held to tight tolerances to minimize slack and play between the receiver and the insert, reducing wear on components and providing a more stable towing experience. A precisely sized receiver is essential for preventing accelerated wear on both the receiver and the hitch accessory, thereby extending the service life of the entire towing system. -
Length (8.00 in.)
The 8.00-inch shank length provides ample material for secure welding to a vehicle frame, cross member, or custom mounting bracket. This length offers flexibility in installation, allowing for proper clearances between the receiver opening and other vehicle components, such as bumpers, fuel tanks, or spare tire carriers. It also ensures sufficient surface area for robust weld seams, which are critical for distributing towing forces across the vehicle's chassis. The strategic length balances the need for robust attachment with considerations for minimizing overall protrusion and maintaining optimal departure angles in off-road or utility applications. -
Mounting Hole Size (0.656 in.)
As previously detailed, the 0.656-inch mounting hole is engineered for compatibility with 5/8 inch (0.625 inch) hitch pins. This slight clearance facilitates easier pin insertion and removal, accommodating for manufacturing tolerances in the pin itself and potential minor surface irregularities. This precise sizing ensures that the hitch pin can adequately secure the towing accessory within the receiver, transferring longitudinal towing forces efficiently and safely. The integrity of this hole, reinforced by the cast steel collar, is paramount for the entire system's load-bearing capability.
Weld-On Mount Type: Permanent Strength and Customization
The "Weld On" mount type is a distinguishing feature of this receiver tube, offering distinct advantages over bolt-on alternatives, particularly in heavy-duty and custom fabrication scenarios. Welding provides a permanent, monolithic connection between the receiver tube and the vehicle's structural frame. This method ensures maximum load transfer capabilities, as the weld itself effectively integrates the receiver into the structural integrity of the chassis, distributing stresses over a wider area than bolted connections.
For critical applications where towing capacities are at their peak or where a bespoke fit is required, a weld-on receiver offers unparalleled strength and stability. It allows fabricators and manufacturers to integrate the receiver tube precisely where it is needed, optimizing ground clearance, approach/departure angles, and overall vehicle aesthetics. This type of installation is common in custom truck builds, utility vehicles, agricultural equipment, and specialized industrial trailers where the receiver becomes an integral part of the frame structure. Proper welding procedures, executed by certified professionals, are essential to harness the full strength potential of this mount type. This includes appropriate pre-heating, selection of compatible filler materials, and post-weld inspection to ensure defect-free, full-penetration welds.
Applications and Operational Considerations
The 2-1/2 Inch Plain Receiver Tube is exceptionally versatile, finding its application across a broad spectrum of industries and operational demands:
- Heavy-Duty Towing: Ideal for trucks, SUVs, and commercial vehicles that regularly tow large trailers, RVs, car haulers, or construction equipment. Its robust construction supports the higher tongue weights and gross trailer weights associated with Class IV and Class V towing.
- Agricultural Equipment: Used in tractors, implements, and specialized farm machinery for attaching various towed tools, wagons, and utility trailers. The weld-on design ensures durable integration into rugged farming equipment.
- Construction Vehicles: Employed on dump trucks, flatbeds, and service vehicles for towing compressors, generators, job site trailers, and other heavy construction apparatus.
- Custom Fabrication: A prime choice for custom vehicle builders, aftermarket upfitters, and fabricators creating unique chassis designs or integrating towing capabilities into non-standard vehicles or equipment.
- Industrial and Commercial Use: Suitable for material handling equipment, ground support vehicles, and other industrial applications requiring robust attachment points for various tools or towed components.
When implementing this receiver tube, several operational considerations are paramount:
- Load Capacity Matching: Always ensure that the receiver tube's inherent strength, once properly welded, is compatible with the intended towing load and that it does not exceed the lowest rated component in the entire towing system (vehicle, hitch, ball mount, hitch ball, and safety chains).
- Environmental Protection: While the plain carbon steel finish is optimal for welding, it requires subsequent protective treatment to prevent corrosion. Post-installation, the exposed surfaces should be cleaned, primed, and painted with an appropriate rust-inhibiting coating to ensure long-term durability, especially in harsh or corrosive environments.
- Regular Inspection: Periodic inspection of the receiver tube and its welds is crucial. Checks should include looking for signs of cracking, excessive wear, deformation, or corrosion, ensuring continued safe operation.
Safety, Compliance, and Longevity
The design and construction of the 2-1/2 Inch Plain Receiver Tube emphasize safety and long-term performance. By adhering to industry-standard dimensions and utilizing high-grade materials, Buyers Products ensures that this component can reliably perform its critical function. The solid stress collar and precisely machined hitch pin hole are direct contributors to its safety profile, minimizing the risk of component failure under dynamic loads.
While specific industry compliance standards for receiver tubes can vary, the fundamental principles of robust design and material integrity are universal. Manufacturers and installers are advised to ensure that the completed installation complies with all relevant local, national, and industry-specific towing regulations and safety guidelines, such as those set forth by SAE International (e.g., SAE J684 for trailer hitches). The weld-on nature of this product places a significant responsibility on the installer to perform welding operations to the highest professional standards, ensuring that the integrity of the vehicle frame is not compromised and that the receiver is securely and permanently affixed.
In conclusion, the 2-1/2 Inch Plain Receiver Tube with an 8 Inch Shank from Buyers Products is a meticulously engineered, heavy-duty component designed for the most demanding towing and fabrication applications. Its foundation in high-strength carbon steel, combined with precision manufacturing, a cast steel stress collar, and a weld-on mount type, delivers unparalleled structural integrity and operational reliability. This receiver tube provides a robust and adaptable solution, empowering users to confidently expand the capabilities of their vehicles and equipment while maintaining the highest standards of safety and performance for years to come.
