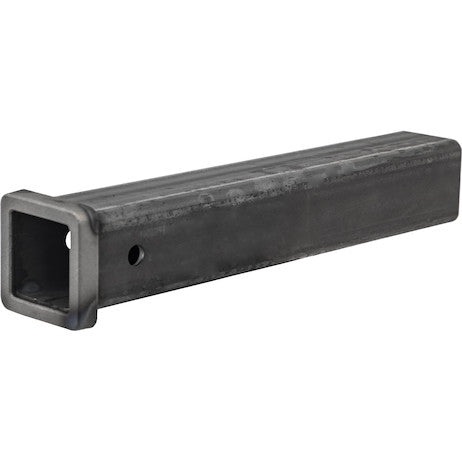

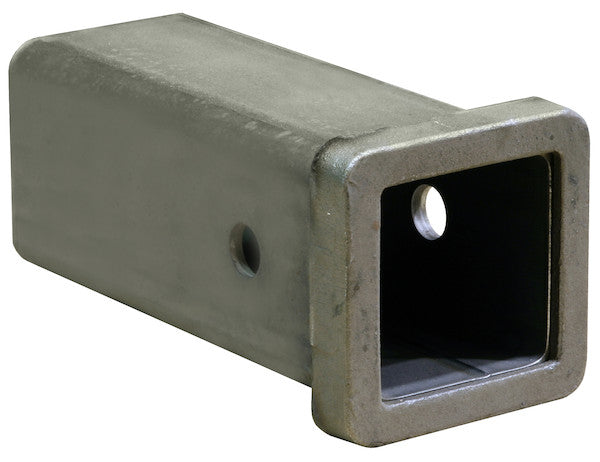

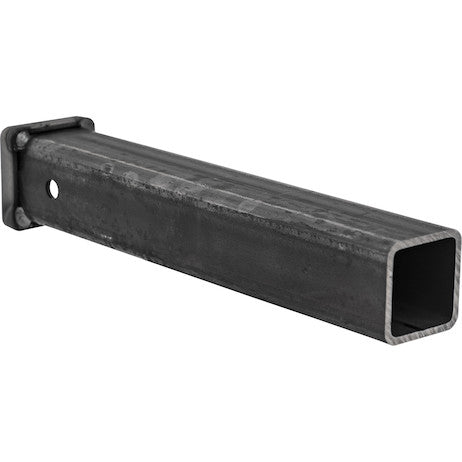

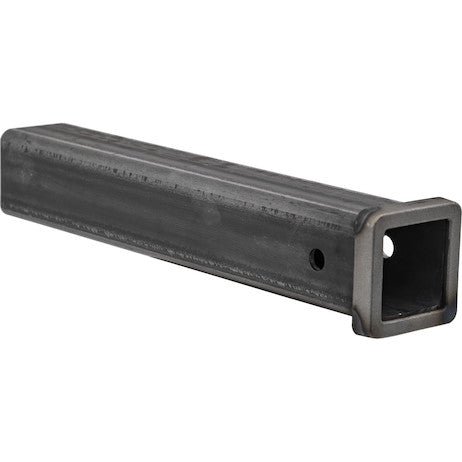

Receiver Tubes from Buyers Products are available in a variety of lengths, dimensions, and finishes to match your towing needs. The 2, 2-1/2, and 3 in. tubes have a cast steel collar. All tubes feature a solid stress collar opening. The 2, 2-1/2, and 3 in. tubes have a 5/8 in. hitch pin hole.
Specifications
| Finish | Plain |
|---|---|
| Length (in.) | 18.00 |
| Material | Carbon Steel |
| Mount Type | Weld On |
| Mounting Hole Size (in.) | 0.656 |
| Receiver Size (in.) | 2.50 |
The Buyers Products 2-1/2 Inch Plain Receiver Tube: An In-Depth Technical Overview for Heavy-Duty Applications
The Buyers Products 2-1/2 Inch Plain Receiver Tube, with its robust 18-inch shank, is an essential component for heavy-duty towing and custom fabrication. Engineered for demanding environments, it offers a secure and reliable interface for a wide range of towing accessories and implements. Key specifications—including the 2.50-inch receiver opening, 18.00-inch length, carbon steel construction, weld-on mount type, and 0.656-inch mounting hole size—highlight its suitability for professional applications requiring maximum durability and load-bearing capacity. This detailed technical description will delve into the intrinsic characteristics, engineering principles, and practical applications that position this receiver tube as an indispensable asset for commercial, industrial, and specialized vehicle operations.
Precision Engineering of the 2-1/2 Inch Receiver Interface
The 2.50-inch receiver size is central to this product’s functionality, aligning it with Class IV and Class V towing systems, which demand higher load capacities than standard 2-inch receivers. This dimension facilitates compatibility with the heaviest recreational and commercial utility trailers, equipment haulers, and specialized industrial attachments. Precise internal tolerances ensure a snug, unhindered fit for corresponding 2.5-inch drawbars, ball mounts, and weight distribution hitches, minimizing play. This reduction in play is crucial for mitigating wear and dynamic stresses during towing. The 2.5-inch interface directly addresses the increasing need for robust towing capacity in modern heavy-duty pickup trucks and custom fabrications, providing a solid foundation for safely transporting significant loads and efficiently distributing both vertical (tongue weight) and horizontal (gross trailer weight) forces throughout the vehicle's structure.
The Structural Integrity of Carbon Steel Construction
High-grade carbon steel forms the foundation of this receiver tube, chosen for its optimal balance of strength, ductility, and weldability—critical attributes for a weld-on, high-stress towing component. This material is engineered to withstand significant tensile, compressive, and shear forces encountered during towing operations, offering superior yield and ultimate tensile strengths. Its elastic deformation capability under load prevents permanent damage, while excellent fatigue resistance guards against crack initiation and propagation from cyclical loading, vibrations, and impacts from road conditions. Carbon steel's inherent microstructure ensures robust impact resistance and contributes to its resilience against abrasive wear, particularly around the hitch pin hole and internal receiver surfaces. This meticulously selected material guarantees long-term durability and performance in the most demanding heavy-duty applications.
The Strategic Advantage of an 18-Inch Shank Length
The 18.00-inch shank length of this receiver tube provides substantial versatility and structural advantage in custom fabrication and seamless frame integration. This extended dimension offers ample material for achieving optimal mounting positions and ensuring comprehensive structural engagement with a vehicle's chassis or other supporting structures. For weld-on applications, a longer shank enables a more distributed weldment, which in turn spreads stress over a larger area, enhancing overall connection strength and longevity. This length is vital for clearing existing vehicle components, fuel tanks, spare tires, or specialized utility bodies, or for extending the hitch point beyond the rear bumper for improved turning clearance with specific trailers. It allows custom vehicle builders to span multiple cross-members, creating integrated towing solutions that become an intrinsic part of the vehicle's load-bearing infrastructure, ensuring superior rigidity and torsional resistance.
Understanding the Plain Finish: Optimized for Weld-On Integration
The designation "Plain" finish for this receiver tube is a deliberate and functionally critical attribute, particularly for its weld-on mounting method. It signifies the absence of pre-applied coatings such as paint, powder coat, or galvanization, which would compromise weld integrity and necessitate removal prior to welding. By providing a bare carbon steel surface, Buyers Products ensures that professional welders can achieve direct metal-to-metal fusion, which is essential for maximizing the structural strength and durability of the welded joint. This facilitates a cleaner, more efficient welding process, reducing preparation time and mitigating risks associated with contaminated welds. After expert welding, the entire assembly, including the tube and surrounding frame structure, can then be prepped and coated with a comprehensive, uniform corrosion-resistant treatment, such as industrial-grade primers and topcoats. This post-weld finishing allows for tailored, superior long-term protection against rust, abrasion, and environmental degradation, seamlessly integrating with the vehicle's aesthetic or specialized industrial coatings.

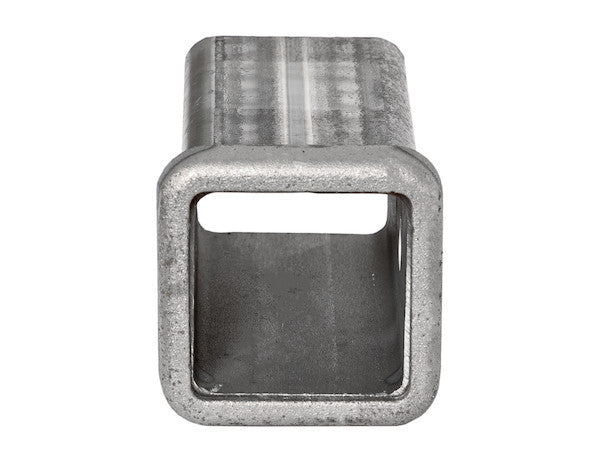

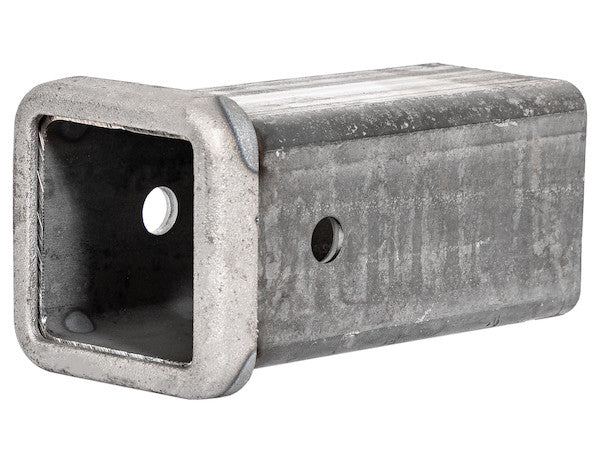

The Critical Role of the Cast Steel Collar and Solid Stress Collar Opening
A key design feature of the Buyers Products receiver tubes, especially the 2-1/2 inch variant, is the integrated cast steel collar and solid stress collar opening. These elements are engineered solutions to reinforce the receiver tube opening, which is typically the area subjected to the highest localized stresses from inserted drawbars and dynamic towing loads. The cast steel collar robustly distributes forces from the hitch pin and the inserted accessory across a wider area of the main receiver tube, transferring them efficiently to the vehicle's frame. This casting allows for complex geometries that optimize material distribution, providing maximum strength precisely where it is most needed. The "solid stress collar opening" ensures continuous, uncompromised structural integrity around the aperture where the hitch pin penetrates. This design minimizes stress risers, which are geometric features that can cause localized amplification of stress and lead to premature fatigue failure. By reinforcing the perimeter, it safely diffuses the high shear forces exerted by the hitch pin, preventing deformation, elongation, or cracking of the pin hole, thus maintaining precise pin fit and preserving the secure attachment of towing components throughout the receiver’s operational lifespan.

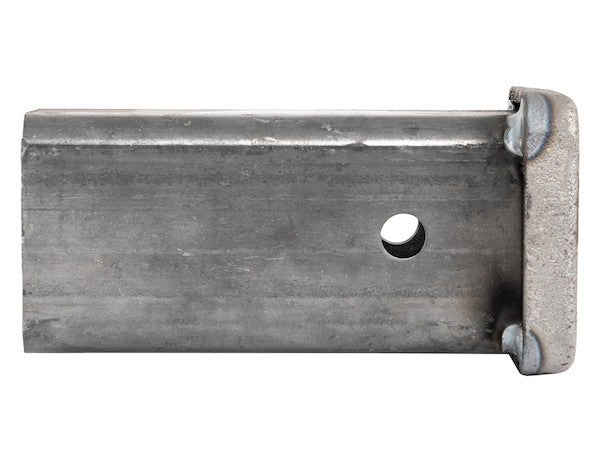

The Precision of the 0.656-Inch Mounting Hole Size (5/8 Inch Pin Compatibility)
The specified 0.656-inch mounting hole size for the hitch pin is a testament to the meticulous engineering behind this receiver tube. While commonly referred to as a "5/8 inch hitch pin hole" (which is precisely 0.625 inches), the slight increase to 0.656 inches (approximately 21/32 inch) is a deliberate design choice that enhances functionality without compromising security. This marginal oversizing provides critical manufacturing tolerance and facilitates easier insertion and removal of standard 5/8-inch hitch pins, even when the receiver tube or pin might have minor surface imperfections or debris. This slight clearance is also essential for accommodating a degree of thermal expansion or contraction that occurs in metal components due to temperature variations, preventing the pin from binding. Crucially, this small amount of clearance does not significantly impact the structural integrity or security of the connection. The load transfer from the hitch pin to the receiver tube is still efficiently managed by the substantial surface area of the pin within the hole and the robust reinforcement provided by the cast and solid stress collars. This precision in dimension ensures universal compatibility with a vast range of 5/8-inch hitch pins and locking mechanisms, which are the industry standard for 2", 2-1/2", and 3" receiver classes, while enhancing user practicality.
Weld-On Mount Type: Permanent Integration for Uncompromised Strength
The designation of "Weld On" as the mount type is perhaps the most defining characteristic of this receiver tube, signaling its intended use in high-performance, structurally integrated applications. Unlike bolt-on receivers that rely on fasteners and potential frame modifications, a weld-on receiver becomes an integral, permanent part of the vehicle's frame or custom structure. This method provides the highest possible connection strength, eliminating concerns about bolt loosening, shear failure of fasteners, or stress concentrations around bolt holes. Professional welding, typically employing techniques such as shielded metal arc welding (SMAW) or gas metal arc welding (GMAW) with appropriate filler metals, creates a monolithic bond between the receiver tube and the chassis. This level of integration is paramount for applications involving extreme towing weights, severe dynamic loads, or off-road conditions where maximum rigidity and durability are required. It allows for custom placement and articulation, enabling designers to precisely position the hitch point for optimal weight distribution, ground clearance, and departure angles. Weld-on applications are prevalent in heavy-duty commercial truck manufacturing, specialized utility vehicles, agricultural equipment, and bespoke off-road vehicle builds where standard bolt-on solutions are insufficient, providing unparalleled strength and reliability as a fundamental extension of the vehicle's structural backbone.
Applications and Operational Context
The 2-1/2 Inch Plain Receiver Tube with an 18-inch shank is engineered for a diverse range of heavy-duty applications. It is commonly specified for integration into the frames of Class IV and V tow vehicles, including large ¾-ton and 1-ton pickup trucks, medium-duty commercial trucks, and specialized vocational vehicles such as dump trucks, flatbeds, and service bodies. In agricultural settings, these receiver tubes are crucial for customizing tractors and farm implements to tow heavier trailers or attach specialized equipment. Construction industry vehicles, including machinery transporters and utility trucks, also benefit from the robust, weld-on integration capabilities of this component. The 18-inch length provides the flexibility to create custom drop hitches, extend existing receiver points, or integrate into complex frame designs where off-the-shelf solutions are inadequate. Its "plain" finish is ideal for environments where the final coating needs to be applied after the entire fabrication and welding process is complete, ensuring a homogenous and highly durable protective layer tailored to the specific operational environment, whether it be exposure to corrosive chemicals, extreme weather, or abrasive conditions. This adaptability makes it a preferred choice for chassis modifications, utility truck body builders, and custom fabricators who require a foundational component that can be seamlessly incorporated into bespoke vehicle designs, ensuring both structural integrity and functional versatility for demanding towing tasks.
Quality Assurance and Compliance
Buyers Products is renowned for its commitment to manufacturing high-quality towing and truck equipment. This 2-1/2 inch receiver tube is produced under stringent quality control measures, ensuring consistent dimensions, material properties, and structural integrity. Adherence to industry standards for steel composition and manufacturing tolerances is meticulously maintained, ensuring that each receiver tube meets or exceeds the performance expectations for heavy-duty applications. While the ultimate towing capacity of a finished assembly is determined by the weakest link—which includes the vehicle's frame, the receiver's mounting, and the specific hitch components—this receiver tube is designed to serve as a maximally robust component within that system. Its robust design and material selection contribute significantly to overall towing safety and reliability, providing a dependable foundation upon which complex towing systems can be built. Fabricators and end-users can have confidence in the fundamental strength and precision of this component, knowing that it forms a critical link in the safe and efficient transport of heavy loads.
Installation Best Practices and Safety Considerations
Given its weld-on nature, the installation of the Buyers Products 2-1/2 Inch Plain Receiver Tube requires professional expertise. Welding should only be performed by certified welders in accordance with recognized industry standards (e.g., AWS D1.1 for Structural Welding Code – Steel). Proper preparation of mating surfaces, selection of appropriate filler metals, and adherence to specified welding procedures are critical for achieving a strong, fatigue-resistant joint. Post-weld inspection, including visual and potentially non-destructive testing, is highly recommended to ensure weld integrity. Furthermore, the overall structural integrity of the vehicle frame to which the receiver is welded must be assessed to ensure it can adequately support the intended towing loads. Reinforcement of the frame may be necessary depending on the application and vehicle type. After welding, the entire receiver assembly and surrounding frame area should be thoroughly cleaned, primed, and coated with a corrosion-resistant finish to protect the bare carbon steel from environmental exposure, thereby extending the service life of the component. Regular inspection of the receiver tube, welds, and hitch pin hole for any signs of wear, deformation, or corrosion is essential for ongoing operational safety.
Conclusion: A Foundation for Extreme Towing Performance
The Buyers Products 2-1/2 Inch Plain Receiver Tube with an 18-inch shank is an exemplification of engineering excellence tailored for the most demanding towing and custom fabrication challenges. Its precise 2.50-inch receiver size, robust carbon steel construction, extended 18-inch length, purpose-driven plain finish, and critically reinforced collar design converge to deliver a component of unparalleled strength and versatility. The weld-on mounting characteristic transforms it from a mere accessory into an integral structural element, providing a permanent and supremely strong connection point. From heavy-duty commercial fleets and agricultural machinery to specialized industrial equipment and custom vehicle builds, this receiver tube provides the foundational integrity required for safely and efficiently managing significant payloads. It embodies Buyers Products' commitment to providing high-performance, durable solutions that meet the rigorous standards of professional use, ensuring that every towing operation is conducted with maximum reliability and peace of mind. Investing in this receiver tube is investing in a superior level of structural integration and long-term operational resilience, making it the definitive choice for professionals who refuse to compromise on strength, precision, and adaptability in their towing infrastructure.
