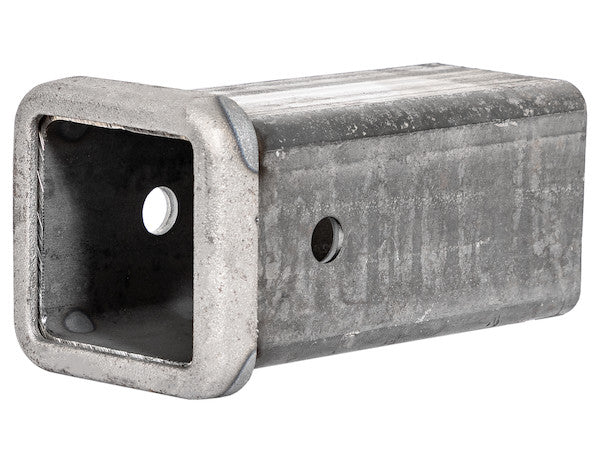

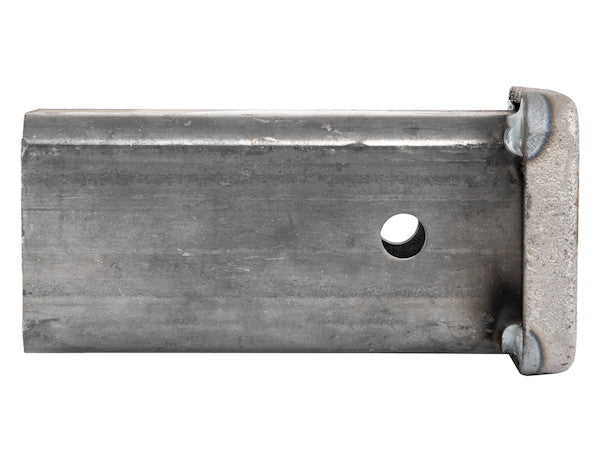

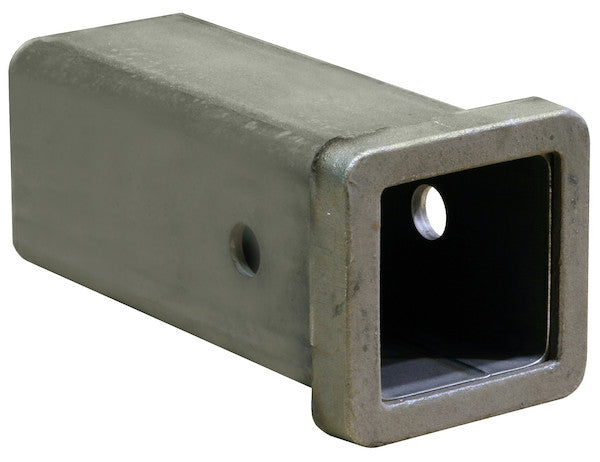

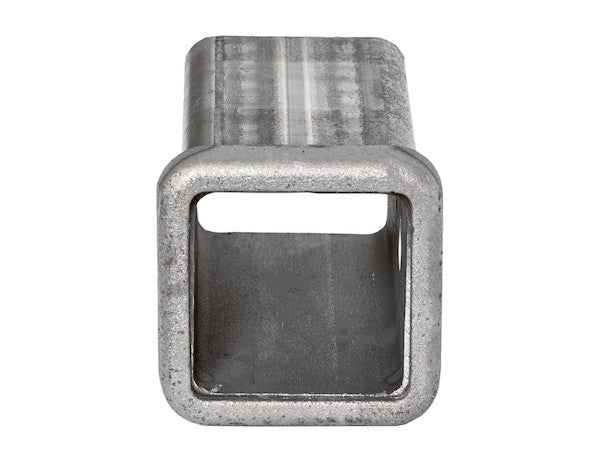

RT25808 - 2 Inch Plain Receiver Tube - 8 Inch Shank

Receiver Tubes from Buyers Products are available in a variety of lengths, dimensions, and finishes to match your towing needs. The 2, 2-1/2, and 3 in. tubes have a cast steel collar. All tubes feature a solid stress collar opening. The 2, 2-1/2, and 3 in. tubes have a 5/8 in. hitch pin hole.

Specifications

The 2 Inch Plain Receiver Tube - 8 Inch Shank: An Engineering Foundation for Robust Towing Solutions

In the demanding world of professional towing, hauling, and equipment fabrication, the integrity and reliability of every component are paramount. The Buyers Products 2 Inch Plain Receiver Tube with an 8 Inch Shank represents a meticulously engineered solution designed to serve as the foundational element for custom hitch systems and integrated towing applications. This specific receiver tube, characterized by its standard 2-inch internal dimension, an optimized 8-inch shank length, and a raw, weld-ready 'plain' finish, provides fabricators and OEM integrators with a versatile, high-strength platform for creating robust and compliant towing infrastructure.

Precision Engineering and Material Science: The Core of Reliability

At the heart of this receiver tube's superior performance lies the careful selection of materials and precise manufacturing processes. Constructed from high-grade Carbon Steel, this component is specifically chosen for its exceptional mechanical properties, which are critical in dynamic load-bearing applications such as towing. Carbon steel offers an optimal balance of tensile strength, yield strength, and ductility, ensuring the tube can withstand significant pulling forces, torsional stresses, and repetitive fatigue cycles inherent in towing operations without permanent deformation or catastrophic failure. The metallurgical composition of the carbon steel employed provides excellent weldability, a crucial factor given its 'Weld On' mount type. This ensures that when properly integrated by a qualified professional, the receiver tube forms a homogenous, structurally sound bond with the vehicle or trailer frame, distributing stresses effectively across the entire assembly.

Key Dimensional and Structural Attributes

The specifications of the 2 Inch Plain Receiver Tube – 8 Inch Shank are not arbitrary; they are the result of extensive industry standardization and application-driven design:

• Receiver Size (2.00 in.): The 2-inch internal dimension is the universally recognized standard for Class III and Class IV trailer hitches in North America. This standardization ensures broad compatibility with an extensive range of towing accessories, including ball mounts, cargo carriers, bike racks, pintle hooks, and various specialized attachments. This ubiquitous size facilitates interchangeability and ease of integration into existing fleets or custom builds, eliminating compatibility concerns that can arise with non-standard dimensions.
• Shank Length (8.00 in.): The 8-inch shank length provides considerable flexibility for fabrication. This dimension allows for deep penetration into structural members of vehicle frames or custom crossmembers, ensuring that the critical weld points are optimally positioned for maximum strength and load distribution. It accommodates variations in frame width, bumper clearances, and mounting configurations, enabling fabricators to achieve precise placement and alignment for proper hitch function and aesthetic integration. This length is particularly beneficial for applications where significant reinforcement or offset from the primary mounting surface is required.
• Mount Type (Weld On): The 'Weld On' mounting configuration is a hallmark of custom fabrication and heavy-duty applications. Unlike bolt-on receivers, a welded connection provides an unparalleled level of structural integration and rigidity, creating a permanent, unified structure between the receiver tube and the host chassis. This method eliminates potential points of failure associated with bolted connections, such as fastener loosening, shear stress on bolts, or concentrated stress points. Professional welding ensures a metallurgical bond that transfers loads directly into the vehicle's frame, maximizing the overall towing capacity and durability of the entire hitch system.

Enhanced Structural Integrity: The Cast Steel Collar and Solid Stress Opening

A critical distinguishing feature of Buyers Products receiver tubes, specifically for the 2, 2-1/2, and 3-inch sizes, is the inclusion of a cast steel collar and a solid stress collar opening. This design element is not merely aesthetic; it is a fundamental engineering decision aimed at significantly bolstering the long-term reliability and load-bearing capabilities of the receiver tube. The collar is strategically placed at the opening of the receiver, the point where maximum leverage and dynamic forces are exerted by the inserted accessory. Key benefits include:

• Stress Concentration Mitigation: The cast steel collar effectively distributes stresses away from the immediate edge of the receiver opening. Without such reinforcement, this area would be highly susceptible to stress concentrations, potentially leading to fatigue cracking or deformation over time, particularly under cyclical loading. The collar's robust design spreads these forces over a larger surface area, greatly enhancing the tube's fatigue life.
• Reinforcement Against Deformation: Repeated insertion and removal of hitch accessories, coupled with the dynamic forces of towing, can cause the receiver opening to deform, flare, or egg-shape. The rigid cast steel collar provides a strong, unyielding boundary that maintains the precise 2-inch internal dimension, ensuring a consistently snug fit for accessories throughout the product's lifespan and preventing rattling or excessive play.
• Enhanced Durability: The casting process itself allows for superior metallurgical properties and grain structure in the collar compared to a simple cut or formed edge. This dense, robust collar is highly resistant to impact damage, abrasion, and wear, extending the functional life of the receiver.
• Improved Welding Surface: The substantial thickness and consistent geometry of the cast collar provide an ideal surface for creating strong, full-penetration welds to the main receiver tube body, contributing to the overall structural integrity.

Complementing the cast collar is the design of the "solid stress collar opening." This refers to the continuous, un-interrupted nature of the reinforced area, designed to maximize load transfer and minimize localized stress points around the hitch pin hole and the opening itself. This holistic approach to reinforcing the receiver aperture ensures maximum durability and safety under demanding conditions.

Hitch Pin Hole: Precision and Compatibility

The 2-inch receiver tube features a 0.656-inch mounting hole size, which is precisely engineered to accommodate a standard 5/8-inch diameter hitch pin. This exact dimension ensures a secure, rattle-free fit for the hitch pin, which is the primary mechanical fastener locking the towing accessory into the receiver. The precision drilling of this hole is critical for several reasons:

• Secure Connection: An accurately sized hole minimizes play between the hitch pin and the receiver, preventing excessive movement of the attached accessory and reducing wear on both components.
• Load Transfer Efficiency: The hitch pin is subjected to significant shear forces during towing. A precisely sized hole ensures maximum contact area between the pin and the receiver, distributing these shear stresses efficiently and preventing premature wear or failure of the pin or the receiver hole itself.
• Compatibility: Adherence to the 5/8-inch standard ensures compatibility with a vast array of readily available hitch pins, locks, and anti-rattle devices, providing convenience and flexibility for end-users.

The 'Plain' Finish: Optimized for Customization and Protection

The designation 'Plain' finish indicates that the receiver tube is delivered in its raw carbon steel state, without any pre-applied protective coating such as powder coat or galvanization. This characteristic is a deliberate design choice, offering significant advantages for fabricators:

• Optimal Weldability: Raw steel provides the cleanest and most receptive surface for welding. The absence of coatings eliminates the need for extensive grinding or preparation to remove paint or zinc, which can interfere with the welding process, produce hazardous fumes, and compromise weld integrity. This ensures a stronger, cleaner, and more efficient metallurgical bond.
• Custom Corrosion Protection: A plain finish allows the end-user or fabricator to apply their preferred corrosion protection system post-installation. This is particularly advantageous as it ensures comprehensive coverage of not only the receiver tube itself but also the newly created weld joints and the surrounding frame structure. Options range from high-quality primers and automotive-grade paints, epoxies, or specialized coatings tailored to specific environmental conditions (e.g., marine environments, harsh winters with road salts, industrial exposure). This enables a seamless and durable protective layer across the entire integrated hitch system.
• Cost-Effectiveness: Omitting a factory-applied finish can contribute to overall cost-effectiveness for the manufacturer and, consequently, the customer, especially when the final application requires a specific custom coating anyway.

It is critical, however, to emphasize that due to its plain finish, the receiver tube must be properly cleaned, primed, and coated immediately after welding and fabrication to prevent oxidation and ensure long-term durability and aesthetic integrity.

Applications and Versatility: Building Blocks for Diverse Industries

The 2 Inch Plain Receiver Tube - 8 Inch Shank is an indispensable component across a broad spectrum of industries and applications:

• Custom Trailer Hitch Fabrication: This is its primary and most common use. Fabricators build bespoke trailer hitches for vehicles where no standard bolt-on option exists, or where a heavier-duty, integrated solution is required. This includes specialized utility vehicles, commercial fleets, or custom truck builds.
• Commercial and Fleet Vehicles: Service trucks, utility vans, tow trucks, and municipal vehicles often require robust and purpose-built towing solutions. This receiver tube provides the flexibility to integrate towing capabilities directly into the chassis, meeting stringent commercial operational demands.
• Off-Road and Specialty Vehicles: For custom Jeeps, ATVs, UTVs, or overland vehicles, a weld-on receiver tube allows for precise placement that can accommodate unique suspension setups, heavy-duty bumpers, or specific departure angle requirements, creating highly durable recovery or towing points.
• Agricultural Equipment: Many agricultural implements and tractors benefit from auxiliary towing points for trailers, sprayers, or specialized attachments. The weld-on design allows for durable integration onto heavy machinery.
• Industrial and Construction Equipment: Adding a towing receiver to generators, air compressors, or other portable industrial equipment enhances their utility and transportability within job sites or between locations.
• Multi-Point Receiver Systems: Fabricators can utilize multiple receiver tubes to create specialized multi-point towing or attachment systems on custom vehicles or trailers, offering enhanced versatility for various loads or implements.
• Receiver Extenders and Adapters: While less common for a full shank, these tubes can be cut and welded to create custom receiver extenders or adapters for unique clearance or height requirements.

Installation and Safety Considerations

Given its 'Weld On' mounting type, proper installation of the 2 Inch Plain Receiver Tube requires professional expertise. Key considerations include:

• Qualified Welder: Installation must be performed by a certified and experienced welder, adhering to industry best practices and applicable welding codes (e.g., AWS D1.1 for Structural Steel Welding).
• Structural Analysis: The vehicle or trailer frame to which the receiver is welded must be structurally sound and capable of safely supporting the intended towing loads. Professional assessment of the frame integrity and load path is highly recommended.
• Proper Joint Preparation: Surfaces must be clean, free of rust, paint, oil, or any contaminants that could compromise weld quality. Beveling or chamfering of edges may be necessary to achieve full penetration welds, depending on the thickness of the frame material and the receiver tube.
• Welding Process and Parameters: Appropriate welding processes (e.g., MIG/GMAW, TIG/GTAW, Stick/SMAW) and parameters (voltage, amperage, wire feed speed, shielding gas) must be selected based on the materials and joint configuration to ensure optimal penetration and bead quality.
• Post-Weld Inspection: Visual inspection for defects such as porosity, undercut, lack of fusion, and cracks is essential. Non-destructive testing methods (e.g., dye penetrant, magnetic particle) may be employed for critical applications.
• Corrosion Protection Post-Weld: As previously noted, immediate and thorough application of a suitable primer and topcoat is vital to protect the raw carbon steel and the new weld areas from rust and environmental degradation.

Longevity and Maintenance

The inherent durability of carbon steel, combined with the robust design features, ensures a long service life for the Buyers Products 2 Inch Plain Receiver Tube. To maximize this longevity, regular inspection and maintenance are recommended:

• Periodic Visual Inspection: Routinely check for any signs of cracking, bending, or distortion in the receiver tube or surrounding frame welds. Look for rust or compromised paint finishes, especially around the welds and the hitch pin hole.
• Corrosion Control: Promptly address any chipped paint or areas of rust. Sand the affected area to bare metal, clean thoroughly, prime with a rust-inhibiting primer, and repaint with an appropriate topcoat.
• Hitch Pin Hole Integrity: Ensure the hitch pin hole remains free of excessive wear or elongation. If significant wear is observed, it may indicate improper loading or material fatigue, warranting professional inspection.
• Proper Accessory Fitment: Always use hitch accessories that conform to the 2-inch receiver standard and ensure the hitch pin is fully inserted and secured. Avoid using shims or other makeshift solutions that could compromise the connection.

Conclusion: The Standard for Custom Towing Solutions

The Buyers Products 2 Inch Plain Receiver Tube - 8 Inch Shank stands as a testament to engineering excellence in the towing components industry. Its precise 2-inch receiver size, optimal 8-inch shank length, robust carbon steel construction, reinforced cast steel collar, and weld-ready plain finish collectively establish it as the ideal choice for fabricators, OEM manufacturers, and custom vehicle builders. Providing the structural integrity and versatility required for creating high-performance, durable, and compliant towing systems, this receiver tube empowers professionals to construct reliable solutions that meet the diverse and demanding requirements of commercial, industrial, and recreational applications. By choosing this meticulously designed component, users invest in a foundation of strength, adaptability, and long-term operational dependability for their most critical towing and hauling needs.
