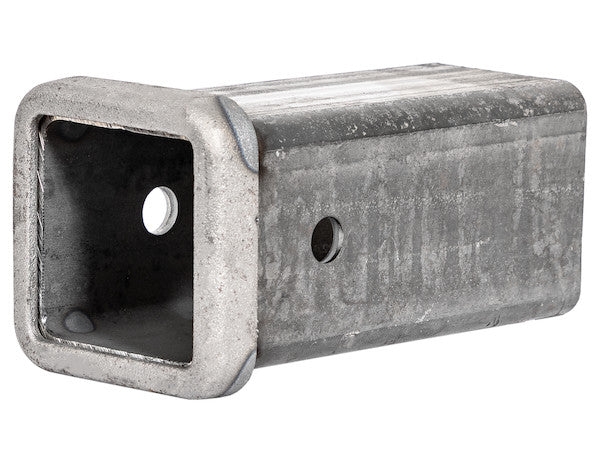

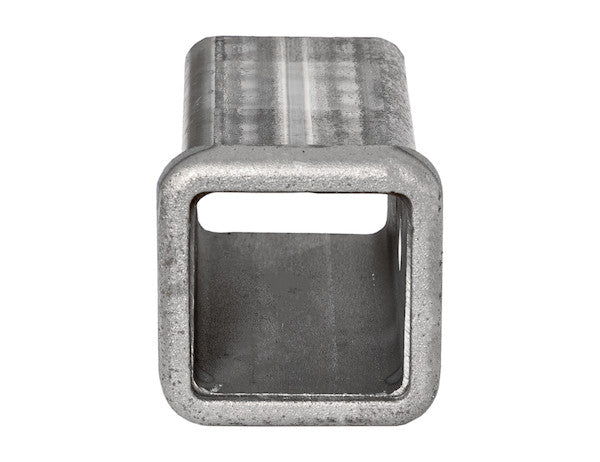

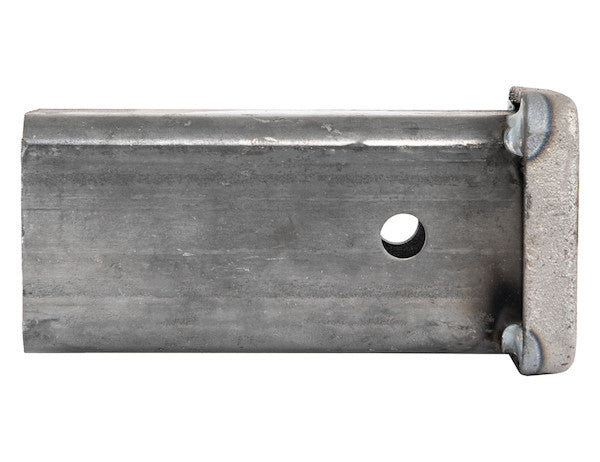

Receiver Tubes from Buyers Products are available in a variety of lengths, dimensions, and finishes to match your towing needs. The 2, 2-1/2, and 3 in. tubes have a cast steel collar. All tubes feature a solid stress collar opening. The 2, 2-1/2, and 3 in. tubes have a 5/8 in. hitch pin hole.
Specifications
| Finish | Plain |
|---|---|
| Length (in.) | 8.00 |
| Material | Carbon Steel |
| Mount Type | Weld On |
| Mounting Hole Size (in.) | 0.625 |
| Receiver Size (in.) | 3.00 |
The 3 Inch Plain Receiver Tube - 8 Inch Shank: An Engineering Perspective on Heavy-Duty Custom Fabrication
In the realm of commercial, industrial, and heavy-duty recreational applications, the demand for robust, reliable, and highly adaptable towing and attachment solutions is paramount. The 3 Inch Plain Receiver Tube with an 8 Inch Shank, manufactured by Buyers Products, stands as a critical foundational component for custom fabrication projects where conventional, off-the-shelf hitches may not suffice. This product is engineered to provide a secure, high-strength interface for a wide array of towing accessories, ensuring operational integrity under strenuous conditions. Its meticulous design, choice of materials, and precision manufacturing position it as an indispensable asset for professional fabricators and end-users requiring unparalleled durability and versatility.
Precision Engineering and Dimensional Specifications
The core utility of any receiver tube lies in its dimensional precision, which directly dictates compatibility and load-bearing capacity. This specific model features a 3.00-inch receiver opening, meticulously engineered to industry standards. This dimension is crucial as it accommodates a vast ecosystem of 3-inch towing accessories, including heavy-duty ball mounts, pintle hook combinations, clevis mounts, specialized winch receivers, and various cargo or equipment carriers. The 3-inch receiver class typically corresponds to Class V or higher towing capabilities, signaling its intended use in the most demanding applications, such as heavy commercial trailers, agricultural equipment, and specialized industrial vehicles. The internal geometry of the receiver is designed to minimize play and rattle while ensuring smooth insertion and removal of accessories, contributing to a more stable and safer towing experience.
Complementing the receiver opening is the 8.00-inch shank length. This dimension is a key consideration for custom fabrication, offering significant flexibility in mounting applications. An 8-inch shank allows fabricators to integrate the receiver tube deep within a vehicle frame or structural member, providing optimal leverage and load distribution. This extended length facilitates welding to thicker frame rails, crossmembers, or custom bumper designs, ensuring maximum penetration and structural integration. The specific length can be critical for achieving proper clearance around existing vehicle components, fuel tanks, exhaust systems, or suspension elements, which is a common challenge in bespoke vehicle modifications. The ample length also provides a margin for cutting and trimming if a shorter installation depth is required, without compromising the structural integrity of the main receiver bore.
A critical feature for securing towing accessories is the hitch pin hole, precisely drilled to a 0.625-inch (5/8 inch) diameter. This standard size is universal for 2-inch, 2.5-inch, and 3-inch receiver tubes, ensuring compatibility with a broad range of standard hitch pins, locking pins, and anti-rattle devices available on the market. The precise drilling and deburring of this hole are paramount to prevent premature wear on hitch pins and ensure a secure, rattle-free connection. The placement of this hole is optimized to maintain the structural integrity of the receiver tube while providing the necessary retention for attached implements, aligning with industry best practices for safe towing.
Material Science and Structural Integrity: Carbon Steel Construction
The selection of material is perhaps the most significant determinant of a receiver tube's performance and longevity. This 3-inch receiver tube is constructed from high-grade carbon steel, chosen specifically for its superior mechanical properties essential for heavy-duty applications. Carbon steel offers an exceptional balance of tensile strength, yield strength, and ductility, making it highly resistant to bending, twisting, and shearing forces encountered during towing. Its inherent toughness allows it to withstand dynamic loads, vibrations, and impacts without fracturing, a critical safety factor in towing systems.
The manufacturing process ensures a consistent material composition throughout the tube, minimizing weak points. The weldability of carbon steel is another crucial attribute, especially given that this product is designed for weld-on installation. High-quality carbon steel allows for strong, durable welds that fully integrate the receiver tube into the vehicle's frame or structural assembly. Professional welding with appropriate filler materials and techniques (e.g., MIG, TIG, Stick welding with proper pre-heat and post-weld considerations) will ensure the fabricated connection maintains or exceeds the strength of the base materials. This foundational strength prevents stress concentrations, fatigue failures, and ultimately, catastrophic mechanical failure, which are paramount concerns in towing applications.
Advanced Design Features: Cast Steel Collar and Solid Stress Collar Opening
Beyond the fundamental material, the design incorporates advanced features that significantly enhance its structural integrity and operational reliability. A prominent feature is the cast steel collar. Unlike receiver tubes with simple welded plate collars or no collar at all, the cast steel collar provides superior strength and load distribution. Casting allows for complex geometries and optimized material thickness at critical stress points, effectively reinforcing the receiver opening where the highest forces are concentrated. This collar acts as a robust anchor point, distributing forces from the hitch pin and the accessory into the main body of the receiver tube and, subsequently, into the vehicle frame. The seamless nature of a cast component eliminates potential weld seams that could become stress risers, enhancing overall fatigue resistance.
Furthermore, all Buyers Products receiver tubes, including this 3-inch model, feature a "solid stress collar opening." This design principle focuses on reinforcing the entire perimeter of the receiver opening and the area surrounding the hitch pin hole. This holistic reinforcement mitigates localized stress concentrations that can lead to deformation or cracking over time, particularly under dynamic loading conditions or when accessories are frequently inserted and removed. By providing a solid, reinforced structure around the critical interfaces, the tube maintains its dimensional stability and structural integrity throughout its operational lifespan, ensuring consistent performance and preventing accessory binding or premature wear.
Mount Type: Weld-On for Maximum Integration
The specification "Weld On" defines the intended installation method for this receiver tube, highlighting its role in custom fabrication. This mounting type offers distinct advantages over bolt-on solutions in specific contexts. Welding provides the strongest possible mechanical bond, creating a monolithic structure where the receiver tube becomes an integral part of the vehicle's frame or bumper. This eliminates concerns associated with bolt shear, loosening due to vibration, or corrosion around bolted joints. For heavy-duty applications where maximum strength, rigidity, and a permanent, highly integrated solution are required, weld-on installation is the preferred method.
Weld-on installation also offers unparalleled flexibility in placement and orientation. Fabricators can precisely position the receiver tube to meet specific design requirements, clear obstructions, or optimize ground clearance and departure angles in custom vehicle builds. This level of customization is invaluable for specialized commercial vehicles, off-road applications, or agricultural machinery where standard bolt-on hitches may not fit or meet the rigorous demands of the operating environment. Proper welding, performed by certified professionals, ensures that the ultimate assembly will withstand the rated capacities and provide reliable service for years.
Finish: Plain for Customization and Protection
The "Plain" finish of this receiver tube signifies that it is provided as raw, uncoated carbon steel. This choice of finish is deliberate and offers significant advantages for its intended weld-on application. A plain finish ensures optimal surface conditions for welding, allowing for strong, clean weld penetration without the need to grind away existing paint, powder coating, or galvanization, which can contaminate welds and compromise strength. This saves fabricators time and labor, streamlining the installation process.
Once the receiver tube is welded into place, the plain finish allows for complete customization of the final protective coating. Fabricators can choose to paint, powder coat, or galvanize the entire fabricated assembly, including the receiver tube, to match the vehicle's aesthetic or to provide a specific level of corrosion protection suited to the operational environment. This approach ensures a uniform, high-quality finish across the entire fabricated structure, offering superior long-term corrosion resistance compared to applying a protective coating only to the receiver tube prior to welding, where weld seams would remain exposed or require additional touch-ups. For applications exposed to harsh weather, road salts, or corrosive chemicals, applying a comprehensive protective coating post-installation is crucial for extending the lifespan of the entire system.
Applications Across Diverse Industries
The 3 Inch Plain Receiver Tube with an 8 Inch Shank is an exceptionally versatile component, finding critical applications across a broad spectrum of industries:
- Heavy Commercial and Fleet Vehicles: Essential for fabricating custom hitches on dump trucks, flatbed trucks, service vehicles, and semi-trailers, enabling the towing of heavy equipment or the attachment of specialized implements like salt spreaders, plows, or lift gates.
- Agricultural Machinery: Used in the creation of robust attachment points for tractors, cultivators, harvesters, and other farm equipment, allowing for the quick interchange of various implements such as planters, trailers, and utility carts.
- Industrial and Construction Equipment: Integral to custom designs for heavy-duty dollies, material handlers, skid steers, and other construction vehicles, providing flexible attachment points for specialized tools, recovery equipment, or auxiliary trailers on job sites.
- Off-Road and Recreational Vehicles (RVs): For custom bumper fabrication, rock sliders, and recovery points on off-road vehicles (Jeeps, trucks, UTVs), as well as for modifying RV frames to carry cargo carriers, bike racks, or tow additional vehicles. Its robust nature is crucial for the extreme demands of off-road environments.
- Custom Trailer Fabrication: A core component for building heavy-duty utility trailers, car haulers, equipment trailers, and specialty trailers, where a precise, integrated receiver is required for various towing setups.
- Emergency and Public Service Vehicles: Used in fabricating specialized mounts for rescue equipment, winches, generators, and communication arrays on fire trucks, ambulances, and police vehicles, demanding ultimate reliability.
- Defense and Military Applications: Providing rugged attachment points for specialized tactical equipment, communication systems, and auxiliary towing capabilities on military support vehicles, where reliability under extreme conditions is non-negotiable.
The adaptability of this receiver tube makes it a preferred choice for fabricators who require a dependable, high-strength solution that can be tailored precisely to the unique demands of each project, ensuring safety, functionality, and longevity.
Quality Assurance and Performance Standards
Buyers Products is renowned for its commitment to manufacturing excellence and adherence to stringent quality control standards. This receiver tube, like all their products, undergoes rigorous inspection processes to ensure it meets the published specifications for dimensions, material composition, and structural integrity. While receiver tubes are components rather than complete towing systems, their design and manufacturing are informed by industry standards for towing equipment, such as those set forth by the Society of Automotive Engineers (SAE J684 for trailer hitches, for instance). This commitment ensures that when properly integrated into a custom assembly, the resulting towing system can meet or exceed expected performance benchmarks.
The precision in machining, especially for the receiver opening and hitch pin hole, is critical for achieving consistent performance and minimizing wear on both the receiver and the attached accessories. The consistent quality of the carbon steel and the integrity of the cast collar contribute directly to the product's ability to withstand repeated high-stress cycles, offering exceptional fatigue life. This translates to reduced maintenance, prolonged service life, and, most importantly, enhanced safety for the operator and towed cargo.
Installation Best Practices and Safety Considerations
Given its "Weld On" mount type, professional installation is not just recommended but imperative. Key considerations for a successful and safe installation include:
- Structural Analysis: Before welding, a thorough assessment of the vehicle's frame or mounting structure is necessary to ensure it possesses adequate strength and rigidity to support the intended loads. The receiver tube's strength must be matched by the strength of the base material.
- Precision Placement: Accurate alignment and positioning are crucial. The receiver tube must be level and properly centered to ensure correct geometry for towing and to prevent undue stress on the vehicle's chassis or the towed equipment.
- Welding Techniques: Utilize appropriate welding processes (e.g., GMAW, SMAW, GTAW) and filler metals compatible with carbon steel. Pre-heating may be necessary for thicker materials or in cold environments to prevent hydrogen cracking. Full penetration welds are generally recommended for maximum strength.
- Corrosion Protection: Post-welding, the entire exposed surface of the receiver tube and surrounding weld area should be thoroughly cleaned, prepped, and coated with a durable, weather-resistant finish (e.g., automotive-grade paint, powder coat, or galvanization) to prevent rust and extend service life, particularly given its plain finish.
- Load Capacity Verification: Once installed, the entire fabricated towing system should be rated according to industry standards, considering the weakest link in the system, to ensure safe operation within its specified gross trailer weight (GTW) and tongue weight (TW) limits.
- Regular Inspection: Fabricated towing points, like any critical safety component, should be regularly inspected for signs of wear, corrosion, or structural fatigue, especially after heavy use or exposure to harsh conditions.
Adherence to these practices ensures that the inherent strength and quality of the Buyers Products 3 Inch Plain Receiver Tube are fully realized in the final application, providing a reliable and safe towing solution.
Conclusion
The 3 Inch Plain Receiver Tube with an 8 Inch Shank from Buyers Products represents a pinnacle of engineering for custom heavy-duty towing and attachment fabrication. Its robust carbon steel construction, precision 3-inch receiver opening, reinforced cast steel collar, and solid stress collar opening are meticulously designed to deliver exceptional strength, durability, and operational safety. The plain finish facilitates seamless weld-on integration, allowing fabricators the flexibility to create bespoke solutions across a multitude of demanding industrial, commercial, and recreational applications. By choosing this component, professionals are investing in a foundational element that promises superior performance, longevity, and the peace of mind that comes from utilizing a product engineered to the highest standards of quality and reliability. It is an essential component for any project demanding custom-tailored, heavy-duty load-bearing capabilities.
