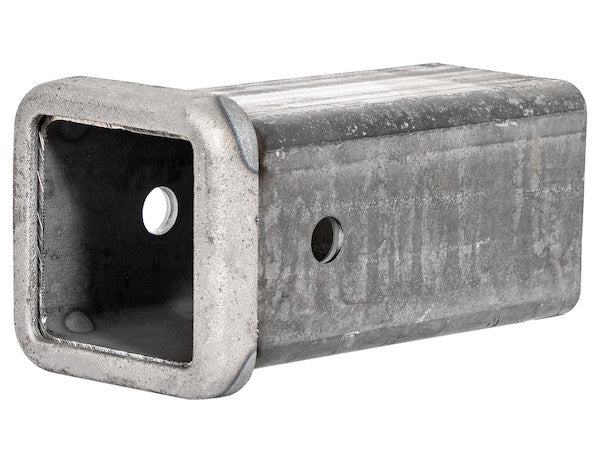

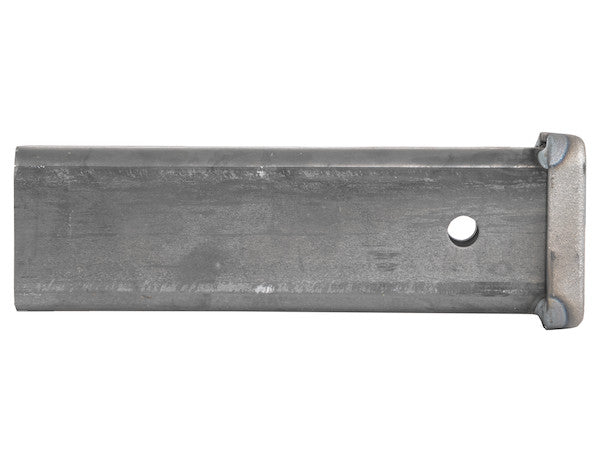

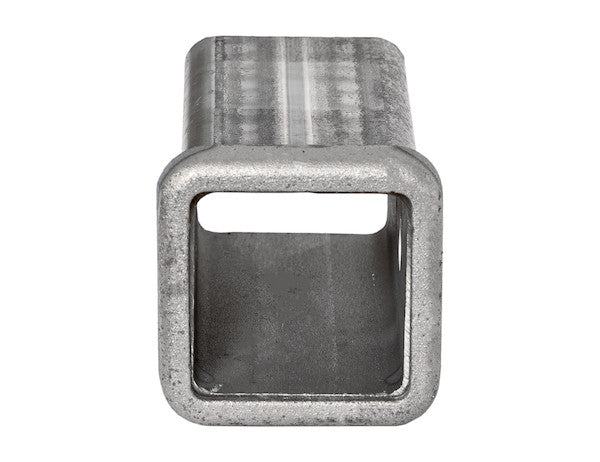

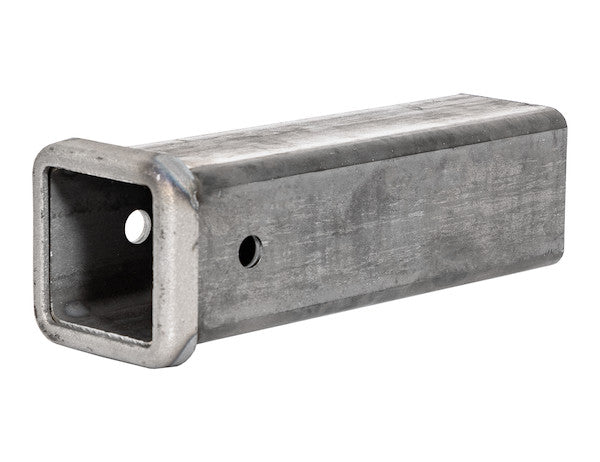

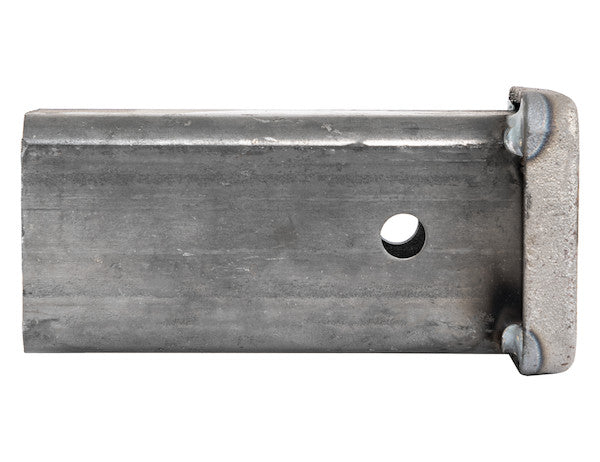

Receiver Tubes from Buyers Products are available in a variety of lengths, dimensions, and finishes to match your towing needs. The 2, 2-1/2, and 3 in. tubes have a cast steel collar. All tubes feature a solid stress collar opening. The 2, 2-1/2, and 3 in. tubes have a 5/8 in. hitch pin hole.
Specifications
| Finish | Plain |
|---|---|
| Length (in.) | 12.00 |
| Material | Carbon Steel |
| Mount Type | Weld On |
| Mounting Hole Size (in.) | 0.625 |
| Receiver Size (in.) | 3.00 |
Advanced Engineering and Fabrication of the 3-Inch Plain Receiver Tube with 12-Inch Shank
The Buyers Products 3-Inch Plain Receiver Tube with a 12-Inch Shank represents a critical component in the fabrication and customization of heavy-duty towing systems. Engineered for professional applications requiring robust, permanent integration, this weld-on receiver tube serves as the foundational interface for attaching various hitch-mounted accessories and drawbar assemblies. Its design, material specification, and dimensional precision are meticulously calibrated to meet the rigorous demands of commercial, industrial, agricultural, and specialized vehicle operations where reliability and structural integrity are paramount.
Receiver Tube Dimensions and Classification
The primary distinguishing feature of this product is its 3.00-inch (76.2 mm) receiver opening. This dimension places it firmly within the category of extra heavy-duty towing applications, typically associated with Class V hitches or specialized systems exceeding Class V capacities. While common recreational and light commercial towing predominantly utilizes 2.00-inch receivers, and medium-duty applications increasingly employ 2.50-inch receivers, the 3.00-inch standard signifies a substantial increase in load-bearing capability and inherent strength. This larger internal dimension accommodates robust drawbars, pintle hook combinations, weight distribution systems, and other accessories designed for significantly higher gross trailer weights (GTW) and tongue weights (TW). The larger cross-section of the receiver tube itself contributes to superior torsional rigidity and resistance to bending moments, which are critical factors when managing heavy, dynamic loads experienced during acceleration, braking, and cornering.
Optimal Shank Length for Structural Integration
With a specified length of 12.00 inches (304.8 mm), the shank of this receiver tube offers exceptional versatility for custom fabrication and deep structural integration. This extended length provides several key advantages for professional installers and manufacturers:
- Enhanced Frame Engagement: A longer shank allows the receiver tube to extend further into the vehicle's frame rails or crossmembers, facilitating a more distributed transfer of towing forces. This reduces localized stress concentrations and enhances the overall structural integrity of the hitch assembly when welded to multiple points.
- Custom Positioning: The 12-inch length provides greater flexibility in positioning the receiver opening relative to the vehicle's rear bumper or chassis, accommodating various vehicle designs, exhaust routing, and specific application requirements. It allows for precise alignment and optimal ground clearance.
- Increased Weld Surface Area: A longer shank naturally presents a greater surface area for welding. This is crucial for achieving high-strength, durable welds that can withstand the intense shear and tensile forces associated with heavy towing. Proper welding across a substantial length ensures a permanent bond that resists fatigue over time.
- Adaptability for Reinforcement: The extended shank can be more effectively integrated with supplementary reinforcement plates or gussets, further strengthening the connection to the vehicle's frame. This is often necessary for bespoke heavy-duty applications where maximum load ratings are pursued.
Material Composition: High-Strength Carbon Steel
The selection of Carbon Steel as the primary material for this receiver tube underscores its design for strength and durability. Carbon steel, known for its excellent tensile strength, yield strength, and toughness, is the industry standard for critical structural components in towing applications. While the exact grade of carbon steel (e.g., A36, A572, or similar structural steel alloys) is not specified, it is engineered to meet or exceed the mechanical properties required for demanding trailer hitch components. The material's inherent characteristics provide:
- High Load Capacity: Carbon steel offers the necessary strength to withstand the substantial static and dynamic loads imposed during towing, including vertical tongue weight, horizontal pulling forces, and sudden impact loads.
- Fatigue Resistance: Repeated stress cycles from towing can lead to material fatigue. Appropriately selected carbon steel exhibits good fatigue resistance, ensuring the longevity and reliability of the receiver tube over thousands of miles and years of service.
- Weldability: A key advantage of carbon steel, particularly in a "weld-on" application, is its excellent weldability. This allows for strong, metallurgical bonds to be formed with compatible steel chassis components, provided appropriate welding procedures are followed (e.g., preheating, filler material selection, post-weld cooling, and inspection).
- Impact Toughness: In real-world towing scenarios, impacts from road debris, uneven terrain, or accidental contact can occur. Carbon steel possesses sufficient impact toughness to resist brittle fracture under these conditions.
"Plain" Finish for Superior Welding and Customization
The "Plain" finish of this receiver tube is a deliberate and advantageous characteristic for its intended weld-on application. A plain finish signifies that the carbon steel is provided in its raw, uncoated state, typically with only a light layer of mill scale or protective oil. This choice offers several critical benefits for fabricators:
- Optimal Weld Penetration: The absence of paint, powder coating, or galvanization eliminates the need for extensive surface preparation prior to welding. Contaminants such as zinc from galvanizing or organic compounds from paint can interfere with the welding process, leading to porosity, weak welds, and toxic fumes. A plain finish ensures clean base metal, promoting superior weld penetration, stronger metallurgical bonds, and consistent weld quality.
- Cost-Effectiveness: Omitting a factory-applied finish reduces manufacturing costs, which can translate into a more economically priced component for the end-user. The cost savings allow fabricators to apply their preferred post-installation protective coatings.
- Custom Corrosion Protection: After the receiver tube has been expertly welded into place, the entire assembly, including the welds and surrounding frame, can be prepped and coated simultaneously. This allows for a continuous, uniform protective layer — such as industrial-grade paint, specialized primers, or even powder coating — to be applied to the finished product. This holistic approach to corrosion protection is often superior to attempting to coat individual components separately.
The Advantages of a Weld-On Mount Type
The specification of a "Weld On" mount type is central to the robust and permanent nature of this receiver tube. Unlike bolt-on hitches, which rely on mechanical fasteners and specific frame attachment points, weld-on receivers offer unparalleled strength and customization:
- Superior Structural Integration: Welding permanently fuses the receiver tube to the vehicle's frame or crossmembers, creating a monolithic structure. This eliminates potential points of failure associated with bolted connections, such as bolt loosening, shear failure of bolts, or deformation of mounting tabs.
- Maximized Load Transfer: Forces are distributed directly and continuously into the vehicle’s chassis, leading to a more efficient and stronger load transfer path. This minimizes stress concentrations that can occur around bolt holes in bolt-on designs.
- Custom Fabrication Versatility: Weld-on receivers are ideal for custom chassis builders, upfitters, and heavy-duty equipment manufacturers who require bespoke hitch solutions. They allow for precise positioning and integration into non-standard vehicle frames, specialty trailers, or industrial machinery where off-the-shelf bolt-on solutions are inadequate or unavailable.
- Reduced Maintenance: Once properly welded, the connection is permanent and does not require periodic tightening or inspection for fastener integrity, which can be a maintenance concern with heavily loaded bolt-on systems.
- Durability in Demanding Environments: In environments subjected to extreme vibration, shock, or off-road conditions, a weld-on connection maintains its integrity far more effectively than bolted joints, which can loosen or fail under prolonged dynamic stress.
Precision 5/8 Inch Hitch Pin Hole and Solid Stress Collar Opening
The receiver tube features a 0.625 inch (5/8 inch / 15.875 mm) hitch pin hole. This is the industry-standard diameter for the securing pin in heavy-duty 2-inch, 2-1/2-inch, and 3-inch receiver systems. The precise diameter ensures a secure fit for appropriately rated hitch pins, preventing excessive slop between the receiver and the drawbar or accessory shank. The correct selection of a hitch pin — whether a standard pin and clip, a locking pin, or a specialized anti-rattle device — is crucial for safety and operational stability.

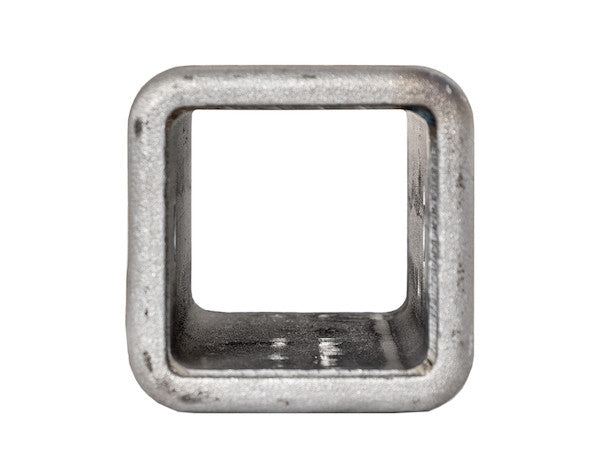

A distinctive and vital feature of Buyers Products receiver tubes, particularly in the 2, 2-1/2, and 3-inch classes, is the inclusion of a cast steel collar. This collar is not merely an aesthetic addition but a critical engineering element designed for enhanced structural performance. Unlike receivers that might use a simple formed or welded sheet metal opening, the cast steel collar provides:
- Reinforced Opening: Casting allows for the creation of complex, optimized geometries that are exceptionally strong. The collar effectively reinforces the opening of the receiver tube, which is a high-stress area where accessories are inserted and dynamic forces are concentrated.
- Improved Load Distribution: It helps distribute localized stress concentrations around the opening, preventing deformation, ovalization, or cracking of the receiver tube under heavy vertical and torsional loads.
- Enhanced Durability: The inherent strength and density of cast steel provide superior wear resistance to the forces exerted by inserting and removing hitch accessories over time, ensuring the long-term integrity of the receiver opening.
- Solid Stress Collar Opening: Complementing the cast collar is the design of a "solid stress collar opening." This refers to the robust, continuous nature of the reinforced area, specifically engineered to withstand extreme pulling, pushing, and rotational forces without yielding. It is a testament to the attention to detail in minimizing fatigue and maximizing the operational lifespan of the receiver tube in demanding applications.
Applications and Target Markets
The 3-Inch Plain Receiver Tube with a 12-Inch Shank from Buyers Products is indispensable for a wide array of heavy-duty applications, serving specific markets with specialized needs:
- Commercial Truck Upfitting: Essential for heavy-duty pickup trucks, chassis cabs, and medium-duty trucks used in construction, landscaping, utility services, and transportation for towing large trailers, equipment haulers, or specialized attachments.
- Trailer Manufacturing: Integral for building custom gooseneck, fifth-wheel conversion, and heavy equipment trailers that require a robust frame-integrated receiver for various purposes.
- Agricultural Equipment: Used in the fabrication of implements, specialty tractors, and farm support vehicles that require strong attachment points for various towed or mounted agricultural tools.
- Industrial Machinery: Integration into custom industrial carts, specialized motive equipment, or static installations where heavy lifting or pulling points are required.
- Emergency and Fleet Vehicles: For fire apparatus, municipal vehicles, and other specialized fleets that often carry significant loads or require versatile attachment points for rescue equipment or supplementary apparatus.
- Custom Vehicle Fabrication: Utilized by custom builders and engineers designing unique vehicles or modifying existing platforms for specific heavy-duty tasks that exceed standard towing capacities.
Compliance and Professional Installation
While this receiver tube is a component and not a complete hitch system, its ultimate performance and safety are intrinsically linked to its proper integration. Professional installation by qualified technicians is paramount. Adherence to vehicle manufacturer's recommendations, relevant SAE standards (such as SAE J684 for trailer hitches, where applicable to the overall system design), and best welding practices (e.g., AWS D1.1) is critical. The final load rating of any fabricated hitch system will depend on the weakest link, which includes not only the receiver tube itself but also the vehicle frame it's attached to, the quality of the welds, the hitch pin, the drawbar, and the trailer coupling. Engineers and fabricators must calculate and verify the complete system's capacity, ensuring compliance with all regulatory requirements and safety factors.
Conclusion
The Buyers Products 3-Inch Plain Receiver Tube with a 12-Inch Shank embodies robust engineering and practical design for the most demanding towing and fabrication requirements. Its heavy-duty 3-inch dimension, extended 12-inch shank, high-strength carbon steel construction, weld-optimized plain finish, and reinforced cast steel collar collectively position it as the preferred choice for professionals seeking uncompromising strength, customizability, and long-term reliability in their heavy-duty applications. As a foundational element in custom hitch systems, this receiver tube provides the essential interface for securely and safely managing the heaviest loads, reflecting Buyers Products' commitment to quality and performance in the commercial vehicle and trailer equipment industry.
