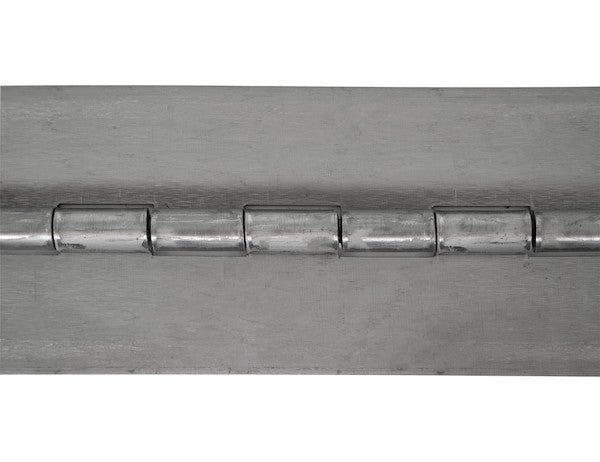

Buyers Products Steel Continuous Hinge is ideal for any application that sees frequent use or more potential for wear and tear. The hinge evenly distributes weight down the length of the lid or door, keeping it in position and minimizing stress. The hinge features equal leaves and comes stocked in 72 in. lengths and a variety of widths, thicknesses, and gauges to meet your needs. They can be cut to size as needed. Longer (96 in.) lengths are available by special order. Steel pins are standard with the hinge. Stainless steel or brass pins are also available by special order. Please contact Customer Service for further information.
Specifications
| Gauge | 11 |
|---|---|
| Hinge Length | 72.0 |
| Hinge Width | 2.00 |
| Knuckle Length (in.) | 2.00 |
| Leaf Width | 1.00 |
| Open Width (in.) | 2.00 |
| Pin Diameter (in.) | 3/8 |
| Thickness (in.) | .120 |
Advanced Engineering and Performance of the .120 x 72 Inch Steel Continuous Hinge
The Buyers Products Steel Continuous Hinge, specified at .120 inches (or 11 gauge) thickness, 72 inches in length, with a 3/8-inch pin and a 2.0-inch open width, represents a robust and highly durable solution for a broad spectrum of industrial and commercial applications. This detailed technical exposition aims to elucidate the intricate engineering, material science, and functional advantages inherent in this particular hinge design, positioning it as an indispensable component where strength, longevity, and consistent performance are paramount.
Material Science and Structural Integrity: The Choice of Steel
The selection of steel as the primary material for this continuous hinge is fundamental to its superior performance characteristics. Steel, an alloy predominantly composed of iron with a small percentage of carbon, is renowned for its exceptional tensile strength, yield strength, and inherent toughness. The .120 inch (approximately 3.048 mm) thickness, corresponding to an 11-gauge standard, signifies a significant material cross-section, which directly translates to enhanced structural rigidity and load-bearing capacity. This gauge choice is crucial for applications involving substantial weight, frequent operational cycles, or environments subjected to considerable mechanical stress and vibration.
The specific grade of steel employed, typically cold-rolled steel for precision and surface finish, or hot-rolled steel for more demanding structural applications, offers a balance of formability during manufacturing and robust integrity in service. The inherent hardness and resistance to deformation make it an ideal candidate for continuous hinges, where consistent articulation and resistance to plastic deformation under repeated stress are critical. Furthermore, steel, when properly specified and potentially treated, exhibits good fatigue resistance, ensuring a prolonged operational life even under cyclic loading conditions. While raw steel is susceptible to corrosion, especially in moisture-rich or chemically aggressive environments, standard protective coatings such such as zinc plating or electrophoretic deposition (E-coating) are often applied to enhance its environmental resilience and extend its service life, safeguarding the underlying ferrous material from oxidative degradation. These coatings provide a sacrificial layer or a physical barrier, significantly improving the hinge's resistance to rust and maintaining its aesthetic and structural integrity over time.
The Mechanics of Continuous Hinge Design
Unlike traditional butt hinges, which provide localized points of support, the continuous hinge, often referred to as a piano hinge, distributes the load uniformly across the entire length of the joined members. This intrinsic design characteristic is the cornerstone of its exceptional durability and functional superiority in demanding applications. The 72-inch length of this particular hinge ensures a seamless, unbroken connection along the edge of a door, lid, or panel.
The primary advantage of this continuous load distribution is the dramatic reduction of stress concentrations. In a butt hinge application, stress is localized at the hinge's mounting points and pivots, leading to potential deformation of the substrate, fastener pull-out, or premature hinge failure. A continuous hinge, by effectively transforming a series of discrete pivots into a monolithic load-bearing surface, minimizes these stress risers. This results in superior structural support, preventing warping or sagging of the hinged component and maintaining precise alignment over its operational lifespan. The uniform distribution of force also means that the hinge itself experiences lower peak stresses, contributing to its extended fatigue life.
Moreover, the continuous nature provides enhanced security, creating a full-length barrier that is significantly harder to pry open compared to multiple butt hinges. It also offers improved sealing capabilities when paired with appropriate gasketing, effectively mitigating the ingress of dust, moisture, and sound, which is vital for enclosures protecting sensitive equipment or maintaining environmental control. The kinematic motion provided by a continuous hinge is exceptionally smooth and consistent, reducing friction and wear across the pivot points, further contributing to its longevity and operational efficiency.
Detailed Dimensional Analysis and Performance Implications
The specific dimensions of this continuous hinge — .120 inch thickness, 72-inch length, 3/8-inch pin, and 2.0-inch open width — are not arbitrary but are carefully selected to optimize performance for heavy-duty requirements.
Thickness (.120 inch / 11 Gauge):
As previously highlighted, the .120-inch thickness is a critical indicator of the hinge's strength. This substantial gauge material provides significantly higher moment of inertia and cross-sectional area compared to thinner gauges, directly correlating to superior resistance against bending, twisting, and shear forces. This robust construction is imperative for supporting heavy doors or lids, resisting impact, and enduring the rigors of industrial use. The increased material volume also contributes to better dissipation of localized stresses and improved wear characteristics at the pivot points, extending the overall service life of the hinge even under high-frequency operation.
Length (72 Inches):
The standard 72-inch length (1.83 meters) is designed to accommodate a wide range of common industrial and commercial applications, providing full-length support for most standard-sized panels and doors. This extended length is instrumental in achieving the continuous load distribution benefits. For specialized applications requiring even greater spans, the availability of 96-inch (2.44 meters) lengths by special order underscores the product's adaptability. Furthermore, the ability to cut these hinges to precise, custom lengths on-site or during fabrication offers unparalleled flexibility, allowing engineers and fabricators to tailor the hinge exactly to their specific design requirements without compromising the continuous support principle.
Open Width (2.0 Inches) and Leaf Configuration:
The 2.0-inch open width (or overall hinge width when fully extended) dictates the total span of the hinge. With equal leaves, this means each leaf is 1.0 inch wide. This dimension is crucial for mounting considerations, fastener selection, and clearance requirements. A 1.0-inch leaf width provides ample surface area for secure fastening to the mating surfaces, whether through welding, rivets, or screws. The specific open width must be carefully considered during the design phase to ensure proper articulation and clearance for the hinged component, especially when dealing with thick panels or complex geometries. It influences the throw of the door or lid and the distance it stands off from the mounting surface when closed. The knuckle length of 2.0 inches, in conjunction with the open width, determines the specific articulation radius and the geometric interaction of the hinge components, ensuring smooth and consistent rotational movement.
Pin Diameter (3/8 inch):
The 3/8-inch (approximately 9.525 mm) pin diameter is a key determinant of the hinge's shear strength and wear resistance. A larger diameter pin offers significantly greater resistance to shear forces, which are the primary stresses experienced by the pin during hinge operation. This substantial pin diameter is indicative of the hinge's heavy-duty rating, preventing pin deformation or failure under high loads or impacts. The pin material, standard steel, offers excellent mechanical properties suitable for demanding environments. For enhanced corrosion resistance or specific aesthetic requirements, the option of stainless steel or brass pins by special order provides additional versatility. Stainless steel pins offer superior resistance to rust and chemicals, making them ideal for outdoor, marine, or corrosive industrial settings. Brass pins, while less robust than steel, offer excellent corrosion resistance and a distinct aesthetic, often preferred in architectural or specialized applications where non-sparking properties may also be a consideration.
Performance Characteristics and Durability
The combination of heavy-gauge steel, a robust pin, and continuous design imbues this hinge with exceptional performance characteristics:
High Load Capacity: Capable of supporting substantial weights without sagging, deforming, or exhibiting premature wear, making it suitable for industrial machinery access panels, heavy utility vehicle compartments, and robust security enclosures.
Superior Durability: The inherent strength of the steel and the uniform stress distribution significantly extend the operational life of the hinge, even in high-frequency use scenarios. Resistance to fatigue failure under cyclic loading is a critical advantage.
Enhanced Security: The full-length design effectively eliminates pry points, making it significantly more difficult to tamper with or forcibly open hinged components, crucial for secure storage or access points.
Smooth Operation: The precisely manufactured knuckles and substantial pin diameter ensure a consistent and fluid rotational motion, minimizing friction and wear, leading to prolonged smooth functionality without binding or creaking.
Environmental Resilience: While basic steel requires protection against corrosion, the fundamental strength allows for a range of surface treatments (e.g., plating, powder coating) to be applied without compromising structural integrity, tailoring the hinge for specific environmental exposures.
Applications Across Diverse Industries
The robust specifications and inherent advantages of this .120 x 72-inch steel continuous hinge make it suitable for an expansive array of demanding applications across various sectors:
Industrial Machinery and Equipment: Access panels, safety guards, inspection doors, and enclosure lids on heavy machinery, where durability and security are paramount.
Commercial and Utility Vehicles: Toolboxes, storage compartments, trailer doors, and cargo access points on trucks, vans, and specialty vehicles, requiring components that withstand constant vibration and impact.
Heavy-Duty Cabinets and Enclosures: Electrical panels, server racks, outdoor utility boxes, and secure storage units that necessitate robust, full-length support and enhanced security against unauthorized access.
Architectural and Commercial Doors: Heavy-duty security doors, fire-rated doors, and large entryways in commercial buildings, schools, and hospitals where continuous support and long-term reliability are crucial for high-traffic environments.
Marine and Offshore Applications: Although basic steel requires robust corrosion protection for these environments, the structural integrity of the base hinge is ideal for hatches, access panels, and storage locker lids on large vessels or offshore platforms, often with stainless steel pin upgrades.
Construction and Agricultural Equipment: Access panels, fuel tank lids, and component covers on heavy equipment, demanding components that can withstand harsh outdoor conditions and significant operational stress.
Installation and Integration Guidelines
Proper installation is paramount to leveraging the full potential of this continuous hinge. Due to its length and the distributed load principle, careful consideration of fastener type, spacing, and alignment is crucial. For heavy-duty applications, through-bolting with appropriate washers and nuts is often recommended to ensure maximum pull-out resistance and shear strength. Alternatively, robust self-tapping screws designed for metal substrates, or rivets, can be utilized for applications with moderate loads. Fasteners should be spaced evenly along the entire length of the hinge leaves, typically every 4-6 inches, to maintain uniform load distribution and prevent localized stress points. Precise alignment during installation is critical to ensure smooth, bind-free operation and to maximize the hinge's service life. Fabrication techniques such as welding, particularly for industrial enclosures, offer the strongest possible attachment, integrating the hinge seamlessly into the overall structure.
Maintenance and Longevity
While inherently durable, routine inspection and minimal maintenance can further extend the service life of the steel continuous hinge. Regular cleaning to remove debris, dust, or corrosive residues, especially in industrial environments, is recommended. Periodic lubrication of the pin and knuckle areas with a suitable industrial-grade lubricant can reduce friction, minimize wear, and ensure consistently smooth operation. For hinges operating in extremely harsh or corrosive environments, a more rigorous maintenance schedule, potentially involving re-application of protective coatings, may be advisable.
Customization and Special Orders
The availability of longer (96-inch) lengths by special order provides flexibility for larger projects. Furthermore, the option to specify stainless steel or brass pins allows for tailoring the hinge's performance and aesthetic to meet highly specific environmental or application requirements. This level of customization underscores the product's adaptability as a versatile engineering component.
Conclusion
The Steel Continuous Hinge, with its precise specifications of .120 inch thickness, 72-inch length, 3/8-inch pin, and 2.0-inch open width, is a meticulously engineered component designed for superior performance in demanding environments. Its foundation in robust steel, combined with the inherent mechanical advantages of a continuous design, ensures unparalleled load distribution, enhanced durability, and extended operational life. From heavy industrial machinery to secure commercial enclosures, this hinge provides a reliable, high-integrity solution for applications where strength, stability, and enduring functionality are non-negotiable. Its technical attributes position it as a critical element in the design and fabrication of equipment and structures that require steadfast mechanical articulation and security.
