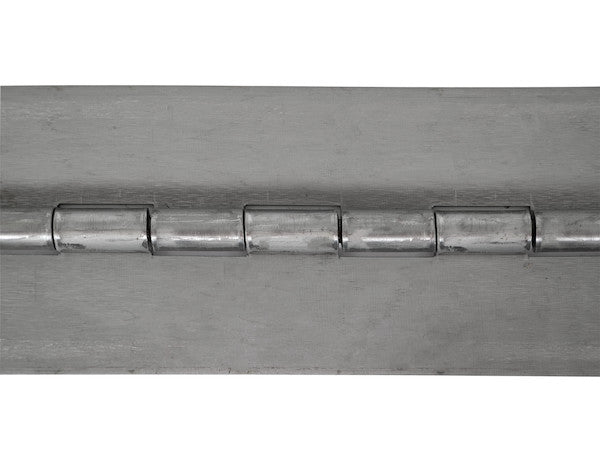

Buyers Products Steel Continuous Hinge is ideal for any application that sees frequent use or more potential for wear and tear. The hinge evenly distributes weight down the length of the lid or door, keeping it in position and minimizing stress. The hinge features equal leaves and comes stocked in 72 in. lengths and a variety of widths, thicknesses, and gauges to meet your needs. They can be cut to size as needed. Longer (96 in.) lengths are available by special order. Steel pins are standard with the hinge. Stainless steel or brass pins are also available by special order. Please contact Customer Service for further information.
Specifications
| Gauge | 11 |
|---|---|
| Hinge Length | 72.0 |
| Hinge Width | 3.00 |
| Knuckle Length (in.) | 2.00 |
| Leaf Width | 1.50 |
| Open Width (in.) | 3.00 |
| Pin Diameter (in.) | 3/8 |
| Thickness (in.) | .120 |
The Steel Continuous Hinge, precisely engineered with a .120 inch thickness, 72-inch length, 3/8-inch pin diameter, and a 3.0-inch open width, represents a robust solution for demanding mechanical articulation requirements. This technical description delves into the specific design, material science, performance characteristics, and application considerations that position this hinge as a superior choice for industrial and heavy-duty applications. Its inherent design addresses critical challenges associated with load distribution, structural integrity, and long-term operational reliability, particularly in environments prone to frequent use and substantial mechanical stress.
Engineering Principles of Continuous Hinges
Unlike traditional butt hinges, which concentrate load at discrete pivot points, the continuous hinge, often referred to as a piano hinge, distributes weight uniformly along the entire length of the hinged component. This fundamental design advantage minimizes localized stress concentrations on both the hinge itself and the mating surfaces of the door or lid and its frame. The result is a significantly reduced propensity for warping, sagging, or material fatigue over time. The 72-inch length of this particular hinge, combined with its robust construction, ensures an extended bearing surface that contributes to unparalleled stability and rigidity for large or heavy panels. This even distribution of forces enhances the operational lifespan of the hinged assembly, maintains precise alignment, and ensures a consistently smooth and controlled rotational movement.
Material Specification: High-Strength Steel
The selection of steel as the primary material for this continuous hinge is paramount to its performance profile. With a thickness of .120 inches, corresponding to an 11-gauge specification, the steel utilized offers an exceptional balance of strength, rigidity, and ductility. Steel, primarily carbon steel in this application, is renowned for its high tensile strength and yield strength, properties critical for resisting deformation under static and dynamic loads. The material's inherent hardness provides excellent resistance to abrasion and wear, which is a key consideration for applications experiencing frequent cycling. While general carbon steel exhibits good resistance to mechanical wear, it is important to note that its corrosion resistance is lower than that of stainless steel. For environments where moisture, chemicals, or atmospheric corrosives are prevalent, users may consider supplementary protective coatings or the special order pin material options. The structural integrity provided by the .120-inch steel ensures that the hinge maintains its geometric configuration even under significant torsional or bending moments, preventing misalignment and preserving the functional clearances of the hinged system.
Dimensional and Geometric Analysis
Thickness (.120 inch / 11 Gauge)
The .120-inch thickness of the hinge leaves is a defining characteristic that dictates its load-bearing capacity and resistance to deformation. This heavy gauge material is substantially more robust than hinges designed for lighter applications, enabling the support of heavy doors, access panels, and equipment enclosures without exhibiting material fatigue or permanent bending. The increased material cross-section provides a higher moment of inertia, translating directly into superior stiffness and stability. This is particularly critical in applications where the hinged component might be subjected to impact forces, vibrations, or cantilevered loads.
Hinge Length (72 inches)
The substantial 72-inch length (6 feet) provides comprehensive support across the entirety of most standard industrial doors or panels. This extended length is crucial for achieving the full benefits of a continuous hinge, specifically the uniform load distribution and resistance to localized stress points. For applications requiring lengths beyond 72 inches, the availability of 96-inch lengths via special order further expands the versatility of this product line, accommodating even larger architectural or industrial structures. Conversely, the ability to cut these hinges to shorter, custom sizes as needed offers significant flexibility for bespoke projects, allowing engineers and fabricators to precisely tailor the hinge to their specific application dimensions without compromising on material quality or structural integrity.
Pin Diameter (3/8 inch)
The 3/8-inch diameter steel pin is a critical component influencing the shear strength and rotational stability of the hinge. A larger pin diameter provides a greater cross-sectional area, which directly translates to a higher shear strength, making the hinge more resilient against forces that attempt to dislodge or break the pin. Furthermore, a robust pin minimizes wear in the knuckle bore over extended operational cycles, contributing to the hinge's longevity and maintaining smooth articulation. The pin acts as the central pivot around which the leaves rotate, and its material integrity is paramount for preventing premature failure or degradation of hinge performance. Standard steel pins offer excellent strength and durability for most applications. However, for specialized environments, special order options such as stainless steel or brass pins are available. Stainless steel pins offer superior corrosion resistance, making them ideal for marine, chemical processing, or outdoor applications. Brass pins, while also offering good corrosion resistance, are primarily chosen for their aesthetic appeal, non-magnetic properties, or reduced friction characteristics in specific low-load, high-cycle scenarios.
Open Width (3.0 inches) and Leaf Width (1.5 inches)
The 3.0-inch open width refers to the total dimension of the hinge when laid flat and fully extended. With equal leaves, each leaf measures 1.5 inches in width. This symmetrical design ensures balanced mounting and load transfer to both the door/lid and the frame. The leaf width is a crucial parameter for determining the surface area available for fastener installation (e.g., screws, bolts, rivets) or welding. A 1.5-inch leaf provides ample surface for secure attachment, ensuring that the hinge is firmly integrated into the overall assembly. The 3.0-inch open width also dictates the clearance required for full angular rotation, ensuring that the hinged components can open to their maximum intended extent without obstruction.
Knuckle Length (2.00 inches)
The 2.00-inch knuckle length refers to the individual segment of the hinge that forms the cylindrical barrel around the pin. For a 72-inch hinge, this translates to 36 knuckles (72 inches / 2 inches per knuckle). The density of knuckles along the hinge length is a direct indicator of its strength and resistance to deflection. A shorter knuckle length (meaning more knuckles per given length) contributes to a more rigid hinge structure, providing greater support and minimizing any potential for "play" or lateral movement. This design enhances the hinge's ability to resist buckling and maintains a consistent pivot axis, leading to smoother operation and extended service life. The tight spacing of knuckles ensures that the load is distributed over a finely articulated series of pivot points, further reducing stress on individual components.
Performance and Durability Attributes
Enhanced Durability for Frequent Use
This continuous hinge is specifically engineered for applications that experience frequent cycling. The combination of heavy-gauge steel, a robust 3/8-inch pin, and evenly distributed knuckles ensures that the hinge withstands the repetitive stresses of opening and closing without premature wear or structural degradation. The large bearing surface area of the knuckles around the pin minimizes concentrated friction, contributing to a longer operational life even under high-cycle conditions.
Superior Weight Distribution and Stress Minimization
A primary advantage of the continuous hinge is its unparalleled ability to distribute the weight of the hinged component evenly across its entire length. This characteristic significantly reduces the localized stress points that are common with discrete hinges. By spreading the load, the hinge minimizes the potential for material fatigue in both the hinge itself and the mounting substrates, thereby preventing common issues such as sagging doors, warped lids, or fastener pull-out over time. This even distribution also contributes to maintaining the structural integrity of the overall assembly, ensuring components remain in their intended position.
Resistance to Wear and Tear
The robust construction, particularly the 11-gauge steel and 3/8-inch pin, provides exceptional resistance to wear and tear. The hardness of the steel, combined with the generous bearing surface within each knuckle, resists abrasive wear from continuous motion. The substantial pin diameter further contributes by minimizing deformation under shear stress, preserving the integrity of the pivot mechanism over tens of thousands of cycles. For specific environments demanding even greater wear resistance or reduced friction, alternative pin materials like brass can be specified.
Versatile Application Spectrum
The inherent strength and reliability of this steel continuous hinge make it suitable for a diverse range of demanding applications across various industries:
- Industrial Machinery and Equipment: Ideal for heavy access panels, protective guards, and enclosure doors on manufacturing equipment, agricultural machinery, and construction vehicles where robust support and frequent access are required.
- Commercial and Security Doors: Provides enhanced security and durability for commercial entrance doors, utility access doors, and server cabinet doors, especially where resistance to forced entry or heavy usage is a concern.
- Vehicle Body and Trailer Construction: Frequently employed in the fabrication of truck bodies, utility trailers, RVs, and specialized vehicles for compartment doors, storage boxes, and ramp gates, enduring vibrations and road shock.
- Furniture and Cabinetry (Heavy-Duty): For large, heavy cabinet doors, workbenches with hinged tops, or custom storage solutions in industrial settings where standard hardware would fail.
- Architectural and Commercial Casework: Suitable for large, heavy panels in libraries, laboratories, and educational institutions, providing long-term structural support.
- Custom Fabrication Projects: Its adaptable nature and the ability to be cut to size make it an invaluable component for bespoke fabrication, from specialized enclosures to unique articulated structures.
Installation and Integration Considerations
Successful integration of this continuous hinge requires careful consideration of mounting methods and proper alignment. Given its heavy-duty nature, strong attachment methods are recommended:
- Fasteners: For bolted or screwed connections, the .120-inch thick leaves provide ample material for tapping or through-bolting. Due to the high loads these hinges can support, the use of high-strength fasteners (e.g., Grade 8 bolts, structural rivets) is often advisable. Pre-drilling appropriate pilot holes for screws or clearance holes for bolts is essential to prevent material distortion and ensure optimal load transfer. The uniform distribution of fastener points along the hinge length contributes to the overall strength of the attachment.
- Welding: For permanent and extremely high-strength installations, particularly in steel structures or heavy equipment, welding the hinge directly to the mating components is an excellent option. The steel composition is highly conducive to various welding processes (e.g., MIG, TIG, Stick welding). Proper welding techniques, including appropriate heat input and filler material, are crucial to maintain the hinge's structural integrity and prevent distortion.
Accurate alignment during installation is paramount to ensure smooth, unhindered operation and to maximize the lifespan of the hinge. Misalignment can introduce unintended stresses, increase friction, and lead to premature wear or binding.
Customization and Ordering Flexibility
Recognizing the diverse requirements of industrial applications, Buyers Products offers significant flexibility in product specification. While the 72-inch length is a readily available stock item, the capability to be cut to size by the end-user facilitates precise adaptation to specific project dimensions, minimizing waste and simplifying inventory management. For projects requiring greater span, 96-inch lengths are available by special order, catering to exceptionally wide or tall hinged components. Furthermore, the option to specify stainless steel or brass pins via special order allows for tailoring the hinge's performance characteristics to corrosive environments, specific aesthetic demands, or particular friction requirements, ensuring optimal material compatibility for highly specialized applications. Customers are encouraged to contact Customer Service for detailed information regarding custom orders, lead times, and technical consultations.
Quality Assurance and Manufacturing Excellence
Each Steel Continuous Hinge is manufactured to stringent quality standards, ensuring consistency in material properties, dimensional accuracy, and overall structural integrity. The manufacturing processes involve precision forming and strict quality control measures to produce hinges that meet or exceed industry expectations for performance and durability. This commitment to quality guarantees that each hinge functions reliably throughout its intended service life, providing dependable articulation and support for critical applications. The robust design and meticulous fabrication contribute to a product that consistently performs in challenging operational environments, minimizing downtime and maintenance requirements.
Conclusion
The Steel Continuous Hinge, with its precise .120-inch thickness, practical 72-inch length, robust 3/8-inch pin, and functional 3.0-inch open width, stands as an exemplar of engineered durability and reliability. Its design leverages the inherent advantages of continuous hinges for superior load distribution and stress mitigation, while the selection of heavy-gauge steel ensures high strength and resistance to wear. From heavy machinery to commercial security, its versatile application profile is supported by a robust construction tailored for frequent use and demanding environments. The provision for customization, including cut-to-size options and special order pin materials, further enhances its adaptability for specific engineering challenges. For professionals requiring a hinge that delivers unwavering performance, structural integrity, and prolonged operational life under strenuous conditions, this steel continuous hinge presents an optimal and technically sound solution.
