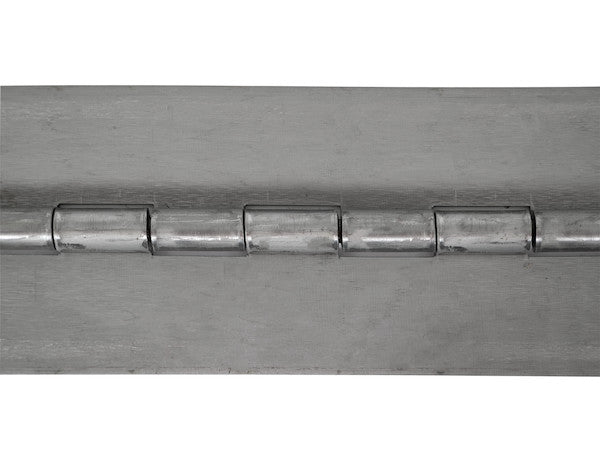

Buyers Products Steel Continuous Hinge is ideal for any application that sees frequent use or more potential for wear and tear. The hinge evenly distributes weight down the length of the lid or door, keeping it in position and minimizing stress. The hinge features equal leaves and comes stocked in 72 in. lengths and a variety of widths, thicknesses, and gauges to meet your needs. They can be cut to size as needed. Longer (96 in.) lengths are available by special order. Steel pins are standard with the hinge. Stainless steel or brass pins are also available by special order. Please contact Customer Service for further information.
Specifications
| Gauge | 7 |
|---|---|
| Hinge Length | 72.0 |
| Hinge Width | 4.00 |
| Knuckle Length (in.) | 2.00 |
| Leaf Width | 2.00 |
| Open Width (in.) | 4.00 |
| Pin Diameter (in.) | 1/2 |
| Thickness (in.) | .187 |
Advanced Technical Overview: Buyers Products Heavy-Duty Steel Continuous Hinge
The Buyers Products Steel Continuous Hinge, featuring a robust .187-inch (7 Gauge) thickness, 72-inch length, 1/2-inch pin, and 4.0-inch open width, represents a superior engineering solution for demanding applications requiring exceptional durability, consistent load distribution, and extended operational longevity. This detailed exposition delves into the material science, structural mechanics, application versatility, and technical specifications that underscore the value and performance of this heavy-duty hinge.
Material Science and Structural Integrity
At the core of this continuous hinge's exceptional performance is its construction from high-grade steel. Steel is an alloy primarily composed of iron and carbon, renowned for its outstanding strength-to-weight ratio, high tensile strength, and excellent resistance to deformation under stress. The specific gauge of .187 inches (7 Gauge) signifies a substantial material thickness, which is critical for applications subjected to significant mechanical loads, frequent cycling, or environments prone to impact and abrasion. This thickness ensures the hinge leaves possess a high moment of inertia, resisting bending and twisting forces more effectively than thinner alternatives. The inherent ductility of steel also contributes to its resilience, allowing it to absorb energy and flex under extreme conditions without catastrophic failure, thereby extending the lifespan of both the hinge and the components it supports.
The selection of steel as the primary material provides a cost-effective balance between performance and economic viability for a wide range of industrial and commercial applications. While standard steel offers robust mechanical properties, it is susceptible to corrosion. Therefore, for environments with high humidity, exposure to chemicals, or outdoor conditions, appropriate surface treatments such as painting, powder coating, or galvanization are highly recommended to enhance its corrosion resistance and preserve its structural integrity over time. The availability of specialized pin materials, such as stainless steel or brass, further extends the hinge's adaptability to corrosive environments, providing localized corrosion protection at the critical pivot point.
Precision Engineering and Dimensional Specifications
Each dimension of this continuous hinge is meticulously engineered to contribute to its overall performance:
- Thickness (.187 inches / 7 Gauge): This substantial thickness is central to the hinge's heavy-duty classification. It provides exceptional resistance to sag, warp, and fatigue, ensuring that even under continuous heavy loads, the structural integrity of the assembly is maintained. This gauge is particularly suited for applications where the supported element, such as a heavy door or lid, exerts considerable leverage.
- Hinge Length (72 inches): The standard 72-inch length offers extensive coverage for a wide array of applications, from long access panels to robust equipment enclosures. This extended length is crucial for achieving the primary benefit of continuous hinges: uniform load distribution. Furthermore, the inherent design allows for precise field customization; the hinge can be cut to specific lengths using appropriate industrial tooling, minimizing waste and simplifying installation for non-standard dimensions. For projects requiring even greater spans, 96-inch lengths are available by special order, catering to unusually large structural components.
- Open Width (4.0 inches): The 4.0-inch open width dictates the total span from the outer edge of one leaf to the outer edge of the other when the hinge is fully open and flat. This dimension, combined with the equal leaf width of 2.0 inches per side, provides ample surface area for secure fastening to both the stationary frame and the movable component. A wider leaf offers greater leverage resistance and allows for more fasteners, enhancing the attachment's shear and pull-out strength.
- Leaf Width (2.0 inches): With equal leaf widths of 2.0 inches, the hinge design ensures balanced stress distribution and symmetrical mounting capabilities. This uniformity simplifies installation and guarantees consistent performance regardless of mounting orientation. The substantial leaf width also accommodates multiple fastener points, improving the overall integrity of the connection.
- Pin Diameter (1/2 inch): The 1/2-inch diameter pin is a critical component, serving as the central pivot for the hinge. A larger pin diameter significantly increases the shear strength of the hinge, making it more resistant to failure under heavy loads or dynamic forces. The standard pin material is steel, chosen for its high tensile and shear strength, which are essential for enduring the rotational stresses associated with frequent movement. For specialized applications, stainless steel pins offer enhanced corrosion resistance, making them ideal for outdoor, marine, or chemical processing environments. Brass pins, while slightly softer, provide excellent corrosion resistance and an aesthetic appeal for specific design requirements, often chosen for architectural or cabinetry applications where appearance is a factor.
- Knuckle Length (2.0 inches): The 2.0-inch knuckle length defines the individual segments that form the hinge barrel around the pin. Longer knuckles, as seen in this design, contribute to the hinge's overall rigidity and resistance to lateral movement. This design minimizes slop or play in the hinge mechanism, ensuring precise alignment and smooth articulation of the attached components. The frequency and length of knuckles along the hinge contribute directly to its ability to distribute load uniformly and resist localized stress concentrations.
Engineering Advantages of Continuous Hinge Design
The continuous hinge design offers several distinct engineering advantages over traditional butt hinges, particularly for applications involving heavy loads, frequent use, or critical alignment requirements:
- Uniform Load Distribution: Unlike butt hinges that concentrate load at a few discrete points, a continuous hinge distributes the weight and operational stress evenly along the entire length of the door, lid, or panel. This minimizes localized stress concentrations that can lead to warping, sagging, or premature fatigue in the attached components. For heavy enclosures, this translates into significantly extended operational life and reduced maintenance.
- Enhanced Structural Integrity and Rigidity: By providing a continuous connection, the hinge acts as a reinforcing beam, adding structural rigidity to the entire assembly. This prevents racking or distortion, especially in wide or tall panels, ensuring consistent alignment and closure over time.
- Superior Security: The full-length fastening mechanism of a continuous hinge significantly enhances security. With numerous fasteners distributed along the entire edge, the hinge offers substantially greater resistance to forced entry or vandalism compared to conventional hinges, which can be vulnerable at their exposed pivot points.
- Smooth and Consistent Operation: The continuous bearing surface around the pin, coupled with the precision of the knuckle design, ensures extremely smooth and consistent operation. This reduces friction and wear, leading to a fluid movement that is maintained even under heavy loads or after prolonged use.
- Prevention of Sag and Alignment Issues: The robust construction and continuous support actively mitigate sag, a common issue with heavy doors supported by discrete hinges. By preventing sag, the hinge maintains precise panel alignment, which is critical for proper sealing in enclosures and for the aesthetic and functional integrity of architectural elements.
- Resistance to Vibration and Shock: In mobile or industrial environments subject to high levels of vibration or sudden impacts, the continuous nature of the hinge provides superior resilience. The distributed fastening points absorb and dissipate energy more effectively, preventing loosening of fasteners or damage to the hinge or mounted components.
Diverse Application Spectrum
The robust specifications of this Steel Continuous Hinge make it an indispensable component across a vast array of demanding industrial, commercial, and specialized applications:
- Industrial Machinery and Equipment: Ideal for heavy-duty access panels on manufacturing equipment, machinery guards, control cabinet doors, and industrial ovens where reliability and structural support are paramount.
- Commercial and Architectural Doors: Suitable for oversized or heavily trafficked commercial doors, fire doors, vault doors, and architectural applications requiring exceptional durability and smooth operation, particularly in high-traffic retail, institutional, or public buildings.
- Transportation and Logistics: Extensively used in heavy-duty truck bodies, trailer doors, cargo containers, utility vehicle compartments, and specialized transport equipment, where hinges must withstand dynamic loads, vibration, and environmental exposure.
- Storage and Security Enclosures: Perfect for large metal toolboxes, secure storage units, electrical enclosures, server cabinets, and robust chests, providing both structural support and enhanced security.
- Marine and Outdoor (with proper finishing): While standard steel, with appropriate corrosion-resistant coatings (e.g., marine-grade paint, galvanization) and stainless steel pins, this hinge can be adapted for non-direct saltwater marine applications, outdoor utility boxes, or gate systems where strength is key.
- Heavy-Duty Furniture and Fixtures: For custom heavy-duty tables with hinged tops, workbench extensions, or large cabinet doors in workshop environments.
Installation Methodologies and Best Practices
Proper installation is crucial to maximizing the performance and longevity of the Steel Continuous Hinge. Given its heavy-duty nature, the following considerations are vital:
- Fastener Selection: The substantial thickness of the leaves (7 Gauge / .187 inches) requires robust fasteners capable of securing the hinge to its intended substrate. For steel frames, high-strength bolts (grade 5 or 8), rivets, or welding are recommended. For wooden substrates, heavy-gauge wood screws or through-bolts with washers and nuts are appropriate. The quantity and spacing of fasteners should be consistent along the length of the hinge to maintain uniform load distribution.
- Surface Preparation: Ensure that mounting surfaces are flat, clean, and free of debris to allow for a flush and stable attachment. Any irregularities can introduce stress points or compromise the hinge's alignment.
- Alignment: Precise alignment during installation is critical. The hinge should be mounted plumb and level to prevent binding or uneven wear. Using clamps or temporary fasteners to hold the hinge in position while final adjustments are made is recommended.
- Cutting to Size: When the 72-inch length needs to be customized, industrial cutting equipment such as a band saw with a metal-cutting blade, an abrasive chop saw, or plasma cutter should be utilized. Care must be taken to ensure clean, straight cuts that do not deform the hinge leaves or knuckles. Deburring and chamfering of cut edges are essential for safety and aesthetics.
- Clearance: Adequate clearance must be provided between the door/lid and the frame to accommodate the hinge's knuckle and the rotational arc. The specific hinge throw will dictate the minimum necessary gap.
- Welding Applications: For applications requiring the utmost structural integrity, the hinge leaves can be welded to steel frames. This method provides a permanent and incredibly strong bond, eliminating potential fastener failures. Proper welding techniques appropriate for the steel gauge must be employed to prevent distortion.
Maintenance and Longevity Enhancement
While designed for heavy-duty performance, regular maintenance can further extend the operational life and ensure smooth function of the Steel Continuous Hinge:
- Lubrication: Periodically apply a high-quality, non-gumming industrial lubricant to the hinge pin and knuckle areas, especially in high-use applications or environments with dust, dirt, or moisture. This reduces friction, minimizes wear, and prevents seizing.
- Corrosion Protection: For standard steel hinges, applying a protective coating (e.g., industrial paint, powder coat, or rust-inhibiting primer) is essential, especially if the hinge is exposed to outdoor elements, high humidity, or corrosive agents. Regularly inspect these coatings for breaches and touch up as needed. The special order options for stainless steel or brass pins inherently provide superior corrosion resistance at the pivot point.
- Fastener Inspection: Regularly inspect all fasteners for tightness. Vibration or prolonged use can sometimes cause fasteners to loosen. Tightening loose fasteners prevents excessive play and maintains structural integrity.
- Cleanliness: Keep the hinge free of excessive dirt, grit, or debris, which can accelerate wear on the pin and knuckles.
- Damage Assessment: Periodically inspect the hinge for any signs of damage, such as bent leaves, cracked knuckles, or pin wear. Promptly address any issues to prevent further deterioration or operational failure.
Customization and Special Order Options
Buyers Products is committed to providing versatile solutions tailored to specific project requirements. While the 72-inch length is a readily available stock item, the flexibility to cut the hinge to custom lengths on-site provides immediate adaptability. Furthermore, for projects demanding greater spans, the availability of 96-inch lengths via special order ensures that even very large doors or panels can benefit from the robust continuous hinge design.
The choice of pin material represents another critical customization point:
- Standard Steel Pins: Offer maximum strength and durability for general-purpose heavy-duty applications, providing a cost-effective solution.
- Stainless Steel Pins: Provide significantly enhanced resistance to rust and corrosion, making them ideal for outdoor, marine, food processing, or chemical environments where moisture or corrosive agents are present. This extends the hinge's life in challenging conditions.
- Brass Pins: Offer excellent corrosion resistance, similar to stainless steel, but with a unique aesthetic appeal. Brass is often chosen for architectural applications or specialized equipment where both functionality and appearance are important. While brass is generally softer than steel, the 1/2-inch diameter still provides substantial strength for many applications.
For inquiries regarding specific widths, thicknesses, hole patterns, or alternative finishes beyond what is listed, customers are encouraged to contact Customer Service. This proactive engagement allows for precise customization to meet the most exacting specifications, ensuring optimal performance and integration.
Conclusion
The Buyers Products Steel Continuous Hinge, with its .187-inch thickness, 72-inch length, 1/2-inch pin, and 4.0-inch open width, stands as an exemplar of heavy-duty hardware engineering. Its robust steel construction, meticulously defined dimensions, and the inherent mechanical advantages of the continuous design provide unparalleled strength, uniform load distribution, enhanced security, and extended operational life. From demanding industrial machinery to critical commercial applications and robust transportation equipment, this hinge is engineered to perform reliably under the most strenuous conditions. Its adaptability through field customization and special order options for lengths and pin materials further solidify its position as a premier solution for discerning engineers and procurement specialists seeking uncompromised durability and performance in their hinge systems.
