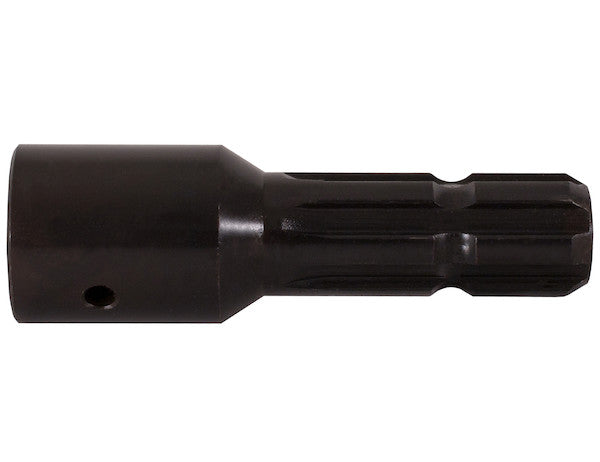

Buyers Products PTO Adapter for Quick Detach Yokes helps you easily pair any auxiliary driveline with a needed device. The shaft adapter is designed specifically for use with truck or tractor drivelines to accommodate quick detach yokes. The PTO adapter comes in a variety of sizes for use with different round drivelines and keyways. Due to its grooved design, the splined adapter works great with quick detach yokes.
Specifications
| A dimension (Spline Length) | 3.00 |
|---|---|
| Adapter Overall Length | 6.32 |
| Circular Bore Side Inner Diameter | 1.125 |
| Circular Bore Side Outer Diameter | 2.00 |
| Keyway Size | 0.250 |
| Material | Hardened Steel |
| Spline Size | 1 3/8-6 |
Advanced Technical Overview: PTO Adapter for Quick Detach Yokes 1-1/8 Inch I.D. x 1-3/8 Inch-6 Spline
The Buyers Products PTO Adapter, specifically engineered with a 1-1/8 inch Inner Diameter (I.D.) for the input shaft and a 1-3/8 inch-6 Spline configuration for the output, represents a critical component in the seamless integration and operational efficiency of power take-off (PTO) systems. This adapter is meticulously designed to bridge dimensional and mechanical incompatibilities between diverse auxiliary drivelines and their intended devices, primarily within truck and tractor applications utilizing quick-detach yokes. Its technical specifications and robust material composition ensure reliable power transmission, enhancing versatility, and minimizing operational downtime across a multitude of demanding industrial, agricultural, and commercial environments.
Understanding Power Take-Off (PTO) Systems and the Role of Adapters
Power Take-Off (PTO) systems are fundamental mechanical interfaces that allow power to be drawn from an engine, typically in a tractor, truck, or industrial power unit, and transmitted to an auxiliary implement or piece of equipment. This power transfer is crucial for operating a wide array of hydraulic pumps, generators, mowers, tillers, spreaders, and other essential machinery. The efficiency and reliability of a PTO system depend heavily on the integrity of its components, particularly the shaft connections that facilitate torque transfer.
In practical applications, a common challenge arises when the output shaft of the power source (e.g., a truck’s transmission or a tractor’s PTO shaft) does not mechanically match the input shaft of the auxiliary device. This incompatibility can manifest in differences in shaft diameter, spline count, or attachment mechanism. PTO adapters serve as essential interface devices, providing a robust and precisely engineered solution to these mismatches. They convert one shaft configuration to another, enabling the proper mating of components without requiring costly and time-consuming modifications to the primary equipment or the implement itself. By facilitating compatibility, adapters significantly expand the utility of existing machinery, allowing a single power source to drive a wider range of accessories and tools.
Detailed Technical Specifications and Design Parameters
Input Side: 1-1/8 Inch I.D. with 0.250 Inch Keyway
The input side of this PTO adapter features a circular bore with an Inner Diameter (I.D.) of 1.125 inches, designed to accept a round shaft of the corresponding diameter. Torque transmission on this side is facilitated by a precisely machined keyway, measuring 0.250 inches (1/4 inch). This combination is critical for establishing a secure, positive mechanical connection that prevents rotational slippage under load.
The 1-1/8 inch shaft diameter is common in various industrial and agricultural applications, often found on smaller hydraulic pumps, auxiliary generators, and specialized equipment that require a direct, keyed drive. The accuracy of both the bore diameter and keyway width is paramount. A precisely toleranced bore ensures a snug fit, minimizing backlash and preventing fretting corrosion, which can lead to premature wear and failure. The keyway's dimensions are critical for securely seating a standard square key, distributing torque evenly and preventing key shear, particularly during high-torque startup or sudden load changes. The material contact stress within the keyway is a significant engineering consideration, demanding the use of high-strength, hardened materials for both the adapter and the key itself to endure repetitive stress cycles.
Output Side: 1-3/8 Inch-6 Spline Configuration
The output side of the adapter is engineered with a 1-3/8 inch-6 spline configuration. This specification refers to a shaft with an outside diameter of 1.375 inches and six precisely cut splines. The 1-3/8 inch-6 spline is a widely recognized and standardized PTO spline size, conforming to industry standards such as ASAE S203 (American Society of Agricultural Engineers) or ISO 500. Its prevalence across agricultural and industrial machinery makes this adapter highly versatile, ensuring compatibility with a vast range of modern implements and drivelines.
Splines are superior to keyways for high-torque applications as they distribute the load over multiple engagement points around the shaft's circumference, significantly reducing stress concentrations and improving fatigue resistance. The geometry of the splines—specifically their profile, spacing, and concentricity—is manufactured to exacting tolerances. This precision is vital for minimizing wear on both the adapter splines and the mating splines of the quick-detach yoke, ensuring smooth engagement and disengagement, and maximizing the lifespan of the entire driveline assembly. The 6-spline configuration strikes an optimal balance between torque transmission capability and ease of alignment during coupling, making it a robust and user-friendly standard.
Overall Dimensions and Structural Integrity
The adapter features an Adapter Overall Length of 6.32 inches. This length is carefully selected to provide sufficient engagement for both the input shaft and the output quick-detach yoke, while simultaneously ensuring that it does not introduce excessive length into the driveline system. An overly long adapter can alter U-joint angles, potentially leading to increased vibration, reduced efficiency, and accelerated wear on universal joints and bearings. The spline length, specified as 3.00 inches, is particularly relevant for achieving full and secure engagement with the quick-detach yoke's internal splines, which is essential for stable torque transfer and preventing axial disengagement under dynamic loads.
The Circular Bore Side Outer Diameter, measuring 2.00 inches, provides ample material thickness around the input bore and keyway. This structural robustness is critical for containing the forces associated with torque transmission, preventing deformation or cracking in the keyway region, and ensuring the overall integrity of the adapter under sustained operational stresses. The intelligent design balances compact form factor with the necessary material volume for high-performance durability.
Material Science: Hardened Steel for Uncompromising Performance
The selection of material for a critical power transmission component like a PTO adapter is paramount. This adapter is manufactured from Hardened Steel, a material chosen for its superior mechanical properties essential in high-stress, dynamic environments. The hardening process, typically involving heat treatment such as quenching and tempering, significantly enhances the steel's yield strength, ultimate tensile strength, and most importantly, its hardness and wear resistance.
In the context of PTO applications, components are subjected to significant torsional stresses, impact loads, and surface wear due to spline engagement and disengagement. Hardened steel exhibits excellent resistance to plastic deformation under high torque and has a high fatigue limit, allowing it to withstand millions of stress cycles without failure. The increased hardness of the splines minimizes abrasive wear, which is a common failure mode in power transmission couplings, thereby extending the service life of both the adapter and the mating quick-detach yoke. Furthermore, the robust nature of hardened steel ensures dimensional stability, maintaining tight tolerances even under fluctuating temperatures and mechanical loads, which is crucial for consistent performance and safe operation.
Seamless Integration with Quick Detach Yokes
A defining feature of this PTO adapter is its optimized design for quick-detach yokes. Quick-detach yokes are engineered for rapid coupling and uncoupling of PTO drivelines, significantly reducing the time and effort required to connect or switch between different implements. The "grooved design" mentioned in the product description refers to the specific profile of the splines and potentially a retention groove that interacts with the locking mechanism (e.g., a push-pin collar or a spring-loaded latch) present on most quick-detach yokes.
This design ensures that when the quick-detach yoke is pushed onto the adapter's splined output shaft, its internal locking mechanism engages securely. The grooves or specific spline profile on the adapter provide positive retention, preventing accidental disengagement during operation, even under vibration or sudden load changes. The ease of engagement and the secure locking mechanism are vital for operational safety and efficiency, allowing operators to swiftly transition between tasks without extensive manual labor or specialized tools. This compatibility streamlines workflow, maximizes productivity, and reduces the potential for operator injury associated with cumbersome coupling procedures.
Applications and Operational Contexts
This specific PTO adapter (1-1/8 Inch I.D. x 1-3/8 Inch-6 Spline) finds extensive utility across a broad spectrum of heavy-duty applications:
- Truck Drivelines: In commercial vehicles, this adapter can facilitate the connection of various auxiliary equipment to the truck's PTO output. Examples include hydraulic pumps for dump trucks, concrete mixers, refuse compactors, and service vehicles, as well as snowplow hydraulics and salt/sand spreaders. The 1-1/8 inch keyed input could be common on custom pump configurations or legacy equipment, while the 1-3/8 inch-6 spline output provides standard compatibility for modern quick-detach PTO shafts.
- Tractor Drivelines: While tractors typically feature standardized PTO outputs, situations arise where an older implement with a 1-1/8 inch keyed input needs to be connected to a modern tractor's driveline, or vice versa, where the tractor's auxiliary power output is 1-1/8 inch and the implement requires a standard 1-3/8 inch-6 spline input. This adapter provides the crucial interface for compatibility with a range of agricultural implements such as post-hole diggers, small balers, sprayers, and specialized forestry equipment.
- Industrial and Stationary Equipment: Beyond mobile applications, this adapter can be used in stationary power units or industrial machinery where a power source with a 1-1/8 inch keyed shaft needs to drive an auxiliary component designed for a 1-3/8 inch-6 spline input. This could include generator sets, industrial pumps, or custom manufacturing equipment.
The primary benefit in all these scenarios is the elimination of the need for costly and time-consuming custom fabrication or extensive modifications to existing equipment, thus offering a flexible and economical solution for power transmission challenges.
Installation, Maintenance, and Safety Protocols
Proper installation and routine maintenance are critical to ensure the long-term reliability and safe operation of the PTO adapter and the entire driveline system.
- Installation: Before installation, ensure that both the input shaft (1-1/8" keyed) and the quick-detach yoke's internal spline are clean and free from dirt, rust, or burrs. Apply a suitable amount of high-quality grease to the adapter's splines and to the internal bore, as well as to the key and keyway. This lubrication reduces friction during engagement, minimizes wear, and aids in corrosion prevention. When installing onto the input shaft, ensure the key is properly seated in the keyway. When engaging the quick-detach yoke, ensure the locking mechanism fully engages the adapter’s output spline, verifying a positive and secure connection with an audible click or visual confirmation.
- Maintenance: Regular inspection is paramount. Operators should routinely check the adapter for signs of wear, particularly on the splines and in the keyway area. Look for deformation, cracking, excessive pitting, or fretting corrosion. Ensure the adapter remains firmly seated on the input shaft and that the quick-detach yoke's locking mechanism is functioning correctly. Reapply grease periodically, especially after prolonged use or exposure to harsh environmental conditions. Any signs of significant wear or damage necessitate immediate replacement to prevent catastrophic failure.
- Safety: PTO systems are inherently powerful and can be extremely dangerous if not operated correctly. Always ensure that the PTO guard is in place and undamaged, covering the rotating shaft. Never approach or attempt to service a PTO shaft or adapter while the engine is running or the PTO is engaged. Disengage the PTO, shut off the engine, and remove the key before performing any maintenance or attachment/detachment procedures. Ensure bystanders are clear of the operating area. The secure engagement facilitated by this adapter and quick-detach yoke system is a safety feature, but its integrity must be regularly verified.
Performance, Durability, and Economic Value
The Buyers Products PTO Adapter is engineered for sustained high performance and exceptional durability. Its hardened steel construction ensures a long operational lifespan, even under continuous heavy-duty use and challenging environmental conditions. The precise machining of both the keyed bore and the splined output guarantees efficient torque transfer with minimal power loss, maximizing the productivity of the connected equipment.
From an economic standpoint, this adapter offers significant value. It eliminates the need for costly modifications to existing machinery, allowing organizations to maximize the utility of their current fleet and implements. The ease of use provided by its compatibility with quick-detach yokes minimizes downtime during equipment changeovers, translating directly into increased operational efficiency and higher output. By acting as a robust and reliable interface, it protects more expensive primary components from undue wear and stress, thereby reducing overall maintenance costs and extending the effective life of the entire power transmission system.
Conclusion
The PTO Adapter for Quick Detach Yokes, featuring a 1-1/8 Inch I.D. input and a 1-3/8 Inch-6 Spline output, is a technically sophisticated and indispensable component for modern power transmission systems. Its design and material engineering specifically address the critical need for seamless compatibility and reliable torque transfer in diverse truck and tractor driveline applications. By providing a secure, durable, and efficiently integrated connection for quick-detach yokes, this adapter enhances operational flexibility, ensures safety, and delivers substantial long-term value through its robust construction and precision engineering.
