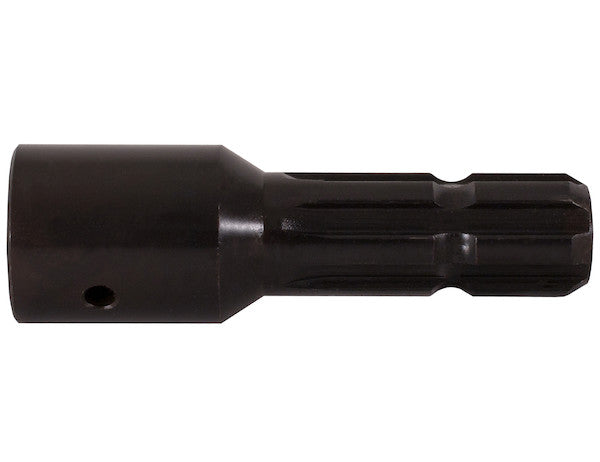

Buyers Products PTO Adapter for Quick Detach Yokes helps you easily pair any auxiliary driveline with a needed device. The shaft adapter is designed specifically for use with truck or tractor drivelines to accommodate quick detach yokes. The PTO adapter comes in a variety of sizes for use with different round drivelines and keyways. Due to its grooved design, the splined adapter works great with quick detach yokes.
Specifications
| A dimension (Spline Length) | 3.00 |
|---|---|
| Adapter Overall Length | 6.32 |
| Circular Bore Side Inner Diameter | 1.250 |
| Circular Bore Side Outer Diameter | 2.00 |
| Keyway Size | 0.313 |
| Material | Hardened Steel |
| Spline Size | 1 3/8-6 |
Advanced Technical Overview: PTO Adapter for Quick Detach Yokes (1-1/4 Inch I.D. x 1-3/8 Inch-6 Spline)
The Buyers Products PTO Adapter, specifically engineered for quick detach yokes with a 1-1/4 inch Inner Diameter (I.D.) input and a 1-3/8 inch-6 spline output, represents a critical component in the seamless integration and operation of diverse power take-off (PTO) driven systems. This technical exposition delves into the engineering principles, material science, and operational advantages of this precision-machined adapter, emphasizing its role in facilitating robust and efficient power transmission across various industrial, agricultural, and commercial applications.
At its core, this adapter serves as a robust mechanical interface, bridging the compatibility gap between a driven shaft, typically characterized by a 1.250-inch circular bore and a 0.313-inch keyway, and an auxiliary driveline requiring a standard 1-3/8 inch, 6-spline PTO interface. This specific configuration addresses a common challenge in power transmission: adapting an existing keyed output shaft, often found on industrial engines, hydraulic pump units, or gearbox outputs, to the widely adopted 1-3/8"-6 spline standard prevalent in PTO-driven implements and accessories. The meticulous design ensures optimal torque transfer, minimizes rotational play, and significantly extends the operational lifespan of connected machinery.
Engineering and Design Philosophy
The design of this PTO adapter is predicated on principles of mechanical efficiency, durability, and operational versatility. The dual-interface architecture is precisely calibrated:
- Input Side (Driven Component): The 1.250-inch (1-1/4 inch) inner diameter circular bore, coupled with a 0.313-inch keyway, is engineered to mate securely with a smooth cylindrical shaft. Torque transmission on this side relies on the shear strength of the key and the compressive fit between the adapter's bore and the shaft. The accuracy of the bore and keyway dimensions is paramount to prevent fretting corrosion, minimize backlash, and ensure uniform load distribution across the key-shaft interface. The circular bore side's outer diameter of 2.00 inches provides ample material thickness for structural integrity and secure retention.
- Output Side (Driving Component for Implement): The 1-3/8 inch-6 spline output conforms to a widely recognized industry standard, particularly common in agricultural PTO systems (often classified as ASAE Type 1). The 6-spline configuration is designed for high-torque transmission and provides multiple contact points, distributing shear forces effectively. The splines are precisely machined to integrate flawlessly with quick detach yokes, ensuring a secure yet easily disengageable connection. The spline length (A dimension) of 3.00 inches offers ample engagement depth for the yoke, crucial for stability and reliability under dynamic loading conditions.
The adapter's overall length of 6.32 inches is carefully chosen to provide sufficient engagement for both interfaces while maintaining a compact form factor, minimizing overhang and potential for undue leverage on the connected shafts.
Material Science and Manufacturing Excellence
The choice of material for this critical component is a testament to its intended application in demanding environments. Manufactured from hardened steel, the adapter exhibits superior mechanical properties essential for high-stress power transmission:
- High Tensile Strength: Hardened steel possesses exceptional tensile strength, allowing it to withstand significant axial and torsional loads without permanent deformation or fracture. This is crucial for transmitting the considerable power outputs from engines and drivelines.
- Superior Hardness and Wear Resistance: The hardening process imparts excellent surface hardness, which is vital for the longevity of the splined and keyed interfaces. This resistance to abrasive wear and contact fatigue ensures that the critical dimensions and profiles of the splines and keyway are maintained over extended periods of operation, even under repetitive coupling and decoupling cycles.
- Fatigue Resistance: Components subjected to cyclical loading, common in PTO applications, must possess high fatigue resistance. Hardened steel significantly enhances the adapter's ability to endure repeated stress cycles, thereby preventing premature failure from material fatigue.
- Impact Toughness: While hardened, the steel retains sufficient toughness to resist brittle fracture from sudden impacts or shock loads, which can occasionally occur during engagement or operation of heavy machinery.
The manufacturing process employs advanced machining techniques to achieve the precise dimensional tolerances specified. This includes CNC machining for accurate profiling of the splines and keyway, followed by controlled heat treatment processes to achieve the desired material hardness and microstructure. Precision grinding may be utilized to ensure optimal surface finish and dimensional accuracy, further contributing to reduced friction, extended service life, and smooth engagement with mating components. Strict quality control measures are implemented at each stage of production to guarantee consistent product performance and reliability.
Functional Advantages and Operational Benefits
The distinct features of this PTO adapter translate into several tangible advantages for operators and equipment managers:
- Enhanced Versatility and Equipment Pairing: This adapter offers unparalleled flexibility by enabling the connection of diverse auxiliary drivelines – from hydraulic pumps, generators, and compressors to specific agricultural implements – to power sources with keyed outputs. This eliminates the need for costly custom fabrications or modifications to primary equipment, streamlining equipment integration.
- Optimized for Quick Detach Yokes: The splined output is specifically designed to accommodate quick detach yokes. This feature dramatically improves operational efficiency by allowing for rapid, tool-free attachment and detachment of implements. This reduces downtime during equipment changeovers, enhances operator convenience, and facilitates easier maintenance or storage of PTO-driven accessories. The grooved design ensures a positive lock and prevents accidental disengagement under load.
- Robust and Reliable Power Transmission: The combination of hardened steel construction and precise machining ensures a high-integrity connection capable of transmitting significant torque with minimal power loss. The robust design mitigates issues such as spline wear, key shearing, and rotational vibration, which are common failure modes in inadequately designed or inferior adapters.
- Reduced Maintenance and Extended Lifespan: The inherent durability of hardened steel, coupled with precision engineering, contributes to a longer operational life for the adapter itself and, by extension, the connected driveline components. Reduced wear on mating surfaces means less frequent maintenance, lower replacement costs, and sustained performance over time.
- Standardized Interface: By converting a specific keyed shaft to a standard 1-3/8"-6 spline PTO, the adapter promotes interchangeability and compatibility with a vast array of existing PTO-driven equipment. This standardization simplifies procurement, inventory management, and field repairs.
Applications and Industry Relevance
The specific configuration of this PTO adapter (1-1/4" I.D. keyed to 1-3/8"-6 spline) makes it indispensable in a wide range of applications:
- Agricultural Sector: Often, older farm equipment or specialized implements may have non-standard output shafts, or auxiliary engines might be integrated with keyed outputs. This adapter facilitates the connection of modern PTO-driven implements (e.g., rotary tillers, sprayers, balers, post-hole diggers) to such diverse power sources. It also allows for greater flexibility when tractors or power units originally designed for non-PTO applications are retrofitted or repurposed for agricultural tasks requiring standard PTO interfaces.
- Industrial Machinery: In industrial settings, various motors, gearboxes, and pumps feature keyed shafts. This adapter can be used to convert these outputs into a standard PTO drive for powering industrial mixers, conveyors, processing equipment, or auxiliary power units that utilize PTO input shafts.
- Construction Equipment: Certain compact utility loaders, mini excavators, or specialized construction vehicles might have auxiliary power take-offs with keyed shafts. This adapter enables the connection of PTO-driven attachments like hydraulic trenchers, stump grinders, or generators, expanding the versatility of existing fleets.
- Mobile and Auxiliary Power Units: Generators, hydraulic power packs, and other auxiliary equipment driven by internal combustion engines often have keyed output shafts. When these units are deployed to power external PTO-driven devices, this adapter provides the necessary interface.
- Truck and Vehicle Mounted Systems: For commercial trucks equipped with auxiliary power units or custom drivelines that have 1-1/4 inch keyed outputs, this adapter can be crucial for integrating standard PTO-driven equipment like spreaders, winches, or specialized service tools.
Installation and Operational Considerations
Proper installation and adherence to operational guidelines are paramount to maximizing the performance and longevity of the PTO adapter:
- Shaft Preparation: Ensure that the 1-1/4 inch keyed shaft is clean, free from burrs, and within tolerance. The key should be correctly sized (0.313 inch width) and fully seated within the shaft's keyway.
- Keyway Engagement: The adapter must be precisely aligned with the key on the input shaft and slid fully onto the shaft to ensure maximum contact and torque transfer. A retention mechanism (e.g., set screw, clamp collar, or end plate) should be utilized if the shaft does not have its own retaining features, though many keyed shafts are designed for direct male-female fit with an interference or transition fit.
- Yoke Compatibility and Engagement: The 1-3/8"-6 spline output is designed for quick detach yokes. Ensure the yoke's internal spline profile matches that of the adapter. The quick-detach mechanism (e.g., spring-loaded pin, collar) should engage positively and lock the yoke onto the adapter, providing a secure connection that prevents axial movement under load.
- Lubrication: Periodic lubrication of both the keyed and splined interfaces with appropriate grease is essential to minimize friction, prevent corrosion, and reduce wear, thereby extending the service life of both the adapter and the mating components.
- Alignment: While the adapter is designed to accommodate minor misalignments, severe angular or parallel misalignment between the driving and driven shafts can induce excessive stress on the adapter, U-joints, and bearings. Proper alignment of the entire driveline system is critical for optimal performance and preventing premature component failure.
- Torque and Speed Ratings: Users must ensure that the torque and rotational speed requirements of their application do not exceed the design limitations of the adapter. While hardened steel provides robust strength, operating beyond design parameters can lead to accelerated wear or catastrophic failure. It is designed to meet the rigorous demands typically associated with 1-3/8"-6 spline PTO applications.
- Inspection: Regular inspection for signs of wear, pitting, corrosion, or deformation on both the keyed and splined surfaces is recommended. Any signs of significant damage warrant replacement to prevent more extensive driveline failures.
Conclusion
The Buyers Products PTO Adapter for Quick Detach Yokes, featuring a 1-1/4 inch I.D. keyed input and a 1-3/8 inch-6 spline output, is more than a simple coupling; it is a meticulously engineered solution designed to enhance the flexibility, efficiency, and reliability of power transmission systems. Its construction from hardened steel, combined with precision manufacturing, ensures exceptional durability, wear resistance, and the ability to withstand substantial torque loads in demanding operational environments. By seamlessly converting between common shaft configurations, this adapter significantly expands the utility of existing machinery and streamlines the integration of auxiliary equipment. For professionals seeking a robust, reliable, and technically superior interface solution for their PTO-driven applications, this adapter stands as an indispensable component, optimizing performance and reducing operational complexities.
