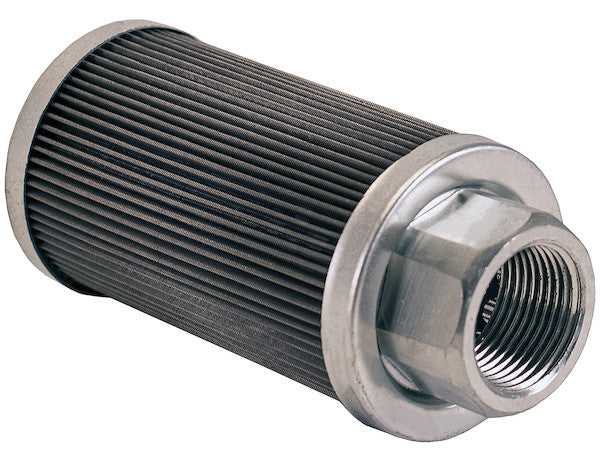

SI1253 - 1-1/4 Inch NPTF Port Single Element Sump Strainer

The Single Element Sump Strainer from Buyers Products works inside your fluid reservoir to stop items from being sucked into the system and causing damage. The cleanable strainer can stop items 150 microns or larger, using a pleated element of stainless steel wire cloth (100 mesh). It has an extra large filtering area, allowing a greater flow rate. The strainer installs into the wall of the reservoir and is available in a range of port sizes and flow rates. Choose from a range of NPTF port sizes.

Specifications

The 1-1/4 Inch NPTF Port Single Element Sump Strainer represents a critical component in the maintenance of hydraulic, lubrication, and other fluid power systems. Designed and engineered by Buyers Products, this device acts as the first line of defense against particulate contamination, safeguarding vital system components from premature wear and catastrophic failure. Its robust construction, precise filtration capabilities, and ease of maintenance make it an indispensable asset in a wide array of industrial and mobile applications. This detailed exposition delves into the technical specifications, operational principles, benefits, and applications of this superior sump strainer.

The Indispensable Role of Sump Strainers in Fluid Systems

Fluid power systems, whether hydraulic, lubrication, or fuel, operate under stringent cleanliness requirements to ensure optimal performance and longevity. Contamination, often in the form of solid particulates, is a leading cause of component wear, efficiency degradation, and system malfunction. These particulates can originate from various sources, including ingress from the environment, wear debris generated internally, or manufacturing residues. Without adequate filtration, these contaminants circulate throughout the system, leading to abrasive wear in pumps, valves, and actuators, ultimately reducing the operational life of expensive components and increasing maintenance overhead.

Sump strainers are strategically positioned at the suction inlet of the pump, submerged within the fluid reservoir. Their primary function is to capture larger, coarser particles before they can enter the main fluid circuit. While not designed for micron-level filtration like pressure or return line filters, sump strainers prevent the ingestion of gross contaminants – such as metal shavings, gasket fragments, seal material, or environmental debris – that could cause immediate damage or severely compromise the efficiency of subsequent fine filters. By preventing these larger particles from reaching the pump, the sump strainer protects the pump from cavitation and abrasive wear, thereby extending its service life and ensuring consistent system flow.

Detailed Design and Construction of the Single Element Sump Strainer

The Buyers Products 1-1/4 Inch NPTF Port Single Element Sump Strainer is engineered for maximum efficacy and durability. Its design incorporates several key features that contribute to its superior performance:

Single Element Configuration

This strainer utilizes a single element design, which simplifies its construction and maintenance. A single element facilitates straightforward installation and removal from the reservoir wall for cleaning or inspection. This design also inherently offers a large filtration area relative to its footprint, which is crucial for minimizing pressure drop at the pump inlet and sustaining high flow rates, even as the element accumulates contaminants.

Pleated Stainless Steel Wire Cloth Element

The core of the filtration capability lies in its pleated element, constructed from high-quality 304 stainless steel wire cloth. The choice of 304 stainless steel is deliberate, offering exceptional corrosion resistance, mechanical strength, and thermal stability. These properties ensure the strainer's compatibility with a wide range of industrial fluids, including hydraulic oils, lubrication fluids, and fuels, without degradation or material compatibility issues over extended periods of operation. The stainless steel construction also guarantees robust performance in harsh operating environments where chemical resistance and structural integrity are paramount.

The pleated configuration significantly enhances the effective filtration surface area compared to non-pleated designs. This increased surface area allows the strainer to capture a greater volume of contaminants before reaching its maximum dirt-holding capacity, translating into longer service intervals and reduced frequency of cleaning. The pleats are precisely formed to maintain structural rigidity under flow conditions, preventing collapse or deformation that could lead to bypass or reduced efficiency.

Micron Rating and Mesh Size

With a nominal rating of 150 microns, the strainer is highly effective at capturing particles 150 micrometers or larger. This corresponds to a 100-mesh screen (a 100-mesh screen has 100 openings per linear inch). This level of filtration is ideal for initial coarse screening, protecting pumps and other critical components from larger debris that could cause significant damage. While a nominal rating indicates that the filter will capture a high percentage of particles at or above the stated micron size, it is particularly effective in its role as a sump strainer, where the primary objective is to prevent gross contamination rather than achieve ultra-fine fluid cleanliness.

Extra-Large Filtering Area for Optimal Flow

The design prioritizes an extra-large filtering area, which is essential for minimizing restriction at the pump suction port. The element diameter of 3.36 inches and an element length of 6.84 inches contribute to this expansive surface. A low pressure drop across the strainer is critical to prevent pump cavitation, a destructive phenomenon caused by insufficient fluid supply to the pump inlet. Cavitation can lead to noise, vibration, erosion of pump components, and ultimately, pump failure. By providing a generous filtration area, the strainer ensures a smooth and unrestricted flow of fluid to the pump, supporting the specified flow rate of 20 GPM (Gallons Per Minute) for this particular model. This optimizes system efficiency and extends component life.

Operational Principles and Performance Characteristics

Contaminant Capture and Flow Dynamics

As fluid is drawn from the reservoir towards the pump, it passes through the pleated stainless steel wire cloth element. Particulates larger than the 150-micron openings are physically retained on the surface of the element, preventing their entry into the pump and subsequent circulation. The single element design, coupled with its large surface area, allows the strainer to efficiently process the full 20 GPM flow rate, ensuring the pump receives a consistent and adequately conditioned supply of fluid.

Pressure Bypass Mechanism

A crucial safety feature integrated into this sump strainer is the 3 PSI (Pounds per Square Inch) pressure bypass. The bypass valve is designed to open automatically if the pressure differential across the strainer element exceeds 3 PSI. This condition typically arises when the strainer element becomes excessively loaded with contaminants, causing a significant restriction to fluid flow. Without a bypass, a heavily clogged strainer could lead to severe pump cavitation, starving the pump of fluid, or even collapsing the strainer element itself due to the high differential pressure.

When the bypass valve opens, it allows unfiltered fluid to temporarily flow to the pump, preventing system shutdown due to fluid starvation. While bypassing unfiltered fluid is generally undesirable, it is a necessary safety measure to prevent more severe damage (e.g., pump failure due to cavitation or element collapse). The 3 PSI setting is a carefully calibrated balance, allowing the strainer to effectively perform its primary function under normal operating conditions while providing a critical failsafe during periods of heavy contamination or neglected maintenance. It signals the need for immediate cleaning or replacement of the strainer element.

Installation and System Integration

The Buyers Products Sump Strainer is designed for straightforward installation into the wall of the fluid reservoir. This typical mounting method ensures that the strainer is fully submerged in the fluid, maximizing its effectiveness in capturing contaminants near the pump inlet. Proper sealing at the reservoir wall is paramount to prevent external contamination ingress and ensure the integrity of the fluid system.

1-1/4 Inch NPTF Port

This specific model features a 1-1/4 inch NPTF (National Pipe Taper Fuel) port. The NPTF standard is widely recognized in North America for creating leak-free connections without the need for additional sealants when properly assembled. The tapered threads deform slightly upon tightening, creating an interference fit that effectively seals the connection. The 1-1/4 inch size indicates the nominal diameter of the pipe connection, which is appropriately sized to accommodate the 20 GPM flow rate of this strainer without introducing excessive flow restrictions. Utilizing NPTF connections simplifies plumbing and ensures compatibility with standard industrial piping and fittings, making integration into existing or new fluid power systems seamless.

Maintenance and Serviceability

One of the significant advantages of the Buyers Products Single Element Sump Strainer is its cleanable design. Unlike disposable filter elements that require regular replacement, this stainless steel strainer can be easily removed, cleaned, and reinstalled, offering substantial long-term cost savings and reducing environmental waste.

Cleaning Procedure

When the pressure bypass valve activates, or when routine maintenance indicates reduced flow, the strainer element should be inspected and cleaned. The cleaning process typically involves:

1. **System Shutdown:** De-energize the fluid power system and ensure all pressures are relieved.
2. **Fluid Drainage/Isolation:** If necessary, drain the reservoir to below the strainer level or isolate the reservoir section.
3. **Removal:** Carefully unthread the strainer from the reservoir wall.
4. **Initial Rinse:** Flush the exterior of the element with a compatible solvent or cleaning fluid to remove loose debris.
5. **Detailed Cleaning:** Use a soft brush and a suitable cleaning solution (e.g., mineral spirits, non-foaming detergents) to dislodge embedded particles from the wire mesh. Ultrasonic cleaning can also be highly effective for thorough contaminant removal.
6. **Rinsing and Drying:** Thoroughly rinse the element with clean fluid (compatible with the system) or deionized water, then allow it to air dry completely or use compressed air (low pressure) to aid drying, ensuring no residual cleaning agents remain.
7. **Inspection:** Visually inspect the element for any signs of damage, such as tears in the mesh, deformation, or structural fatigue. If damage is present, the element must be replaced.
8. **Reinstallation:** Reinstall the clean and dry strainer element, ensuring proper thread engagement and sealing at the reservoir wall.

Regular cleaning schedules, determined by operating conditions and fluid cleanliness requirements, will maximize the lifespan of the element and ensure continuous protection for the fluid system.

Applications Across Diverse Industries

The 1-1/4 Inch NPTF Port Single Element Sump Strainer is ideally suited for a broad spectrum of applications where initial coarse filtration is essential for pump and system protection:

• **Hydraulic Power Units:** Essential in industrial and mobile hydraulic systems to protect suction-side pumps from large contaminants before fluid enters the main filtration circuit.
• **Industrial Machinery:** Used in manufacturing, automation, and process control equipment utilizing hydraulic or lubrication systems, preventing debris from impacting precise machine operations.
• **Mobile Hydraulics:** Critical for construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), and utility vehicles, where operating environments often introduce significant external contamination.
• **Lubrication Systems:** Incorporated into lubrication circuits for gearboxes, bearings, and rotating machinery, ensuring clean oil supply to prevent abrasive wear.
• **Compressors:** Protects oil pumps and lubrication circuits in air and gas compressors, extending their operational life.
• **Fuel Transfer Systems:** Used in fuel storage and transfer applications to filter out gross particulates before fuel reaches engines or finer filters.
• **Oil Reclamation/Filtration Skids:** Serves as a pre-filter to protect pumps and extend the life of downstream fine filters in fluid purification and conditioning systems.
• **Specialty Vehicles:** Applicable in a variety of municipal, defense, and specialized transport vehicles that rely on hydraulic or power steering systems.

In all these applications, the strainer's ability to maintain a clean fluid supply to the pump is paramount for sustained performance and operational reliability.

Benefits of Employing the Buyers Products Sump Strainer

Investing in the 1-1/4 Inch NPTF Port Single Element Sump Strainer yields a multitude of tangible benefits for fluid power system operators and owners:

• **Enhanced System Longevity:** By effectively removing coarse contaminants, the strainer significantly reduces wear on pumps, valves, and actuators, thereby extending the overall operational life of the fluid system.
• **Reduced Maintenance Costs and Downtime:** Preventing major component failures translates directly into fewer emergency repairs, lower spare parts inventory, and minimized production downtime, leading to substantial cost savings.
• **Optimized Pump Performance:** Maintaining unrestricted fluid flow to the pump inlet prevents cavitation and ensures the pump operates at its design efficiency, delivering consistent power and response.
• **Cost-Effective Filtration:** The cleanable stainless steel element offers a superior return on investment compared to disposable options, reducing recurring expenditure on replacement filters and simplifying inventory management.
• **Environmental Responsibility:** The reusability of the element contributes to environmental sustainability by reducing waste associated with disposable filtration media.
• **Robust Construction:** The 304 stainless steel element provides exceptional durability, corrosion resistance, and compatibility with a wide range of industrial fluids, ensuring reliable performance in demanding environments.
• **Safety Mechanism:** The integrated 3 PSI pressure bypass acts as a critical failsafe, ensuring continuous fluid flow to the pump even under severe clogging conditions, preventing immediate system shutdown and pump damage while signaling the need for maintenance.

Conclusion

The Buyers Products 1-1/4 Inch NPTF Port Single Element Sump Strainer is a meticulously engineered component that delivers essential protection for fluid power systems. Its combination of robust 304 stainless steel construction, a high-efficiency pleated 100-mesh element (150 microns nominal), and an extra-large filtering area for optimal 20 GPM flow provides reliable coarse filtration. The inclusion of a 3 PSI pressure bypass ensures system integrity under adverse conditions, while its cleanable design offers long-term economic and environmental benefits. By serving as the critical first line of defense against particulate contamination, this sump strainer safeguards expensive components, reduces maintenance overhead, and ensures the sustained reliability and performance of hydraulic, lubrication, and fuel systems across diverse industrial and mobile applications. For any system demanding uncompromising initial fluid cleanliness and pump protection, this single element sump strainer from Buyers Products stands as an exemplary choice.
