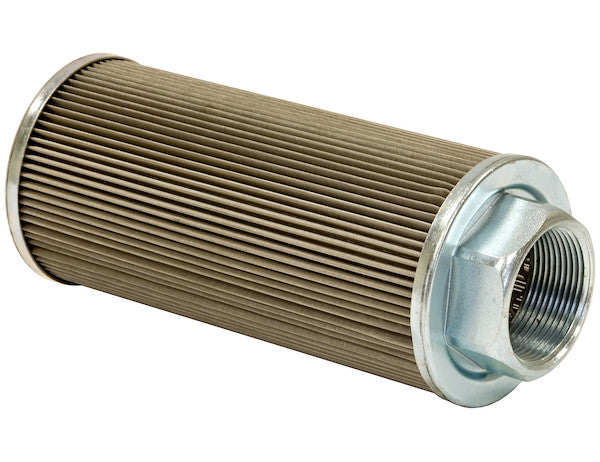

SI1503 - 1-1/2 Inch NPTF Port Single Element Sump Strainer

The Single Element Sump Strainer from Buyers Products works inside your fluid reservoir to stop items from being sucked into the system and causing damage. The cleanable strainer can stop items 150 microns or larger, using a pleated element of stainless steel wire cloth (100 mesh). It has an extra large filtering area, allowing a greater flow rate. The strainer installs into the wall of the reservoir and is available in a range of port sizes and flow rates. Choose from a range of NPTF port sizes.

Specifications

The Critical Role of Sump Strainers in Hydraulic System Integrity

The 1-1/2 Inch NPTF Port Single Element Sump Strainer from Buyers Products represents a foundational component in the comprehensive fluid management strategy for hydraulic and lubrication systems. Its primary function is to act as the first line of defense against particulate contamination entering the most critical sections of a fluid power circuit: the pump and subsequent system components. By positioning this strainer directly within the fluid reservoir, at the suction inlet of the pump, it effectively screens the fluid before it is drawn into the system, preventing the ingestion of larger, potentially abrasive or obstructive debris. This preventative measure is indispensable for safeguarding the operational longevity and efficiency of expensive hydraulic pumps, valves, cylinders, and other sensitive components.

In any hydraulic or lubrication system, the presence of contaminants – whether introduced externally during maintenance, generated internally through component wear, or resulting from fluid degradation – poses a significant threat. These particulates, if allowed to circulate, can cause abrasive wear, silting of critical clearances, erosion, and fatigue, ultimately leading to premature component failure, increased maintenance costs, and costly system downtime. The Single Element Sump Strainer is engineered specifically to intercept these threats at the earliest possible point, dramatically enhancing the cleanliness and reliability of the hydraulic fluid as it embarks on its journey through the system.

Precision Engineering: The 1-1/2 Inch NPTF Port Standard

The specification of a 1-1/2 Inch NPTF (National Pipe Taper Fuel) port is a critical design choice that underscores the professional and industrial application of this sump strainer. NPTF threads are a variant of the widely recognized NPT (National Pipe Taper) standard, specifically designed for applications where a leak-tight seal is paramount, particularly for fuel and hydraulic fluid lines. The "F" in NPTF signifies "Fuel" but more broadly indicates a "Dryseal" thread, meaning that a seal can be achieved by the deformation of the threads themselves, without the need for additional sealant compounds such as PTFE tape or pipe dope, although these are often used as an additional precaution. This inherent sealing capability minimizes the risk of fluid leakage or air ingress, which could otherwise compromise system performance and fluid integrity.

The 1-1/2 inch size of the port is dimensionally significant. It corresponds to a nominal pipe size that is carefully selected to accommodate the specified flow rate of 30 GPM (Gallons Per Minute) with minimal pressure drop at the pump suction. Maintaining low pressure drop at the suction side is crucial to prevent cavitation, a phenomenon where vapor bubbles form and collapse due to excessively low pressure, causing severe damage to pump internals and generating noise. By utilizing a port size that is appropriately matched to the flow demands, this strainer ensures an unimpeded flow path for the hydraulic fluid, supporting the pump's efficiency and protecting it from starvation and cavitation-induced damage. The tapered nature of the NPTF thread also provides a robust mechanical connection, ensuring that the strainer remains securely anchored within the reservoir wall under dynamic operating conditions.

Advanced Filtration Mechanics: Pleated Stainless Steel Wire Cloth (100 Mesh, 150 Microns)

Central to the strainer's performance is its filtration element, meticulously constructed from 304 Stainless Steel wire cloth, configured in a pleated design with a 100 mesh count. This combination of material and design offers a superior filtration capability, effectively capturing particles 150 microns or larger. Understanding these specifications is key to appreciating the strainer's effectiveness.

Mesh Count and Micron Rating: A 100 mesh count refers to the number of openings per linear inch of the wire cloth. A higher mesh count indicates finer filtration. For 100 mesh stainless steel wire, the typical nominal opening size is approximately 149-150 microns. This directly translates to the nominal rating of 150 microns, meaning the strainer is designed to efficiently capture solid particles of this size and larger. While "nominal" rating implies that it captures a high percentage of particles at or above the specified micron size (as opposed to "absolute" which captures virtually 100%), for sump strainer applications, a nominal rating of 150 microns is highly effective for pre-filtration, stopping the macroscopic debris that poses the most immediate threat to hydraulic pumps and large-bore valves.

Pleated Element Design: The decision to employ a pleated element configuration is a significant engineering advantage. Pleating involves folding the wire cloth into a series of accordion-like pleats, which dramatically increases the effective surface area of the filter media within a compact volume. For this strainer, with an Element Diameter of 3.37 inches and an Element Length of 8.03 inches, the pleated design maximizes the available filtration area without requiring a disproportionately large physical footprint. This expanded surface area offers several critical benefits:

• Higher Flow Rates: A larger surface area allows more fluid to pass through the filter media per unit of time, enabling the impressive 30 GPM flow rate while maintaining minimal pressure drop.
• Extended Service Life: More surface area means the element can accumulate a greater volume of contaminants before reaching its clogging limit, thus extending the intervals between cleaning or replacement.
• Reduced Pressure Drop: By distributing the fluid flow over a wider area, the resistance to flow is minimized, which is vital for preventing cavitation at the pump inlet.
• Enhanced Dirt Holding Capacity: The pleats create a larger void volume within the element, allowing it to hold more solid particles before it becomes fully saturated and triggers the bypass mechanism or significantly restricts flow.

Material Science: The Superiority of 304 Stainless Steel

The choice of 304 Stainless Steel as the filter material is a testament to the product's design for durability and reliability in demanding industrial environments. 304 SS is an austenitic chromium-nickel stainless steel known for its excellent corrosion resistance, high strength, and good fabricability. Its properties make it ideally suited for immersion in various hydraulic fluids, which can include mineral-based oils, synthetic lubricants, and even some water-glycol mixtures, often operating at elevated temperatures.

Key advantages of 304 Stainless Steel in this application include:

• Corrosion Resistance: 304 SS provides robust resistance to oxidation and corrosion from hydraulic fluids and ambient moisture, preventing material degradation that could lead to particulate generation within the system.
• Chemical Compatibility: It exhibits broad compatibility with a wide range of hydraulic fluids and additives, ensuring that the filter material itself does not react with or degrade the fluid.
• Mechanical Strength: The wire cloth maintains its structural integrity under continuous fluid flow and differential pressure, resisting deformation or tearing even when subjected to the weight of accumulated contaminants.
• Temperature Stability: 304 SS retains its mechanical properties across a wide operating temperature range typical of hydraulic systems, from cold start-ups to sustained high-temperature operation.
• Cleanability: Its smooth, non-porous surface facilitates easy cleaning, allowing the element to be restored to near-original condition, supporting the "cleanable strainer" feature.

This robust material ensures that the filtration element remains effective and intact throughout its service life, contributing significantly to the overall reliability and low maintenance profile of the sump strainer.

Optimized Flow Dynamics: Addressing the 30 GPM Capacity and Extra Large Filtering Area

The ability to support a flow rate of 30 GPM (Gallons Per Minute) is a significant performance metric for this sump strainer. This flow rate is representative of many medium-sized hydraulic power units and machinery, including agricultural equipment, smaller industrial presses, and various mobile hydraulic applications. Achieving this flow rate while ensuring efficient particle capture and minimal pressure drop at the pump inlet is a direct consequence of the "extra large filtering area" facilitated by the pleated design and the generous dimensions of the element.

The effective surface area provided by the pleating within the 3.37-inch diameter and 8.03-inch length ensures that the fluid's velocity through the filter media is kept low. A lower velocity translates directly to a lower pressure differential across the element. This is crucial for two primary reasons: firstly, it minimizes the risk of cavitation at the pump suction, safeguarding the pump's longevity. Secondly, it prevents the dislodgment of already captured particles due to excessive fluid forces, thus maintaining the integrity of the filtration process. The careful balance between element dimensions, pleat density, and mesh size allows this strainer to deliver high flow capacity without compromising its filtering efficiency or the operational health of the downstream hydraulic pump.

Dimensions and Their Impact: Element Diameter and Length

The specified physical dimensions of the filtration element – a diameter of 3.37 inches and a length of 8.03 inches – are not arbitrary figures but are the result of meticulous engineering to optimize filtration performance within a practical footprint. These dimensions, in conjunction with the pleated design, directly contribute to the "extra large filtering area" and the impressive 30 GPM flow rate.

The diameter influences the radial extent of the filtration area, while the length determines the axial extent. A larger diameter and length, particularly when combined with pleating, allow for a significantly greater total surface area of filter media than a simple cylindrical screen of comparable overall volume. This optimized geometry ensures maximum exposure of the filter mesh to the incoming fluid, facilitating efficient particle capture without creating excessive flow restriction. For systems with a 1-1/2 NPTF suction line, these dimensions represent an ideal balance between effective filtration capacity and manageable size for reservoir installation, ensuring the strainer can be accommodated within typical hydraulic reservoir designs without requiring custom fabrication or excessive space.

The Cleanable Design: Economic and Environmental Advantages

A significant feature of this Single Element Sump Strainer is its cleanable nature. Unlike disposable filter elements that must be discarded once clogged, this stainless steel strainer is designed for repeated use. This characteristic offers substantial economic and environmental benefits.

• Cost Savings: The ability to clean and reuse the element dramatically reduces operational costs associated with purchasing replacement filters. Over the lifespan of a hydraulic system, these savings can be considerable, especially in applications where fluid contamination is frequent.
• Reduced Downtime: While cleaning does require system shutdown, the process is generally straightforward, allowing for quicker resumption of operations compared to sourcing and replacing specialized disposable elements.
• Environmental Responsibility: Reusability minimizes waste generation, contributing to more sustainable and environmentally friendly operational practices. It reduces the volume of industrial waste requiring disposal, aligning with contemporary ecological objectives.
• Consistent Performance: When properly cleaned, the stainless steel wire cloth can be restored to its original filtration efficiency, ensuring consistent system protection throughout its extended service life.

The cleaning process typically involves removing the element from the reservoir, flushing it with a suitable cleaning solvent (compatible with the hydraulic fluid), and often back-flushing to dislodge embedded particles, followed by drying and reinstallation. The robust 304 stainless steel construction is inherently durable, resisting wear and tear during these cleaning cycles.

Installation and Reservoir Integration

The design specifies that the strainer "installs into the wall of the reservoir." This common installation method is highly effective for several reasons. By mounting directly into a port on the reservoir wall or bottom, the strainer is positioned to draw fluid directly from the main body of the reservoir, ensuring that all fluid entering the pump passes through the filtration media. The NPTF threaded connection provides a secure and leak-free interface with the reservoir, preventing bypass of unfiltered fluid and maintaining the integrity of the fluid system.

Proper installation involves ensuring a tight seal with the reservoir wall and adequate clearance around the strainer element to allow for unrestricted fluid flow and easy removal for cleaning. The strainer's position within the reservoir should also consider factors such as reservoir fluid level fluctuations, potential for air entrainment, and accessibility for routine maintenance. Its role as a submerged suction filter dictates its critical placement, making it a passive yet continuously active guardian of the system's fluid health.

Understanding the Pressure Bypass Mechanism (3 PSI)

An indispensable safety feature integrated into the design of this sump strainer is the pressure bypass mechanism, set to activate at 3 PSI (Pounds per Square Inch). This bypass valve is engineered to open when the pressure differential across the filter element exceeds 3 PSI, indicating that the element is becoming excessively clogged with contaminants. The function of this bypass is dual-purpose and critical for system protection:

• Preventing Pump Cavitation/Starvation: If the strainer element becomes severely clogged and flow is restricted, the pump's suction pressure can drop dramatically. This low pressure can lead to cavitation, a destructive phenomenon for pumps. The bypass valve ensures that unfiltered fluid continues to reach the pump, preventing starvation and protecting the pump from damage, even if it means temporarily bypassing filtration.
• Signaling Maintenance Need: The activation of the bypass mechanism serves as an implicit indicator that the filter element requires cleaning or inspection. While it allows the system to continue operating, it signals a degraded filtration state, prompting operators or maintenance personnel to address the clogged element.

The 3 PSI bypass setting is carefully chosen. It is high enough to ensure that the strainer provides effective filtration under normal operating conditions, allowing minor pressure drops due to slight contamination accumulation. However, it is sufficiently low to activate before the pump experiences critical suction pressures that would lead to damage. This balance ensures both continuous system operation and a proactive alert for necessary maintenance.

Comprehensive System Protection and Applications

The 1-1/2 Inch NPTF Port Single Element Sump Strainer is a versatile component essential for a wide array of hydraulic and lubrication applications. Its robust design and effective 150-micron filtration rating make it suitable for environments where coarse particle removal is critical to protect pumps and other upstream components. Key application areas include:

• Industrial Hydraulic Power Units: Used in manufacturing plants, machine tools, and processing equipment where fluid cleanliness is vital for continuous operation.
• Mobile Hydraulic Systems: Integral to construction machinery (excavators, loaders), agricultural equipment (tractors, harvesters), and utility vehicles, where exposure to environmental contaminants is high.
• Lubrication Systems: Protecting pumps and bearings in gearboxes, compressors, and large engines from abrasive wear caused by metallic debris or environmental dust.
• Fluid Transfer and Reservoir Management: Ensuring clean fluid withdrawal from storage tanks for various industrial processes.
• Marine Hydraulics: Providing reliable filtration in demanding marine environments where corrosion resistance and robust performance are paramount.

By preventing the ingress of large particulates, the sump strainer contributes significantly to reduced wear and tear on pumps, extending their service life and minimizing the frequency of costly repairs or replacements. This initial stage of filtration complements finer pressure and return line filters, forming a layered defense against contamination that is crucial for achieving optimal fluid cleanliness standards and maximizing the overall lifespan of the hydraulic system.

Maintenance, Longevity, and Operational Efficiency

The emphasis on a cleanable element crafted from 304 Stainless Steel directly contributes to the long-term operational efficiency and reduced total cost of ownership for systems utilizing this sump strainer. Regular inspection and cleaning of the strainer, guided by the activation of the bypass valve, ensure that the system consistently operates with optimal suction-side filtration.

Preventative maintenance practices, centered around the straightforward cleaning of this element, contribute to:

• Extended Component Life: Minimizing the exposure of pumps and other sensitive components to abrasive particles directly translates to a longer operational life for these critical parts.
• Reduced Unscheduled Downtime: By addressing contamination proactively, the likelihood of sudden, catastrophic component failures is significantly reduced, leading to fewer unscheduled interruptions to operations.
• Optimized Fluid Performance: Clean fluid maintains its original performance characteristics for longer, potentially extending fluid change intervals and reducing fluid replacement costs.
• Lower Operating Costs: The combination of extended component life, reduced downtime, and reusable filtration elements results in a lower overall operating expenditure over the system's lifetime.

The robust construction and material selection also mean that the strainer itself is designed for exceptional longevity. Unlike plastic or less durable materials, the 304 SS construction resists chemical attack, mechanical stress, and thermal cycling, ensuring that the strainer itself remains a reliable component for many years, even decades, of service.

Conclusion

The 1-1/2 Inch NPTF Port Single Element Sump Strainer from Buyers Products is more than just a simple screen; it is a meticulously engineered component designed to be the frontline guardian of hydraulic and lubrication system integrity. Its combination of a precision 1-1/2 inch NPTF port for secure, leak-free connection, a durable 304 stainless steel pleated element for efficient 150-micron nominal filtration, an extra-large filtering area for high flow rates (30 GPM) and low pressure drop, and a critical 3 PSI pressure bypass mechanism, underscores its advanced technical specification.

The cleanable nature of the element offers significant economic and environmental advantages, promoting sustainable maintenance practices and reducing long-term operational costs. By effectively preventing the ingress of damaging particulates from the fluid reservoir into the pump, this sump strainer plays a pivotal role in extending the life of hydraulic components, minimizing downtime, and ensuring the reliable and efficient operation of industrial and mobile machinery. Its design reflects a deep understanding of the challenges inherent in fluid power systems, providing a robust, high-performance solution that is essential for maintaining fluid cleanliness and maximizing asset utilization.
