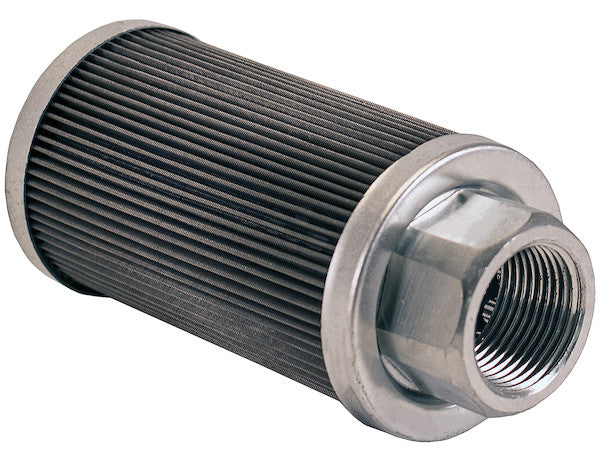

SI2503 - 2-1/2 Inch NPTF Port Single Element Sump Strainer

The Single Element Sump Strainer from Buyers Products works inside your fluid reservoir to stop items from being sucked into the system and causing damage. The cleanable strainer can stop items 150 microns or larger, using a pleated element of stainless steel wire cloth (100 mesh). It has an extra large filtering area, allowing a greater flow rate. The strainer installs into the wall of the reservoir and is available in a range of port sizes and flow rates. Choose from a range of NPTF port sizes.

Specifications

The 2-1/2 Inch NPTF Port Single Element Sump Strainer represents a critical component in the longevity and operational efficiency of hydraulic systems. Designed to operate proactively within the fluid reservoir, this device serves as the first line of defense against particulate contamination, safeguarding sensitive downstream components from the detrimental effects of ingressed debris. In the demanding environments of industrial, mobile, and agricultural machinery, where hydraulic fluids are continuously circulated, maintaining fluid cleanliness is not merely a recommendation but an imperative for preventing catastrophic system failures, minimizing downtime, and optimizing overall performance.

At its core, the primary function of this sump strainer is to prevent solid contaminants from entering the hydraulic pump, which is the heart of any hydraulic circuit. These contaminants, which can range from manufacturing debris, wear particles generated by the system itself, environmental dust, or seal degradation products, can cause accelerated wear to pump gears, pistons, and vanes, leading to premature failure and significant repair costs. By installing directly into the reservoir wall, the strainer is strategically positioned to capture these harmful particles at the fluid intake point, ensuring that only pre-filtered fluid reaches the pump.

Precision Filtration: 150 Micron (100 Mesh) Stainless Steel Element

The filtration capability of this Single Element Sump Strainer is precisely engineered to address the specific needs of reservoir intake protection. With a nominal rating of 150 microns, it effectively captures particles 150 micrometers and larger. To put this into perspective, a human hair typically measures about 70 microns in diameter. This level of filtration is crucial for preventing larger, abrasive particles from causing immediate damage to the hydraulic pump and downstream components while allowing finer particles to pass, which are typically addressed by higher-efficiency pressure or return line filters. The element itself is constructed from a pleated stainless steel wire cloth, designated as 100 mesh. The term "100 mesh" indicates that there are 100 wires per linear inch, forming openings that correspond to approximately 150 microns. This robust construction provides a consistent and reliable barrier against harmful particulates.

The choice of 304 Stainless Steel for the filter material is not arbitrary; it is a deliberate selection based on its superior properties for hydraulic fluid applications. Stainless steel, particularly the 304 grade, offers exceptional corrosion resistance, crucial for immersion in various hydraulic fluids, which can sometimes contain additives that might react with lesser materials. It also provides excellent mechanical strength and durability, allowing the element to withstand the differential pressures encountered during operation without deforming or failing. Furthermore, 304 stainless steel is compatible with a wide range of petroleum-based and synthetic hydraulic fluids, ensuring broad applicability across diverse hydraulic systems. Its inherent resistance to high temperatures and pressures further contributes to the longevity and reliability of the sump strainer, even in demanding operational environments.

Optimized Design for Superior Flow and Protection: 2-1/2 Inch NPTF Port

A hallmark feature of this sump strainer is its extra-large filtering area, a design choice that directly translates into several performance advantages. A larger filtering area means that the hydraulic fluid has more surface through which to pass, resulting in a significantly lower pressure drop across the element. This reduced restriction at the pump inlet is vital for preventing cavitation, a damaging phenomenon where vacuum pockets form in the fluid due to insufficient inlet pressure. Cavitation can lead to severe erosion of pump components, noise, and reduced efficiency. The generous filtering area, combined with the specified 2-1/2 inch NPTF port, allows for an impressive flow rate of up to 75 gallons per minute (GPM), ensuring that even high-volume hydraulic systems can operate efficiently without being starved of fluid. The 5.12-inch element diameter and 10.14-inch element length contribute substantially to this optimized filtering surface, providing ample capacity for contaminant retention while maintaining high flow. The single element design simplifies manufacturing and maintenance, offering a balance between effective filtration and operational simplicity.

The 2-1/2 Inch NPTF Port is a critical specification that merits detailed consideration. NPTF stands for National Pipe Taper Fuel, a standard thread type specifically designed to create a mechanical seal without the need for additional sealants when properly torqued. This "dryseal" characteristic is invaluable in hydraulic applications where the introduction of sealant compounds into the fluid can cause contamination and system issues. The tapered design ensures a tight, leak-free connection, which is paramount in preventing air ingress into the hydraulic system or fluid leakage out of the reservoir. The 2-1/2 inch nominal size indicates a substantial port opening, capable of handling the high flow rates required by larger hydraulic pumps. This specific port size ensures compatibility with a wide array of industrial and mobile hydraulic systems, providing a robust and secure connection point for the strainer within the reservoir wall.

The Crucial Role of the 3 PSI Pressure Bypass Valve

An essential safety and operational feature incorporated into this sump strainer is the integrated 3 PSI pressure bypass valve. The presence of a bypass valve is critical in any suction-side filtration application. Under normal operating conditions, hydraulic fluid flows through the filter element. However, situations can arise where the element's flow capacity might be restricted. This could be due to excessive contaminant loading, which progressively clogs the mesh, or during cold start-up conditions where highly viscous fluid struggles to pass through the filter pores. Without a bypass mechanism, the hydraulic pump would be starved of fluid, leading to severe cavitation damage and potential pump failure. The 3 PSI bypass valve is precisely calibrated to open and allow unfiltered fluid to bypass the element if the pressure differential across the element exceeds 3 pounds per square inch. While the bypass condition means unfiltered fluid enters the pump temporarily, it prevents pump cavitation, safeguarding the most expensive component in the hydraulic circuit. This design prioritizes pump protection under adverse conditions, recognizing that temporary unfiltered flow is preferable to permanent pump damage. This ensures continuous operation, albeit at a reduced filtration efficiency for a brief period, preventing costly system shutdowns and repairs.

Maintainability and Economic Advantages: The Cleanable Strainer

One of the most significant advantages of this Single Element Sump Strainer is its cleanable design. Unlike disposable filter elements, which require frequent replacement and contribute to operational waste and ongoing costs, the stainless steel wire cloth element can be removed, cleaned, and reused multiple times. This feature offers substantial economic benefits over the operational lifespan of the hydraulic system, significantly reducing the total cost of ownership (TCO). The cleaning process typically involves removing the strainer from the reservoir, flushing it with a suitable cleaning solvent or high-pressure air/water (depending on the contaminant and fluid type), and then reinspecting it before reinstallation. This maintainability minimizes consumable expenses, reduces waste, and supports more sustainable hydraulic system management. The robust 304 stainless steel construction further ensures that the element can withstand repeated cleaning cycles without degradation of its structural integrity or filtration performance, provided proper cleaning procedures are followed.

Strategic Installation and Accessibility

The design for installation into the wall of the reservoir is a common and highly effective method for sump strainers. This approach positions the strainer optimally within the fluid body, ensuring that it is submerged and can effectively draw fluid from the cleanest possible section of the reservoir, typically below the fluid surface and above any settled sludge. The element's dimensions, with an element diameter of 5.12 inches and an element length of 10.14 inches, indicate a substantial size that maximizes the available filtering area while still allowing for practical installation and serviceability. When installing, proper sealing is crucial, and the NPTF threading assists in achieving a secure, leak-free connection. The ability to install into the reservoir wall also allows for easier access for periodic inspection and cleaning, which is essential for maintaining the strainer's effectiveness and the overall cleanliness of the hydraulic fluid. Proper positioning ensures that the intake is not obstructed and that the fluid flow into the pump remains unimpeded.

Integrating Sump Strainers into Comprehensive Hydraulic System Design

While the 2-1/2 Inch NPTF Port Single Element Sump Strainer provides crucial protection at the pump intake, it is important to understand its role within a holistic hydraulic filtration strategy. Sump strainers are typically considered coarse filters, designed to prevent catastrophic damage from larger particles. They are the initial barrier. For achieving the higher levels of cleanliness often required by precision components such as servo valves, proportional valves, and hydrostatic transmissions, additional filtration stages are necessary. These typically include return line filters, which capture contaminants generated within the system before fluid returns to the reservoir, and pressure line filters, which provide the highest level of protection to critical components immediately upstream of them. The sump strainer, by removing gross contamination, extends the life of these finer filters downstream, allowing them to operate more efficiently and for longer periods before requiring service. A well-designed hydraulic system employs a multi-stage filtration approach, with each filter type playing a specific, complementary role in maintaining optimal fluid cleanliness and system longevity. This systematic approach ensures maximum uptime and reduces operational costs significantly.

Diverse Applications Across Industrial and Mobile Sectors

The versatility and robust design of the 2-1/2 Inch NPTF Port Single Element Sump Strainer make it suitable for a wide array of applications across various industries. In mobile hydraulics, it is indispensable for construction equipment (excavators, loaders, bulldozers), agricultural machinery (tractors, harvesters), and utility vehicles, where systems are exposed to harsh environments and fluid contamination risks are high. Its ability to handle a 75 GPM flow rate supports the demanding hydraulic power requirements of these machines. In industrial settings, this sump strainer finds application in hydraulic power units for manufacturing presses, material handling systems, plastic injection molding machines, and heavy-duty robotics. Any system utilizing a hydraulic reservoir and requiring protection against particle ingestion can benefit from this product. Its durable construction and cleanable element are particularly advantageous in environments where maintenance schedules are critical and component longevity is paramount. The product's compliance with standard NPTF port sizes further enhances its adaptability across a broad spectrum of existing and new hydraulic designs.

Technical Specifications in Detail: Understanding the Data

A deeper look at the provided specifications reveals critical performance indicators for this sump strainer. The Element Diameter of 5.12 inches and Element Length of 10.14 inches define the physical dimensions of the pleated filter element. These dimensions are directly proportional to the total filtering surface area, which, as previously discussed, is crucial for achieving the high flow rate of 75 GPM with minimal pressure drop. A larger element provides a greater capacity for holding contaminants before requiring cleaning or bypassing, extending service intervals. The Nominal Rating of 150 microns precisely indicates the size of particles that the filter is designed to capture, serving as a guideline for initial pump protection. While a nominal rating suggests that a certain percentage of particles at or above this size will be captured, it is a well-established and accepted metric for sump strainers. The Pressure Bypass of 3 PSI is a factory-set threshold that ensures system protection by allowing fluid to bypass the element if the restriction becomes excessive, safeguarding the pump from cavitation. This low bypass pressure is ideal for suction lines, where even minor pressure drops can induce cavitation. The Filter Material of 304 Stainless Steel confirms the high-quality, corrosion-resistant, and durable construction, ideal for prolonged immersion in hydraulic fluids and suitability for demanding industrial applications. The Flow (GPM) of 75 highlights the strainer's capability to support significant hydraulic system demands without compromising fluid supply to the pump. The Inlet Port Size of 2 1/2 NPTF ensures a robust, leak-proof connection compatible with industry-standard piping.

Quality Assurance and Reliability

Products from Buyers Products are generally recognized for their commitment to quality and durability in demanding applications. This 2-1/2 Inch NPTF Port Single Element Sump Strainer is engineered with meticulous attention to detail and manufactured to stringent standards, ensuring consistent performance and reliability. The choice of materials, such as 304 stainless steel, and the robust design with an extra-large filtering area, reflect a dedication to providing components that can withstand the rigors of continuous hydraulic operation. Users can have confidence in the product's ability to protect their valuable hydraulic assets and contribute to a more efficient and reliable operational framework.

In conclusion, the 2-1/2 Inch NPTF Port Single Element Sump Strainer is an indispensable component for any hydraulic system seeking to optimize performance, extend component life, and reduce maintenance costs. Its strategic placement within the fluid reservoir, combined with its high-quality 304 stainless steel 150-micron (100 mesh) element, generous filtering area, and crucial 3 PSI pressure bypass valve, ensures robust protection against damaging contaminants. The cleanable design offers significant economic and environmental advantages, reducing TCO and promoting sustainable practices. By preventing pump damage and maintaining fluid integrity at the intake, this sump strainer plays a fundamental role in safeguarding the entire hydraulic system, leading to enhanced operational efficiency, reliability, and longevity across a broad spectrum of industrial and mobile applications.
