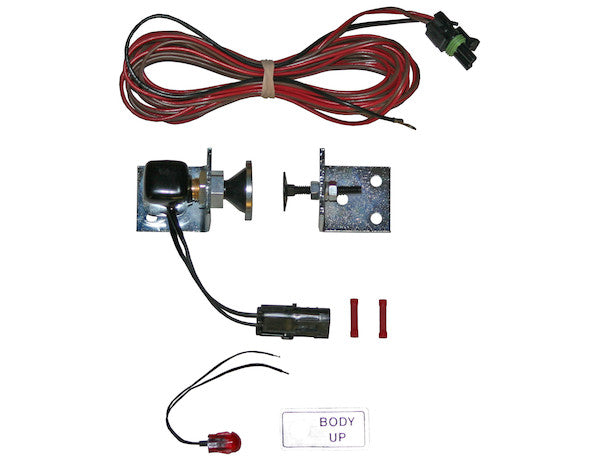

Buyers Products Dump Body-Up Indicator Kit mounts to the frame of your vehicle to notify you when the dump body is raised, increasing alertness while working. It is designed to reduce the chance of overhead collisions with raised dump bodies. Waterproof and IP68 rated, this indicator can perform in the most extreme temps: -40 F?? to 185 F??. The Body-Up Indicator Kit has 304 stainless steel housing for the ultimate in corrosion resistance. The kit also includes a wiring harness and red indicator light so you'll have everything you need for installation. Choose between a standard red light or a buzzer light with 70 dB alarm.
Specifications
| Amperage | 10.0 |
|---|---|
| Body Up Style | Plunger |
| Bracket Mounting Hole Diameter | 0.28 |
| Buzzer Included? | No |
| Connector | Packard |
| Depth | 1.88 |
| Height | 1.88 |
| Indicator Light Included? | Yes |
| Mounting Holes Center to Center | 1.00 |
| Use With | - |
| Voltage | 12 |
| Water Resistant (y/n) | Yes |
| Width | 1.75 |
| Wiring Harness Length | 20 |
Advanced Engineering and Safety Enhancement: The Buyers Products Body-Up Indicator Kit
In the demanding environments of commercial transportation, construction, waste management, and municipal services, safety remains paramount. The operation of heavy machinery, particularly vehicles equipped with dump bodies, presents inherent risks that necessitate robust preventative measures. The Buyers Products Body-Up Indicator Kit with an Integrated Indicator Light represents a critical technological advancement designed to mitigate a significant operational hazard: the unintended movement or continued elevation of a dump body during vehicle transit. This comprehensive safety system provides real-time situational awareness to the operator, thereby reducing the probability of catastrophic accidents, costly infrastructure damage, and potential fatalities.
The Imperative for Enhanced Dump Body Safety
The consequences of driving a dump truck with an elevated dump body can be severe. These incidents, often referred to as "overhead strikes" or "bridge strikes," can result in:
- Catastrophic Accidents: Striking overhead structures such as bridges, power lines, overpasses, or tunnels can lead to the structural compromise of the dump body, vehicle rollover, severe damage to the truck, and extensive damage to public infrastructure. Such events can cause significant traffic disruptions, lengthy repair periods, and pose a direct threat to the lives of the operator and the general public.
- Personnel Injury and Fatality: The sudden impact and subsequent dislodgement of a raised dump body can cause severe injuries or fatalities to the vehicle operator and nearby personnel. Compliance with Occupational Safety and Health Administration (OSHA) regulations and industry best practices mandates the implementation of effective safety controls to protect workers.
- Legal and Financial Repercussions: Accidents involving elevated dump bodies typically incur substantial financial losses, including vehicle repair or replacement costs, infrastructure repair expenses, increased insurance premiums, and potential lawsuits for property damage, personal injury, or wrongful death. Regulatory fines and penalties can also be levied against the operating company.
- Reputational Damage: Incidents of this nature can severely damage a company's reputation, affecting client trust, public perception, and future business opportunities. Proactive implementation of safety technology demonstrates a commitment to operational excellence and corporate responsibility.
Precision Engineering and Robust Sensor Technology
At the core of the Body-Up Indicator Kit's functionality is its precision-engineered plunger-style sensor. This electro-mechanical switch is designed for high reliability and durability in harsh operating conditions. The "plunger" mechanism operates as a limit switch, physically detecting the presence or absence of the dump body in its fully lowered position. When the dump body is raised, even marginally, the plunger is released or depressed, triggering an electrical signal. This simple yet effective mechanical principle ensures a direct and unambiguous sensing action, minimizing the potential for false readings that might occur with more complex or less robust sensing technologies in dynamic environments.
The sensor's compact dimensions, with a depth of 1.88 inches, height of 1.88 inches, and width of 1.75 inches, allow for discreet yet effective mounting on the vehicle frame. The specific bracket mounting hole diameter of 0.28 inches and a center-to-center distance of 1.00 inch ensure compatibility with standard industrial fasteners and facilitate secure installation. The design prioritizes a robust physical interface, minimizing susceptibility to vibration, shock, and debris accumulation that are inherent to commercial vehicle operation.
Unparalleled Environmental Durability and Material Science
The operational efficacy of safety equipment in commercial applications is inextricably linked to its ability to withstand extreme environmental conditions. The Buyers Products Body-Up Indicator Kit is engineered to exceed these demanding requirements, boasting an IP68 rating and construction from 304 stainless steel, demonstrating superior resilience.
IP68 Ingress Protection Rating
The IP (Ingress Protection) Code classifies and rates the degree of protection provided by mechanical casings and electrical enclosures against intrusion by solids and liquids. An IP68 rating is among the highest achievable, signifying:
- "6" for Solids Protection: This indicates complete protection against dust ingress. In environments where dust, dirt, sand, and particulate matter are prevalent (e.g., construction sites, unpaved roads, mining operations), this rating ensures that fine particles cannot penetrate the sensor housing and compromise its internal electronic or mechanical components. This prevents mechanical binding of the plunger and protects electrical contacts from abrasive wear or short-circuiting.
- "8" for Liquids Protection: This indicates protection against the effects of continuous immersion in water under conditions specified by the manufacturer, which are typically more stringent than IPX7. For the Body-Up Indicator Kit, this means the sensor can withstand prolonged exposure to heavy rain, snow, sleet, road spray, high-pressure washing, and even temporary submersion without suffering water ingress. This is crucial for maintaining functionality during inclement weather, regular vehicle cleaning, and operation in wet or muddy conditions.
Extreme Temperature Resilience
Further emphasizing its robustness, the Body-Up Indicator Kit is rated for an operational temperature range from -40°F (-40°C) to 185°F (85°C). This expansive range is critical for equipment deployed across diverse geographical regions and climates, from arctic winters to scorching desert summers. At low temperatures, materials can become brittle, and lubricants can thicken; at high temperatures, components can degrade, and thermal expansion can cause operational issues. The specified temperature range ensures that the sensor's mechanical plunger mechanism, internal electronics, and sealing compounds maintain their integrity and functionality without compromise, providing reliable performance in virtually any operational climate.
304 Stainless Steel Housing for Ultimate Corrosion Resistance
The choice of 304 stainless steel for the sensor housing is a deliberate engineering decision to ensure maximum longevity and operational reliability. 304 stainless steel is an austenitic chromium-nickel stainless steel, renowned for its excellent corrosion resistance. Key benefits include:
- Superior Corrosion Resistance: It exhibits excellent resistance to a wide range of atmospheric environments and many corrosive media, including road salts, de-icing chemicals, acidic rain, and chemical agents encountered in waste management or industrial settings. This prevents rust formation, which could otherwise compromise the housing's structural integrity, affect the plunger's smooth operation, or lead to sensor failure.
- High Strength and Durability: 304 stainless steel offers a high tensile strength and good ductility, providing robust protection against mechanical impact, abrasion, and vibration that are common in heavy-duty vehicle applications.
- Hygienic Properties: Its non-porous surface is easy to clean and maintain, resisting the buildup of dirt and grime, which is beneficial for equipment subject to frequent washing or exposure to various contaminants.
Integrated Electrical System and Alert Mechanism
The Body-Up Indicator Kit is designed for seamless integration into the vehicle's electrical architecture. Operating at a standard 12-volt (V) DC electrical system, common across most commercial trucks and heavy equipment, it draws a maximum amperage of 10.0 amps. This ensures compatibility and minimizes the need for complex power conversions or dedicated high-current circuits.
The inclusion of a high-quality wiring harness, with a substantial length of 20 inches, simplifies installation and provides ample reach for routing connections within the vehicle's frame and cabin. The harness is terminated with a Packard connector, an industry-standard, robust, and often sealed electrical connector known for its reliability in demanding automotive and heavy-duty applications. Packard connectors are engineered to resist moisture, vibration, and temperature fluctuations, ensuring a secure and consistent electrical connection vital for safety-critical systems.
The kit's primary function is to provide an unmistakable alert to the operator. It includes an indicator light, typically a bright red LED, strategically placed within the vehicle's cabin. This visual cue serves as an immediate warning when the dump body is in any position other than fully lowered and latched. For applications requiring an even higher level of alert or in environments with high ambient noise, an optional buzzer light with a 70 dB alarm is available. This audible alert provides an additional layer of sensory input, ensuring the operator's attention is captured even if the visual indicator is momentarily overlooked. The combination of visual and audible alarms adheres to principles of human factors engineering, optimizing the effectiveness of the warning system.
Simplified Installation and Maintenance
The design philosophy behind the Buyers Products Body-Up Indicator Kit emphasizes straightforward installation and minimal maintenance, maximizing uptime and reducing operational costs.
- Frame Mounting: The kit is specifically designed for mounting to the vehicle frame, a robust and stable location that is less susceptible to the movements and stresses of the dump body itself. This strategic placement ensures consistent and accurate sensing of the dump body's position relative to the chassis.
- Complete Kit: By including the sensor, wiring harness, and indicator light (or optional buzzer light), the kit provides all necessary components for a complete installation, eliminating the need to source individual parts and simplifying procurement.
- Reduced Maintenance: Thanks to its durable construction, IP68 rating, and 304 stainless steel housing, the kit requires virtually no scheduled maintenance beyond periodic visual inspection for physical damage or accumulated debris. The robust plunger mechanism is designed for a long operational life cycle with minimal wear.
Operational Benefits and Return on Investment (ROI)
Implementing the Buyers Products Body-Up Indicator Kit offers substantial operational benefits and a compelling return on investment:
- Enhanced Safety Culture: Proactively integrating advanced safety technology fosters a culture of safety within the organization, demonstrating a commitment to protecting personnel and assets.
- Reduced Accident Frequency and Severity: The primary benefit is the significant reduction in the likelihood and severity of overhead strike incidents, leading to fewer injuries, fatalities, and property damage.
- Cost Savings: Avoidance of even a single overhead strike can save hundreds of thousands to millions of dollars in repairs, insurance claims, legal fees, regulatory fines, and lost operational time. The cost of installing this preventative measure is negligible in comparison.
- Increased Operational Efficiency: By preventing accidents and associated downtime, the kit contributes to greater fleet availability and operational efficiency. Operators can focus on their tasks with enhanced confidence in their equipment's safety status.
- Regulatory Compliance: Aids companies in meeting and exceeding safety regulations and industry standards, reducing the risk of non-compliance penalties.
- Asset Protection: Protects the considerable investment in heavy-duty vehicles and associated infrastructure by preventing preventable damage.
Conclusion
The Buyers Products Body-Up Indicator Kit with Indicator Light is more than just an accessory; it is an indispensable safety system engineered to meet the rigorous demands of commercial vehicle operations. Its plunger-style sensor, protected by a 304 stainless steel housing and boasting an IP68 environmental rating, ensures reliable performance across a broad spectrum of environmental conditions and temperatures ranging from -40°F to 185°F. With its seamless 12V electrical integration via a Packard connector and a 20-inch wiring harness, coupled with clear visual and optional audible alerts, this kit provides operators with the critical information needed to prevent dangerous and costly incidents. By enhancing situational awareness and mitigating the risks associated with an elevated dump body, the Buyers Products Body-Up Indicator Kit stands as a testament to intelligent engineering focused on safeguarding personnel, preserving assets, and promoting responsible, efficient operations in the heavy-duty sector.
