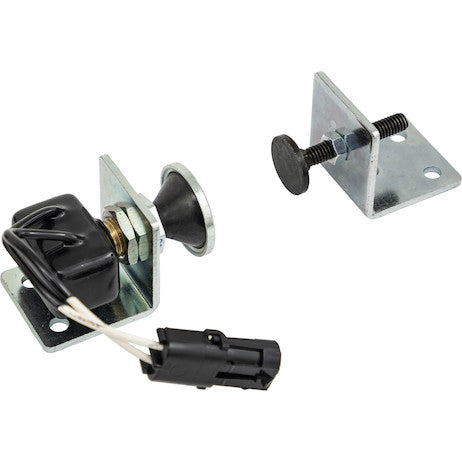

SK12 - Body-Up Indicator Kit with Buzzer Light

Buyers Products Dump Body-Up Indicator Kit mounts to the frame of your vehicle to notify you when the dump body is raised, increasing alertness while working. It is designed to reduce the chance of overhead collisions with raised dump bodies. Waterproof and IP68 rated, this indicator can perform in the most extreme temps: -40 F?? to 185 F??. The Body-Up Indicator Kit has 304 stainless steel housing for the ultimate in corrosion resistance. The kit also includes a wiring harness and red indicator light so you'll have everything you need for installation. Choose between a standard red light or a buzzer light with 70 dB alarm.

Specifications

In the demanding operational landscape of commercial and municipal fleets, safety and operational efficiency are paramount. The Buyers Products Body-Up Indicator Kit with Buzzer Light represents a critical advancement in vehicle safety technology, specifically engineered to mitigate the significant risks associated with an inadvertently raised dump body. This comprehensive system serves as an indispensable tool for operators of dump trucks, service vehicles, and other hydraulic-lift equipped machinery, providing immediate, multi-modal alerts to prevent catastrophic accidents, minimize property damage, and uphold the highest standards of occupational safety. Integrating robust engineering with intuitive design, this kit transforms a potential hazard into a manageable, observable condition, enhancing situational awareness in dynamic work environments.

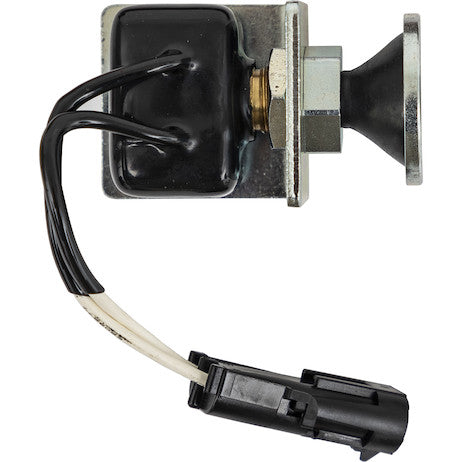

The core functionality of this indicator system hinges on its precision-engineered plunger-style sensor. Mounted strategically to the vehicle's frame, typically in close proximity to the dump body's pivot or lifting mechanism, the plunger acts as a mechanical switch. When the dump body is in its fully lowered and secured position, the plunger is depressed, indicating a safe operational state. Conversely, as soon as the dump body begins to elevate, even marginally, the plunger is released. This mechanical action translates into an electrical signal, instantaneously triggering the sophisticated alerting mechanisms within the cab. This direct, mechanical sensing method ensures high reliability and minimizes false positives, as it directly monitors the physical presence and position of the dump body relative to the chassis. The robust construction of the plunger mechanism is designed to withstand the continuous wear and tear inherent in heavy-duty applications, ensuring long-term operational integrity and consistent performance across thousands of duty cycles.

Upon detection of a raised dump body, the system activates a dual-modal alerting system designed for maximum operator attention: a prominent red indicator light and a powerful 70 dB audible buzzer. The red indicator light, intended for dashboard or easily visible cabin mounting, provides an immediate and unmistakable visual cue. Its vibrant illumination is specifically chosen for high contrast and visibility, even in brightly lit conditions or during night operations, ensuring that operators can quickly perceive the critical status. This visual alert is crucial for initial recognition, allowing the operator to correlate the illuminated warning with the vehicle's state. Complementing the visual cue, the integrated 70 dB buzzer emits a clear, piercing alarm. This decibel level is carefully selected to cut through the ambient noise often present in commercial vehicle cabs and construction sites—engine noise, radio communication, and external environmental sounds—without being excessively jarring. The combination of visual and auditory alerts addresses different sensory inputs, ensuring that even if an operator's visual attention is momentarily diverted, the distinct audible warning will capture their focus, prompting immediate corrective action. This multi-sensory approach is a cornerstone of effective industrial safety systems, significantly enhancing the probability of timely intervention.

Environmental durability is a non-negotiable requirement for equipment destined for heavy-duty vehicular applications, and the Buyers Products Body-Up Indicator Kit excels in this regard. The system boasts an IP68 ingress protection rating, signifying its complete resistance to dust ingress and its ability to withstand prolonged immersion in water beyond 1 meter. This stringent rating ensures uninterrupted functionality in the most challenging weather conditions—heavy rain, snow, sleet, or muddy terrain—and harsh operational environments characterized by dust, debris, and pressure washing. Furthermore, the kit is engineered for extreme temperature resilience, operating flawlessly across a vast range from -40°F (-40°C) to 185°F (85°C). This broad thermal performance spectrum guarantees reliable operation whether deployed in arctic winters or scorching desert summers, preventing material degradation, electronic component failure, and sensor inaccuracies that can plague lesser-quality systems. The housing for the sensor unit is meticulously constructed from 304 stainless steel. This alloy is renowned for its exceptional corrosion resistance, particularly against a wide array of chemicals, road salts, and moisture exposure common in vehicle undercarriages. The inherent strength of 304 stainless steel also provides superior mechanical protection against impacts, vibrations, and abrasive materials encountered during vehicle operation, ensuring the sensor's long-term physical integrity and performance stability. This combination of IP68 rating, extreme temperature tolerance, and premium stainless steel construction underscores the product's design philosophy of maximum robustness and extended service life.

Seamless electrical integration is crucial for any vehicle accessory. This kit operates efficiently within standard 12-volt vehicle electrical systems, drawing a moderate 10.0 Amperes when fully active. This electrical profile is well within the capabilities of typical commercial vehicle power circuits, minimizing the need for extensive electrical system modifications. The inclusion of a high-quality Packard connector facilitates a secure and reliable electrical connection. Packard connectors are widely recognized in the automotive and heavy equipment industries for their robust design, resistance to vibration, moisture sealing capabilities, and ease of installation and removal, ensuring stable power delivery and signal integrity. Furthermore, a generous 20-inch wiring harness is supplied with the kit. This pre-terminated harness simplifies installation by providing ample length for routing from the sensor on the frame to the indicator light and buzzer within the cab, accommodating various vehicle layouts without requiring additional wire splicing or extensions. The quality of the wiring and connectors is paramount to prevent intermittent faults or signal loss, which could compromise the safety function of the system. This integrated electrical package ensures that the system is not only robust in its sensing and alerting but also reliable in its electrical connectivity, critical for continuous operation.

The physical dimensions and mounting specifications of the sensor unit are designed for optimal integration onto a wide range of vehicle frames. With a depth of 1.88 inches, a height of 1.88 inches, and a width of 1.75 inches, the compact footprint allows for flexible placement without interfering with existing vehicle components or structural elements. The mounting bracket features precise engineering, with a mounting hole diameter of 0.28 inches and mounting holes positioned 1.00 inch center-to-center. These standard dimensions simplify installation, allowing for secure attachment using commonly available hardware. The plunger-style body-up sensor is specifically engineered for straightforward installation onto the vehicle's frame, where it can reliably interact with the dump body. This design minimizes complex calibration procedures and ensures that, once mounted, the sensor provides consistent and accurate positional feedback. The bracket's design is not merely for attachment; it's an integral part of the system's resilience, dispersing loads and protecting the sensor from operational stresses. This attention to detail in mechanical design contributes significantly to the kit's overall reliability and ease of field service.

By preventing instances of a raised dump body impacting overhead structures—bridges, power lines, low-clearance passages, or garage entrances—the Body-Up Indicator Kit with Buzzer Light offers substantial operational advantages and a compelling return on investment. The direct costs of such collisions can be exorbitant, encompassing vehicle repairs, infrastructure damage, legal liabilities, insurance premium increases, and potential worker's compensation claims. Beyond financial implications, these incidents can lead to severe injuries or fatalities, causing invaluable human suffering and reputational damage to the operating company. By providing a clear and undeniable warning, the kit empowers operators to proactively address the dangerous condition, averting accidents before they occur. This proactive safety measure contributes to a safer working environment, fostering a culture of vigilance and responsibility. Furthermore, reducing accident frequency minimizes vehicle downtime for repairs, thereby maximizing operational uptime and overall fleet productivity. This translates into tangible economic benefits for fleet managers and owners, reinforcing the value proposition of investing in advanced safety technologies.

The adoption of the Buyers Products Body-Up Indicator Kit with Buzzer Light aligns directly with best practices in occupational safety and fleet management. Its robust construction, encompassing IP68 environmental protection, 304 stainless steel housing, and extreme temperature resilience, ensures dependable performance in the most arduous conditions. The combination of a highly reliable plunger sensor, a vivid visual indicator, and a powerful 70 dB audible alarm creates an unparalleled multi-modal warning system designed to capture and sustain operator attention effectively. Engineered for straightforward installation with a dedicated wiring harness and Packard connector, and operating efficiently on standard 12V vehicle power, this kit offers a seamless integration solution. Ultimately, it is more than just an accessory; it is an indispensable safety system that actively contributes to accident prevention, protects valuable assets, and safeguards personnel, thereby elevating the overall safety profile and operational integrity of any commercial or municipal fleet. This product embodies a commitment to enhancing safety through intelligent, durable, and effective engineering.
