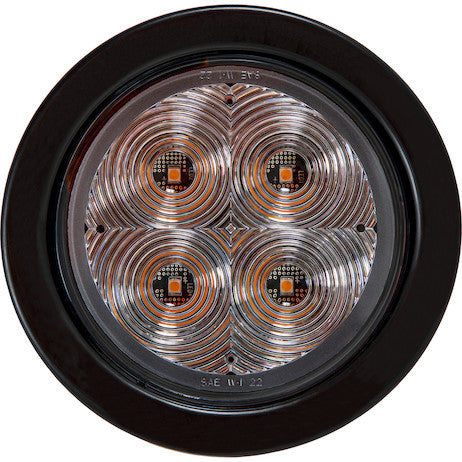

Buyers Products 4 Inch LED Amber Round Strobe Light has 24 LEDs and is SAE J595 Class 1 rated. It features 12-24V power range and has an impact-resistant plastic housing. A grommet and PL-3 plug are included for installation. The light is available with a six-flash or quad flash strobe pattern. The quad flash strobe also has alternating and synchronous functions. Lights are rated IP67 for water and dust resistance and are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Yes |
|---|---|
| Amp draw at 12 Volts | .25 |
| Base / Mount Type | Recessed Rubber Grommet |
| Built-In Switch | Remote |
| Certification | SAE J595 Class 1, IPX7 |
| Class Level | 1 |
| Color | Clear |
| Connector | Blunt Cut Wire |
| Depth | 1.04 |
| Grommet/Base Included | Yes |
| Hard Wired or Plug | Hard Wired |
| Height | 1.04 |
| Housing Material | Polycarbonate |
| IP Rating | IPX7 |
| Lead Length | 8 |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lumens | 0 |
| Mount Type | Recessed Grommet |
| Number of Contacts | 3 |
| Number of Flash Patterns | 9 |
| Number of Wires | 3 |
| Operating Temperature | -40 C to +65 C |
| Overall Width | 5.33 |
| Plug Included | Uncut Wire |
| SAE Classification | SAE J595 Class 1 |
| Synchronous Function | Yes |
| Type of Flash Pattern | 6 Flash Patterns |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 3 |
Advanced Warning Illumination: The 4 Inch Round Recessed Strobe with Amber LEDs and Clear Lens
In the demanding environments of commercial, municipal, and industrial operations, superior warning illumination is not merely a preference but a critical safety imperative. The Buyers Products 4 Inch Round Recessed Strobe with Amber LEDs and Clear Lens represents a pinnacle in compact, high-performance warning light technology. Engineered to meet the rigorous demands of professional applications, this strobe light integrates cutting-edge LED efficiency with robust construction and versatile functionality, ensuring unparalleled visibility and operational reliability.
Unparalleled Visibility and Efficacy: Amber LEDs with Clear Lens Design
At the core of this advanced warning light are 24 high-intensity amber LEDs, meticulously arranged to maximize light output and dispersion. Amber is universally recognized as a cautionary and warning color, making it exceptionally effective for alerting drivers and pedestrians to potential hazards, stationary vehicles, or ongoing work. The use of a clear lens, as opposed to an amber lens, serves a distinct technical purpose: it allows the full spectrum of light emitted by the amber LEDs to pass through unattenuated, preserving maximum brightness and color fidelity. This design choice optimizes the luminous intensity, ensuring that the amber flashes are sharp, vivid, and highly noticeable across a broad viewing angle, even in adverse weather conditions or bright daylight.
Light Emitting Diodes (LEDs) offer several intrinsic advantages over traditional incandescent or xenon strobe technologies. Their inherent energy efficiency translates into significantly lower power consumption, with this unit drawing a mere 0.25 Amps at 12 Volts and consuming only 3 Watts. This minimal draw reduces the load on vehicle electrical systems, extends battery life, and contributes to overall operational cost savings. Furthermore, LEDs boast an exceptional lifespan, often exceeding 50,000 hours, which dramatically reduces maintenance requirements and replacement costs over the operational life of the equipment. The rapid on-off cycling capability of LEDs also allows for crisp, distinct flash patterns, enhancing their signaling effectiveness.
Engineered for Extreme Durability: Polycarbonate Housing and IPX7 Rating
The operational longevity and reliability of any warning light are fundamentally tied to its structural integrity and resistance to environmental stressors. This 4-inch strobe light is constructed with an impact-resistant polycarbonate housing and lens. Polycarbonate is a thermoplastic polymer renowned for its extraordinary toughness, high impact strength, and excellent optical clarity. These properties make it an ideal material for applications where components are exposed to physical abuse, such as impacts from road debris, branches, or accidental bumps.
Further bolstering its resilience is an impressive IPX7 ingress protection rating. The IP (Ingress Protection) code system classifies the degree of protection provided against the intrusion of solid objects and water. An IPX7 rating specifically indicates that the light is protected against the effects of temporary immersion in water, specifically up to 1 meter (3.3 feet) for 30 minutes. This level of water resistance far exceeds the requirements for typical outdoor exposure, ensuring the internal electronics remain safeguarded against heavy rain, pressure washing, snow, and even shallow submersion. Coupled with its robust housing, this rating guarantees reliable performance in the harshest outdoor environments, from dusty construction sites to icy winter roads.
Operational stability across a wide thermal range is another critical design consideration. The light is certified to perform flawlessly within an operating temperature range of -40°C to +65°C (-40°F to +149°F). This extensive range ensures consistent light output and electronic functionality whether operating in arctic cold or searing desert heat, preventing common issues like reduced light intensity or component failure due to thermal stress.
SAE J595 Class 1 Compliance: The Gold Standard in Warning Illumination
Achieving SAE J595 Class 1 certification signifies that this strobe light meets the highest standards for warning device performance as defined by the Society of Automotive Engineers. SAE J595 specifies minimum photometric, colorimetric, and physical requirements for vehicular warning lamps. Class 1 is designated for devices intended for use on emergency vehicles and other vehicles requiring maximum intensity warning capability for situations where severe hazards exist, or where high-speed traffic or adverse environmental conditions demand the utmost visibility. This includes police, fire, EMS, utility service vehicles, tow trucks, and construction equipment operating on public roadways.
The Class 1 rating guarantees superior optical performance, ensuring the light delivers sufficient intensity and appropriate flash patterns to be highly visible and command attention, thereby significantly enhancing safety for vehicle operators, workers, and the public. Compliance with this standard is often a legal requirement for vehicles engaged in certain types of work or emergency response, making this strobe light an indispensable component for regulatory adherence and optimal safety protocols.
Dynamic Signaling: Nine Versatile Flash Patterns with Synchronous and Alternating Functions
Effective warning lights require not just brightness but also dynamic flash patterns to capture and maintain attention. This unit offers an impressive array of nine distinct flash patterns, providing operators with the flexibility to select the most appropriate warning signal for varying operational contexts and visibility conditions. These patterns include widely utilized options such as six-flash and quad-flash, known for their high impact and recognition. The availability of multiple patterns allows for customization based on specific industry best practices, local regulations, or personal preference, ensuring the warning signal is both effective and non-fatiguing to observe over extended periods.
A particularly advanced feature is the inclusion of both alternating and synchronous functions, specifically available with the quad flash strobe pattern (and potentially other patterns to achieve the total of 9). These functions are paramount for multi-light installations:
- Synchronous Function: Allows multiple strobe lights connected to the same control circuit to flash in unison. This creates a cohesive and powerful visual impact, making the vehicle or work zone appear larger and more prominent, which is crucial for overall situational awareness.
- Alternating Function: Enables lights to flash in an opposing sequence (e.g., left side flashes while right side is off, then vice versa). This creates a dynamic, "side-to-side" or "front-to-back" sweeping effect that is highly effective at drawing attention and indicating movement or direction, further enhancing the warning signal's efficacy in directing traffic or alerting personnel.
Seamless Integration and Electrical Specifications
Designed for universal compatibility and straightforward installation, this recessed strobe light operates within a broad 12-24 Volt DC power range. This versatility makes it suitable for integration into a vast array of vehicle electrical systems, from standard 12V automotive setups to heavier 24V commercial truck and equipment applications, eliminating the need for separate voltage reducers or converters. The minimal current draw of 0.25 Amps at 12 Volts is a testament to the high efficiency of its LED array and sophisticated internal circuitry, ensuring minimal strain on the vehicle's electrical system.
The light features a robust 3-wire blunt cut connection with an 8-inch lead length, providing flexibility for hard-wired installations. This hard-wired design ensures a secure and permanent electrical connection, which is vital for reliability in mobile and vibrating environments. The "blunt cut" nature of the wires allows installers to customize the wiring harness to specific vehicle requirements or to integrate with existing control systems, offering greater adaptability than pre-terminated plugs. The "Remote" built-in switch specification implies that flash pattern selection and on/off control are managed via external wiring or a vehicle's existing switch panel, providing seamless integration into the vehicle's operational controls.
Optimized Recessed Mounting for Durability and Aesthetics
The 4-inch round form factor with a recessed rubber grommet mount offers a clean, low-profile installation that is both aesthetically pleasing and functionally superior. Recessed mounting positions the majority of the light body within the vehicle or equipment panel, minimizing its exposure to external impacts and reducing the risk of damage. The included rubber grommet provides a snug, vibration-dampening fit and helps create a seal against moisture and dust ingress at the mounting point, complementing the light's IPX7 rating. The specified overall width of 5.33 inches likely refers to the external diameter of the rubber grommet or bezel, while the depth/height of 1.04 inches indicates a compact profile for the light assembly itself, making it suitable for various mounting locations without protruding excessively.
This mounting style is particularly advantageous for applications where a flush finish is desired or where protection from external forces is paramount. It allows the light to be integrated almost seamlessly into bumpers, side panels, toolboxes, or other vehicle bodywork, contributing to a professional appearance while enhancing its operational lifespan.
Comprehensive Applications and Investment Protection
The robust design, high visibility, and technical compliance of the 4 Inch Round Recessed Strobe with Amber LEDs make it an ideal warning solution across a diverse range of industries and vehicles, including:
- Commercial Trucks: Delivery, freight, and service vehicles requiring enhanced visibility during stops or while maneuvering.
- Utility Vehicles: Electric, telecommunications, and gas service vehicles operating in roadside or off-road environments.
- Construction Equipment: Excavators, loaders, dozers, and other heavy machinery where a clear warning signal is essential for worker safety.
- Agricultural Machinery: Tractors, harvesters, and sprayers operating in fields and on rural roads.
- Tow Trucks and Recovery Vehicles: Providing critical warning during roadside assistance and vehicle recovery operations.
- Municipal Vehicles: Snow plows, street sweepers, refuse trucks, and maintenance vehicles that require high visibility in dynamic urban environments.
- Emergency Support Vehicles: Ancillary vehicles for fire, police, or EMS that need to establish a safe zone.
Buyers Products stands behind the superior quality and craftsmanship of this warning light with a comprehensive 5-year warranty. This extensive warranty period underscores the manufacturer's confidence in the product's durability and performance, offering users long-term peace of mind and protection for their investment. The combination of advanced LED technology, rugged construction, rigorous certifications, and a strong warranty makes this strobe light a highly reliable and cost-effective solution for any application demanding exceptional warning illumination.
Conclusion
The 4 Inch Round Recessed Strobe with Amber LEDs and Clear Lens is more than just a light; it is a meticulously engineered safety system. From its energy-efficient 24 amber LEDs and clear polycarbonate lens to its SAE J595 Class 1 certification and IPX7 environmental rating, every aspect of its design is optimized for maximum visibility, durability, and operational reliability. The versatility of nine flash patterns, including synchronous and alternating functions, combined with a broad voltage range and a robust recessed mounting system, ensures seamless integration and superior performance in the most challenging conditions. This product represents an indispensable asset for any professional operation committed to enhancing vehicle safety, worker protection, and regulatory compliance, ensuring that warnings are seen and understood when it matters most.
